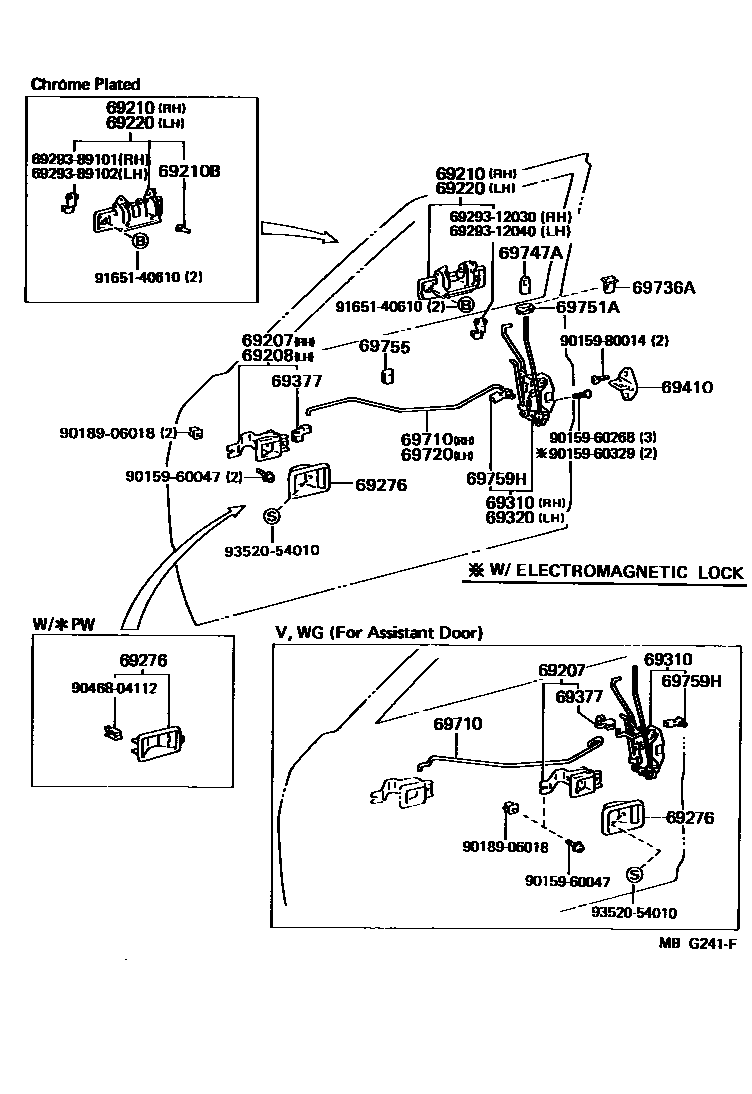

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12070-06iRN60,61..V,WG198403-198608

FR,BROWN,BROWN,TRIM4#

sub69205-12070

main69205-12070-06iLN5#,6#,RN5#,6#,7#..T1198308-198608

BROWN,BROWN,TRIM4#

sub69205-12070

main69205-12070-22iRN61,VZN61..V,WG198608-198903

FR,RED,RED,TRIM3#

sub69205-12070

main69205-12070-22iRN55,6#,VZN6#..(SR5,SRT)..HLF198608-198808

RED,RED,TRIM3#

sub69205-12070

main69205-12070-23iRN60,61..V,WG198403-198608

FR,GRAY,GRAY,TRIM1#

sub69205-12070

main69205-12070-23iLN5#,6#,RN5#,6#,7#..T1198308-198608

GRAY,GRAY,TRIM1#

sub69205-12070

main69205-12070-24iLN5#,6#,RN5#,6#,7#..T1198308-198608

BLUE,BLUE,TRIM8#

sub69205-12070

main69205-12070-24iRN60,61..V,WG198403-198608

FR,BLUE,BLUE,TRIM8#

sub69205-12070

main69205-12070-33iRN61,VZN61..V,WG198608-198903

FR,GRAY,MEDIUM GRAY,TRIM1#

sub69205-12070

main69205-12070-33iLN56,66,RN5#,6#,7#,VZN6#..T1198608-198808

GRAY,MEDIUM GRAY,TRIM1#

sub69205-12070

main69205-12070-35iRN61,VZN61..V,WG198608-198903

FR,BEIGE,BEIGE,TRIM4#

sub69205-12070

main69205-12070-35iLN56,66,RN5#,6#,7#,VZN6#..T1198608-198808

BEIGE,BEIGE,TRIM4#

sub69205-12070

main69205-12070-43iLN56,66,RN5#,6#,7#,VZN6#..T1198608-198808

BLUE,BLUE,TRIM8#

sub69205-12070

main69206-12070-06iRN60,61..V,WG198403-198608

RR,BROWN,BROWN,TRIM4#

sub69206-16040

sub69206-12070

main69206-12070-22iRN61,VZN61..V,WG198608-198903

RR,RED,RED,TRIM3#

sub69206-16040

sub69206-12070

main69206-12070-23iRN60,61..V,WG198403-198608

RR,GRAY,GRAY,TRIM1#

sub69206-16040

sub69206-12070

main69206-12070-24iRN60,61..V,WG198403-198608

RR,BLUE,BLUE,TRIM8#

sub69206-16040

sub69206-12070

main69206-12070-33iRN61,VZN61..V,WG198608-198903

RR,GRAY,MEDIUM GRAY,TRIM1#

sub69206-16040

sub69206-12070

main69206-12070-35iRN61,VZN61..V,WG198608-198903

RR,BEIGE,BEIGE,TRIM4#

sub69206-16040

sub69206-12070

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12070-06iLN5#,6#,RN5#,6#,7#198308-198608

BROWN,BROWN,TRIM4#

sub69206-16040

sub69206-12070

main69206-12070-22iRN61..DLX..EFI198608-198903

RED,RED,TRIM3#

sub69206-16040

sub69206-12070

main69206-12070-23iLN5#,6#,RN5#,6#,7#198308-198608

GRAY,GRAY,TRIM1#

sub69206-16040

sub69206-12070

main69206-12070-24iLN5#,6#,RN5#,6#,7#198308-198608

BLUE,BLUE,TRIM8#

sub69206-16040

sub69206-12070

main69206-12070-33iLN56,66,RN5#,6#,7#,VZN6#198608-198903

GRAY,MEDIUM GRAY,TRIM1#

sub69206-16040

sub69206-12070

main69206-12070-35iLN56,66,RN5#,6#,7#,VZN6#198608-198903

BEIGE,BEIGE,TRIM4#

sub69206-16040

sub69206-12070

main69206-12070-43iLN56,66,RN5#,6#,7#..T1198608-198808

BLUE,BLUE,TRIM8#

sub69206-16040

sub69206-12070

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-89108iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

main69210-89109iLN56,RN5#,6#,7#,VZN6#198308-198903

CHROME PLATED

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iRN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..DLX,SR5198308-198401

CHROME PLATED

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-89108iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

main69220-89109iLN56,RN5#,6#,7#,VZN6#198308-198903

CHROME PLATED

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-89104-03iLN5#,65,RN5#,6#..T1198308-198608

GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-89104-03iRN60,61..V,WG198403-198608

RH FR,LH,GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-89104-04iLN56,66,RN5#,6#,7#..T1..(DLX,SDT,SR5,STD)198308-198608

BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-89104-04iRN60,61..V,WG198403-198608

RH FR,LH,BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-89104-06iLN5#,65,RN5#,6#..T1198308-198608

BROWN,BROWN,TRIM4#

sub69277-32020

sub69277-89104

main69277-89104-06iRN60,61..V,WG198403-198608

RH FR,LH,BROWN,BROWN,TRIM4#

sub69277-32020

sub69277-89104

main69277-89104-12iRN61,VZN61..(V,WG)..EFI198608-198903

RH FR,LH,RED,RED,TRIM3#

sub69277-32020

sub69277-89104

main69277-89104-12iRN55,6#,VZN6#..SR5..HLF198608-198808

RED,RED,TRIM3#

sub69277-32020

sub69277-89104

main69277-89104-25iRN61,VZN61..(V,WG)..EFI198608-198903

RH FR,LH,BEIGE,BEIGE,TRIM4#

sub69277-32020

sub69277-89104

main69277-89104-25iLN56,66,RN5#,6#,7#,VZN6#..T1198608-198808

BEIGE,BEIGE,TRIM4#

sub69277-32020

sub69277-89104

main69277-89104-33iLN56,66,RN5#,6#,7#,VZN6#..T1198608-198808

GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-89104-33iRN61,VZN61..(V,WG)..EFI198608-198903

RH FR,LH,GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-89104-34iLN56,66,RN5#,6#,7#,VZN6#..T1198608-198808

BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-89105-02iRN61,VZN61..V,WG198608-198903

RH RR,RED,RED,TRIM3#

sub69277-89105

main69277-89105-03iRN60,61..V,WG198403-198608

RH RR,GRAY,GRAY,TRIM1#

sub69277-89105

main69277-89105-04iRN60,61..V,WG198403-198608

RH RR,BLUE,BLUE,TRIM8#

sub69277-89105

main69277-89105-05iRN61,VZN61..V,WG198608-198903

RH RR,BEIGE,BEIGE,TRIM4#

sub69277-89105

main69277-89105-06iRN60,61..V,WG198403-198608

RH RR,BROWN,BROWN,TRIM4#

sub69277-89105

main69277-89105-13iRN61,VZN61..V,WG198608-198903

RH RR,GRAY,GRAY,TRIM1#

sub69277-89105

main69277-89108-02iRN61,VZN61..(V,WG)..SR5198708-198903

W/*PW,RH FR,LH,RED,RED,TRIM3#

sub69277-89108

main69277-89108-02iRN55,66,VZN6#..(SR5,SRT)..HLF198608-198808

RED,RED,TRIM3#

sub69277-89108

main69277-89108-03iRN61..(V,WG)..SR5198508-198608

W/*PW,RH FR,LH,GRAY,GRAY,TRIM1#

sub69277-89108

main69277-89108-03iRN55,66..TBO198508-198608

GRAY,GRAY,TRIM1#

sub69277-89108

main69277-89108-03iRN55,66..TBO198508-198608

W/*PW,GRAY,GRAY,TRIM1#

sub69277-89108

main69277-89108-03iRN55,66..TBO198508-198608

RH FR,LH,GRAY,GRAY,TRIM1#

sub69277-89108

main69277-89108-04iRN61..(V,WG)..SR5198508-198608

W/*PW,BLUE,BLUE,TRIM8#

sub69277-89108

main69277-89108-04iRN61..(V,WG)..SR5198508-198608

RH FR,LH,BLUE,BLUE,TRIM8#

sub69277-89108

main69277-89108-04iRN61..(V,WG)..SR5198508-198608

W/*PW,RH FR,LH,BLUE,BLUE,TRIM8#

sub69277-89108

main69277-89108-04iRN55,66..TBO198508-198608

BLUE,BLUE,TRIM8#

sub69277-89108

main69277-89108-05iRN55,66,VZN6#..(SR5,SRT)..HLF198608-198808

BEIGE,BEIGE,TRIM4#

sub69277-89108

main69277-89108-05iRN61,VZN61..(V,WG)..SR5198708-198903

W/*PW,RH FR,LH,BEIGE,BEIGE,TRIM4#

sub69277-89108

main69277-89108-06iRN55,6#..SR5..HLF198508-198608

W/*PW,RH FR,LH,BROWN,BROWN,TRIM4#

sub69277-89108

main69277-89108-06iRN55,66..TBO198508-198608

BROWN,BROWN,TRIM4#

sub69277-89108

main69277-89108-06iRN55,66..TBO198508-198608

W/*PW,BROWN,BROWN,TRIM4#

sub69277-89108

main69277-89108-06iRN55,66..TBO198508-198608

RH FR,LH,BROWN,BROWN,TRIM4#

sub69277-89108

main69277-89108-13iRN55,66..TBO198608-198808

GRAY,GRAY,TRIM1#

sub69277-89108

main69277-89108-13iRN61,VZN61..(V,WG)..SR5198708-198903

W/*PW,RH,FR,LH,GRAY,GRAY,TRIM1#

sub69277-89108

main69277-89108-14iRN55,66,VZN6#..(SR5,SRT)..HLF198608-198808

BLUE,BLUE,TRIM8#

sub69277-89108

69310LOCK ASSY, FRONT DOOR, RH

main69310-89109iLN56,66,RN5#,6#,7#..T1..(DLX,SDT,SR5,STD)198308-198708

main69310-89110iRN60..V,WG198403-198708

main69310-89111iRN55,66..TBO198508-198708

W/ELECTROMAGNETIC LOCK

main69310-89112iRN61..(V,WG)..SR5198508-198708

W/ELECTROMAGNETIC LOCK

main69310-89114iRN5#,6#,7#,VZN6#..T1198708-198808

main69310-89115iRN61,VZN61..V,WG198708-198903

main69310-89116iRN55,6#,VZN6#..(SR5,SRT)..HLF198708-198903

W/ELECTROMAGNETIC LOCK

main69310-89117iRN61,VZN61..(V,WG)..SR5198708-198903

W/ELECTROMAGNETIC LOCK

69320LOCK ASSY, FRONT DOOR, LH

main69320-89109iLN5#,65,RN5#,60,65198308-198708

main69320-89112iRN55,6#..SRT198508-198708

W/ELECTROMAGNETIC LOCK

main69320-89115iRN5#,6#,7#,VZN6#198708-198903

main69320-89116iRN55,6#,VZN6#..SR5,SRT198708-198903

W/ELECTROMAGNETIC LOCK

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20060iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

RH

main69759-20060iRN60,61,VZN61..V,WG198403-198903

RH FR

main69759-20070iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

LH

main69759-20070iRN60,61,VZN61..V,WG198403-198903

RH RR,LH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-89102iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

main69711-89103iRN60,61,VZN61..V,WG198403-198903

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-89102iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030iRN50..4HC,5F;RN61,VZN61..(G,R)..STD..IV198610-198808

VALUE PACKAGE

main69736-12030iRN55..10T..USA198408-198903

main69736-22021iLN56,65,RN5#,6#..DLX,SR5198311-198408

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32010-14iLN5#,65,RN5#,6#198308-198411

BLUE,BLUE,TRIM8#

sub69741-32010

sub69741-90K00

main69741-32010-26iLN5#,65,RN5#,6#198308-198411

BROWN,BROWN,TRIM4#

sub69741-32010

sub69741-90K00

main69741-32010-33iLN5#,65,RN5#,6#198308-198411

GRAY,GRAY,TRIM1#

sub69741-32010

sub69741-90K00

main69741-89102-02iRN55,6#,VZN6#..SR5,SRT198608-198903

RED,RED,TRIM3#

sub69741-89104

sub69741-89102

main69741-89102-03iLN56,66,RN5#,6#,7#198508-198608

GRAY,GRAY,TRIM1#

sub69741-89104

sub69741-89102

main69741-89102-04iLN56,66,RN5#,6#,7#198508-198608

BLUE,BLUE,TRIM8#

sub69741-89104

sub69741-89102

main69741-89102-05iLN56,66,RN5#,6#,7#,VZN6#198608-198903

BEIGE,BEIGE,TRIM4#

sub69741-89104

sub69741-89102

main69741-89102-06iLN56,66,RN5#,6#,7#198508-198608

BROWN,BROWN,TRIM4#

sub69741-89104

sub69741-89102

main69741-89102-13iLN56,66,RN5#,6#,7#,VZN6#198608-198903

GRAY,GRAY,TRIM1#

sub69741-89104

sub69741-89102

main69741-89102-14iLN56,66,RN5#,6#,7#,VZN6#198608-198903

BLUE,BLUE,TRIM8#

sub69741-89104

sub69741-89102

main69741-90K00-04iLN5#,65,RN5#,6#198411-198508

BLUE,BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-13iLN5#,65,RN5#,6#198411-198508

GRAY,GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-16iLN5#,65,RN5#,6#198411-198508

BROWN,BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-20031-13iLN51,RN5#,60..STD198308-198311

GRAY,GRAY,TRIM1#

sub69751-20031

main69751-20031-14iLN51,RN5#,60..STD198308-198311

BLUE,BLUE,TRIM8#

sub69751-20031

main69751-20031-16iLN51,RN5#,60..STD198308-198311

BROWN,BROWN,TRIM4#

sub69751-20031

main69751-20040iRN55..10T..USA198508-198608

DLX PACKAGE

main69751-20040iLN56,6#,RN5#,6#,7#..DLX,SR5198308-198608

main69751-20060-10iRN55..10T..USA198608-198808

DLX PACKAGE,BLUE,BLUE,TRIM8#

sub69751-20060

sub69751-12030

main69751-20060-10iRN55..10T..USA198608-198808

BLUE,BLUE,TRIM8#

sub69751-20060

sub69751-12030

main69751-20060-10iRN50,70..CND..CBR198610-198808

VALUE PACKAGE,BLUE,BLUE,TRIM8#

sub69751-20060

sub69751-12030

main69751-20060-12iRN61..DLX..EFI198608-198903

RED,RED,TRIM3#

sub69751-20060

sub69751-12030

main69751-20060-13iRN55,6#..SRT198508-198608

GRAY,GRAY,TRIM1#

sub69751-20060

sub69751-12030

main69751-20060-23iRN50..4HC,5F;RN61..CBR..IV198610-198808

VALUE PACKAGE,GRAY,MEDIUM GRAY,TRIM1#

sub69751-20060

sub69751-12030

main69751-20060-23iLN66,RN55,6#,7#,VZN6#..DLX,SR5,SRT198608-198903

GRAY,MEDIUM GRAY,TRIM1#

sub69751-20060

sub69751-12030

main69751-20060-23iRN55..10T..USA198608-198808

DLX PACKAGE,GRAY,MEDIUM GRAY,TRIM1#

sub69751-20060

sub69751-12030

main69751-20060-26iRN55,6#..SRT198508-198608

BROWN,BROWN,TRIM4#

sub69751-20060

sub69751-12030

main69751-20060-34iRN55,6#..SRT198508-198608

BLUE,BLUE,TRIM8#

sub69751-20060

sub69751-12030

main69751-20060-35iRN50,70..CND..CBR198610-198808

VALUE PACKAGE,BEIGE,BEIGE,TRIM4#

sub69751-20060

sub69751-12030

main69751-20060-35iLN66,RN55,6#,7#,VZN6#..DLX,SR5,SRT198608-198903

BEIGE,BEIGE,TRIM4#

sub69751-20060

sub69751-12030

main69751-20060-35iRN55..10T..USA198608-198808

DLX PACKAGE,BEIGE,BEIGE,TRIM4#

sub69751-20060

sub69751-12030

main69751-89101-03iLN51,RN5#,60,61,75..SDT,STD198408-198608

GRAY,GRAY,TRIM1#

sub69751-89101

main69751-89101-03iRN70..USA..CBU198601-198608

ECONOMY PACKAGE,GRAY,GRAY,TRIM1#

sub69751-89101

main69751-89101-04iLN51,RN5#,60,61,75..SDT,STD198408-198608

BLUE,BLUE,TRIM8#

sub69751-89101

main69751-89101-04iRN70..USA..CBU198601-198608

ECONOMY PACKAGE,BLUE,BLUE,TRIM8#

sub69751-89101

main69751-89101-06iRN70..USA..CBU198601-198608

ECONOMY PACKAGE,BROWN,BROWN,TRIM4#

sub69751-89101

main69751-89101-06iLN51,RN5#,60,61,75..SDT,STD198408-198608

BROWN,BROWN,TRIM4#

sub69751-89101

main69751-89101-13iLN56,RN5#,6#,7#,VZN61..SDT,STD198608-198808

GRAY,GRAY,TRIM1#

sub69751-89101

main69751-89101-15iLN56,RN5#,6#,7#,VZN61..SDT,STD198608-198808

BEIGE,BEIGE,TRIM4#

sub69751-89101

main69751-89101-24iLN56,RN5#,6#,7#,VZN61..SDT,STD198608-198808

BLUE,BLUE,TRIM8#

sub69751-89101

main69751-90A00-04iLN51,RN5#,60..STD198311-198408

BLUE,BLUE,TRIM8#

sub69751-90A00

main69751-90A00-13iLN51,RN5#,60..STD198311-198408

GRAY,GRAY,TRIM1#

sub69751-90A00

main69751-90A00-16iLN51,RN5#,60..STD198311-198408

BROWN,BROWN,TRIM4#

sub69751-90A00

69755SILENCER, FRONT DOOR LOCK LINK

main69759-89102iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20040iLN5#,6#,RN5#,6#,7#198308-198903

LH,YELLOW

main69759-20050iLN5#,6#,RN5#,6#,7#198308-198903

RH,BROWN

main69759-20100iLN5#,6#,RN5#,6#,7#198308-198903

RH,RED

main69759-20110iLN5#,6#,RN5#,6#,7#198308-198903

LH,BLACK

main69759-24010iLN5#,6#,RN5#,6#,7#198308-198903

RH,NATURAL

main69759-24020iLN5#,6#,RN5#,6#,7#198308-198903

LH,BLUE

6929312030HANDLE, BACK DOOR

main69293-12030

6929312040HANDLE, BACK DOOR

main69293-12040

6929389101HANDLE, BACK DOOR

main69293-89101

6929389102HANDLE, BACK DOOR

main69293-89102

9015960047

main90159-60047

9015960268

main90159-60268

9015960329

main90159-60329

9015980014

main90159-80014

9018906018

main90189-06018

9046804112

main90468-04112

9165140610

main91651-40610

9352054010

main93520-54010

29 parts on this diagram · 1 diagram in section
