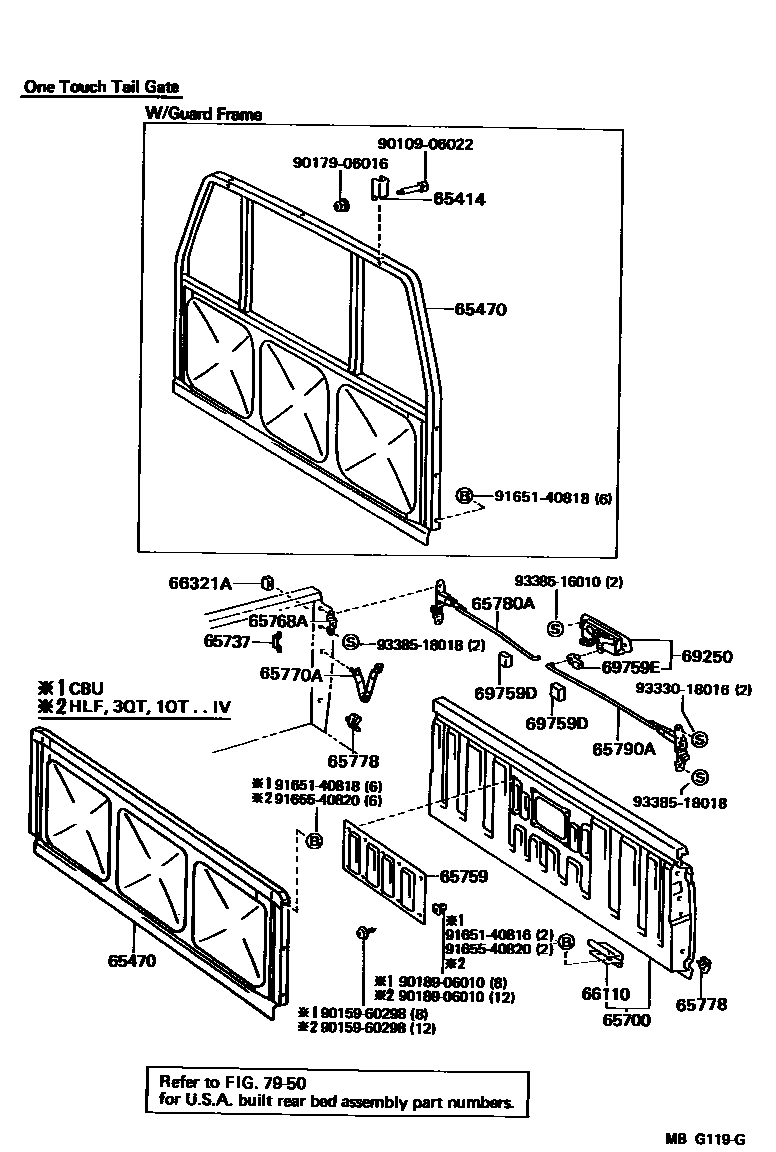

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65414STOPPER, GUARD FRAME

main65414-89102iRN55..3QT..USA..CBU;RN55..(DLX,SR5)..USA..CBU198308-198808

W/GUARD FRAME

65470BOARD ASSY, HEADER

main65470-89112iLN65,RN50,6#..HLF..USA..CBU198308-198408

W/GUARD FRAME

sub65470-89122

main65470-89113iLN56,65,RN5#,6#..T1..CBU198308-198408

sub65470-89123

main65470-89120iRN50..(4F,4FC)..USA;RN55,60..T1..USA..CBU;LN56,65,RN50,65..(DLX,SR5)..USA..CBU198408-198608

W/GUARD FRAME

sub65470-89125

main65470-89121iLN5#,6#,RN5#,6#,70..T1..CBU198408-198601

sub65470-89126

main65470-89125iRN55..STD..HLF..CND..EFI;RN5#,6#,70,VZN6#..T1..USA..CBU198601-198808

W/GUARD FRAME

main65470-89126iLN56,66,RN5#,6#,70,VZN6#..T1..CBU198601-198808

65700GATE ASSY, REAR BODY TAIL

main65700-89126iRN55..STD..HLF198308-198408

TWO LATCH TYPE

sub65700-89142

main65700-89129iRN50..USA..CBR198308-198408

ONE TOUCH TYPE

sub65700-89131

main65700-89131iLN56,65,RN5#,6#..T1..CND..CBU198308-198408

sub65700-89143

main65700-89132iRN55..USA..(EFI,TBO)..CBU198508-198608

ONE TOUCH TYPE,W/TOYOTA MARK

sub65700-89138

main65700-89132iLN56,6#,RN5#,6#,70..T1..CND..CBU198408-198608

sub65700-89138

main65700-89132iRN6#,70..HLF..USA..CBU198508-198608

W/TOYOTA MARK

sub65700-89138

main65700-89133iLN51,RN50..STD..USA198408-198708

TWO LATCH TYPE

sub65700-89139

main65700-89134iRN50..USA..CBR198503-198608

TWO LATCH TYPE,W/TOYOTA MARK

main65700-89135iLN56,RN55..XTR..USA..CBU198408-198508

ONE TOUCH TYPE

sub65700-89138

main65700-89135iRN50..(4F,4FC)..USA;RN55..RCB..USA..CBR..CBU198408-198508

ONE TOUCH TYPE,*GIS PACKAGE

sub65700-89138

main65700-89136iRN5#..RCB..USA..CBR..CBU198408-198608

ONE TOUCH TYPE

sub65700-89140

main65700-89138iLN56,66,RN5#,6#,70,VZN6#..T1..CBU198608-198808

ONE TOUCH TYPE,W/TOYOTA MARK

main65700-89139iRN50..USA198608-198808

TWO LATCH TYPE

main65700-89140iRN5#..USA..CBR198608-198808

ONE TOUCH TYPE

65737STOP, TAIL GATE

main65737-89105iLN56,66,RN5#,6#,70,VZN6#..10T,HLF198508-198808

65759COVER, TAIL GATE SERVICE HOLE

main65759-89102iRN5#..STD..CND..CBR198308-198903

main65759-89102iRN5#..STD..CND198308-198708

ONE TOUCH TAIL GATE

65768ASTRIKER, TAIL GATE LOCK

main65768-89102iLN5#,65,RN6#..HLF198308-198508

ONE TOUCH TAIL GATE

main65768-89102iLN56,66,RN5#,6#,70,VZN6#..10T,HLF198308-198808

65770ASTAY ASSY, TAIL GATE

main65770-89102iRN50..USA..CBR198308-198508

ONE TOUCH TAIL GATE

main65770-89102iLN56,66,RN5#,6#,70,VZN6#..10T,HLF198308-198808

65778STOPPER, TAIL GATE STAY

main65778-89102iRN5#..(DLX,SR5)..HLF198308-198408

ONE TOUCH TAIL GATE

main65778-89104iRN5#..STD..CND..CBR198408-198508

ONE TOUCH TAIL GATE

main65778-89104iLN56,66,RN5#,6#,70,VZN6#..10T,HLF198508-198808

65780ALOCK ASSY, TAIL GATE, RH

main65780-89102iLN5#,65,RN6#..HLF198308-198508

ONE TOUCH TAIL GATE

main65780-89102iRN55..10T,3QT198308-198508

main65780-89103iLN56,66,RN5#,6#,70,VZN6#..10T,HLF198508-198808

65790ALOCK ASSY, TAIL GATE, LH

main65790-89102iLN5#,65,RN6#..HLF198308-198508

ONE TOUCH TAIL GATE

main65790-89102iRN55..10T,3QT198308-198508

main65790-89103iLN56,66,RN5#,6#,70,VZN6#..10T,HLF198508-198808

66110HINGE ASSY, TAIL GATE

main66110-89105iLN5#,6#,RN5#,6#,70,VZN6#..10T,3QT,HLF198308-198808

66321ABUMPER, GATE RUBBER

main66321-89107iLN5#,65,RN6#..HLF198308-198508

ONE TOUCH TAIL GATE

main66321-89107iRN55..10T,3QT198308-198508

main66321-89108iLN56,66,RN5#,6#,70,VZN6#..10T,HLF198508-198808

69250HANDLE ASSY, TAIL GATE LOCK

main69230-89101iLN51,RN5#..STD..HLF..USA198308-198508

ONE TOUCH TAIL GATE

main69230-89101iRN55..10T,3QT198308-198808

69759DSILENCER, TAIL GATE LOCK LINK

main69759-89105iRN50..USA..CBR198308-198508

0NE TOUCH TAIL GATE

main69759-89105iRN55..10T,3QT198308-198808

69759ESNAP, TAIL GATE LOCK LINK

main69759-20100iRN5#..(DLX,SR5,SRT)..HLF198308-198808

RH

main69759-20100iLN5#,65,RN6#..HLF198308-198508

RH,ONE TOUCH TAIL GATE

main69759-20110iRN55..10T,3QT198308-198808

LH

main69759-20110iLN5#,65,RN6#..HLF198308-198508

LH,ONE TOUCH TAIL GATE

7950

9010906022

main90109-06022

9015960298

main90159-60298

9017906016

main90179-06016

9018906010

main90189-06010

9165140816

main91651-40816

9165140818

main91651-40818

9165540820

main91655-40820

9333018016

main93330-18016

9338516010

main93385-16010

9338518018

main93385-18018

26 parts on this diagram · 2 diagrams in section
