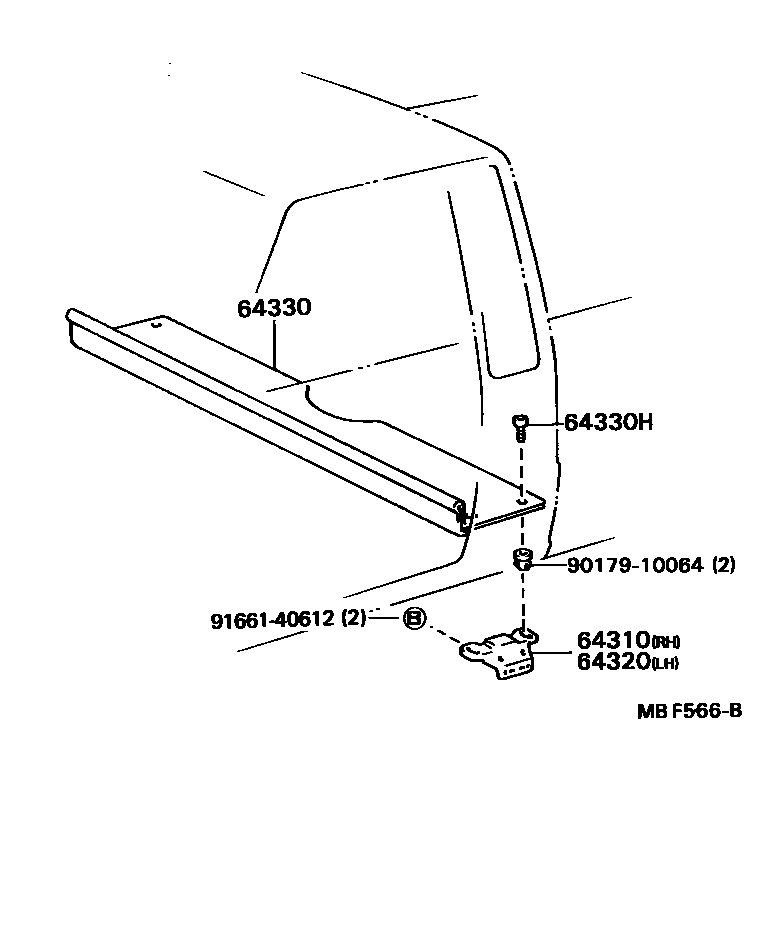

PACKAGE TRAY PANEL

64310BRACKET, PACKAGE TRAY TRIM, RH

main64321-89101iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

64320BRACKET, PACKAGE TRAY TRIM, LH

main64321-89101iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

64330PANEL ASSY, PACKAGE TRAY TRIM

main64303-89101-02iRN55,66,VZN66..SR5,SRT198608-198808

RED,RED,TRIM3#

sub64303-89101

main64303-89101-03iLN56,65,RN55,65..XTR198309-198508

LIGHT GRAY,GRAY,TRIM1#

sub64303-89101

main64303-89101-04iLN56,65,RN55,65..XTR198309-198508

LIGHT BLUE,BLUE,TRIM8#

sub64303-89101

main64303-89101-05iLN66,RN55,66,70,VZN66..XTR198608-198808

BEIGE,BEIGE,TRIM4#

sub64303-89101

main64303-89101-06iLN56,65,RN55,65..XTR198309-198508

LIGHT BROWN,BROWN,TRIM4#

sub64303-89101

main64303-89101-13iLN66,RN55,66,70..XTR198508-198608

GRAY,GRAY,TRIM1#

sub64303-89101

main64303-89101-14iLN66,RN55,66,70..XTR198508-198608

BLUE,BLUE,TRIM8#

sub64303-89101

main64303-89101-16iLN66,RN55,66,70..XTR198508-198608

BROWN,BROWN,TRIM4#

sub64303-89101

main64303-89101-23iLN66,RN55,66,70,VZN66..XTR198608-198808

GRAY,GRAY,TRIM1#

sub64303-89101

main64303-89101-24iLN66,RN55,66,70,VZN66..XTR198608-198808

BLUE,BLUE,TRIM8#

sub64303-89101

64330HBOLT(FOR PACKAGE TRAY TRIM PANEL)

main90109-10064-02iRN55,66,VZN66..SR5,SRT198608-198808

RED,RED,TRIM3#

sub90109-10064

main90109-10064-03iLN56,65,RN55,65..XTR198309-198508

GRAY,GRAY,TRIM1#

sub90109-10064

main90109-10064-04iLN56,65,RN55,65..XTR198309-198508

BLUE,BLUE,TRIM8#

sub90109-10064

main90109-10064-05iLN66,RN55,66,70,VZN66..XTR198608-198808

BEIGE,BEIGE,TRIM4#

sub90109-10064

main90109-10064-06iLN56,65,RN55,65..XTR198309-198508

BROWN,BROWN,TRIM4#

sub90109-10064

main90109-10064-13iLN66,RN55,66,70..XTR198508-198608

GRAY,GRAY,TRIM1#

sub90109-10064

main90109-10064-14iLN66,RN55,66,70..XTR198508-198608

BLUE,BLUE,TRIM8#

sub90109-10064

main90109-10064-16iLN66,RN55,66,70..XTR198508-198608

BROWN,BROWN,TRIM4#

sub90109-10064

main90109-10064-23iLN66,RN55,66,70,VZN66..XTR198608-198808

GRAY,GRAY,TRIM1#

sub90109-10064

main90109-10064-24iLN66,RN55,66,70,VZN66..XTR198608-198808

BLUE,BLUE,TRIM8#

sub90109-10064

9017910064

main90179-10064

9166140612

main91661-40612

6 parts on this diagram · 1 diagram in section
