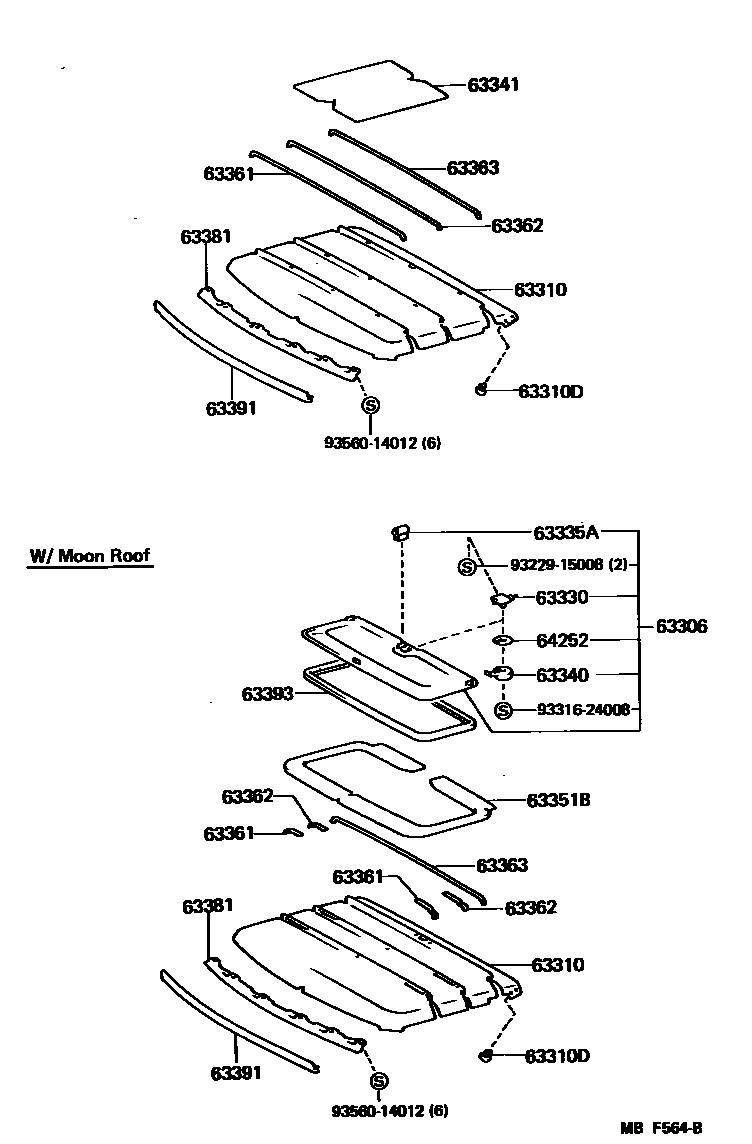

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63306TRIM SUB-ASSY, SUNSHADE

main63306-89101-02iRN55,6#,VZN6#..SR5,SRT198608-198903

W/MOON ROOF,RED,RED,TRIM3#

main63306-89101-03iRN5#,6#..SR5,SRT198308-198608

W/MOON ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

main63306-89101-05iRN55,6#,VZN6#..SR5,SRT198608-198903

W/MOON ROOF,BEIGE,BEIGE,TRIM4#

main63306-89101-08iRN5#,6#..SR5,SRT198308-198608

W/MOON ROOF,IVORY,IVORY,TRIM4#

main63306-89101-13iRN55,6#,VZN6#..SR5,SRT198608-198903

W/MOON ROOF,GRAY,GRAY,TRIM1#,8#

63310HEADLINING ASSY, ROOF

main63311-89106-02iRN61,VZN61..SR5..HLF198608-198808

RED,RED,TRIM3#

main63311-89106-03iLN5#,65,RN5#,6#,75..RCB198308-198608

LIGHT GRAY,GRAY,TRIM1#,8#

main63311-89106-05iLN56,RN5#,6#,75,VZN6#..RCB198608-198808

BEIGE,BEIGE,TRIM4#

main63311-89106-08iLN5#,65,RN5#,6#,75..RCB198308-198608

IVORY,IVORY,TRIM4#

main63311-89106-13iLN56,RN5#,6#,75,VZN6#..RCB198608-198808

GRAY,GRAY,TRIM1#,8#

main63311-89107-02iRN61,VZN61..SR5..HLF198608-198808

W/MOON ROOF,RED,RED,TRIM3#

main63311-89107-03iRN5#,6#..RCB..SR5198308-198608

W/MOON ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

main63311-89107-05iRN61,VZN61..SR5..HLF198608-198808

W/MOON ROOF,BEIGE,BEIGE,TRIM4#

main63311-89107-08iRN5#,6#..RCB..SR5198308-198608

W/MOON ROOF,IVORY,IVORY,TRIM4#

main63311-89107-13iRN61,VZN61..SR5..HLF198608-198808

W/MOON ROOF,GRAY,GRAY,TRIM1#,8#

main63311-89109-02iRN55,66,VZN66..SR5198608-198808

RED,RED,TRIM3#

main63311-89109-03iLN66,RN55,66,70..XTR..(DLX,SR5)198309-198608

LIGHT GRAY,GRAY,TRIM1#,8#

main63311-89109-05iLN66,RN55,66,70..XTR..(CBR,EFI,TD)198608-198808

BEIGE,BEIGE,TRIM4#

main63311-89109-08iLN56,65,RN55,65..XTR198309-198608

IVORY,IVORY,TRIM4#

main63311-89109-13iRN55,66,70,VZN66..XTR198608-198808

GRAY,GRAY,TRIM1#,8#

main63311-89111-02iRN55,66..SR5198608-198808

W/MOON ROOF,RED,RED,TRIM3#

main63311-89111-03iRN55,65..XTR..(SR5,SRT)198309-198608

W/MOON ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

main63311-89111-05iRN55,66,VZN66..SR5,SRT198608-198808

W/MOON ROOF,BEIGE,BEIGE,TRIM4#

main63311-89111-08iRN55,66..XTR..SR5198309-198608

W/MOON ROOF,IVORY,IVORY,TRIM4#

main63311-89111-13iRN55,66,VZN66..SR5,SRT198608-198808

W/MOON ROOF,GRAY,GRAY,TRIM1#,8#

main63311-89114-02iRN61,VZN61..(V,WG)..EFI198608-198903

RED,RED,TRIM3#

main63311-89114-03iRN60,61..(V,WG)..(CBR,EFI)198403-198608

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

main63311-89114-05iRN61,VZN61..(V,WG)..EFI198608-198903

BEIGE,BEIGE,TRIM4#

main63311-89114-08iRN60,61..(V,WG)..(CBR,EFI)198403-198608

IVORY,IVORY,TRIM4#

main63311-89114-13iRN61,VZN61..(V,WG)..EFI198608-198903

GRAY,GRAY,TRIM1#

main63311-89115-02iRN61,VZN61..(V,WG)..SR5198608-198903

W/MOON ROOF,RED,RED,TRIM3#

main63311-89115-03iRN60,61..(V,WG)..SR5198403-198608

W/MOON ROOF,LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

main63311-89115-05iRN61,VZN61..(V,WG)..SR5198608-198903

W/MOON ROOF,BEIGE,BEIGE,TRIM4#

main63311-89115-08iRN60,61..(V,WG)..SR5198403-198608

W/MOON ROOF,IVORY,IVORY,TRIM4#

main63311-89115-13iRN61,VZN61..(V,WG)..SR5198608-198903

W/MOON ROOF,GRAY,GRAY,TRIM1#,8#

main63311-89117-02iRN55,66,VZN66..SR5,SRT198708-198808

POWER PACKAGE,RED,RED,TRIM3#

main63311-89117-02iRN55,66..TBO198608-198708

RED,RED,TRIM3#

main63311-89117-03iRN55,66..TBO198508-198608

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

main63311-89117-05iRN55,66..TBO198608-198708

BEIGE,BEIGE,TRIM4#

main63311-89117-05iRN55,66,VZN66..SR5,SRT198708-198808

POWER PACKAGE,BEIGE,BEIGE,TRIM4#

main63311-89117-08iRN55,66..TBO198508-198608

IVORY,IVORY,TRIM4#

main63311-89117-13iRN55,66,VZN66..SR5,SRT198708-198808

POWER PACKAGE,GRAY,GRAY,TRIM1#,8#

main63311-89117-13iRN55,66..TBO198608-198708

GRAY,GRAY,TRIM1#,8#

main63311-89118-02iRN55,66..SR5,SRT198708-198808

POWER PACKAGE,W/MOON ROOF,RED,RED,TRIM3#

main63311-89118-02iRN55,66..TBO198608-198708

W/MOON ROOF,RED,RED,TRIM3#

main63311-89118-03iRN55,66..TBO198508-198608

W/MOON ROOF,LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

main63311-89118-05iRN55,66..TBO198608-198708

W/MOON ROOF,BEIGE,BEIGE,TRIM4#

main63311-89118-05iRN55,66..SR5,SRT198708-198808

BEIGE,TRIM4#

main63311-89118-08iRN55,66..TBO198508-198608

W/MOON ROOF,IVORY,IVORY,TRIM4#

main63311-89118-13iRN55,66..SR5,SRT198708-198808

POWER PACKAGE,W/MOON ROOF,GRAY,GRAY,TRIM1#,8#

main63311-89118-13iRN55,66..TBO198608-198708

W/MOON ROOF,GRAY,GRAY,TRIM1#,8#

main63311-89119-02iRN61..SRT198608-198708

RED,RED,TRIM3#

main63311-89119-02iRN61,VZN61..(V,WG)..SR5198708-198903

POWER PACKAGE,RED,RED,TRIM3#

main63311-89119-03iRN61..SRT198508-198608

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

main63311-89119-05iRN61..SRT198608-198708

BEIGE,BEIGE,TRIM4#

main63311-89119-05iRN61,VZN61..(V,WG)..SR5198708-198903

POWER PACKAGE,BEIGE,BEIGE,TRIM4#

main63311-89119-08iRN61..SRT198508-198608

IVORY,IVORY,TRIM4#

main63311-89119-13iRN61..SRT198608-198708

GRAY,GRAY,TRIM1#,8#

main63311-89119-13iRN61,VZN61..(V,WG)..SR5198708-198903

POWER PACKAGE,GRAY,GRAY,TRIM1#

main63311-89120-02iRN61..SRT198608-198708

W/MOON ROOF,RED,RED,TRIM3#

main63311-89120-02iRN61,VZN61..(V,WG)..SR5198708-198903

POWER PACKAGE & W/MOON ROOF,RE,RED,TRIM3#

main63311-89120-03iRN61..SRT198508-198608

W/MOON ROOF,LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

main63311-89120-05iRN61..SRT198608-198708

W/MOON ROOF,BEIGE,BEIGE,TRIM4#

main63311-89120-05iRN61,VZN61..(V,WG)..SR5198708-198903

POWER PACKAGE,W/MOON ROOF,BEIGE,BEIGE,TRIM4#

main63311-89120-08iRN61..SRT198508-198608

W/MOON ROOF,IVORY,IVORY,TRIM4#

main63311-89120-13iRN61..SRT198608-198708

W/MOON ROOF,GRAY,GRAY,TRIM1#,8#

main63311-89120-13iRN61,VZN61..(V,WG)..SR5198708-198903

POWER PACKAGE & W/MOON ROOF,GR,GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-10044-02iRN61,VZN61..SR5,SRT198608-198903

RED,RED,TRIM3#

sub90467-10044

main90467-10044-03iRN60..IV;LN5#,65,RN5#,65..RCB;RN60..(DLX,STD)..CBU198308-198312

LIGHT GRAY,GRAY,TRIM1#,8#

sub90467-10044

main90467-10044-05iRN61,VZN61;LN56,RN5#,66,75,VZN66..RCB198608-198903

BEIGE,BEIGE,TRIM4#

sub90467-10044

main90467-10044-08iLN51,RN50,60,61,75;LN56,65,RN55,65,66..RCB198308-198608

IVORY,IVORY,TRIM4#

sub90467-10044

main90467-10044-23iLN51,RN50,60,61,75;LN56,65,RN55,65,66..RCB198312-198608

LIGHT GRAY,GRAY,TRIM1#,8#

sub90467-10044

main90467-10044-33iRN61,VZN61;LN56,RN5#,66,75,VZN66..RCB198608-198903

GRAY,GRAY,TRIM1#,8#

sub90467-10044

63330LOCK ASSY, SUNSHADE TRIM

main63330-89101iRN5#,6#,VZN6#..SR5,SRT198308-198903

63335ACUSHION, SUNSHADE TRIM, NO.1

main63335-89101iRN5#,6#,VZN6#..SR5,SRT198503-198903

63340HANDLE ASSY, SUNSHADE TRIM LOCK

main63340-12010-02iRN55,6#,VZN6#..SR5,SRT198608-198903

RED,RED,TRIM3#

sub63340-12010

main63340-12010-05iRN55,6#,VZN6#..SR5,SRT198608-198903

BEIGE,BEIGE,TRIM4#

sub63340-12010

main63340-12010-13iRN5#,6#..SR5,SRT198403-198608

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

sub63340-12010

main63340-12010-23iRN55,6#,VZN6#..SR5,SRT198608-198903

GRAY,GRAY,TRIM1#,8#

sub63340-12010

main63340-12010-28iRN5#,6#..SR5,SRT198403-198608

IVORY,IVORY,TRIM4#

sub63340-12010

main63340-89101-03iRN5#,65..SR5;RN60..SR5..IV198308-198312

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

sub63340-12010

main63340-89101-08iRN5#,65..SR5;RN60..SR5..IV198308-198403

IVORY,IVORY,TRIM4#

sub63340-12010

main63340-89101-13iRN5#,65..SR5;RN60..SR5..IV198312-198403

LIGHT GRAY,GRAY,TRIM1#,8#

sub63340-12010

main63341-89113iRN55,66..RCB;LN56,RN50,61,75198508-198708

sub63341-89116

63341PAD, ROOF SILENCER, NO.1

main63341-89110iLN51,RN50,60;LN56,65,RN55,65..RCB198308-198508

main63341-89111iLN56,65,RN55,65..XTR198309-198508

sub63341-22H92

main63341-89113iRN55,66..RCB;LN56,RN50,61,75198508-198708

sub63341-89116

main63341-89114iLN66,RN55,66,70,VZN66..XTR198508-198808

sub63341-22H92

main63341-89116iRN61,VZN61;RN5#,66,75,VZN66..RCB198708-198903

sub63341-22H92

63351BPAD, ROOF HEADLINING

main63351-89103iRN5#,6#,VZN61..RCB..SR5198308-198808

W/MOON ROOF

main63351-89104iRN55,65..XTR..SR5198309-198501

PLANT.P11,W/MOON ROOF

sub63351-89106

main63351-89106iRN55,65..XTR..EFI198412-198501

PLANT.A51-A54,W/MOON ROOF

main63351-89106iRN55,66,VZN66..XTR..(SR5,SRT)198408-198903

W/MOON ROOF

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-89110iRN5#,6#..(SR5,SRT)..HLF198308-198808

W/MOON ROOF,L=160

main63361-89112iRN60,61,VZN61..(V,WG)..(SR5,SRT)198403-198903

W/MOON ROOF,L=159

main63362-89101iLN5#,6#,RN5#,6#,7#..T1198308-198808

L=1200

main63362-89105iRN60,61,VZN61..V,WG198403-198903

L=1210,PINK

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-89110iRN5#,6#..(SR5,SRT)..HLF198308-198808

W/MOON ROOF,L=160

main63361-89112iRN60,61,VZN61..(V,WG)..(SR5,SRT)198403-198903

W/MOON ROOF,L=159

main63362-89101iLN5#,6#,RN5#,6#,7#..T1198308-198808

L=1200

main63362-89105iRN60,61,VZN61..V,WG198403-198903

L=1210,PINK

63363SUPPORT, ROOF HEADLINING, NO.3

main63362-89101iLN5#,65,RN5#,6#,75,VZN6#..RCB198308-198808

L=1200

main63362-89103iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

L=1220,WHITE

main63362-89104iRN5#,6#,VZN61..RCB..SR5198308-198808

W/MOON ROOF,L=1190,BLACK

main63362-89105iRN55,65,66,VZN66..XTR..(SR5,SRT)198309-198808

W/MOON ROOF,L=1210,PINK

main63363-89102iRN60,61,VZN61..V,WG198403-198903

L=1180,GREEN

63381RETAINER, HEADLINING, FRONT

main63381-89103iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

63391TRIM, ROOF HEADLINING, FRONT

main63391-89102-02iRN55,6#,VZN6#..SR5,SRT198608-198903

RED,RED,TRIM3#

sub63391-89102

main63391-89102-03iRN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU198308-198312

LIGHT GRAY,GRAY,TRIM1#,8#

sub63391-89102

main63391-89102-04iLN56,66,RN5#,6#,7#198508-198608

BLUE,BLUE,TRIM8#

sub63391-89102

main63391-89102-05iLN56,66,RN5#,6#,7#,VZN6#198608-198903

BEIGE,BEIGE,TRIM4#

sub63391-89102

main63391-89102-06iLN56,66,RN5#,6#,7#198508-198608

BROWN,BROWN,TRIM4#

sub63391-89102

main63391-89102-08iLN5#,65,RN5#,6#198308-198508

IVORY,IVORY,TRIM4#

sub63391-89102

main63391-89102-13iLN5#,65,RN5#,6#198312-198508

LIGHT GRAY,GRAY,TRIM1#,8#

sub63391-89102

main63391-89102-14iLN56,66,RN5#,6#,7#,VZN6#..T1198608-198808

BLUE,BLUE,TRIM8#

sub63391-89102

main63391-89102-23iLN56,66,RN5#,6#,7#198508-198608

GRAY,GRAY,TRIM1#

sub63391-89102

main63391-89102-33iLN56,66,RN5#,6#,7#,VZN6#198608-198903

GRAY,GRAY,TRIM1#,8#

sub63391-89102

63393TRIM, ROOF HEADLINING, CENTER

main63393-89104-02iRN55,6#,VZN6#..SR5,SRT198608-198903

W/MOON ROOF,RED,RED,TRIM3#

sub63393-89104

sub63393-89106

main63393-89104-03iRN5#,65..SR5;RN60..SR5..IV198308-198312

W/MOON ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

sub63393-89104

sub63393-89106

main63393-89104-05iRN55,6#,VZN6#..SR5,SRT198608-198808

W/MOON ROOF,BEIGE,BEIGE,TRIM4#

sub63393-89104

sub63393-89106

main63393-89104-08iRN5#,6#..SR5,SRT198308-198608

W/MOON ROOF,IVORY,IVORY,TRIM4#

sub63393-89104

sub63393-89106

main63393-89104-13iRN5#,6#..SR5,SRT198312-198608

W/MOON ROOF,LIGHT GRAY,LIGHT BROWN,TRIM1#,8#

sub63393-89104

sub63393-89106

main63393-89104-23iRN55,6#,VZN6#..SR5,SRT198608-198903

W/MOON ROOF,GRAY,GRAY,TRIM1#,8#

sub63393-89104

sub63393-89106

main63393-89106-05iRN61,VZN61..SR5198808-198903

W/MOON ROOF,BEIGE,BEIGE,TRIM4#

64252SPACER, SUNSHADE TRIM

main64252-12010iRN5#,6#,VZN6#..SR5,SRT198308-198801

sub64252-17010

main64252-17010iRN55,6#,VZN6#..SR5,SRT198801-198903

9322915008

main93229-15008

9331624008

main93316-24008

9356014012

main93560-14012

18 parts on this diagram · 3 diagrams in section
