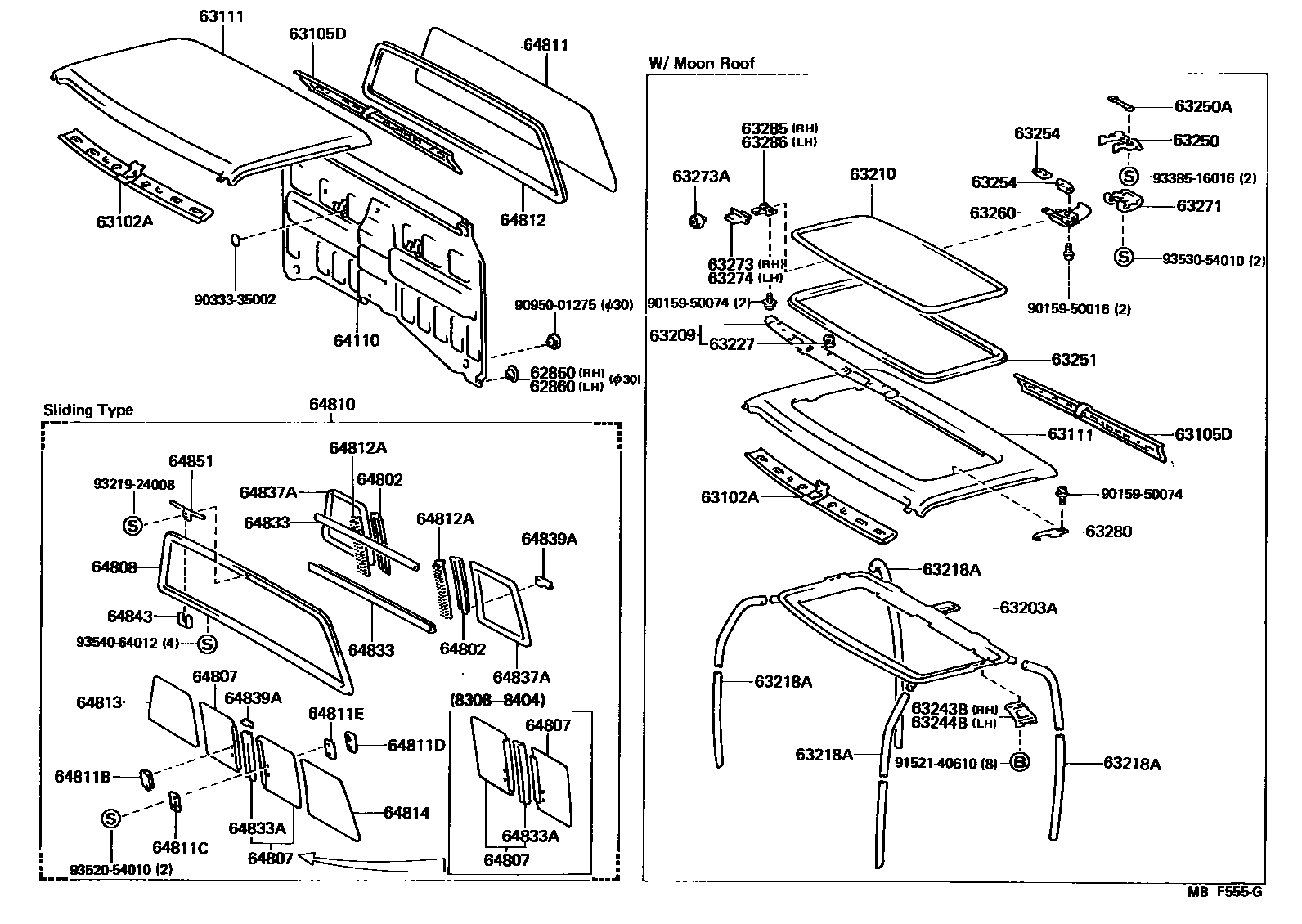

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

62850VALVE ASSY, ROOM PRESSURE RELIEF, RH

main62850-89101iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

62860VALVE ASSY, ROOM PRESSURE RELIEF, LH

main62850-89101iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-89102iRN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU198308-198403

main63102-89103iRN60,61,VZN61..V,WG198403-198903

main63102-89104iLN5#,6#,RN5#,6#,7#,VZN6#..T1198403-198808

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-89101iLN5#,65,RN5#,6#,75,VZN6#..RCB198308-198808

main63105-89102iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

main63105-89104iRN60,61,VZN61..V,WG198403-198903

main63105-89105iRN60,61,VZN61..(V,WG)..(SR5,SRT)198403-198903

W/MOON ROOF

sub63105-89104

main63135-89101iRN5#,6#,VZN61..RCB..SR5198308-198808

W/MOON ROOF

63111PANEL, ROOF

main63111-89109iLN5#,65,RN5#,6#,75,VZN6#..RCB198308-198808

main63111-89110iRN5#,6#,VZN61..RCB..SR5198308-198808

W/MOON ROOF

main63111-89111iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

main63111-89112iRN55,65,66,VZN66..XTR..(SR5,SRT)198309-198808

W/MOON ROOF

main63111-89113iLN56,6#,RN55,65,66,70,VZN66..XTR..(DLX,SR5,SRT)198309-198808

W/DECK LAMP

main63111-89114iRN55,65,66,VZN66..XTR..(SR5,SRT)198309-198808

W/MOON ROOF & DECK LAMP

main63111-89116iRN60,61,VZN61..V,WG198403-198903

main63111-89117iRN60,61,VZN61..(V,WG)..(SR5,SRT)198403-198903

W/MOON ROOF

63203AHOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF

main63203-89102iRN55,65,66,VZN66..XTR..(SR5,SRT)198309-198808

main63203-89104iRN5#,6#,VZN61..RCB..SR5198308-198808

main63203-89105iRN60,61,VZN61..(V,WG)..(SR5,SRT)198403-198903

63209PANEL SUB-ASSY, ROOF WIND DEFLECTOR

main63209-89102iRN5#,6#,VZN6#..SR5,SRT198308-198903

63210GLASS SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF

main63201-89104iRN5#,6#,VZN6#..SR5,SRT198308-198903

63218AHOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)

main63249-89101iRN5#,6#,VZN61..SR5,SRT198308-198903

L=1495,FR

main63249-89102iRN60..(V,WG)..SR5198309-198903

L=1260,RR

main63249-89103iRN5#,6#,VZN61..RCB..SR5198308-198808

L=1260,RR

63227CLIP, ROOF WIND DEFLECTOR PANEL

main63227-12011iRN5#,6#,VZN6#..SR5,SRT198308-198903

sub63227-17010

63243BBRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, RH

main63243-89102iRN5#,6#,VZN6#..(SR5,SRT)..HLF198308-198808

63244BBRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, LH

main63243-89102iRN5#,6#,VZN6#..(SR5,SRT)..HLF198308-198808

63250BASE ASSY, REMOVABLE ROOF LOCK

main63250-12010iRN5#,6#,VZN6#..SR5,SRT198308-198903

63250ASPACER, REMOVABLE ROOF LOCK BASE

main63277-89101iRN5#,6#,VZN6#..SR5,SRT198308-198903

63251WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF

main63252-89103iRN5#,6#,VZN6#..SR5,SRT198308-198903

63254HOLDER, REMOVABLE ROOF GLASS, INNER REAR

main63254-89103iRN5#,6#,VZN6#..SR5,SRT198308-198903

RH

main63254-89104iRN5#,6#,VZN6#..SR5,SRT198308-198903

LH

63260HANDLE ASSY, REMOVABLE ROOF LOCK

main63260-89103-03iRN5#,65..SR5;RN60..SR5..IV198308-198312

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

sub63260-17020

sub63260-89105

main63260-89103-08iRN5#,6#..SR5,SRT198308-198608

IVORY,IVORY,TRIM4#

sub63260-17020

sub63260-89105

main63260-89103-13iRN5#,6#..SR5,SRT198312-198608

LIGHT GRAY,GRAY,TRIM1#,8#

sub63260-17020

sub63260-89105

main63260-89105-02iRN55,6#,VZN6#..SR5,SRT198608-198903

RED,RED,TRIM3#

main63260-89105-03iRN55,6#,VZN6#..SR5,SRT198608-198903

GRAY,GRAY,TRIM1#

main63260-89105-05iRN55,6#,VZN6#..SR5,SRT198608-198903

BEIGE,BEIGE,TRIM4#

63271GARNISH, REMOVABLE ROOF LOCK

main63271-10010-02iRN55,6#,VZN6#..SR5,SRT198608-198903

RED,RED,TRIM3#

sub63271-10010

main63271-10010-03iRN5#,6#..SR5,SRT198308-198608

LIGHT GRAY,GRAY,TRIM1#,8#

sub63271-10010

main63271-10010-05iRN55,6#,VZN6#..SR5,SRT198608-198903

BEIGE,BEIGE,TRIM4#

sub63271-10010

main63271-10010-23iRN55,6#,VZN6#..SR5,SRT198608-198903

GRAY,GRAY,TRIM1#

sub63271-10010

main63271-10010-28iRN5#,6#..SR5,SRT198308-198608

IVORY,IVORY,TRIM4#

sub63271-10010

63273CASE, REMOVABLE ROOF HINGE, RH

main63273-12010iRN5#,6#,VZN6#..SR5,SRT198308-198903

63273ABOLT, REMOVABLE ROOF HINGE CASE

main63297-12010iRN5#,6#,VZN6#..SR5,SRT198308-198903

63274CASE, REMOVABLE ROOF HINGE, LH

main63274-12010iRN5#,6#,VZN6#..SR5,SRT198308-198903

63280CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH

main63280-89101iRN5#,6#,VZN6#..SR5,SRT198308-198903

63285HINGE, REMOVABLE ROOF, RH

main63285-89101iRN5#,6#,VZN6#..SR5,SRT198308-198808

main63285-89102iRN61,VZN61..SR5198808-198903

63286HINGE, REMOVABLE ROOF, LH

main63286-89101iRN5#,6#,VZN6#..SR5,SRT198308-198808

main63286-89102iRN61,VZN61..SR5198808-198903

64110PANEL ASSY, FRONT BODY BACK

main64101-89120iLN5#,65,RN5#,6#..RCB198308-198808

sub64101-89127

main64101-89122iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

main64101-89127iRN55,6#,VZN61..RCB..SR5198508-198808

64802FRAME SUB-ASSY, BACK WINDOW FIX

main64881-89104iRN55..(10T,3QT)..USA198308-198808

*STY

main64881-89104iRN61..USA..CBR198608-198708

*STY,*TEM GLASS

main64881-89105iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

*STY

main64881-89105iRN61..USA..CBR198608-198708

*STY,*TT GLASS

64807GLASS SUB-ASSY, BACK WINDOW SLIDE

main64807-89105iRN60..STD198308-198404

*STY,RH,*TEM,T=3.5

sub64807-89115

main64807-89106iRN55..3QT..USA198308-198404

*STY,LH,*TEM,T=3.5

sub64807-89116

main64807-89107iRN60..SR5..IV;RN60..HLF..CND;LN56,65,RN5#,65..RCB..(DLX,SR5)..HLF198308-198404

*STY,RH,*TT,T=3.5

sub64807-89117

main64807-89108iRN60..SR5..IV;RN60..HLF..CND;LN56,65,RN5#,65..RCB..(DLX,SR5)..HLF198308-198404

*STY,LH,*TT,T=3.5

sub64807-89118

main64807-89109iLN56,65,RN55,65..XTR..DLX198309-198404

*STY,RH,*TEM,T=3.5

sub64807-89119

main64807-89110iLN56,65,RN55,65..XTR..DLX198309-198404

*STY,LH,*TEM,T=3.5

sub64807-89120

main64807-89111iLN56,65,RN55,65..XTR198309-198404

*STY,RH,*TT,T=3.5

sub64807-89121

main64807-89112iLN56,65,RN55,65..XTR198309-198404

*STY,LH,*TT,T=3.5

sub64807-89122

main64807-89113iRN55,65..XTR..SR5198309-198404

*STY,RH,*TT,T=3.5,BRONZE

sub64807-89123

main64807-89114iRN55,65..XTR..SR5198309-198404

*STY,LH,*TT,T=3.5,BRONZE

sub64807-89124

main64807-89115iRN60..STD198404-198808

*TEM,T=3.5,*STY,RH

sub64807-89117

main64807-89116iRN60..STD198404-198808

*TEM,T=3.5,*STY,LH

sub64807-89118

main64807-89117iRN55..DLX;LN56,RN55,75..(DLX,STD)..(HLF,HVY)..(DSL,EFI)198408-198808

*TT,T=3.5,*STY,RH

main64807-89118iRN55..STD..HLF..CND..EFI;RN5#,6#,75,VZN6#..RCB..USA198408-198808

*TT,T=3.5,*STY,LH

main64807-89119iLN56,6#,RN55,65,66,70,VZN66..XTR..(DLX,STD)198404-198808

*TEM,T=3.5,*STY,RH

main64807-89120iLN56,6#,RN55,65,66,70,VZN66..XTR..(DLX,STD)198404-198808

*TEM,T=3.5,*STY,LH

main64807-89121iLN56,6#,RN55,65,66,70,VZN66..XTR198404-198808

*TT,T=3.5,*STY,RH

main64807-89122iLN56,6#,RN55,65,66,70,VZN66..XTR198404-198808

*TT,T=3.5,*STY,LH

main64807-89123iRN55,65,66,VZN66..XTR..(SR5,SRT)198404-198808

*TT,T=3.5,BRONZE,*STY,RH

main64807-89124iRN55,65,66,VZN66..XTR..(SR5,SRT)198404-198808

*TT,T=3.5,BRONZE,*STY,LH

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64808-89103iRN60,61..SDT,STD198308-198808

*STY

main64808-89103iRN61..HLF..TBO198608-198708

*STY,*TEM GLASS

main64808-89104iRN61..HLF..TBO198608-198708

*STY,*TT GLASS

main64808-89104iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

*STY

64810WINDOW ASSY, BACK

main64810-89104iRN60..(DLX,STD)..HLF198308-198508

*STY

sub64810-89105

main64810-89104iRN60..(DLX,STD)..HLF198308-198808

*STY,*TEM GLASS

sub64810-89105

main64810-89105iRN55..10T..USA198308-198808

*STY,*TT GLASS

main64810-89105iRN5#,6#..RCB..SR5198308-198608

*STY

main64810-89106iLN56,6#,RN55,65,66,70,VZN66..XTR..DLX198309-198808

*STY

main64810-89106iRN55,65,66,VZN66..XTR..(SR5,SRT)198309-198808

*STY,*TT GLASS

main64810-89107iRN55,65,66,VZN66..XTR..(SR5,SRT)198309-198808

*STY,BRONZE GLASS

main64810-89108iLN56,6#,RN55,65,66,70,VZN66..XTR..(DLX,STD)198309-198808

*STY,*TEM GLASS

64811GLASS, BACK WINDOW

main64801-89101iLN56,6#,RN55,65,66,70..XTR..DLX198309-198808

*TEM,T=3.5,W/DEFFOGER

main64801-89102iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

*TT,T=3.5,W/DEFFOGER

main64801-89103iRN55,65,66,VZN66..XTR..(SR5,SRT)198309-198808

*TT,T=3.5,BRONZE,W/DEFFOGER

main64811-89119iLN5#,65,RN5#,6#,75,VZN6#..RCB..(DLX,SDT,STD)198308-198808

*TEM,T=3.5

sub64811-89120

main64811-89120iLN56,65,RN5#,6#,75,VZN6#..RCB..(DLX,SR5)198308-198808

*TT,T=3.5

main64811-89121iLN56,6#,RN55,65,66,70,VZN66..XTR..DLX198309-198808

*TEM,T=3.5

sub64801-89101

main64811-89122iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

*TT,T=3.5

sub64801-89102

main64811-89123iRN55,65,66,VZN66..XTR..(SR5,SRT)198309-198808

*TT,T=3.5,BRONZE

sub64801-89103

64811BLOCK ASSY, BACK WINDOW

main69370-89102iRN55..(10T,3QT)..USA198308-198808

*STY

64811CCATCH, BACK WINDOW LOCK

main69374-89102iLN56,6#,RN5#,6#,70..(DLX,SR5,SRT)..HLF198308-198808

*STY

64811DRETAINER, BACK WINDOW

main69375-89102iRN60,61..SDT,STD198308-198808

*STY

64811EPACKING, BACK WINDOW LOCK

main69376-89102iLN56,6#,RN5#,6#,70..(DLX,SR5,SRT)..HLF198308-198808

*STY

64812WEATHERSTRIP, BACK WINDOW GLASS, NO.1

main64812-89106iLN5#,65,RN5#,6#,75,VZN6#..RCB198308-198808

main64812-89107iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

64812AWEATHERSTRIP, BACK WINDOW GLASS, NO.2

main64834-89101iRN5#,6#,75,VZN6#..RCB198805-198808

*STY

main64837-89102iRN60,61..SDT,STD198308-198805

*STY

sub64834-89101

main64837-89102iRN61..HLF..TBO198608-198708

*STY,*TEM GLASS

sub64834-89101

main64837-89104iRN61..HLF..TBO198608-198708

*STY,*TT GLASS

main64837-89104iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

*STY

64813GLASS, BACK WINDOW CORNER, RH

main64813-89101iRN55..DLX;LN56,RN55,75..(DLX,STD)..(HLF,HVY)..(DSL,EFI)198308-198808

*TEM,T=3.5,*STY

sub64813-89102

main64813-89102iRN55..10T198308-198808

*TT,T=3.5,*STY

main64813-89103iLN56,6#,RN55,65,66,70,VZN66..XTR..(DLX,STD)198309-198808

*TEM,T=3.5,*STY

main64813-89104iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

*TT,T=3.5,*STY

main64813-89105iRN55,65,66,VZN66..XTR..(SR5,SRT)198309-198808

*TT,T=3.5,BRONZE,*STY

64814GLASS, BACK WINDOW CORNER, LH

main64814-89101iLN56,65,RN55,6#..RCB..DLX..HLF198308-198808

*TEM,T=3.5,*STY

sub64814-89102

main64814-89102iRN55..10T198308-198808

*TT,T=3.5,*STY

main64814-89103iLN56,6#,RN55,65,66,70,VZN66..XTR..(DLX,STD)198309-198808

*TEM,T=3.5,*STY

sub64814-89104

main64814-89104iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

*TT,T=3.5,*STY

main64814-89105iRN55,65,66,VZN66..XTR..(SR5,SRT)198309-198808

*TT,T=3.5,BRONZE,*STY

64833WEATHERSTRIP, BACK WINDOW CHANNEL

main64833-89104iRN60,61..SDT,STD198308-198808

*STY,LWR

main64833-89105iRN60,61..SDT,STD198308-198808

*STY,UPR

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-89106iRN60..STD198308-198404

*STY,LH

main64833-89107iLN56,65,RN55,65..XTR198309-198404

*STY,LH

main64833-89110iRN6#..RCB..(DLX,SDT,STD)198404-198808

*STY,RH

main64833-89111iLN56,6#,RN55,65,66,70,VZN66..XTR198404-198808

*STY,RH

64837AWEATHERSTRIP, BACK WINDOW CORNER

main64837-89101iRN60,61..SDT,STD198308-198808

*STY

main64837-89101iRN61..HLF..TBO198608-198708

*STY,*TEM GLASS

main64837-89103iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

*STY

main64837-89103iRN61..HLF..TBO198608-198708

*STY,*TT GLASS

64839APACKING, BACK WINDOW

main64839-89102iRN55..(10T,3QT)..USA198308-198808

*STY,LWR

main64839-89103iLN56,6#,RN5#,6#,70..(DLX,SR5,SRT)..HLF198308-198808

*STY,UPR RH

main64839-89104iLN56,66,RN5#,6#,7#,VZN6#..T1198308-198808

*STY,UPR LH

64843WEATHERSTRIP, BACK WINDOW CHANNEL

main64833-89109iRN55..(10T,3QT)..USA198308-198808

*STY

64851STOP, BACK WINDOW SLIDE GLASS

main64851-89102iRN60,61..SDT,STD198308-198808

*STY

9015950016

main90159-50016

9015950074

main90159-50074

9033335002

main90333-35002

9095001275

main90950-01275

9152140610

main91521-40610

9321924008

main93219-24008

9338516016

main93385-16016

9352054010

main93520-54010

9353054010

main93530-54010

9354064012

main93540-64012

54 parts on this diagram · 3 diagrams in section
