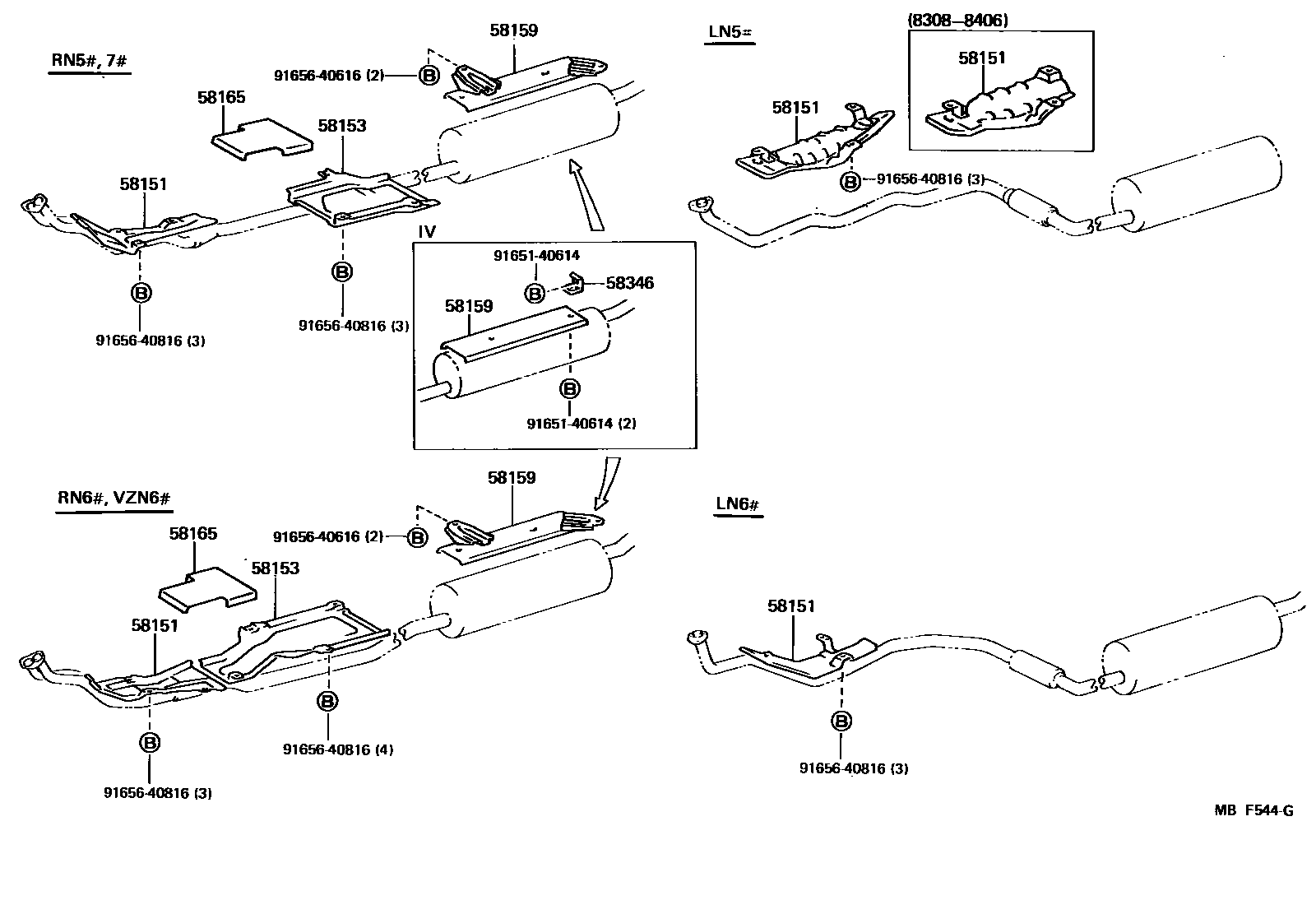

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-89104iLN65198308-198508

main58041-89105iLN5#198308-198406

main58041-89106iLN5#198406-198708

main58151-89102iRN6#198308-198508

main58151-89105iRN5#,7#..MTM..W;RN55,70..CND..CBR198708-198808

main58151-89108iRN6#,VZN6#198508-198903

main58151-89109iLN66198508-198708

main58151-89110iRN5#,7#..4HC198508-198808

main58151-89111iRN50..CND;RN5#,70..G198708-198808

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-89103iRN5#198308-198508

main58153-89105iRN6#198308-198508

main58153-89106iRN6#,VZN61198508-198903

main58153-89107iRN5#,7#198508-198808

main58153-89108iVZN66198711-198808

58159INSULATOR, MAIN MAFFLAR HEAT

main58043-89101iRN5#,6#,70,VZN6#..T1..CBU198308-198808

main58221-89103iRN60..V,WG198403-198508

main58221-89104iRN61..V,WG198608-198903

main58221-89105iVZN61..V,WG198711-198903

main58327-89104iRN5#,6#,70,VZN6#..(3QT,HLF)..IV198308-198808

main58327-89105iRN61..V,WG198508-198608

58165PAD, FRONT FLOOR HEAT INSULATOR, NO.1

main58165-89101iRN55..TBO198501-198608

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58346-89101iRN5#,6#,70,VZN6#..(3QT,HLF)..IV198308-198808

9165140614

main91651-40614

9165640616

main91656-40616

9165640816

main91656-40816

8 parts on this diagram · 2 diagrams in section
