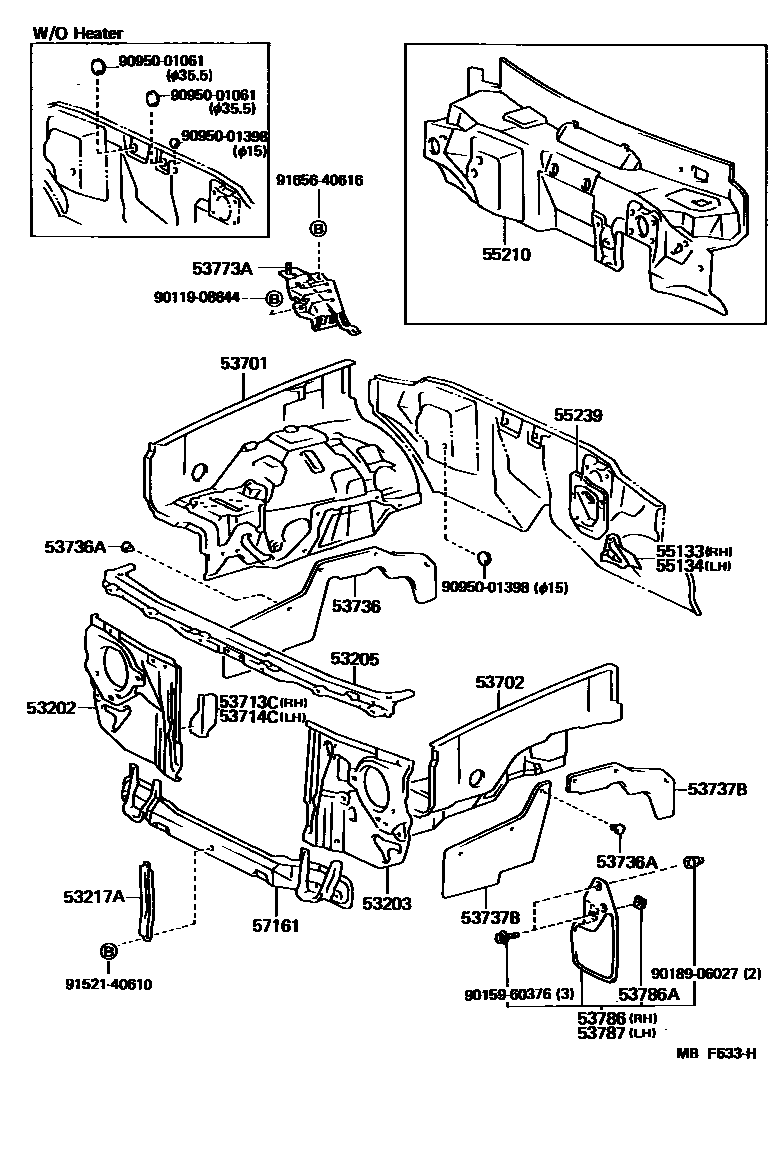

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-89112iLN5#,65,RN5#,6#198308-198501

sub53211-89115

main53211-89116iLN5#,6#,RN5#,6#,7#198501-198608

main53211-89120iLN56,66,RN5#,6#,7#,VZN6#198608-198903

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53212-89111iLN5#,65,RN5#,6#198308-198501

main53212-89113iLN5#,6#,RN5#,6#,7#198501-198608

main53212-89117iLN56,66,RN5#,6#,7#,VZN6#198608-198903

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-89105iLN5#,6#,RN5#,6#,7#198308-198608

main53216-89107iLN56,66,RN5#,6#,7#,VZN6#198608-198903

53217ABRACE, HOOD LOCK SUPPORT

main53217-89107iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-89128iLN5#198308-198708

sub53701-89201

main53701-89131iRN5#,7#..EFI,TBO198408-198808

main53701-89137iLN65198308-198408

main53701-89140iRN6#198308-198408

main53701-89149iLN65198408-198503

main53701-89150iRN6#..EFI198408-198503

main53701-89151iRN5#,70..CBR198408-198708

main53701-89153iRN6#..CBR198408-198708

main53701-89158iRN50..(4F,4FC)..USA;RN55..USA..CBR..CBU198501-198508

W/*AIC

sub53701-89184

main53701-89159iRN55..STD..HLF..CND..EFI;RN5#..USA..(EFI,TBO)..CBU198501-198808

W/*AIC

main53701-89161iLN56..USA..CBU198501-198508

W/*AIC

main53701-89162iRN6#..USA..CBR..CBU198501-198708

W/*AIC

main53701-89173iLN6#198503-198708

main53701-89175iRN6#..EFI,TBO198503-198903

main53701-89176iRN6#..USA..(EFI,TBO)..CBU198503-198903

W/*AIC

main53701-89177iLN65..USA..CBU198503-198508

W/*AIC

main53701-89178iLN65..USA..CBU198503-198508

W/*AIC & PS

main53701-89198iRN5#,70..W..CBR;RN55,70..CND..CBR198708-198808

W/*AIC

main53701-89200iVZN6#198711-198903

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-89160iRN5#..HLF..EFI198408-198508

W/PS

main53702-89162iRN5#..CBR198308-198408

main53702-89164iRN5#..EFI198308-198408

main53702-89172iRN6#..CBR198408-198708

main53702-89182iLN5#198308-198408

main53702-89183iLN65198308-198408

main53702-89186iLN65198308-198408

*CRC(AUTO DRIVE)

main53702-89190iRN6#..EFI198408-198508

main53702-89192iRN6#..EFI198408-198508

W/PS

main53702-89196iLN5#198408-198708

main53702-89200iLN6#198408-198708

main53702-89201iLN65198408-198508

*CRC(AUTO DRIVE)

main53702-89211iRN5#,7#..(DLX,STD)..EFI198708-198808

main53702-89213iRN55..TBO198501-198508

main53702-89214iRN55..XTR198708-198808

W/*PS

main53702-89220iRN6#,VZN6#..EFI,TBO198508-198903

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-89101iLN5#,6#,RN5#,6#,7#198308-198608

main53713-89103iLN56,66,RN5#,6#,7#,VZN6#198608-198903

PLANT.P11

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-89101iLN56,66,RN5#,6#,7#,VZN6#198608-198903

PLANT.A51-A54

main53714-89103iLN56,66,RN5#,6#,7#,VZN6#198608-198903

PLANT.P11

53736SEAL, FRONT FENDER APRON, RH

main53736-89107iRN5#,7#198308-198808

main53736-89108iLN5#198308-198708

FR

main53736-89109iRN6#198308-198508

main53736-89110iLN65198308-198508

FR

main53736-89111iLN65198308-198508

RR

main53736-89114iRN6#,VZN6#198508-198810

main53736-89115iLN66198508-198708

FR

main53736-89116iLN66198508-198708

RR

main53736-89126iRN61,VZN61198810-198903

sub53736-35070

main53737-89105iLN5#198308-198708

RR

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10005-01×10iLN6#,RN6#,VZN6#198308-198810

BLACK,BLACK

sub90467-06017

main90467-10107iRN61,VZN61198810-198903

53737BSEAL, FRONT FENDER APRON, LH

main53736-89107iLN5#198308-198708

main53736-89108iRN5#,7#198308-198808

FR

main53736-89111iRN6#198308-198508

RR

main53736-89114iLN66198508-198708

main53736-89115iRN6#,VZN6#198508-198810

FR

main53736-89116iRN6#,VZN6#198508-198812

RR

main53736-89127iRN61,VZN61198810-198903

FR

sub53736-35120

main53736-89128iRN61,VZN61198812-198903

RR

sub53736-35080

main53737-89105iRN5#,7#198308-198808

RR

main53737-89106iLN65198308-198508

main53737-89107iRN6#198308-198508

FR

53773ABRACKET, AIR CLEANER MOUNTING

main53773-89104iRN5#,70..G198708-198808

53786MUDGUARD, FRONT, RH

main76621-39045iLN65,RN6#198308-198408

main76621-39055iLN6#,RN6#,VZN6#198408-198903

main76621-39065iRN55,70..HLF..IV198608-198708

53786ARETAINER(FOR FRONT MUDGUARD)

main53879-22010×2iLN56,RN5#,70..HLF..(CBR,DSL,EFI)..IV198502-198608

53787MUDGUARD, FRONT, LH

main76622-39045iLN65,RN6#198308-198408

main76622-39055iLN6#,RN6#,VZN6#198408-198903

main76622-39065iRN55..G..IV198708-198808

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-89103iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-89103iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

55210INSULATOR ASSY, DASH PANEL

main55210-89138iLN5#,65,RN5#,6#198308-198508

main55210-89144iLN56,66,RN5#,6#,7#198508-198903

main55210-89148iVZN6#198711-198903

55239SILENCER, STEERING COLUMN HOLE COVER

main55210-89135iLN5#,6#,RN5#,6#,7#,VZN6#..4F,4FC,5F198308-198903

main55210-89143iRN5#,7#..4HC198508-198808

57161CROSSMEMBER, FRONT

main57104-89107iLN5#,RN5#,7#198308-198808

main57104-89108iLN6#,RN6#,VZN6#198308-198903

9011908644

main90119-08644

9015960376

main90159-60376

9018906027

main90189-06027

9095001061

main90950-01061

9095001398

main90950-01398

9152140610

main91521-40610

9165640616

main91656-40616

27 parts on this diagram · 2 diagrams in section
