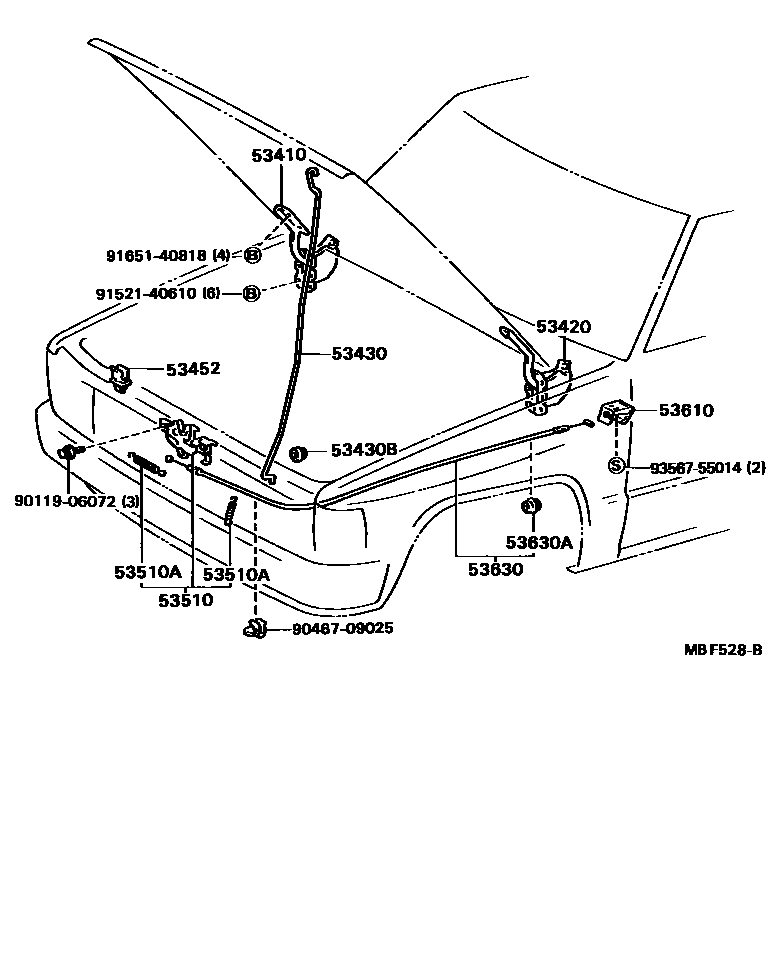

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-89105iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

53420HINGE ASSY, HOOD, LH

main53410-89105iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

53430SUPPORT ASSY, HOOD

main53441-89104iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15012iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

53452HOLDER, HOOD STAY

main53452-90351iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

53510LOCK ASSY, HOOD

main53510-89114iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09017iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

CW=11.7

main90506-20008iLN5#,6#,RN5#,6#,7#,VZN6#198403-198903

WD=2.0,CW=17,CW=17

main90506-26015iRN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU198308-198403

CW=15

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-89102-02iRN61..DLX..EFI198608-198903

RED,RED,TRIM3#

sub53601-89102

main53601-89102-03iLN5#,6#,RN5#,6#,7#198308-198608

GRAY,GRAY,TRIM1#

sub53601-89102

main53601-89102-04iLN5#,6#,RN5#,6#,7#198308-198608

BLUE,BLUE,TRIM8#

sub53601-89102

main53601-89102-05iLN56,66,RN5#,6#,7#,VZN6#198608-198903

BEIGE,BEIGE,TRIM4#

sub53601-89102

main53601-89102-06iLN5#,6#,RN5#,6#,7#198308-198608

BROWN,BROWN,TRIM4#

sub53601-89102

main53601-89102-13iLN56,66,RN5#,6#,7#,VZN6#198608-198903

GRAY,GRAY,TRIM1#

sub53601-89102

main53601-89102-14iLN56,66,RN5#,6#,7#,VZN6#198608-198903

BLUE,BLUE,TRIM8#

sub53601-89102

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-89110iLN5#,6#,RN5#,6#,7#198308-198608

main53630-89111iLN56,66,RN5#,6#,7#,VZN6#198608-198903

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-15001iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

9011906072

main90119-06072

9046709025

main90467-09025

9152140610

main91521-40610

9165140818

main91651-40818

9356755014

main93567-55014

15 parts on this diagram · 1 diagram in section
