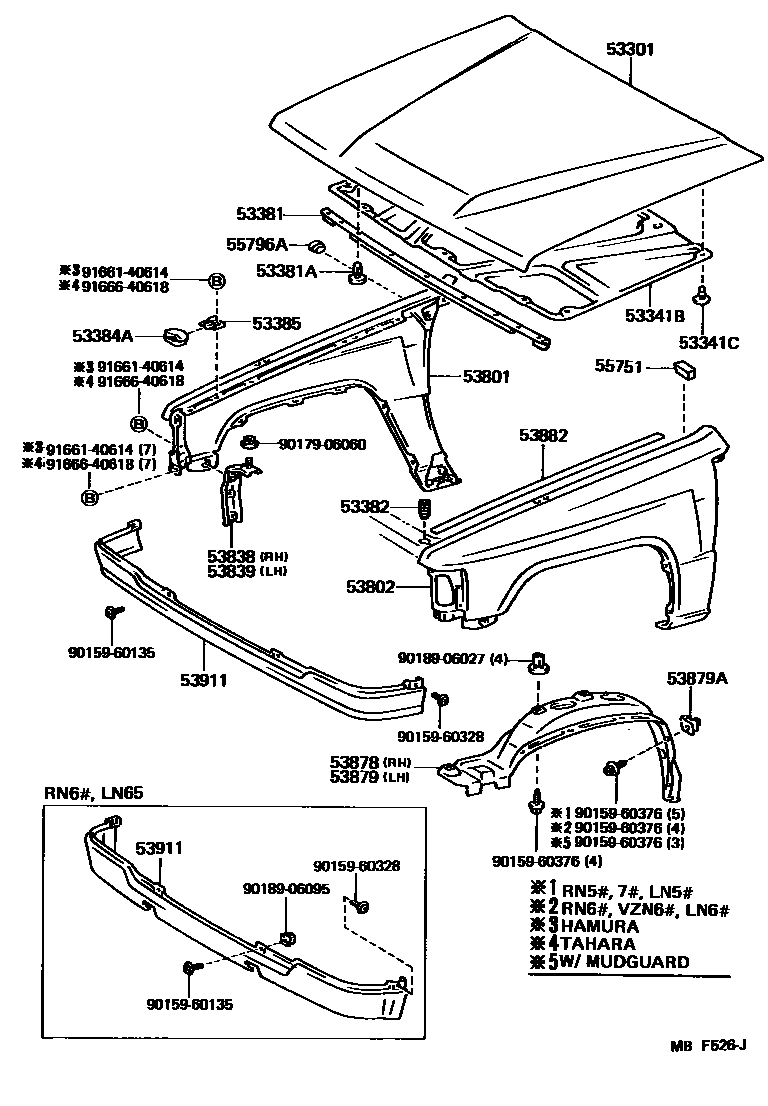

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-89116iLN5#,6#,RN5#,6#,7#198308-198601

sub53301-89119

main53301-89119iLN56,66,RN5#,6#,7#,VZN6#198601-198903

53341BINSULATOR, HOOD

main53341-89102iLN5#,65198308-198408

main53341-89103iLN5#,65198408-198501

main53341-89104iLN5#,6#198501-198708

53341CCLIP(FOR HOOD INSULATOR)

main90467-09004-01iLN5#,65198308-198808

BLACK,BLACK

sub90467-09004

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-89103iLN56..USA..DSL;LN51,65,RN5#,6#..USA198308-198903

COLD SPEC

main53381-89103iRN55..SR5..CND;RN55..CND..(CBR,TBO);RN55..(10T,HVY)..CND..EFI;LN56,6#,RN50,6#,7#,VZN6#..CND198308-198903

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iLN56..USA..DSL;LN51,65,RN5#,6#..USA198308-198903

COLD SPEC

53382BUMPER, HOOD, FRONT

main53382-89102iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

53384ABUMPER, FENDER TO HOOD

main53384-14010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

53385RETAINER, HOOD, BUMPER

main53385-14010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

RH

main53386-14010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-89166iLN5#,RN5#,7#198308-198601

sub53801-89192

main53801-89179iLN6#,RN6#198308-198601

sub53801-89194

main53801-89192iLN56,RN5#,7#198601-198808

main53801-89194iLN66,RN6#,VZN6#198601-198903

53802FENDER SUB-ASSY, FRONT LH

main53802-89158iLN5#,RN5#,7#198308-198601

sub53802-89184

main53802-89172iLN6#,RN6#198308-198601

sub53802-89187

main53802-89184iLN56,RN5#,7#198601-198808

main53802-89187iLN66,RN6#,VZN6#198601-198903

53838BRACE, FRONT FENDER, RH

main53803-89107iLN56,RN5#,7#198608-198808

main53835-89101iLN5#,RN5#,7#198308-198608

main53835-89104iLN65,RN6#198308-198508

main53905-89101iLN66,RN6#,VZN6#198508-198903

53839BRACE, FRONT FENDER, LH

main53804-89107iLN56,RN5#,7#198608-198808

main53835-89101iLN5#,RN5#,7#198308-198608

main53836-89102iLN65,RN6#198308-198508

main53906-89101iLN66,RN6#,VZN6#198508-198903

53878LINER, FRONT FENDER, RH

main53875-89103iLN5#,RN5#,7#198308-198808

main53875-89104iLN6#,RN6#,VZN6#198308-198903

53879LINER, FRONT FENDER, LH

main53876-89103iLN5#,RN5#,7#198308-198808

main53876-89104iLN6#,RN6#,VZN6#198308-198903

53879ARETAINER, FRONT FENDER LINER

main53879-22010iRN55..DLX..EFI..IV198410-198808

W/MUDGUARD

main53879-22010iLN6#,RN6#198308-198903

53882PACKING, FRONT FENDER MAIN

main53882-89104iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

main53882-89105iLN5#,6#,RN5#,6#,7#,VZN6#198311-198805

PLANT.A51-A54

sub53882-89104

53911PANEL, FRONT VALANCE

main53911-89106iLN5#,RN5#,7#198308-198608

main53911-89107iLN65,RN6#198308-198508

main53911-89109iRN6#..USA198508-198608

W/WINCH

sub53911-89112

main53911-89110iLN66,RN6#198508-198708

sub53911-89113

main53911-89111iLN56,RN5#,7#198608-198808

main53911-89113iRN6#,VZN6#198708-198903

55751SHIELD, COWL VENTILATOR SPLASH

main55751-89104iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

55796ACOVER, RADIO ANTENNA HOLE

main55796-89101iVZN6#..SR5..HLF..CBU198403-198903

9015960135

main90159-60135

9015960328

main90159-60328

9015960376

main90159-60376

9017906060

main90179-06060

9018906027

main90189-06027

9018906095

main90189-06095

9166140614

main91661-40614

9166640618

main91666-40618

27 parts on this diagram · 1 diagram in section
