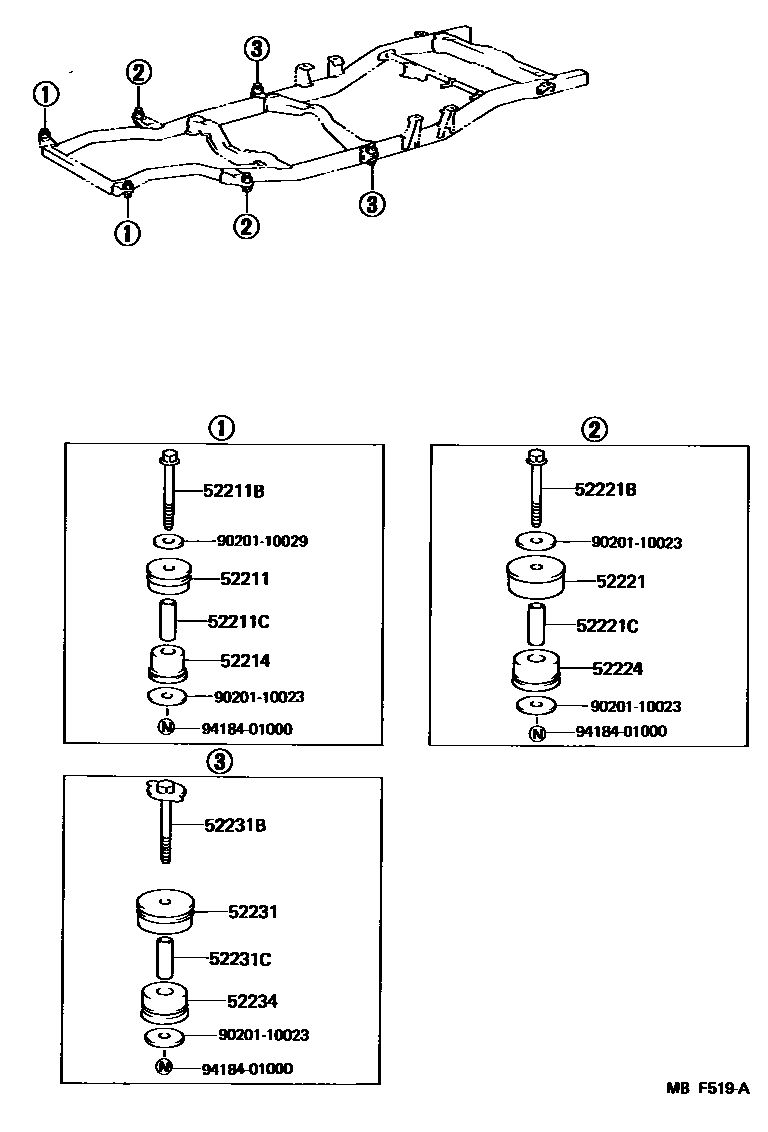

CAB MOUNTING & BODY MOUNTING
52211CUSHION, BODY MOUNTING, NO.1 UPPER
52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)
52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)
52214CUSHION, BODY MOUNT, NO.1 LOWER
52221CUSHION, BODY MOUNT, NO.2 UPPER
52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)
52221CSPACER(FOR BODY MOUNT NO.2 CUSHION)
52224CUSHION, BODY MOUNT, NO.2 LOWER
52231CUSHION, BODY MOUNT, NO.3 UPPER
52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)
52231CSPACER(FOR BODY MOUNT NO.3 CUSHION)
52234CUSHION, BODY MOUNT, NO.3 LOWER
9020110023
main90201-10023
9020110029
main90201-10029
9418401000
main94184-01000
15 parts on this diagram · 2 diagrams in section
