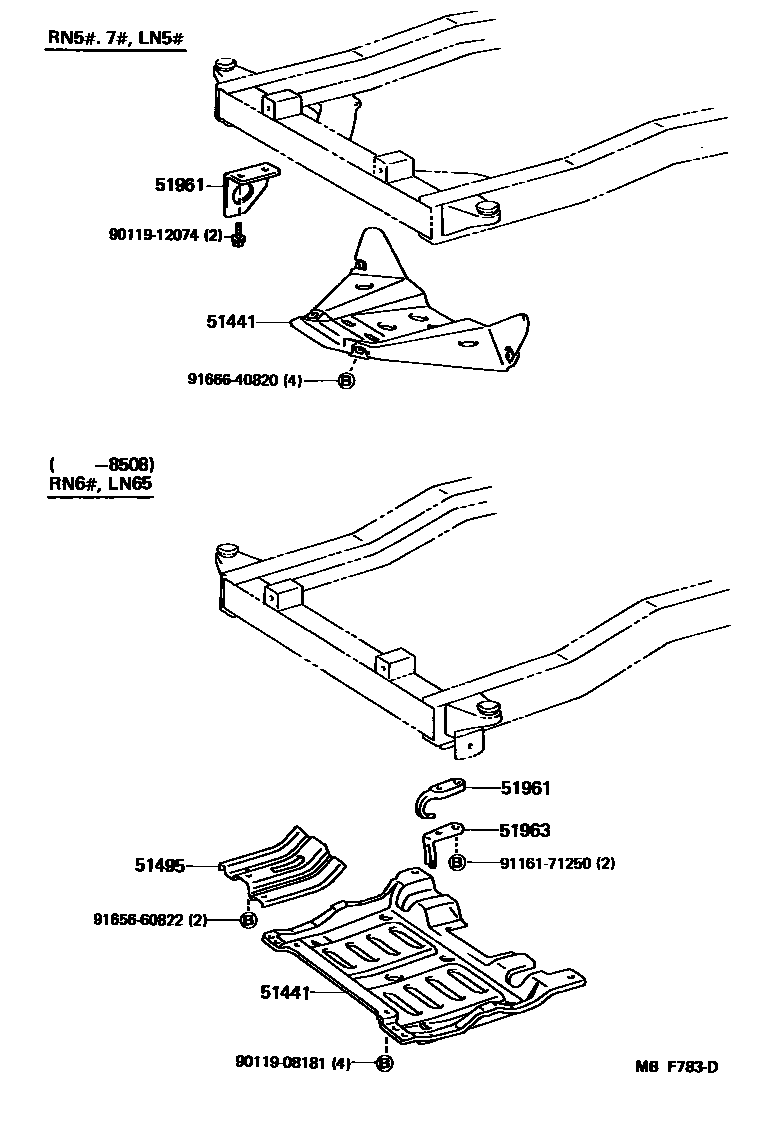

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1

51441COVER, ENGINE UNDER, NO.1

main51405-35020iLN65,RN6#198308-198508

sub51405-35021

main51405-35030iLN56,RN5#,7#198608-198808

main51441-35110iLN5#,RN5#,7#198308-198608

main51441-35150iLN66,RN6#,VZN6#198508-198903

51495COVER, TRANSMISSION UNDER

main51447-35020iLN6#,RN6#..5F198308-198903

main51447-35030iRN6#..4FC198501-198710

sub51447-35031

main51447-35031iRN6#..4FC198710-198903

51961HOOK, NO.1

main51961-35030iRN61,VZN61198808-198903

RH

sub51961-35020

sub51963-35070

sub90101-12176

main51961-60010iLN65,RN6#198308-198508

main51961-60010iLN66,RN6#,VZN6#198508-198808

RH

main51963-35050iLN5#,RN5#,7#198308-198808

RH

sub51963-35070

main51964-35040iLN66,RN6#,VZN6#198308-198810

LH

sub51964-35050

main51964-35050iRN61198810-198903

LH

51963STOPPER, HOOK WIRE

main51963-35010iLN6#,RN6#,VZN6#198308-198808

sub51963-35080

main51963-35080iRN61,VZN61198808-198903

9011908181

main90119-08181

9011912074

main90119-12074

9116171250

main91161-71250

9165660822

main91656-60822

9166640820

main91666-40820

9 parts on this diagram · 2 diagrams in section
