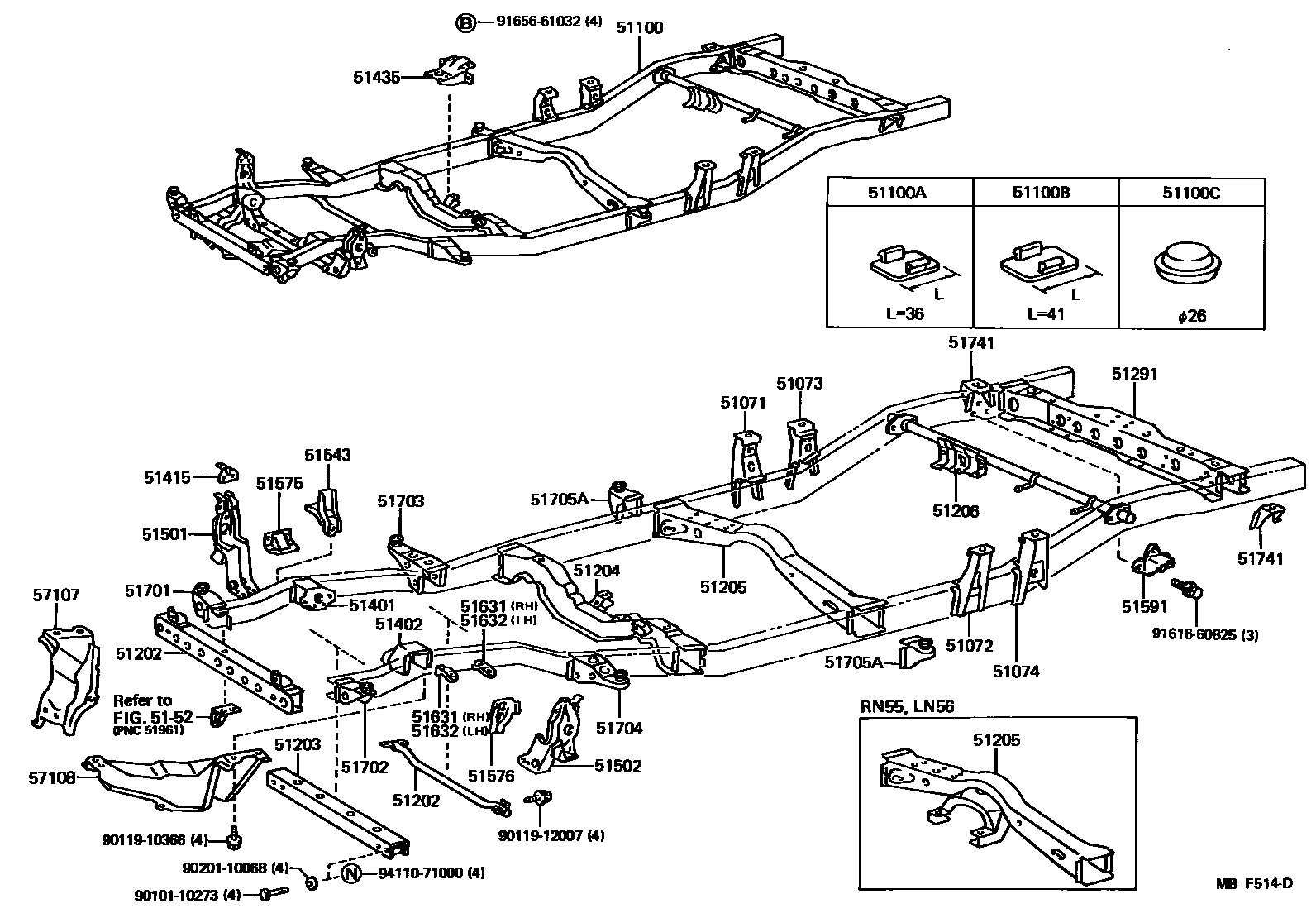

FRAME

0001 1 0002 1 0003 1 0004 1

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-35010iLN51,RN50,60,61,VZN61..HLF198308-198808

sub51071-35040

main51071-35020iLN56,65,RN55,65,66,75,VZN6#..RCB198308-198808

sub51071-35050

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51071-35020iLN56,65,RN55,65,66,75,VZN6#..RCB198308-198808

sub51071-35050

main51072-35010iLN56,6#,RN55,65,66,VZN66..XTR198308-198808

sub51072-35020

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-35010iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

sub51073-35020

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-35010iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

sub51074-35020

51100FRAME ASSY

main51001-3D820iRN61..4FC198808-198903

main51002-35100iRN55..3QT,HVY198308-198408

sub51002-35101

main51002-35101iRN55..10T198408-198508

main51002-35101iRN55..HVY198408-198506

PLANT.P11

main51002-35102iRN55..10T,HVY198508-198808

main51002-35190iRN50198308-198408

sub51002-35191

main51002-35191iRN50198408-198508

main51002-35192iRN50198508-198608

main51002-35193iRN50198608-198808

main51002-35300iRN55..RCB..HLF198308-198408

sub51002-35301

main51002-35301iRN55..RCB..HLF198408-198508

main51002-35302iRN55..RCB..HLF198508-198608

main51002-35303iRN55..RCB..HLF198608-198808

main51002-35450iRN60..HLF198308-198508

main51002-35460iLN65,RN65..XTR198309-198508

main51002-35470iLN65,RN65..RCB198308-198508

main51002-35520iRN55..XTR198309-198408

sub51002-35521

main51002-35521iRN55..XTR198408-198508

main51002-35522iRN55..XTR198508-198608

main51002-35523iRN55..XTR198608-198808

main51002-35540iLN51198308-198408

sub51002-35541

main51002-35541iLN51198408-198508

main51002-35560iLN56..RCB198308-198408

sub51002-35561

main51002-35561iLN56..RCB198408-198508

main51002-35562iLN56198508-198608

main51002-35563iLN56198608-198708

main51002-35570iLN56..XTR198309-198408

sub51002-35571

main51002-35571iLN56..XTR198408-198508

main51002-35710iRN60..V,WG198403-198508

main51002-35800iRN55..HVY198408-198506

PLANT.A51-A54

sub51002-35101

main51002-35860iRN70198508-198608

main51002-35861iRN70198608-198808

main51002-35880iRN75198508-198808

main51003-35020iRN61..HLF198508-198808

main51003-35030iRN66..RCB198508-198808

main51003-35040iLN66,RN66..XTR198508-198709

main51003-35090iRN61..V,WG198508-198808

main51003-35091iRN61..W198808-198903

main51003-35200iVZN61..HLF198711-198808

main51003-35210iVZN66..RCB..R198711-198808

main51003-35220iVZN66..RCB..4FC198711-198808

main51003-35230iVZN66..XTR..R198711-198808

main51003-35240iVZN66..XTR..4FC198711-198808

main51003-35250iVZN61..(V,WG)..R198711-198808

main51003-35251iVZN61..R198808-198903

main51003-35260iVZN61..4FC198711-198808

main51003-35261iVZN61..4FC198808-198903

main51003-35270iRN66..XTR198709-198808

51100APLUG, HOLE(FOR FRAME)

main90950-01394iLN5#,65,RN5#,6#198308-198509

51100BPLUG, HOLE(FOR FRAME)

main90950-01395iRN5#,7#198308-198812

main90950-01642iRN61,VZN61198812-198903

51100CPLUG, HOLE(FOR FRAME)

main90950-01420iLN5#,RN5#,7#198308-198808

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-35100iRN55..HVY198408-198508

PLANT.A51-A54,FR

sub51201-35130

main51201-35100iLN5#,RN5#198308-198808

FR

sub51201-35130

main51201-35120iLN65,RN6#198308-198508

main51201-35130iRN55..10T198408-198508

PLANT.P11,FR

main51201-35130iRN55..10T198408-198808

FR

main51201-35140iLN66,RN6#,VZN6#198508-198903

main51202-35180iLN5#,RN5#198308-198408

RR

sub51202-35181

main51202-35181iLN5#,RN5#,7#198408-198808

RR

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-35160iLN5#,RN5#,7#198308-198808

main51202-35170iLN65,RN6#198308-198508

sub51202-35171

main51203-35260iLN66,RN6#,VZN6#198508-198808

sub51203-35270

main51203-35270iRN61,VZN61198808-198903

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51202-35171iLN66,RN6#198508-198903

sub51202-35240

main51202-35190iVZN6#..R198711-198903

main51202-35200iVZN6#..4FC198711-198903

main51202-35210iRN6#198709-198808

sub51202-35240

main51202-35250iRN61..4FC198808-198903

main51203-35250iLN5#,RN5#,7#198308-198808

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-35220iLN51,RN50198308-198808

sub51204-35350

main51204-35230iLN56,RN55198308-198808

sub51204-35360

main51204-35240iVZN66198711-198808

sub51204-35440

main51204-35250iLN65,RN6#..HLF198308-198508

sub51204-35400

main51204-35270iRN60..V,WG198403-198508

main51204-35280iRN7#198508-198808

sub51204-35370

main51204-35290iRN61..HLF198508-198808

sub51204-35410

main51204-35300iLN66,RN66198508-198808

sub51204-35430

main51204-35310iRN61..V,WG198508-198808

sub51204-35311

main51204-35311iRN61198808-198903

main51204-35330iVZN61..HLF198711-198808

sub51204-35420

main51204-35340iVZN61..V,WG198711-198903

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-35120iLN5#,RN5#,7#198308-198808

sub51205-35140

main51205-35130iLN65,RN6#..HLF198308-198508

main51205-35131iLN66,RN6#,VZN6#..HLF198508-198808

main51205-35160iRN60..V,WG198403-198508

main51205-35161iRN61,VZN61..V,WG198508-198903

51291CROSSMEMBER, FRAME, REAR

main51209-35092iRN55,75..10T,HVY198508-198808

main51209-35100iRN60..V,WG198403-198508

main51209-35111iRN61,VZN61..V,WG198508-198808

main51209-35112iRN61,VZN61198808-198903

main51209-35140iLN66,RN6#..HLF198508-198808

main51291-35080iLN5#,65,RN5#,6#..T1198308-198508

main51291-35081iLN56,RN5#,70..HLF198508-198808

sub51291-35100

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51047-35011iLN66,RN6#198508-198808

main51047-35030iVZN6#198711-198903

main51047-35070iRN61198808-198903

main51401-35170iLN5#,RN5#,7#198308-198808

main51401-35200iLN65,RN6#198308-198508

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51048-35011iLN66,RN6#198508-198808

main51048-35030iVZN6#198711-198903

main51048-35070iRN61198808-198903

main51402-35170iLN5#,RN5#,7#198308-198808

main51402-35190iLN65,RN6#198308-198508

51415BRACKET, ENGINE SHOCK ABSORBER

main51417-35010iLN5#198308-198708

51435BRACKET, ENGINE REAR MOUNTING

main51431-35050iRN5#,7#..ATM198308-198808

main51431-35060iLN56198308-198808

main51431-35080iRN5#..MTM..USA..EFI198408-198808

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-35020iLN5#,RN5#,7#198308-198808

main51501-35030iLN66,RN6#198508-198903

sub51501-35070

sub51455-35020

sub90119-08766

main51501-35040iLN66,RN6#,VZN6#198706-198808

sub51501-35030

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-35020iLN5#,RN5#,7#198308-198808

main51502-35030iRN61,VZN61198508-198903

sub51502-35070

sub51456-35020

sub90119-08766

main51502-35040iLN66,RN6#,VZN6#198706-198808

sub51502-35030

5152

51543BRACKET, SHIMMY DAMPER

main51543-35010iLN5#,RN5#,7#198308-198808

51575REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1

main51573-35010iLN5#,RN5#,7#198308-198808

51576REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2

main51575-35040iLN5#,RN5#,7#198308-198808

51591SUPPORT, STABILIZER

main51591-35030iRN75198508-198808

51631STOPPER, FRONT SUSPENSION REBOUND, RH

main51631-35030iLN5#,RN5#,7#198308-198808

RR

sub51631-35050

main51631-35040iLN66,RN6#,VZN6#198508-198903

main51632-35030iLN5#,RN5#,7#198308-198808

FR

sub51632-35040

51632STOPPER, FRONT SUSPENSION REBOUND, LH

main51631-35030iLN5#,RN5#,7#198308-198808

FR

sub51631-35050

main51631-35040iLN66,RN6#,VZN6#198508-198903

main51632-35030iLN5#,RN5#,7#198308-198808

RR

sub51632-35040

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-35080iLN5#,RN5#,7#198308-198808

main51701-35090iLN65,RN6#198308-198508

main51701-35100iLN66,RN6#,VZN6#198508-198808

sub51701-35101

main51701-35101iRN61,VZN61198808-198903

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-35090iLN65,RN6#198308-198508

main51702-35070iLN5#,RN5#,7#198308-198808

main51702-35080iLN66,RN6#,VZN6#198508-198808

sub51702-35081

main51702-35081iRN61,VZN61198808-198903

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-35040iRN60..IV;RN60..V,WG;LN5#,65,RN5#,65;RN60..(DLX,STD)..HLF..CBU198308-198405

sub51703-35041

main51703-35041iLN5#,65,RN5#,6#198405-198808

main51703-35050iLN66,RN6#,VZN6#198508-198903

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-35060iRN60..IV;RN60..V,WG;LN5#,65,RN5#,65;RN60..(DLX,STD)..HLF..CBU198308-198405

sub51704-35061

main51704-35061iLN5#,65,RN5#,6#198405-198808

main51704-35070iLN66,RN6#,VZN6#198508-198903

51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3

main51705-35080iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

51741BRACKET, REAR BODY MOUNTING, NO.1

main51741-35050iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-35040iLN5#,RN5#,7#198308-198608

sub57107-35041

main57107-35041iLN56,RN5#,7#198608-198808

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-35040iLN5#,RN5#,7#198308-198608

sub57108-35041

main57108-35041iLN56,RN5#,7#198608-198808

9010110273

main90101-10273

9011910366

main90119-10366

9011912007

main90119-12007

9020110068

main90201-10068

9161660825

main91616-60825

9165661032

main91656-61032

9411071000

main94110-71000

42 parts on this diagram · 4 diagrams in section
