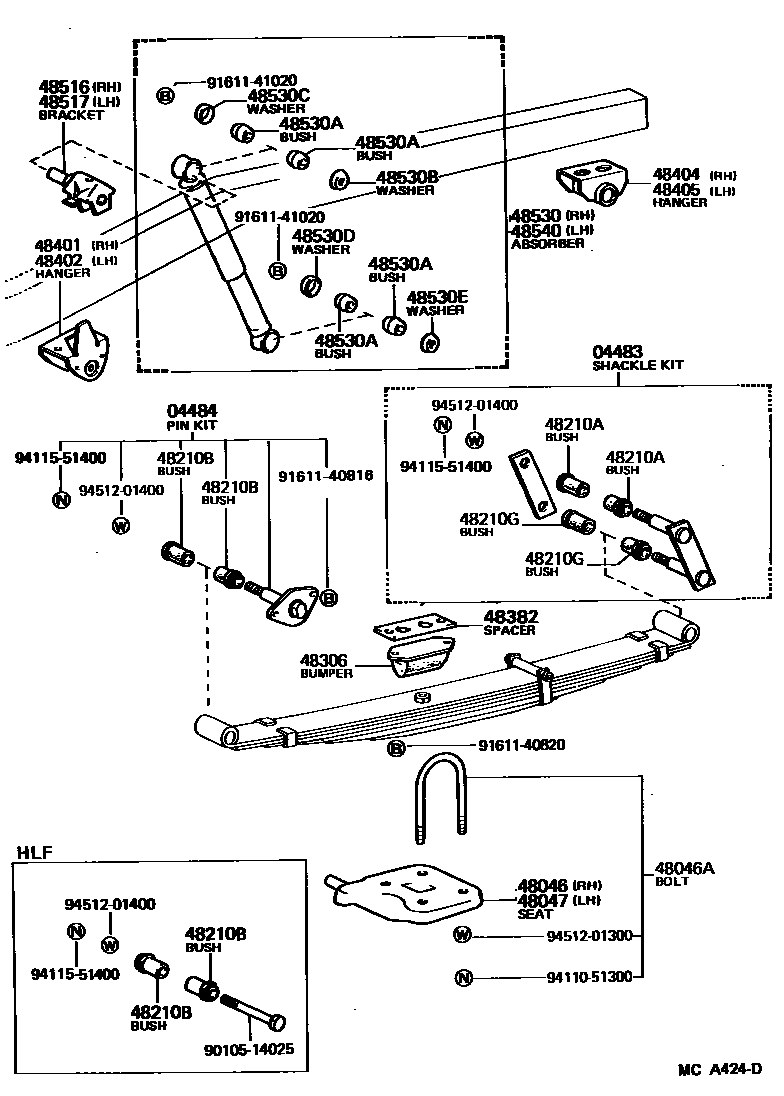

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04483SHACKLE KIT, REAR SPRING

main04483-35040iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

04484PIN KIT, REAR SPRING

main04482-35030iRN55,75..10T,3QT,HVY198308-198808

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35080iLN5#,RN5#198308-198508

main48046-35090iLN65,RN6#198308-198508

main48046-35100iLN56,RN5#,70..ST198508-198808

main48046-35110iRN55,75..WT198508-198808

main48046-35120iLN66,RN6#,VZN6#198508-198903

48046ABOLT, U(FOR REAR SPRING)

main90117-14007iRN61,VZN61..V,WG198608-198903

L=142

main90117-14021iRN75198708-198808

L=190

main90117-14042iLN66,RN6#,VZN6#..HLF198608-198808

L=138

main90117-14177iRN55..WT198608-198808

L=175

main90118-13091iRN55..HVY198308-198408

sub90117-13082

sub94110-51300

sub94512-01300

main90118-13133iLN5#,RN5#..HLF198308-198408

sub90118-13217

main90118-13152iRN55..3QT198308-198408

sub90118-13218

main90118-13215iRN55..10T,HVY198408-198508

sub90117-13082

sub90170-13001

sub90201-13023

main90118-13217iLN5#,RN5#..HLF198408-198508

sub90117-13206

sub90170-13001

sub90201-13023

main90118-14173iRN61..V,WG198508-198608

sub90117-14007

main90118-14211iLN65,RN6#198308-198408

sub90118-14222

main90118-14222iLN65,RN6#198408-198508

sub90117-14042

sub90201-15012

sub94115-51400

main90118-14226iRN55..(10T,HVY)..ST198508-198808

sub90117-14040

main90118-14228iLN56,RN5#,70..HLF198508-198808

sub90117-14039

main90118-14229iRN55,75..WT198508-198608

sub90117-14177

main90118-14230iLN66,RN6#..HLF198508-198608

sub90117-14042

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-35080iLN5#,RN5#198308-198508

main48046-35090iLN65,RN6#198308-198508

main48046-35100iLN56,RN5#,70..ST198508-198808

main48046-35110iRN55,75..WT198508-198808

main48046-35120iLN66,RN6#,VZN6#198508-198903

48210SPRING ASSY, REAR RH

main48210-35260iLN5#,RN5#..(DLX,SR5,STD)..HLF198308-198508

sub48210-35261

main48210-35261iLN56,RN5#,70..HLF..(CBR,DSL,EFI)198508-198808

main48210-35270iLN56,RN5#..(DLX,SR5,SRT)..HLF198308-198508

SOFT RIDE SPEC

sub48210-35271

main48210-35271iRN5#,70..HLF198508-198808

SOFT RIDE SPEC

main48210-35280iRN55..3QT198308-198408

main48210-35310iRN55..HVY198308-198508

sub48210-35311

main48210-35311iRN55..(10T,HVY)..ST198508-198808

MAIN 3+HELPER 2-LEAF

main48210-35340iLN65,RN6#..HLF198308-198501

sub48210-35341

main48210-35341iLN65,RN6#..5F..HLF198501-198508

main48210-35360iRN60..V,WG198403-198409

sub48210-35420

main48210-35401iRN65..4FC198501-198508

main48210-35420iRN60..V,WG198409-198508

main48210-35430iRN55..WT198508-198808

main48210-35460iLN66,RN6#,VZN6#..HLF198508-198808

main48210-35490iRN61,VZN61..V,WG198508-198808

main48210-35491iRN61,VZN61198808-198903

main48210-35600iRN75198708-198808

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18046iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

48210BBUSH(FOR REAR SPRING PIN)

main90385-18046iRN55,75..10T,3QT,HVY198308-198808

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18046iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

48306BUMPER SUB-ASSY, REAR SPRING

main48306-35060iLN65,RN6#198308-198508

main48306-35080iLN66,RN6#,VZN6#198508-198903

main48341-35030iLN5#,RN5#..HLF198308-198508

main48341-35031iRN55..WT;RN55..HLF;LN56,RN50,7#198508-198808

main48341-35040iRN55..10T,3QT,HVY198308-198508

sub48341-35041

main48341-35041iRN55..(10T,HVY)..ST198508-198808

48382SPACER, BUMPER BLOCK

main48382-35021iRN75198708-198808

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-35070iRN55..10T,3QT,HVY198308-198508

sub48414-35100

main48414-35071iRN55,75..10T,HVY198508-198808

main48414-35080iLN65,RN6#198308-198508

main48414-35081iLN56,RN5#,70..HLF198508-198808

main48414-35091iLN66,RN6#,VZN6#198508-198811

main48414-35180iRN61,VZN61198811-198903

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-35070iRN55..10T,3QT,HVY198308-198508

sub48414-35100

main48414-35071iRN55,75..10T,HVY198508-198808

main48414-35080iLN5#,RN5#..HLF198308-198508

main48414-35081iLN56,RN5#,70..HLF198508-198808

main48414-35091iLN66,RN6#,VZN6#198508-198811

main48414-35180iRN61,VZN61198811-198903

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-35050iLN5#,65,RN5#,6#198308-198508

main48416-35051iLN56,66,RN5#,6#,7#,VZN6#198508-198903

sub48416-35061

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-35050iLN5#,65,RN5#,6#198308-198508

main48416-35051iLN56,66,RN5#,6#,7#,VZN6#198508-198903

sub48416-35061

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-35010iLN65,RN6#198308-198508

main48505-35011iLN66,RN6#,VZN6#198508-198811

sub48505-35040

main48505-35020iLN5#,RN5#198308-198407

sub48505-35021

main48505-35021iLN5#,RN5#,7#198407-198808

main48505-35040iRN61,VZN61198811-198903

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48506-35010iLN6#,RN6#,VZN6#198308-198903

main48506-35020iLN5#,RN5#198308-198407

sub48506-35021

main48506-35021iLN5#,RN5#,7#198407-198808

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-35420iLN66,RN6#..HLF198508-198802

sub48531-39865

main48531-35440iRN61..V,WG198508-198802

sub48531-39885

main48531-35460iRN5#,70..HLF198608-198808

SOFT RIDE SPEC,MONROE

sub48531-39995

main48531-39605iRN55,75..10T,3QT,HVY198308-198808

MARK 48531-35270

sub48531-39606

main48531-39635iLN5#,RN5#,70..(DLX,SR5,STD)..HLF198308-198808

sub48531-39636

main48531-39645iLN56,RN5#,70..(DLX,SR5,SRT)..HLF198308-198608

SOFT RIDE SPEC

sub48531-39646

main48531-39645iRN5#,70..HLF198608-198808

SOFT RIDE SPEC,KAYABA

sub48531-39646

main48531-39655iLN65,RN6#198308-198508

sub48531-39656

main48531-39765iVZN6#..HLF198711-198808

GAS SHOCK

sub48531-39775

main48531-39775iVZN61..V,WG198711-198903

sub48531-39776

main48531-39865iVZN6#..(DLX,STD)..HLF198802-198903

sub48531-39866

main48531-39885iRN61..V,WG198802-198903

sub48531-39865

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iLN5#,RN5#,7#198308-198808

main90385-19002iVZN6#..DLX,STD198312-198903

main90385-19004iVZN6#198711-198903

GAS SHOCK

main90385-19057iRN60..IV;LN65,RN65;RN60..(DLX,STD)..CBU198308-198312

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iLN5#,RN5#,7#198308-198808

main90948-03015iLN6#,RN6#,VZN6#198308-198903

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03011iLN6#,RN6#,VZN6#198308-198903

main90948-03012iLN5#,RN5#,7#198308-198808

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03011iLN6#,RN6#,VZN6#198308-198903

main90948-03012iLN5#,RN5#,7#198308-198808

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iLN5#,RN5#,7#198308-198808

main90948-03015iLN6#,RN6#,VZN6#198308-198903

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-35420iVZN6#..DLX,STD198508-198802

sub48531-39865

main48531-35440iRN61..V,WG198508-198802

sub48531-39885

main48531-35460iRN5#,70..HLF198608-198808

SOFT RIDE SPEC,MONROE

sub48531-39995

main48531-39605iRN55,75..10T,3QT,HVY198308-198808

MARK 48531-35270

sub48531-39606

main48531-39635iLN5#,RN5#,70..(DLX,SR5,STD)..HLF198308-198808

sub48531-39636

main48531-39645iLN56,RN5#,70..(DLX,SR5,SRT)..HLF198308-198608

SOFT RIDE SPEC

sub48531-39646

main48531-39645iRN5#,70..HLF198608-198808

SOFT RIDE SPEC,KAYABA

sub48531-39646

main48531-39655iLN65,RN6#198308-198508

sub48531-39656

main48531-39765iVZN6#..HLF198711-198808

GAS SHOCK

sub48531-39775

main48531-39775iVZN61..V,WG198711-198903

sub48531-39776

main48531-39865iVZN6#..(DLX,STD)..HLF198802-198903

sub48531-39866

main48531-39885iRN61..V,WG198802-198903

sub48531-39865

9010514025

main90105-14025

9161140816

main91611-40816

9161140820

main91611-40820

9161141020

main91611-41020

9411051300

main94110-51300

9411551400

main94115-51400

9451201300

main94512-01300

9451201400

main94512-01400

32 parts on this diagram · 8 diagrams in section
