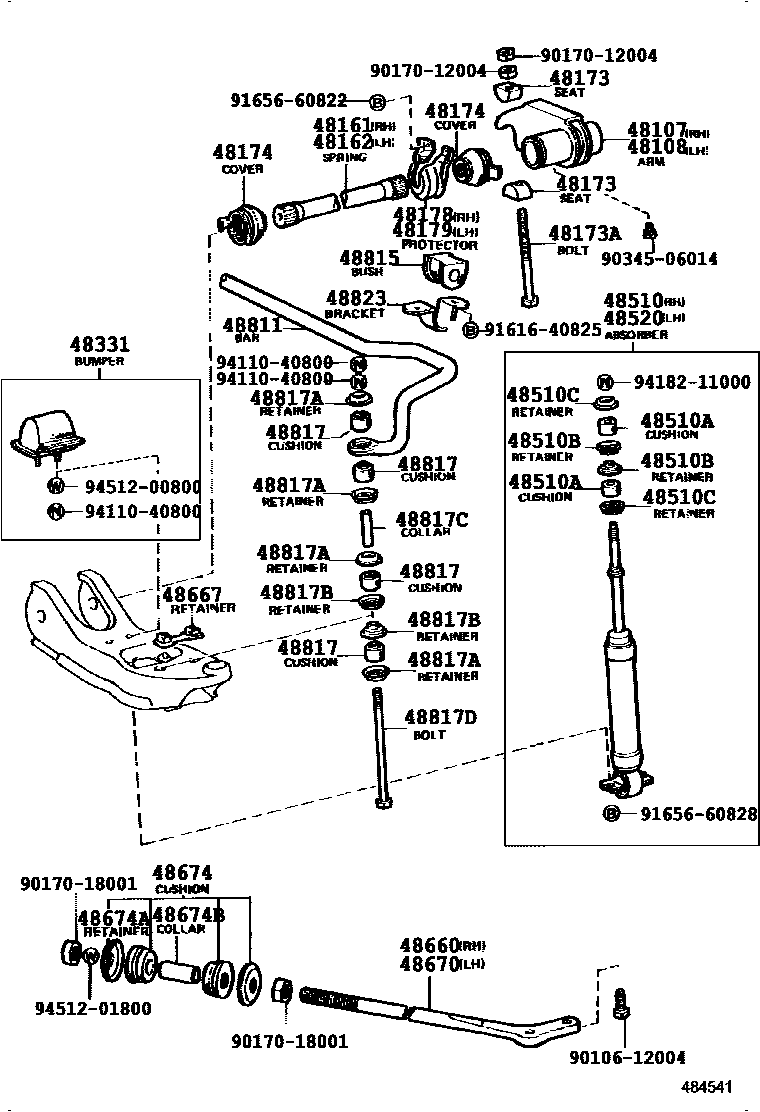

FRONT SPRING & SHOCK ABSORBER
48161SPRING, TORSION BAR, RH
W/WINCH
48162SPRING, TORSION BAR, LH
W/WINCH
48173SEAT, ANCHOR ARM ADJUSTER
UPR
LWR
48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
48174COVER, TORSION BAR DUST
FR
RR
48178PROTECTOR, TORSION BAR DUST COVER, RH
48179PROTECTOR, TORSION BAR DUST COVER, LH
48331BUMPER, FRONT SPRING, NO.1
RH
LH
RH
LH
48510ACUSHION, FRONT SHOCK ABSORBER
T=15
T=21
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
ID=10.5
ID=24
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
ID=12
ID=14
48660BAR ASSY, STRUT, RH
48667RETAINER, STRUT BAR
48670BAR ASSY, STRUT, LH
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
48674BCOLLAR(FOR STRUT BAR CUSHION)
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817CCOLLAR(FOR STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48823COVER, STABILIZER LINK(FOR FRONT)
9010612004
main90106-12004
9017012004
main90170-12004
9017018001
main90170-18001
9034506014
main90345-06014
9161640825
main91616-40825
9165660822
main91656-60822
9165660828
main91656-60828
9411040800
main94110-40800
9418211000
main94182-11000
9451200800
main94512-00800
9451201800
main94512-01800
40 parts on this diagram · 4 diagrams in section
