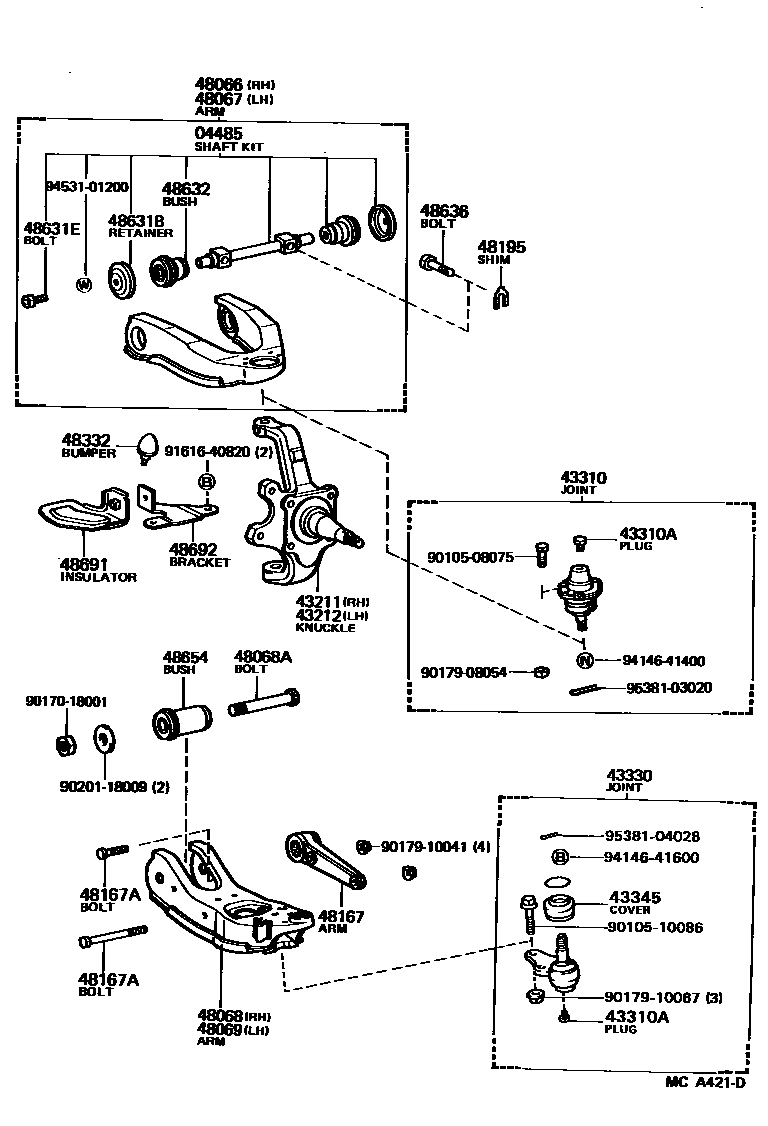

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-35030iLN5#,RN5#,7#198308-198808

main04485-35040iLN66,RN6#,VZN6#198508-198903

43211KNUCKLE, STEERING, RH

main43201-35020iLN66,RN6#,VZN6#198508-198903

REFER TO ILLUST.

sub43201-35040

main43211-35070iLN5#,RN5#,7#198308-198808

main43211-35090iLN65,RN6#198308-198508

REFER TO ILLUST.

main43211-35100iLN5#,RN5#..HLF198308-198408

sub43211-35070

43212KNUCKLE, STEERING, LH

main43202-35010iLN66,RN6#,VZN6#198508-198903

REFER TO ILLUST.

sub43202-35030

main43212-35040iLN5#,RN5#,7#198308-198808

main43212-35050iLN65,RN6#198308-198508

REFER TO ILLUST.

main43212-35060iLN5#,RN5#..HLF198308-198408

sub43212-35040

43310JOINT ASSY, UPPER BALL

main43350-39035iLN5#,RN5#,7#198308-198808

sub43350-39075

main43350-39045iLN66,RN6#,VZN6#198508-198903

RH

main43360-39075iLN66,RN6#,VZN6#198508-198903

LH

43310APLUG (FOR BALL JOINT)

main90345-06014iLN5#,66,RN5#,61,66,7#,VZN6#198308-198903

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39165iLN5#,RN5#,7#198308-198808

RH

main43330-39195iLN66,RN6#,VZN6#198508-198903

RH

main43340-39145iLN5#,RN5#,7#198308-198808

LH

sub43330-39165

main43340-39175iLN66,RN6#,VZN6#198508-198903

LH

43345COVER, LOWER BALL JOINT DUST

main43345-26010iLN5#,RN5#198308-198508

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-35060iLN5#,RN5#,7#198308-198808

main48066-35070iLN66,RN6#,VZN6#198508-198808

sub48066-35100

main48066-35100iRN61,VZN61198808-198903

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48066-35060iLN5#,RN5#,7#198308-198808

main48067-35030iLN66,RN6#,VZN6#198508-198808

sub48067-35040

main48067-35040iRN61,VZN61198808-198903

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-35040iLN66,RN6#,VZN6#198508-198903

main48605-35060iRN55,75..10T,3QT,HVY198308-198705

sub48605-35070

main48605-35070iLN56,RN5#,70..HLF198705-198808

main48605-35080iLN5#,RN5#,70..HLF198308-198705

sub48605-35070

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90114-18003iLN5#,RN5#,7#198308-198808

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-35040iLN66,RN6#,VZN6#198508-198903

main48606-35060iRN55,75..10T,3QT,HVY198308-198705

sub48606-35070

main48606-35070iRN55,75..10T,HVY198705-198808

main48606-35080iLN5#,RN5#,70..HLF198308-198705

sub48606-35070

48167ARM, TORQUE

main48106-35010iLN66,RN6#,VZN6#198508-198803

sub48106-35011

main48106-35011iRN6#,VZN6#198804-198903

main48167-35020iLN5#,RN5#,7#198308-198808

48167ABOLT(FOR TORQUE ARM SETTING)

main90105-10087iLN5#,RN5#,7#198308-198808

L=127

main90105-10088iLN5#,RN5#,7#198308-198808

L=26

sub91512-81025

main90105-12112iLN66,RN6#,VZN6#198508-198903

48195SHIM, CAMBER ADJUST

main90565-12004iLN5#,RN5#,7#198308-198808

T=4.0,T=4.0

main90565-12008iLN5#,RN5#,7#198308-198808

T=1.6,T=1.6

main90565-12009iLN5#,RN5#,7#198308-198808

T=1.2,T=1.2

48332BUMPER, FRONT SPRING, NO.2

main48332-35020iLN5#,RN5#,7#198308-198808

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02020iLN5#,RN5#,7#198308-198808

main90948-02065iLN66,RN6#,VZN6#198508-198903

FR

main90948-02066iLN66,RN6#,VZN6#198508-198903

RR

sub90948-02142

48631EBOLT(FOR UPPER SUSPENSION ARM)

main90105-12017iLN5#,RN5#,7#198308-198808

48632BUSH, UPPER ARM

main48632-26010iLN66,RN6#,VZN6#198508-198903

FR

main48632-30040iLN5#,RN5#,7#198308-198808

main48635-26010iLN66,RN6#,VZN6#198508-198903

RR

48636BOLT, UPPER ARM SET

main90105-12080iLN5#,RN5#,7#198308-198808

48654BUSH, LOWER ARM

main48061-35010iLN66,RN6#198508-198510

sub48061-35011

main48061-35011iLN66,RN6#,VZN6#198511-198903

main48654-35010iLN56,RN5#,7#198508-198808

main48654-35030iLN5#,RN5#198308-198507

sub48654-35010

48691INSULATOR, UPPER ARM BUSH, HEAT

main48691-35010iRN5#198308-198406

main48691-35011iLN56,RN5#,7#198406-198808

48692BRACKET, UPPER ARM BUSH INSULATOR

main48692-35010iRN5#198308-198406

main48692-35011iLN56,RN5#,7#198406-198808

9010508075

main90105-08075

9010510086

main90105-10086

9017018001

main90170-18001

9017908054

main90179-08054

9017910041

main90179-10041

9017910067

main90179-10067

9020118009

main90201-18009

9161640820

main91616-40820

9414641400

main94146-41400

9414641600

main94146-41600

9453101200

main94531-01200

9538103020

main95381-03020

9538104028

main95381-04028

36 parts on this diagram · 3 diagrams in section
