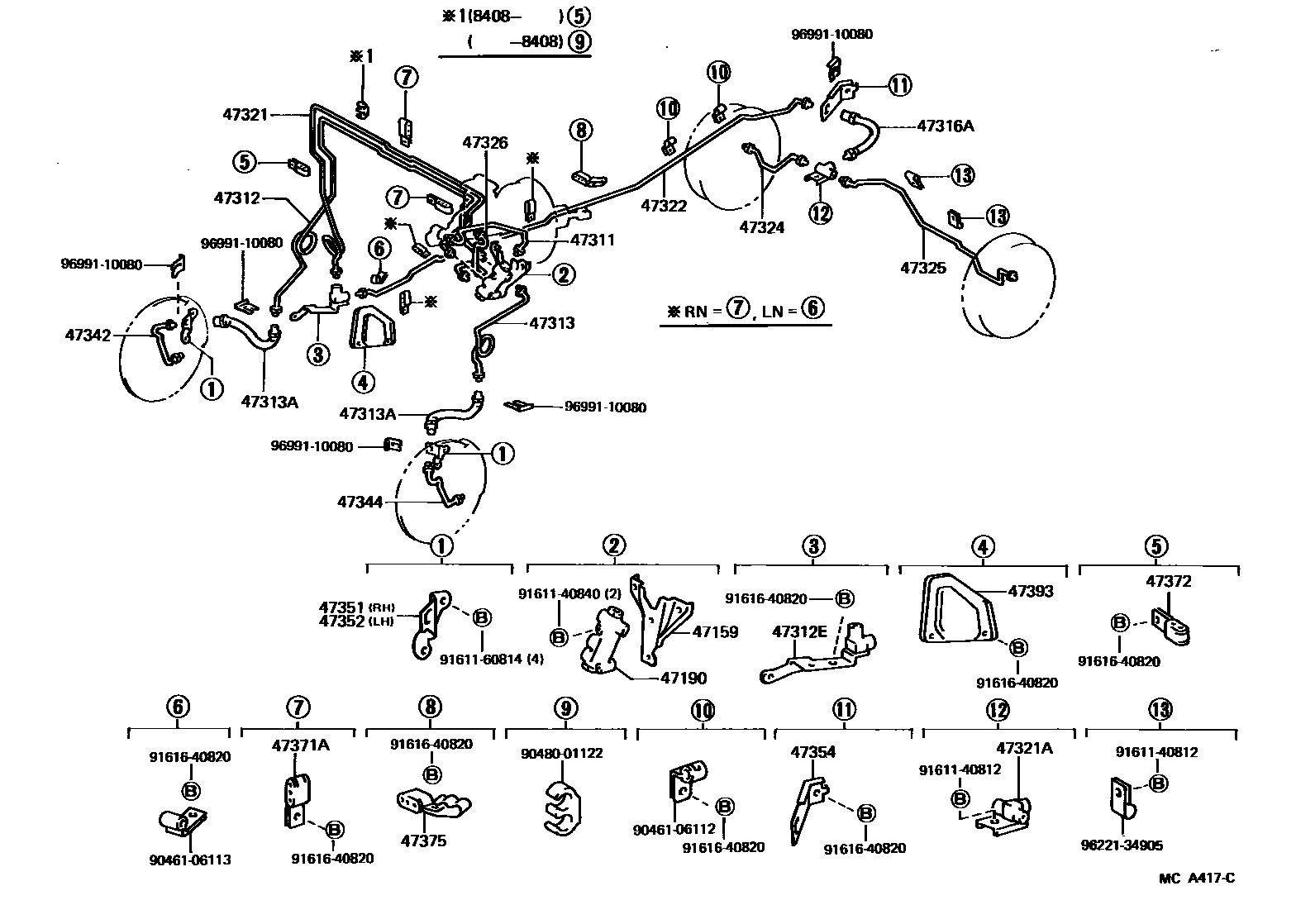

BRAKE TUBE & CLAMP

0001 1 0002 1 0004 1 0006 1

47159BRACKET, PROPORTIONING VALVE

main47159-35030iLN5#,RN5#,70..HLF198308-198608

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-35020iLN5#,RN5#..HLF¥10,900198308-198508

main47190-35030iLN56,RN5#,70..HLF¥10,900198508-198608

47311TUBE, FRONT BRAKE, NO.1

main47311-35330iRN55..3QT,HVY¥520198308-198403

main47311-35370iLN6#,RN6#..DLX,SR5,STD¥480198308-198903

main47311-35380iLN5#,RN5#..HLF¥490198308-198608

main47311-35400iRN6#..TBO¥600198403-198808

main47311-35410iLN5#,RN5#..(DLX,SR5,STD)..HLF¥520198408-198608

main47311-35420iRN5#,70..HLF..(CBR,EFI)¥600198508-198608

main47311-35430iRN5#,70..HLF..(CBR,EFI)¥600198608-198903

47312TUBE, FRONT BRAKE, NO.2

main47312-35360iRN5#..HLF..CBR¥1,450198308-198508

main47312-35370iRN5#,70..CBR¥1,470198308-198808

main47312-35372iRN55..TBO;RN55,75..10T,HVY¥1,690198408-198808

main47312-35380iLN5#¥1,460198308-198509

sub47312-35381¥1,870

main47312-35381iLN56¥1,870198509-198608

main47312-35390iLN56¥1,550198608-198708

main47312-35470iRN6#¥1,400198308-198408

main47312-35480iLN65¥1,420198308-198508

main47312-35510iRN5#..HLF..EFI¥1,450198308-198508

main47312-35540iRN6#..EFI¥1,530198408-198508

main47312-35550iRN6#..CBR¥1,610198408-198508

main47312-35560iVZN6#¥1,820198711-198903

main47312-35570iRN55..TBO198501-198608

main47312-35630iRN6#..CBR,EFI¥1,870198508-198903

main47312-35640iRN6#..TBO¥4,180198508-198708

main47312-35650iLN66¥1,880198508-198708

main47312-35690iRN5#,70..CBR¥1,870198508-198608

main47312-35700iRN55..HLF..EFI¥1,660198508-198608

main47312-35740iRN55..SR5¥1,670198608-198808

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10108iLN5#,RN5#,70..HLF¥1,180198308-198608

main90413-10188iLN66,RN6#,VZN6#¥1,360198508-198812

main90413-10233iRN61,VZN61¥1,350198812-198903

main90415-10006iLN65,RN60,65,75;RN55..10T,3QT,HVY¥1,350198308-198808

47313TUBE, FRONT BRAKE, NO.3

main47313-35260iLN56¥680198308-198608

main47313-35270iRN5#,70..HLF..(CBR,EFI)¥710198308-198808

main47313-35271iRN55,75..10T,HVY¥760198408-198808

main47313-35290iLN56¥800198608-198708

main47313-35320iLN65,RN6#¥920198308-198508

main47313-35380iVZN6#¥750198711-198903

main47313-35390iRN55..TBO198501-198608

main47313-35410iLN66,RN6#..CBR,EFI,TD¥990198508-198903

main47313-35450iRN6#..TBO¥990198508-198708

main47313-35480iRN5#,70..HLF..(CBR,EFI)¥790198508-198608

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02383iLN65,RN6#¥1,900198308-198508

main90947-02447iLN5#,RN5#,7#¥1,600198308-198808

main90947-02588iRN61,VZN61¥1,680198812-198903

sub96950-33555¥1,320

main96950-33555iLN66,RN6#,VZN6#¥1,320198508-198812

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02589iRN61,VZN61¥1,760198812-198903

main96940-34305iLN56,66,RN5#,6#,7#,VZN6#¥1,390198308-198812

main96940-34805iLN65,RN6#¥1,500198308-198508

47321TUBE, REAR BRAKE, NO.1

main47321-35180iRN5#..HLF..(CBR,EFI)¥1,450198308-198508

main47321-35190iRN55..3QT,HVY198308-198408

main47321-35191iRN55..TBO;RN55,75..10T,HVY198408-198808

main47321-35200iLN5#¥1,530198308-198509

sub47321-35201¥1,870

main47321-35201iLN56¥1,870198509-198608

main47321-35220iLN56¥1,690198608-198708

main47321-35250iLN65¥1,630198308-198508

main47321-35260iRN6#¥1,630198308-198408

main47321-35280iRN6#¥2,410198408-198508

main47321-35290iVZN6#¥2,170198711-198903

main47321-35300iRN55..TBO198501-198608

main47321-35310iRN6#..CBR,EFI¥2,030198508-198903

main47321-35340iRN6#..TBO¥2,050198508-198708

main47321-35350iLN66¥2,030198508-198708

main47321-35390iRN5#,70..HLF..(CBR,EFI)¥1,870198508-198608

main47321-35420iRN5#,70..HLF..(CBR,EFI)¥2,050198608-198808

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10152iLN5#,RN5#¥1,000198308-198808

main90413-10162iLN6#,RN6#,VZN6#¥990198308-198903

main90413-10198iLN56,RN5#,70..ST¥1,000198508-198808

47322TUBE, REAR BRAKE, NO.2

main47322-35180iLN56,RN55¥2,100198308-198808

main47322-35200iLN56,RN55..HLF¥2,100198308-198608

main47322-35210iRN50¥2,080198608-198808

main47322-35220iLN51,RN50¥1,970198308-198608

main47322-35290iRN60¥2,050198308-198508

main47322-35300iLN65,RN65¥2,160198308-198508

main47322-35350iRN70¥2,740198508-198608

main47322-35360iRN75¥3,110198508-198808

main47322-35390iLN66,RN66,VZN66¥2,940198508-198808

main47322-35400iRN61,VZN61¥2,740198508-198903

main47322-35410iRN70¥2,740198608-198808

47324TUBE, REAR BRAKE, NO.4

main47324-35060iRN55..10T,HVY¥860198408-198508

main47324-35070iLN5#,RN5#¥890198308-198508

main47324-35080iLN65,RN6#¥890198308-198508

main47324-35090iRN55,75..WT¥800198508-198808

main47324-35100iLN66,RN6#,VZN6#¥800198508-198903

main47324-35120iRN55..(10T,HVY)..ST¥790198508-198808

main47324-35130iLN56,RN5#,70..HLF¥800198508-198808

47325TUBE, REAR BRAKE, NO.5

main47325-35070iRN55..10T,HVY¥1,330198408-198508

main47325-35080iLN5#,RN5#¥1,330198308-198508

main47325-35090iLN65,RN6#¥1,330198308-198508

main47325-35100iRN55,75..WT¥1,340198508-198808

main47325-35110iLN66,RN6#,VZN6#¥1,340198508-198903

main47325-35130iRN55..(10T,HVY)..ST¥1,330198508-198808

main47325-35140iLN56,RN5#,70..HLF¥1,340198508-198808

47326TUBE, REAR BRAKE, NO.6

main47321-35080iLN56,RN55..DSL,TBO¥600198308-198608

main47321-35410iRN5#,70..HLF..(CBR,EFI)¥4,710198508-198608

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47341-35030iLN65,RN6#¥610198308-198508

sub47341-35120¥390

main47341-35090iLN5#,RN5#,7#¥600198308-198808

sub47341-35110¥390

main47341-35100iLN66,RN6#,VZN6#¥600198508-198903

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47343-35030iLN65,RN6#¥610198308-198508

sub47343-35120¥390

main47343-35090iLN5#,RN5#,7#¥600198308-198808

sub47343-35110¥390

main47343-35100iLN66,RN6#,VZN6#¥600198508-198903

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35130iLN5#,RN5#¥1,020198308-198808

main47351-35140iRN55,75..10T,HVY¥1,300198408-198808

main47352-35170iLN66,RN6#,VZN6#¥530198508-198903

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35110iLN5#,RN5#¥1,020198308-198808

main47352-35120iRN55,75..10T,HVY198408-198808

main47354-35080iLN66,RN6#,VZN6#¥530198508-198903

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-35070iLN5#,RN5#,70..HLF¥1,070198308-198608

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35020iLN5#,6#,RN5#,6#,7#,VZN6#¥640198308-198903

DASH PANEL SIDE

main47371-35030iLN56,66,RN5#,6#,70..CBR,DSL,TD¥600198308-198808

SIDE RAIL SIDE

main47371-35040iLN56,RN5#,6#,75..DSL,EFI,TBO¥590198308-198903

SIDE RAIL SIDE

47372CLAMP, BRAKE TUBE, NO.2

main47372-35010iLN5#,6#,RN5#,6#,7#,VZN6#¥580198308-198903

47375CLAMP, BRAKE TUBE, NO.5

main47375-35010iRN5#,70..CBR¥940198308-198808

main47375-35020iRN5#,75..EFI,TBO¥890198308-198808

main47375-35050iLN5#¥880198308-198708

47393INSULATOR, BRAKE TUBE HEAT

main47393-35050iLN5#..DSL¥980198308-198508

sub47393-35051¥990

main47393-35051iLN56¥990198508-198708

main47393-35060iLN65¥1,070198308-198508

main47393-35070iRN6#¥1,390198308-198508

main47393-35080iLN66¥1,610198508-198708

main47393-35090iRN6#¥1,900198508-198608

sub47393-35100¥1,900

main47393-35100iRN6#¥1,900198608-198903

main47393-35120iVZN6#¥2,020198711-198903

9046106112

main90461-06112¥130

9046106113

main90461-06113¥230

9048001122

main90480-01122¥120

9161140812

main91611-40812¥110

9161140840

main91611-40840¥180

9161160814

main91611-60814¥100

9161640820

main91616-40820¥160

9622134905

main96221-34905¥240

9699110080

main96991-10080¥100

32 parts on this diagram · 4 diagrams in section
