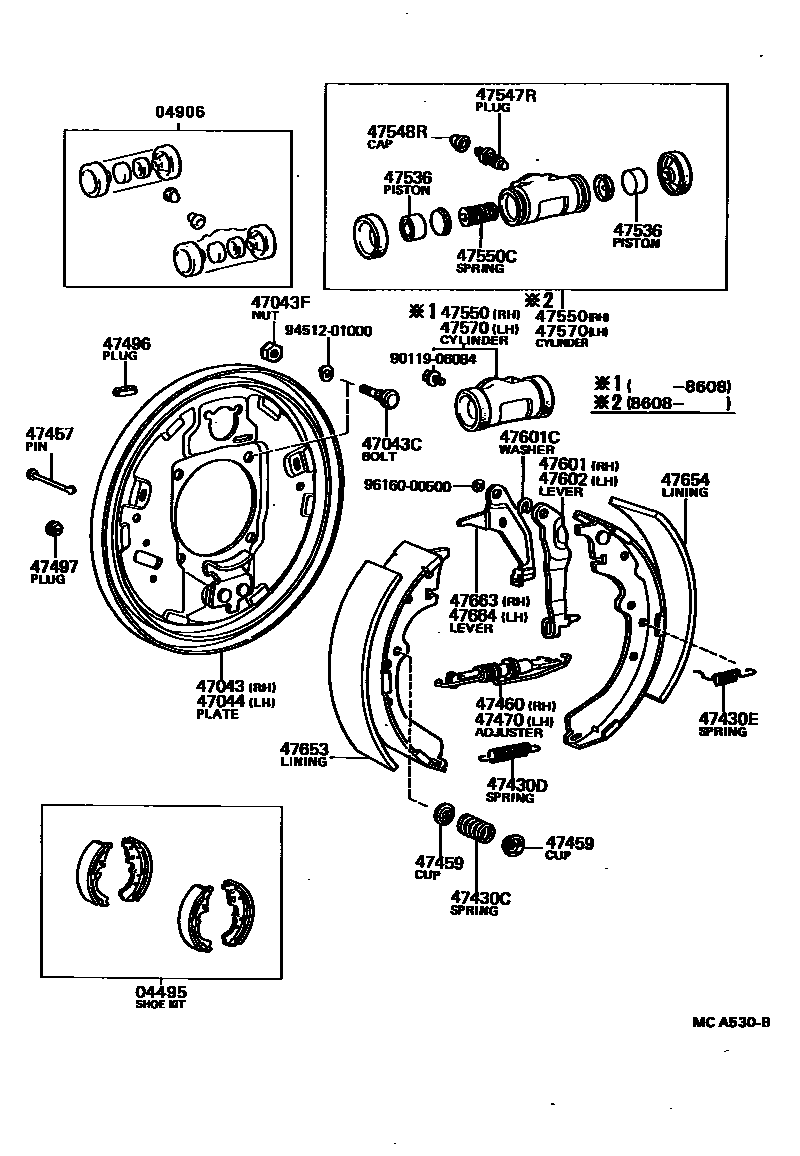

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0003 1 0004 1 0005 1

04495SHOE KIT, REAR BRAKE

main04495-26050iLN66,RN6#,VZN6#198608-198903

sub04495-26051

main04495-35051iRN55..10T,HVY198408-198501

sub04495-35052

main04495-35060iLN5#,RN5#,70..HLF198308-198808

sub04495-35061

main04495-35090iLN65,RN6#198308-198508

sub04495-35051

main04495-35100iRN55,75..10T,HVY198501-198808

sub04495-35101

main04495-35110iLN66,RN6#198508-198608

sub04495-35111

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30040iLN65,RN6#198308-198508

main04906-30060iRN70198308-198608

main04906-30100iLN5#,RN5#..HLF198308-198808

main04906-35080iRN55,75..10T,HVY198408-198808

main04906-35090iLN66,RN6#198508-198608

sub04906-30100

main04906-35120iVZN6#198711-198903

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35050iRN55..(10T,HVY)..ST198408-198607

sub47043-35051

main47043-35051iRN55..STD..ST..EFI198607-198608

main47043-35060iLN5#,RN5#198308-198608

sub47043-35061

sub47492-28010

main47043-35061iLN56,RN5#,70..HLF198608-198808

main47043-35090iLN65,RN6#198308-198508

main47043-35110iRN55,75..WT198508-198608

sub47043-35111

sub47492-28010

main47043-35111iRN55,75..WT198608-198808

main47043-35120iLN66,RN6#,VZN6#198508-198903

sub47043-35150

main47043-35130iRN55..(10T,HVY)..ST198608-198808

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90101-10028iRN55,75..WT198508-198808

*10-1.25PX27-18,*10-1.25P-27-18

main90101-10137iRN55,75..WT198508-198808

*10-1.25PX33-18

main90114-10002iLN5#,6#,RN5#,6#,70,VZN6#..ST198308-198903

*10-1.25PX37-18.5,*10-1.25PX35.5

main90114-10016iRN55..(10T,HVY)..ST198308-198808

*10-1.25PX41-18,*10-1.25PX41

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10191iLN65,RN6#198308-198508

main90179-10041iLN5#,RN5#198308-198508

main90179-10067iLN56,66,RN5#,6#,70,VZN6#..ST198508-198903

main94110-71000iRN55,75..WT198508-198808

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-35040iRN55..(10T,HVY)..ST198408-198607

sub47044-35041

main47044-35041iRN55..STD..ST..EFI198607-198608

main47044-35050iLN5#,RN5#198308-198608

sub47044-35051

sub47492-28010

main47044-35051iLN56,RN5#,70..HLF198608-198808

main47044-35080iLN65,RN6#198308-198508

main47044-35100iRN55,75..WT198508-198608

sub47044-35101

sub47492-28010

main47044-35101iRN55,75..WT198608-198808

main47044-35110iLN66,RN6#,VZN6#198508-198903

sub47044-35140

main47044-35120iRN55..(10T,HVY)..ST198608-198808

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iLN66,RN6#,VZN6#198508-198903

main90501-20604iLN65,RN6#198308-198808

main90501-20756iLN5#,RN5#,70..HLF198308-198808

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12412iRN55,75..10T,HVY198308-198808

main90506-18031iLN66,RN6#,VZN6#198508-198903

main90506-20005iLN5#,RN5#,70..HLF198308-198808

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015iLN5#,RN5#,70..HLF198308-198808

main90506-16343iLN65,RN6#198308-198808

main90506-26011iLN66,RN6#,VZN6#198508-198903

RH

main90506-26014iLN66,RN6#,VZN6#198508-198903

LH

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iRN55,75..10T,HVY198308-198808

main47447-30020iLN5#,RN5#..HLF198308-198903

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-35020iLN5#,RN5#198308-198808

main47061-60011iLN66,RN6#,VZN6#198508-198903

main47405-30020iLN65,RN6#198308-198808

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-35020iLN5#,RN5#,70..HLF198308-198808

main47062-60011iLN66,RN6#,VZN6#198508-198903

main47406-30020iRN55,75..10T,HVY198308-198808

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iLN5#,RN5#198308-198903

main47491-35040iRN55,75..10T,HVY198308-198808

47497PLUG, HOLE NO.2(FOR REAR BRAKE)

main47492-28010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iLN56,RN5#..HLF198308-198808

main47051-30030iRN55..3QT,HVY198308-198608

main47051-35010iLN66,RN6#198508-198604

sub47051-35011

main47051-35011iLN66,RN6#198604-198608

main47531-20071iRN55..10T,HVY198408-198508

sub47531-26070

main47531-26070iRN55,75..10T,HVY198508-198808

main47531-30110iLN65,RN6#198308-198508

sub47531-35130

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iLN5#,RN5#198308-198808

main47547-26010iRN55,75..10T,HVY198308-198808

main47547-60020iLN66,RN6#,VZN6#198508-198903

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26090iRN55,75..10T,HVY198508-198808

main47550-26110iVZN6#198711-198903

main47550-29265iRN55..10T,HVY198408-198508

sub47550-26090

sub91611-60814

main47550-29305iLN65,RN6#198308-198508

sub47550-35160

main47550-30130iLN56,RN5#,70..HLF198608-198808

main47550-35150iLN66,RN6#198508-198604

sub47550-35151

main47550-35151iLN66,RN6#198604-198608

main47550-35170iLN66,RN6#198608-198903

sub47550-35190

main47550-39175iRN70198308-198608

sub47550-30100

main47550-39275iLN5#,RN5#..HLF198308-198608

sub47550-30130

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010iLN65,RN6#198308-198508

main47509-20010iLN5#,RN5#..HLF198308-198808

main47509-35020iRN70198308-198608

main47509-60010iVZN6#198711-198903

main90501-09079iLN66,RN6#198608-198903

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26090iRN55,75..10T,HVY198508-198808

main47550-26110iVZN6#198711-198903

main47550-29265iRN55..10T,HVY198408-198508

sub47550-26090

sub91611-60814

main47550-29305iLN65,RN6#198308-198508

sub47550-35160

main47550-30130iLN56,RN5#,70..HLF198608-198808

main47550-35150iLN66,RN6#198508-198604

sub47550-35151

main47550-35151iLN66,RN6#198604-198608

main47550-35170iLN66,RN6#198608-198903

sub47550-35190

main47550-39175iRN70198308-198608

sub47550-30100

main47550-39275iLN5#,RN5#..HLF198308-198608

sub47550-30130

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-35011iRN55,75..10T,HVY198408-198808

main47601-35020iLN65,RN6#198308-198508

main47611-35020iLN5#,RN5#198308-198808

main47611-35040iLN66,RN6#,VZN6#198508-198903

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

T=1.6

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-35011iRN55,75..10T,HVY198408-198808

main47602-35020iLN65,RN6#198308-198508

main47612-35020iLN5#,RN5#,70..HLF198308-198808

main47612-35040iLN66,RN6#,VZN6#198508-198903

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-30050iLN5#,RN5#198308-198808

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-30050iLN5#,RN5#,70..HLF198308-198808

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20011iRN55,75..10T,HVY198308-198808

main47643-35020iLN5#,RN5#,70..HLF198308-198808

main47643-60010iLN66,RN6#198508-198903

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47643-20011iLN65,RN6#198308-198808

main47644-35020iLN5#,RN5#198308-198808

main47644-60010iLN66,RN6#198508-198903

9011906084

main90119-06084

9451201000

main94512-01000

9616000500

main96160-00500

31 parts on this diagram · 4 diagrams in section
