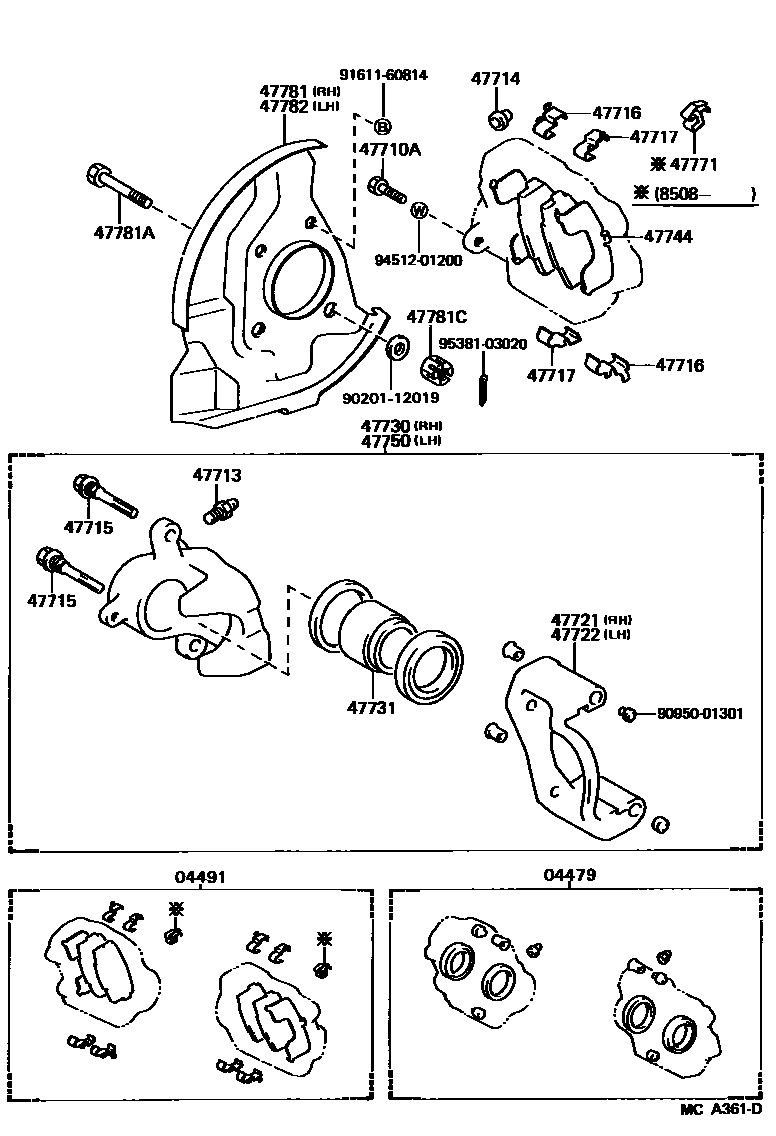

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22010iLN5#,RN5#198308-198808

main04479-30030iLN6#,RN6#198308-198903

sub04479-30031

main04479-35010iVZN6#198711-198903

main04479-40010iRN55,75..10T,HVY198408-198808

sub04479-35050

04491PAD KIT, DISC BRAKE, FRONT

main04491-22140iLN5#,RN5#..HLF198308-198508

sub04465-22140

main04491-35061iRN55..10T,HVY198408-198808

sub04491-35063

main04491-35080iLN65,RN6#198308-198508

sub04465-35170

main04491-35090iLN56,RN5#,70..HLF198508-198808

sub04491-35091

main04491-35101iRN6#198705-198903

sub04465-35170

main04491-35110iVZN6#198711-198803

sub04491-35111

main04491-35111iVZN6#198803-198808

sub04465-35100

main04491-35190iVZN61198808-198903

sub04491-35160

main04491-60010iLN66,RN6#198508-198705

sub04465-35170

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12030iLN5#,RN5#,7#198308-198808

*12-1.25PX31-20

main90101-12060iLN66,RN6#,VZN6#198508-198903

*12-1.25PX38-23

main90101-12491iLN65,RN6#198308-198508

*12-1.25PX42-24

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iRN55,75..10T,HVY198408-198808

main47547-20030iLN6#,RN6#,VZN6#198308-198903

main47547-35020iLN5#,RN5#198308-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-22010iLN5#,RN5#198308-198808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22010iLN5#,RN5#198308-198808

main47716-40010iRN55,75..10T,HVY198408-198808

sub47716-26040

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-40010iRN55,75..10T,HVY198408-198808

sub47716-26040

main47717-22010iLN5#,RN5#,70..HLF198308-198808

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26040iRN55,75..10T,HVY198408-198808

main47721-35010iLN5#,RN5#,70..HLF198308-198808

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26040iRN55,75..10T,HVY198408-198808

main47722-35010iLN5#,RN5#,70..HLF198308-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26040iRN55,75..10T,HVY198408-198808

main47730-35010iLN65,RN6#198308-198508

main47730-35030iLN5#,RN5#,70..HLF198308-198808

main47730-35040iVZN6#198711-198903

sub47730-35080

main47730-60021iLN66,RN6#198508-198903

47731PISTON, FRONT DISC BRAKE

main47731-30020iLN6#,RN6#198308-198903

OD=42.82

main47731-30050iLN5#,RN5#,70..HLF198308-198808

main47731-35010iVZN6#198711-198903

main47731-40010iRN55,75..10T,HVY198408-198808

main47732-30010iLN65,RN6#198308-198903

OD=33.93

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-22040iLN5#,RN5#198308-198711

main47744-22081iRN5#,70..HLF198711-198808

main47744-26020iRN55,75..10T,HVY198408-198808

main47744-35020iVZN6#198711-198903

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26040iRN55,75..10T,HVY198408-198808

main47750-35010iLN65,RN6#198308-198508

main47750-35030iLN5#,RN5#198308-198808

main47750-35040iVZN6#198711-198903

sub47750-35080

main47750-60021iLN66,RN6#198508-198903

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22030iLN56,RN5#,70..HLF198508-198808

main47771-35010iRN55,75..10T,HVY198508-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-35020iLN65,RN6#198308-198508

main47703-35030iLN66,RN6#198508-198903

main47703-35040iVZN6#198711-198808

main47703-35060iVZN61198808-198903

sub47703-35061

main47781-26030iRN55,75..10T,HVY198408-198808

main47781-35030iLN5#,RN5#,70..HLF198308-198808

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10439iLN65,RN6#198408-198508

main90102-12006iLN5#,RN5#,7#198308-198808

main91112-71028iLN65,RN6#198308-198408

sub91111-71028

main91611-60814iLN66,RN6#,VZN6#198508-198903

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90171-12006iLN5#,RN5#,7#198308-198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-35020iLN65,RN6#198308-198508

main47704-35030iLN66,RN6#198508-198903

main47704-35040iVZN6#198711-198808

main47704-35060iVZN61198808-198903

sub47704-35061

main47782-26030iRN55,75..10T,HVY198408-198808

main47782-35030iLN5#,RN5#,70..HLF198308-198808

9020112019

main90201-12019

9095001301

main90950-01301

9161160814

main91611-60814

9451201200

main94512-01200

9538103020

main95381-03020

24 parts on this diagram · 6 diagrams in section
