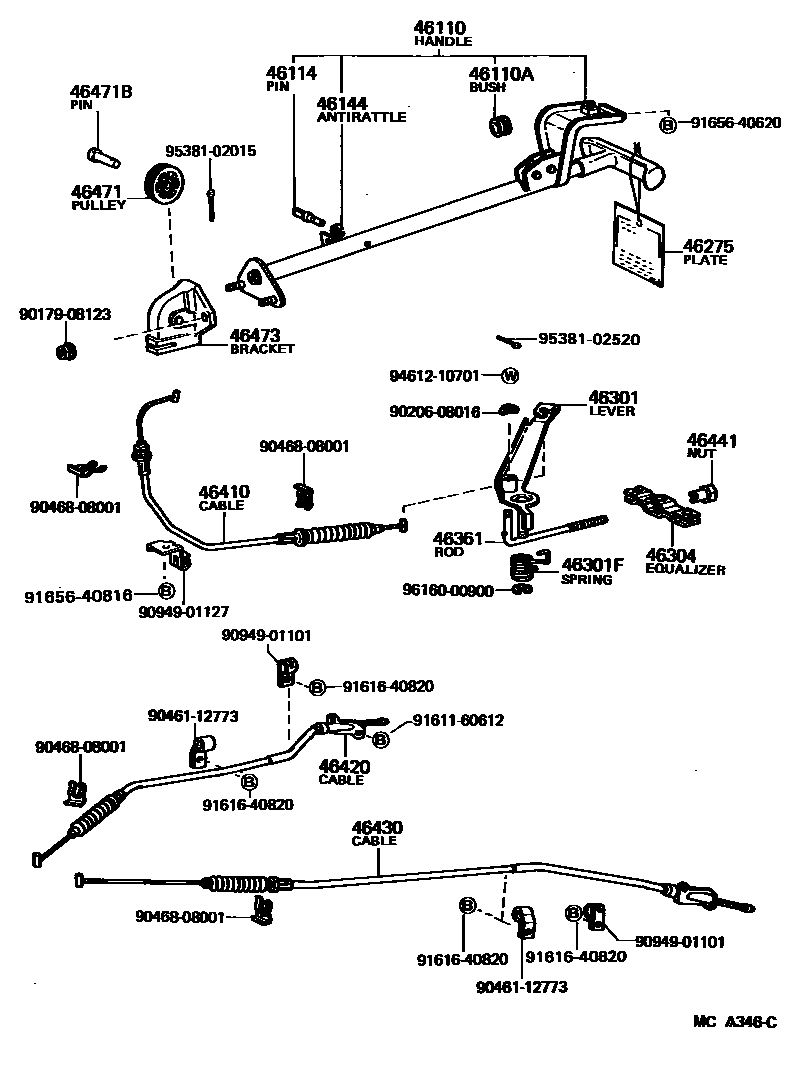

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46110-35160iLN5#,65,RN5#,6#198308-198408

main46110-35180iLN5#,6#,RN5#,6#,7#198408-198808

main46110-35210iVZN66198711-198808

main46110-35220iVZN61198711-198903

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-35010iLN5#,6#,RN5#,6#,7#198408-198608

main46275-35020iLN56,66,RN5#,6#,7#,VZN6#198608-198903

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-35120iLN5#,RN5#,7#198308-198808

main46301-35140iLN65,RN6#198308-198508

main46301-35150iLN66,RN6#,VZN6#198508-198903

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-32018iLN5#,RN5#,7#198308-198808

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iLN5#,RN5#,7#198308-198808

main46341-35030iLN6#,RN6#,VZN6#198308-198903

46361ROD, PARKING BRAKE PULL

main46361-35050iLN5#,RN5#,7#198308-198808

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35230iLN5#,RN5#,7#198308-198808

main46410-35250iLN65,RN65198308-198508

main46410-35260iRN60198308-198508

main46410-35330iLN66,RN66198508-198903

main46410-35340iRN61198508-198903

main46410-35390iVZN66198711-198808

main46410-35400iVZN61198711-198903

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35200iLN56,RN55..HLF198308-198508

sub46420-35201

main46420-35201iLN56,RN55..HLF198508-198808

main46420-35210iLN51,RN50198308-198808

main46420-35220iRN55..3QT,HVY198308-198408

main46420-35230iRN55..(10T,HVY)..ST198408-198808

main46420-35260iLN65,RN6#..HLF198308-198508

main46420-35280iRN60..V,WG198403-198508

main46420-35290iRN70198508-198808

main46420-35300iRN75198508-198808

main46420-35310iRN61,VZN61..V,WG198508-198903

main46420-35320iLN66,RN6#,VZN6#..HLF198508-198808

main46420-35360iRN55..WT198508-198808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35170iLN56,RN55..HLF198308-198508

sub46430-35171

main46430-35171iLN56,RN55..HLF198508-198808

main46430-35180iLN51,RN50198308-198808

main46430-35190iRN55..3QT,HVY198308-198408

main46430-35200iRN55..(10T,HVY)..ST198408-198808

main46430-35220iRN70198508-198808

main46430-35230iRN75198508-198808

main46430-35270iRN55..WT198508-198808

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030iLN6#,RN6#,VZN6#198308-198903

main46441-35010iLN5#,RN5#,7#198308-198808

46471PULLEY, WIRE

main46471-20010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iVZN6#198711-198903

main90240-08070iLN5#,6#,RN5#,6#,7#198308-198903

46473BRACKET, PULLEY

main46473-35020iLN5#,6#,RN5#,6#,7#198308-198903

9017908123

main90179-08123

9020608016

main90206-08016

9046112773

main90461-12773

9046808001

main90468-08001

9094901101

main90949-01101

9094901127

main90949-01127

9161160612

main91611-60612

9161640820

main91616-40820

9165640620

main91656-40620

9165640816

main91656-40816

9461210701

main94612-10701

9538102015

main95381-02015

9538102520

main95381-02520

9616000900

main96160-00900

30 parts on this diagram · 3 diagrams in section
