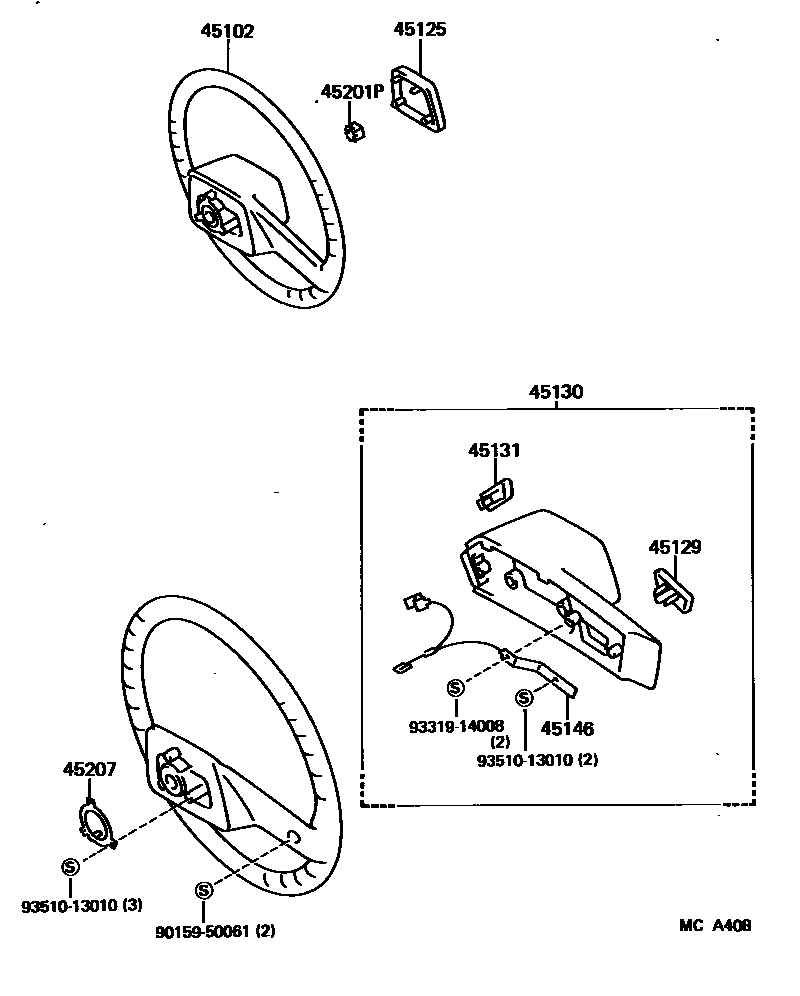

STEERING WHEEL

0001 1POLYPROPYLENE 0004 1URETHANE

45102WHEEL SUB-ASSY, STEERING

main45100-14350-01iRN55,6#..SR5198308-198608

BLACK

sub45100-14350

main45100-14350-02iRN55,6#,VZN6#..SR5198608-198903

RED,RED,TRIM3#

sub45100-14350

main45100-14350-02iRN61..DLX..EFI198608-198903

RED,URETHAN,RED,TRIM3#

sub45100-14350

main45100-14350-03iRN55,66,VZN66..SR5;RN61,VZN61..(DLX,SR5,SRT)..(EFI,TBO)198608-198903

GRAY,URETHAN,GRAY,TRIM1#

sub45100-14350

main45100-14350-03iVZN66..DLX..IV198711-198808

GRAY,GRAY,TRIM1#

sub45100-14350

main45100-14350-05iRN55,66,VZN66..SR5;RN61,VZN61..(DLX,SR5,SRT)..(EFI,TBO)198608-198903

BEIGE,URETHAN,BEIGE,TRIM4#

sub45100-14350

main45100-14350-05iVZN66..DLX..IV198711-198808

BEIGE,BEIGE,TRIM4#

sub45100-14350

main45100-14350-14iVZN66..DLX..IV198711-198808

BLUE,BLUE,TRIM8#

sub45100-14350

main45100-14350-14iRN55,6#,VZN6#..SR5..HLF198608-198808

BLUE,URETHAN,BLUE,TRIM8#

sub45100-14350

main45100-35211-03iLN56,66,RN5#,6#,7#,VZN6#..T1..(DLX,SDT,STD)198608-198808

GRAY,GRAY,TRIM1#

sub45100-35211

main45100-35211-04iLN56,66,RN5#,6#,7#,VZN6#..T1..(DLX,SDT,STD)198608-198808

BLUE,BLUE,TRIM8#

sub45100-35211

main45100-35211-05iLN56,66,RN5#,6#,7#,VZN6#..T1..(DLX,SDT,STD)198608-198808

BEIGE,BEIGE,TRIM4#

sub45100-35211

main45100-35230iLN56,66,RN5#,6#,7#..DLX,SDT,STD198308-198608

main45100-35250iRN55,6#..SRT198508-198608

main45100-35250-01iVZN6#..SR5198711-198903

LEATHER,BLACK

sub45100-35250

main45100-35250-02iRN55,6#..SRT198608-198808

RED,MAROON,TRIM3#

sub45100-35250

main45100-35250-03iRN55,6#..SRT198608-198808

GRAY,GRAY,TRIM1#

sub45100-35250

main45100-35250-04iRN55,66..TBO198608-198808

BLUE,BLUE,TRIM8#

sub45100-35250

main45100-35250-05iRN55,6#..SRT198608-198808

BEIGE,BEIGE,TRIM4#

sub45100-35250

45125MARK, STEERING WHEEL PAD

main45125-35081-03iLN56,66,RN5#,6#,7#,VZN6#..T1..(DLX,SDT,STD)198608-198808

GRAY,GRAY,TRIM1#

sub45125-35081

main45125-35081-04iLN56,66,RN5#,6#,7#,VZN6#..T1..(DLX,SDT,STD)198608-198808

BLUE,BLUE,TRIM8#

sub45125-35081

main45125-35081-05iLN56,66,RN5#,6#,7#,VZN6#..T1..(DLX,SDT,STD)198608-198808

BEIGE,BEIGE,TRIM4#

sub45125-35081

main45125-35100iLN56,66,RN5#,6#,7#..DLX,SDT,STD198308-198608

main45125-35140iRN55,6#..SR5198308-198608

sub45125-35141

main45125-35141iVZN66..DLX..IV198608-198903

main45125-35150iRN55,6#..SRT198508-198608

main45125-35151iRN55,6#..SRT198608-198708

sub45125-35141

45129BUTTON, HORN, NO.2

main45129-35041-03iLN56,66,RN5#,6#,7#..T1..(DLX,SDT,STD)198608-198903

GRAY,GRAY,TRIM1#

sub45129-35041

main45129-35041-04iLN56,66,RN5#,6#,7#..T1..(DLX,SDT,STD)198608-198903

BLUE,BLUE,TRIM8#

sub45129-35041

main45129-35041-05iLN56,66,RN5#,6#,7#..T1..(DLX,SDT,STD)198608-198903

BEIGE,BEIGE,TRIM4#

sub45129-35041

main45129-35050iLN56,66,RN5#,6#,7#..DLX,SDT,STD198308-198608

45130BUTTON ASSY, HORN

main45130-35171-03iRN5#,6#,7#,VZN6#198608-198903

GRAY,POLYPROPYLENE,GRAY

sub45130-35171

main45130-35171-04iRN5#,6#,7#,VZN6#198608-198903

BLUE,POLYPROPYLENE,BLUE

sub45130-35171

main45130-35171-05iRN5#,6#,7#,VZN6#198608-198903

BEIGE,POLYPROPYLENE,BEIGE

sub45130-35171

main45130-35180iLN56,66,RN5#,6#,7#..DLX,SDT,STD198308-198608

main45130-35190iRN60..V,WG;RN5#,6#..(SR5,SRT)..HLF198308-198508

sub45130-35220

main45130-35191-02iRN55,6#,70,VZN6#198608-198903

RED,URETHANE,RED

sub45130-35191

main45130-35191-03iRN55,61,70,VZN6#198608-198903

GRAY,URETHANE,GRAY

sub45130-35191

main45130-35191-04iRN55,61,70,VZN6#198608-198903

BLUE,URETHANE,BLUE

sub45130-35191

main45130-35191-05iRN55,61,70,VZN6#198608-198903

BEIGE,URETHANE,BEIGE

sub45130-35191

main45130-35201-02iRN55,6#,VZN6#198608-198903

RED,URETHANE,TURBO,RED

sub45130-35201

main45130-35201-03iRN55,6#,VZN6#198608-198903

GRAY,URETHANE,TURBO,GRAY

sub45130-35201

main45130-35201-04iRN55,6#,VZN6#198608-198903

BLUE,URETHANE,TURBO,BLUE

sub45130-35201

main45130-35201-05iRN55,6#,VZN6#198608-198903

BEIGE,URETHANE,TURBO,BEIGE

sub45130-35201

45131BUTTON, HORN, NO.1

main45131-35121-03iLN56,66,RN5#,6#,7#..T1..(DLX,SDT,STD)198608-198903

GRAY,GRAY,TRIM1#

sub45131-35121

main45131-35121-04iLN56,66,RN5#,6#,7#..T1..(DLX,SDT,STD)198608-198903

BLUE,BLUE,TRIM8#

sub45131-35121

main45131-35121-05iLN56,66,RN5#,6#,7#..T1..(DLX,SDT,STD)198608-198903

BEIGE,BEIGE,TRIM4#

sub45131-35121

main45131-35130iLN5#,65,RN5#,6#..T1..(DLX,STD)198308-198608

45146SPRING, HORN BUTTON CONTACT

main45146-35070iLN5#,65,RN5#,6#..T1..(DLX,STD)198308-198808

45201PNUT, STEERING WHEEL SET

main90179-12086iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

45207RING, HORN CONTACT

main45176-20030iLN56,66,RN5#,6#,7#,VZN6#..T1..(DLX,SDT,STD)198308-198808

main45176-22050iRN55,6#,VZN6#..SR5,SRT198308-198903

9015950061

main90159-50061

9331914008

main93319-14008

9351013010

main93510-13010

11 parts on this diagram · 2 diagrams in section
