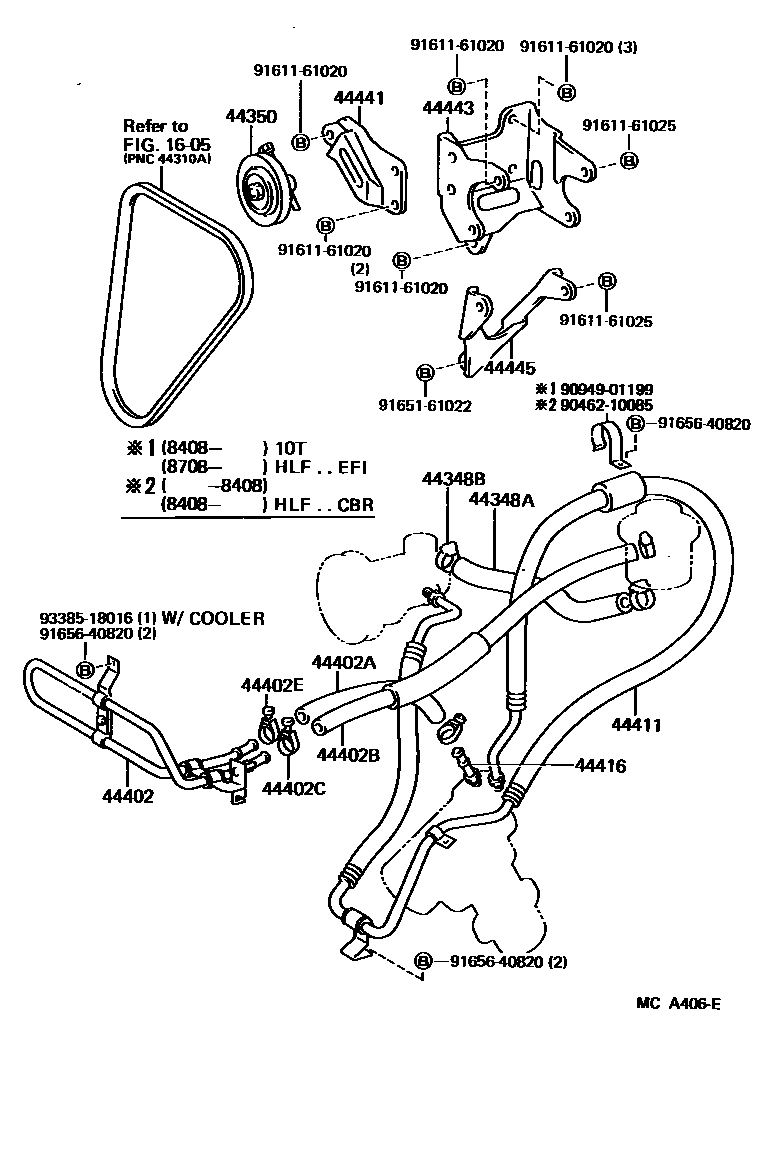

POWER STEERING TUBE

0001 1 0002 1 0004 1 0005 1

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-35040iRN5#..STD..USA..CBR198308-198903

sub44348-35041

main44348-35050iLN56,6#..DLX198308-198708

main44348-35080iRN55,61,66..SRT198501-198808

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iRN55..HLF;LN56,6#,RN50,6#,70198308-198903

44350PULLEY ASSY, POWER STEERING IDLE

main44350-20020iRN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..(DLX,SR5)..HLF198308-198612

sub44350-60020

main44350-35010iLN56,6#198312-198903

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44420-35030iRN5#,6#..(4FC,5F)..(DLX,SR5)198308-198903

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18067iRN5#..STD..USA..CBR198308-198808

sub90445-18089

main90445-18128iRN6#198308-198903

main90447-18029iRN6#198502-198608

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90447-18017iRN5#,6#..(4FC,5F)..(DLX,SR5)198308-198903

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001iRN5#,6#..(4FC,5F)..(DLX,SR5)198308-198903

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001iRN5#,6#..(4FC,5F)..(DLX,SR5)198308-198903

44411HOSE, PRESSURE FEED

main44411-35051iRN55..3QT198308-198608

main44411-35060iLN56,6#198308-198808

main44411-35080iRN6#..DLX,SR5198308-198501

sub44411-35081

main44411-35081iRN6#198501-198508

main44411-35110iRN55..10T;RN55,75..WT198408-198608

main44411-35120iRN55..TBO198501-198608

main44411-35140iRN6#..CBR,EFI198508-198903

main44411-35150iRN6#..TBO198508-198808

main44411-35180iRN5#,70..HLF..(CBR,EFI)198608-198808

main44411-35190iRN55..TBO198608-198808

main44411-35200iRN55..10T;RN55,75..WT198608-198808

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-35020iRN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF198308-198903

main44416-35040iLN65198308-198408

44441BRACKET, PUMP, FRONT

main44441-20010iRN5#,6#..(4FC,5F)..(DLX,SR5)198308-198903

main44441-35011iLN56,6#198308-198708

main44441-35020iVZN6#198711-198903

44443BRACKET, PUMP

main44443-20031iRN5#,6#..(DLX,SR5)..HLF198308-198408

main44443-35011iLN56,6#198308-198708

main44443-35020iRN55..10T;RN55,75..WT198408-198903

44445BRACKET, PUMP, LOWER

main44445-20010iRN55..3QT198308-198408

main44445-35010iRN5#..STD..USA..CBR198408-198903

9046210085

main90462-10085

9094901199

main90949-01199

9161161020

main91611-61020

9161161025

main91611-61025

9165161022

main91651-61022

9165640820

main91656-40820

9338518016

main93385-18016

21 parts on this diagram · 4 diagrams in section
