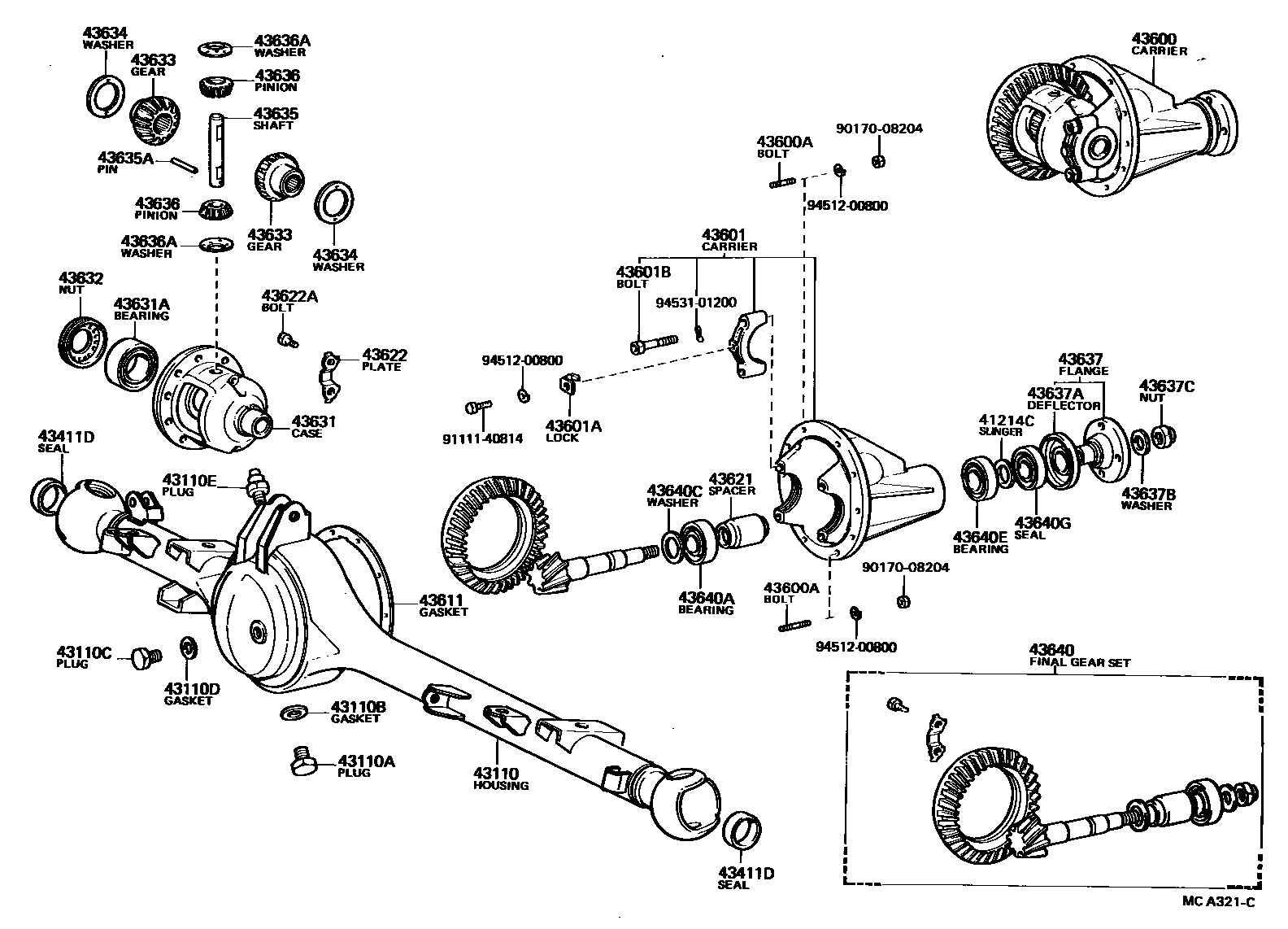

FRONT AXLE HOUSING & DIFFERENTIAL
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
43110HOUSING ASSY, FRONT AXLE
43110APLUG SUB-ASSY, DRAIN
43110BGASKET, DRAIN
43110CPLUG (FOR FRONT AXLE HOUSING)
43110DGASKET (FOR FRONT AXLE HOUSING PLUG)
43110EPLUG, BREATHER (FOR FRONT AXLE HOUSING)
43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)
43600CARRIER ASSY, FRONT AXLE
R=41:10=4.100
R=43:10=4.300
43600ABOLT, STUD (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING)
S=14 & 14,L=42,L=28
43601CARRIER SUB-ASSY, FRONT AXLE
43601ALOCK, FRONT AXLE DIFFERENTIAL ADJUST NUT
43601BBOLT, FRONT AXLE DIFFERENTIAL BEARING CAP
43611GASKET, FRONT AXLE DIFFERENTIAL CARRIER
43621SPACER, FRONT AXLE DIFFERENTIAL DRIVE PINION BEARING
43622PLATE, FRONT AXLE DIFFERENTIAL RING GEAR SET BOLT LOCK
43622ABOLT (FOR FRONT AXLE DIFFERENTIAL RING GEAR SET PLATE)
43631CASE, FRONT AXLE DIFFERENTIAL
43631ABEARING, FRONT AXLE DIFFERENTIAL
ID=45
ID=50
43632NUT, FRONT AXLE DIFFERENTIAL BEARING ADJUST
43634WASHER, FRONT AXLE DIFFERENTIAL SIDE GEAR THRUST
T=1.0
T=1.1
T=1.2
T=1.3
T=1.6
T=1.7
T=1.8
43635APIN, FRONT AXLE DIFFERENTIAL PINION SHAFT
43636AWASHER, FRONT AXLE DIFFERENTIAL PINION THRUST
43637FLANGE, FRONT AXLE DRIVE PINION, W/DEFLECTOR
43637BWASHER, PLATE (FOR FRONT AXLE DRIVE PINION)
43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
43640FINAL GEAR SET, FRONT AXLE DIFFERENTIAL
sub41201-39716
43640ABEARING, FRONT AXLE DRIVE PINION, FRONT
43640CSPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST
T=2.36,MARK 05,T=2.36
T=2.39,MARK 06,T=1.85
T=2.42,MARK 07,T=2.42
T=2.43,MARK 08,T=2.45
T=2.48,MARK 09,T=2.48
T=2.51,MARK 10,T=2.51
T=2.54,MARK 11,T=2.54
T=2.57,MARK 12,T=2.57
T=2.60,MARK 13,T=2.60
T=2.63,MARK 14,T=2.63
T=2.66,MARK 15,T=2.66
T=2.69,MARK 16,T=2.69
T=2.72,MARK 17,T=2.72
OD=47,T=1.70,T=1.70
OD=47,T=1.73,T=1.73
OD=47,T=1.76,T=1.76
OD=47,T=1.79,T=1.79
OD=47,T=1.82,T=1.82
OD=47,T=1.85,T=1.85
OD=47,T=1.88,T=1.88
OD=47,T=1.91,T=1.91
OD=47,T=1.94,T=1.94
OD=47,T=1.97,T=1.97
OD=47,T=2.00,T=2.00
OD=47,T=2.03,T=2.03
OD=47,T=2.06,T=2.06
OD=47,T=2.09,T=2.09
OD=47,T=2.12,T=2.12
OD=47,T=2.15,T=2.15
OD=47,T=2.18,T=2.18
OD=47,T=2.21,T=2.21
OD=47,T=2.24,MARK 01,T=2.24
OD=47,T=2.27,MARK 02,T=2.27
OD=47,T=2.30,MARK 03,T=2.30
OD=47,T=2.33,MARK 04,T=2.33
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
sub90311-38047
9017008204
main90170-08204
9111140814
main91111-40814
9451200800
main94512-00800
9453101200
main94531-01200
39 parts on this diagram · 2 diagrams in section
