REAR AXLE HOUSING & DIFFERENTIAL

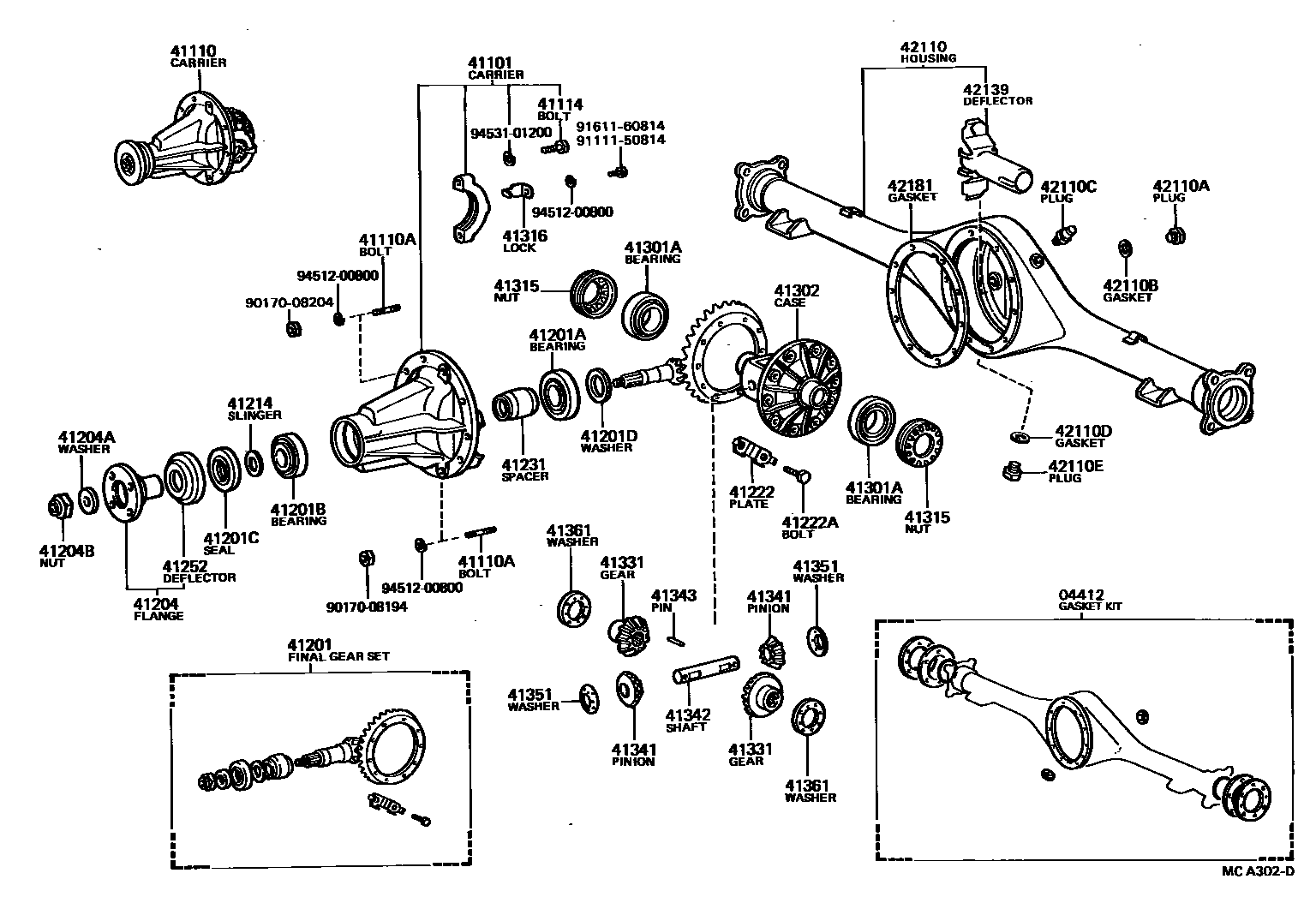

Parts diagram
04412GASKET KIT, REAR DIFFERENTIAL CARRIER
main04412-25060i198508-198903
main04412-26010i198608-198808
main04412-35010i198308-198508
main04412-35030i198308-198408
*AXC=F382
main04412-35030i198408-198808
main04412-35051i198308-198508
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
main41101-30031i198408-198808
main41101-30031i198308-198408
*AXC=F382 OR F302
main41101-35030i198308-198903
sub41101-35031
sub90116-08329
main41101-35070i198508-198903
sub41101-35071
sub90116-08329
sub90116-08334
main41101-40020i198308-198808
*AXC=G392 OR G662
sub41101-40021
sub90116-08329
sub90116-08332
main41101-40020i198501-198808
sub41101-40021
sub90116-08329
sub90116-08332
41110CARRIER ASSY, DIFFERENTIAL, REAR
main41110-25081i198408-198508
R=39:10=3.900,*AXC=G072
sub41110-25082
main41110-25082i198508-198808
*FGR=39:10=3.900,R=39:10=3.900
sub41110-25083
sub90116-08329
sub90116-08334
main41110-26021i198501-198508
R=41:12=3.417
sub41110-26022
main41110-35160i198308-198508
R=41:10=4.100
sub41110-35161
main41110-35161i198508-198612
*FGR=41:10=4.100,R=41:10=4.100
sub41110-35201
main41110-35170i198408-198508
R=43:10=4.300,*AXC=G282
sub41110-35171
main41110-35200i198308-198508
R=41:10=4.100
sub41110-35201
main41110-35201i198508-198903
*FGR=41:10=4.100,R=41:10=4.100
sub41110-35202
sub90116-08329
main41110-35210i198308-198508
R=43:10=4.300
sub41110-35211
main41110-35211i198508-198903
*FGR=43:10=4.300,R=43:10=4.300
sub41110-35212
sub90116-08329
main41110-35211i198508-198808
*FGR=43:10=4.300,R=43:10=4.300,*AXC=G282
sub41110-35212
sub90116-08329
main41110-35260i198308-198808
*FGR=41:12=3.415,R=41:12=3.417,*AXC=F382
main41110-35270i198308-198903
*FGR=43:12=3.583,R=43:12=3.583
main41110-35280i198308-198808
*FGR=41:11=3.727,R=41:11=3.727
main41110-35290i198308-198708
*FGR=43:11=3.909,R=43:11=3.909
main41110-35320i198308-198408
R=41:13=3.154,*AXC=G392
sub41110-35321
sub90116-08329
sub90116-08332
main41110-35340i198408-198508
R=43:14=3.071,*AXC=G662
sub41110-35341
main41110-35341i198508-198808
*FGR=43:14=3.071,R=43:14=3.071,*AXC=G662
sub41110-35342
sub90116-08329
sub90116-08332
main41110-35390i198508-198903
*FGR=41:10=4.100,R=41:10=4.100
sub41110-35391
sub90116-08329
sub90116-08334
main41110-35400i198508-198808
*FGR=41:12=3.417,R=41:12=3.417
sub41110-35401
sub90116-08329
sub90116-08332
main41110-35410i198508-198808
*FGR=39:10=3.900,R=39:10=3.900,*AXC=G072
sub41110-35411
sub90116-08329
main41110-35420i198508-198808
R=41:10=4.100
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
main90116-08164i198308-198808
S=12 & 14,L=96,L=80
sub90116-08332
main90116-08179i198508-198808
L=36,L=20
main90116-08180i198508-198808
L=44,L=28
main90116-08226i198308-198510
S=14 & 14,L=42,L=28
main90116-08233i198510-198903
S=14 & 14,L=42,L=28
main90116-08235i198308-198903
S=12 & 15,L=34,L=22
sub90116-08418
41114BOLT, REAR DIFFERENTIAL BEARING CAP
main90101-12376i198308-198408
*AXC=F382 OR F302
main90101-12376i198408-198808
main90105-12053i198308-198903
main90105-12053i198308-198808
*AXC=G392 OR G662
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
main41201-29298i198308-198608
R=41:11
sub41201-39635
main41201-29455i198308-198408
R=43:10
sub41201-29526
main41201-29485i198501-198508
R=43:10
sub41201-29526
main41201-29515i198408-198508
R=39:10,*AXC=G072
sub41201-29516
main41201-29516i198508-198808
*FGR=39:10=3.900,R=39:10
sub41201-29517
sub41204-35081
sub41214-26011
main41201-29516i198508-198808
*FGR=39:10=3.900,R=39:10,*AXC=G072
sub41201-29517
sub41204-35081
sub41214-26011
main41201-29525i198408-198508
R=43:10,*AXC=G282
sub41201-29526
main41201-29526i198508-198903
*FGR=43:10=4.300,R=43:10,*AXC=G282
sub41201-29796
sub41204-35081
sub41214-26011
main41201-29545i198501-198508
R=41:12
sub41201-29546
main41201-29546i198508-198808
*FGR=41:12=3.417,R=41:12
sub41201-29547
sub41204-35081
sub41214-26011
main41201-39467i198308-198608
R=43:12
sub41201-39795
main41201-39476i198408-198808
R=41:12,*AXC=F382
main41201-39535i198308-198408
R=41:10
sub41201-39536
main41201-39585i198308-198608
R=43:11
sub41201-39815
main41201-39655i198408-198508
R=43:14
sub41201-39656
main41201-39656i198508-198808
*FGR=43:14,R=43:14
main41201-39665i198408-198508
R=41:10
sub41201-39676
main41201-39675i198408-198508
R=41:10
sub41201-39676
main41201-39676i198508-198903
*FGR=41:10=4.100,R=41:10
sub41201-39677
sub41204-35081
sub41214-26011
main41201-39755i198508-198903
*FGR=41:10=4.100,R=41:10
sub41201-39756
sub41204-35081
sub41214-26011
main41201-39795i198608-198808
*FGR=43:12=3.583,R=43:12
sub41201-39796
main41201-39805i198608-198808
*FGR=41:11=3.727,R=41:11
sub41201-80010
main41201-39815i198608-198708
*FGR=43:11=3.909,R=43:11
sub41201-80003
main41201-49095i198308-198408
R=41:13,*AXC=G392
sub41201-49096
41201ABEARING (FOR REAR DRIVE PINION REAR)
main90366-35023i198408-198808
main90366-35023i198308-198408
*AXC=F382 OR F302
main90366-35028i198508-198903
sub90366-35087
main90366-35044i198508-198903
main97609-32307i198308-198508
*AXC=G392 OR G662
main97609-32307i198308-198508
41201BBEARING (FOR REAR DRIVE PINION FRONT)
main90366-30008i198408-198508
*AXC=G392 OR G662
main90366-30008i198308-198408
main90366-30022i198308-198408
*AXC=F382 OR F302
sub90366-30078
main90366-30022i198408-198903
sub90366-30078
main90366-30025i198508-198903
sub90366-30067
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
main90311-38035i198808-198903
sub90311-38047
main90311-38133i198308-198903
sub90311-38047
main90311-38134i198308-198808
sub90311-38047
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
main90201-35396i198308-198408
T=2.36,MARK 05,T=2.36,*AXC=F382 OF F302
main90201-35396i198308-198903
T=2.36,MARK 05,T=2.36
main90201-35397i198308-198408
T=2.39,MARK 06,T=2.39,*AXC=F382 OF F302
main90201-35397i198308-198903
T=2.39,MARK 06,T=2.39
main90201-35398i198308-198903
T=2.42,MARK 07,T=2.42
main90201-35398i198308-198408
T=2.42,MARK 07,T=2.42,*AXC=F382 OF F302
main90201-35399i198308-198408
T=2.43,MARK 08,T=2.45,*AXC=F382 OF F302
main90201-35399i198308-198903
T=2.43,MARK 08,T=2.45
main90201-35400i198308-198903
T=2.48,MARK 09,T=2.48
main90201-35400i198308-198408
T=2.48,MARK 09,T=2.48,*AXC=F382 OF F302
main90201-35401i198308-198408
T=2.51,MARK 10,T=2.51,*AXC=F382 OF F302
main90201-35401i198308-198903
T=2.51,MARK 10,T=2.51
main90201-35402i198308-198903
T=2.54,MARK 11,T=2.54
main90201-35402i198308-198408
T=2.54,MARK 11,T=2.54,*AXC=F382 OF F302
main90201-35403i198308-198408
T=2.57,MARK 12,T=2.57,*AXC=F382 OF F302
main90201-35403i198308-198903
T=2.57,MARK 12,T=2.57
main90201-35404i198308-198903
T=2.60,MARK 13,T=2.60
main90201-35404i198308-198408
T=2.60,MARK 13,T=2.60,*AXC=F382 OF F302
main90201-35434i198308-198408
T=2.24,MARK 01,T=2.24
sub90201-35515
main90201-35434i198308-198408
T=2.24,MARK 01,T=2.24,*AXC=F382 OF F302
sub90201-35515
main90201-35434i198408-198903
T=2.24,MARK 01
sub90201-35515
main90201-35435i198308-198408
T=2.27,MARK 02,T=2.27
sub90201-35516
main90201-35435i198308-198408
T=2.27,MARK 02,T=2.27,*AXC=F382 OF F302
sub90201-35516
main90201-35435i198408-198903
T=2.27,MARK 02
sub90201-35516
main90201-35436i198308-198408
T=2.30,MARK 03,T=2.30
sub90201-35517
main90201-35436i198308-198408
T=2.30,MARK 03,T=2.30,*AXC=F382 OF F302
sub90201-35517
main90201-35436i198408-198903
T=2.30,MARK 03
sub90201-35517
main90201-35437i198308-198408
T=2.33,MARK 04,T=2.33
sub90201-35518
main90201-35437i198308-198408
T=2.33,MARK 04,T=2.33,*AXC=F382 OF F302
sub90201-35518
main90201-35437i198408-198903
T=2.33,MARK 04
sub90201-35518
main90201-35438i198308-198903
T=2.63,MARK 14,T=2.63
main90201-35438i198308-198408
T=2.63,MARK 14,T=2.63,*AXC=F382 OF F302
main90201-35439i198308-198408
T=2.66,MARK 15,T=2.66,*AXC=F382 OF F302
main90201-35439i198308-198903
T=2.66,MARK 15,T=2.66
main90201-35440i198308-198408
T=2.69,MARK 16,T=2.69,*AXC=F382 OF F302
main90201-35440i198308-198903
T=2.69,MARK 16,T=2.69
main90201-35441i198308-198903
T=2.72,MARK 17,T=2.72
main90201-35441i198308-198408
T=2.72,MARK 17,T=2.72,*AXC=F382 OF F302
main90201-35497i198308-198903
OD=47,T=1.70,T=1.70
main90201-35497i198308-198808
OD=47,T=1.70,T=1.70,*AXC=G398 OR G662
main90201-35498i198308-198808
OD=47,T=1.73,T=1.73,*AXC=G398 OR G662
main90201-35498i198308-198903
OD=47,T=1.73,T=1.73
main90201-35499i198308-198903
OD=47,T=1.76,T=1.76
main90201-35499i198308-198808
OD=47,T=1.76,T=1.76,*AXC=G398 OR G662
main90201-35500i198308-198903
OD=47,T=1.79,T=1.79
main90201-35500i198308-198808
OD=47,T=1.79,T=1.79,*AXC=G398 OR G662
main90201-35501i198308-198903
OD=47,T=1.82,T=1.82
main90201-35501i198308-198808
OD=47,T=1.82,T=1.82,*AXC=G398 OR G662
main90201-35502i198308-198903
OD=47,T=1.85,T=1.85
main90201-35502i198308-198808
OD=47,T=1.85,T=1.85,*AXC=G398 OR G662
main90201-35503i198308-198808
OD=47,T=1.88,T=1.88,*AXC=G398 OR G662
main90201-35503i198308-198903
OD=47,T=1.88,T=1.88
main90201-35504i198308-198903
OD=47,T=1.91,T=1.91
main90201-35504i198308-198808
OD=47,T=1.91,T=1.91,*AXC=G398 OR G662
main90201-35505i198308-198903
OD=47,T=1.94,T=1.94
main90201-35505i198308-198808
OD=47,T=1.94,T=1.94,*AXC=G398 OR G662
main90201-35506i198308-198808
OD=47,T=1.97,T=1.97,*AXC=G398 OR G662
main90201-35506i198308-198903
OD=47,T=1.97,T=1.97
main90201-35507i198308-198903
OD=47,T=2.00,T=2.00
main90201-35507i198308-198808
OD=47,T=2.00,T=2.00,*AXC=G398 OR G662
main90201-35508i198308-198808
OD=47,T=2.03,T=2.03,*AXC=G398 OR G662
main90201-35508i198308-198903
OD=47,T=2.03,T=2.03
main90201-35509i198308-198903
OD=47,T=2.06,T=2.06
main90201-35509i198308-198808
OD=47,T=2.06,T=2.06,*AXC=G398 OR G662
main90201-35510i198308-198903
OD=47,T=2.09,T=2.09
main90201-35510i198308-198808
OD=47,T=2.09,T=2.09,*AXC=G392 OR G662
main90201-35511i198308-198808
OD=47,T=2.12,T=2.12,*AXC=G392 OR G662
main90201-35511i198308-198903
OD=47,T=2.12,T=2.12
main90201-35512i198308-198808
OD=47,T=2.15,T=2.15,*AXC=G392 OR G662
main90201-35512i198308-198903
OD=47,T=2.15,T=2.15
main90201-35513i198308-198903
OD=47,T=2.18,T=2.18
main90201-35513i198308-198808
OD=47,T=2.18,T=2.18,*AXC=G392 OR G662
main90201-35514i198308-198903
OD=47,T=2.21,T=2.21
main90201-35514i198308-198808
OD=47,T=2.21,T=2.21,*AXC=G392 OR G662
main90201-35515i198308-198408
OD=47,T=2.24,MARK 01,T=2.24
main90201-35515i198308-198808
OD=47,T=2.24,MARK 01,T=2.24,*AXC=G392 OR G662
main90201-35515i198408-198903
OD=47,T=2.24,MARK 01
main90201-35516i198408-198903
OD=47,T=2.27,MARK 02
main90201-35516i198308-198408
OD=47,T=2.27,MARK 02,T=2.27
main90201-35516i198308-198808
OD=47,T=2.27,MARK 02,T=2.27,*AXC=G392 OR G662
main90201-35517i198308-198408
OD=47,T=2.30,MARK 03,T=2.30
main90201-35517i198408-198903
OD=47,T=2.30,MARK 03
main90201-35517i198308-198808
OD=47,T=2.30,MARK 03,T=2.30,*AXC=G392 OR G662
main90201-35518i198408-198903
OD=47,T=2.33,MARK 04
main90201-35518i198308-198808
OD=47,T=2.33,MARK 04,T=2.33,*AXC=G392 OR G662
main90201-35518i198308-198408
OD=47,T=2.33,MARK 04,T=2.33
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
main41204-35040i198308-198808
*AXC=G392 OR G662
main41204-35040i198408-198903
main41204-35050i198408-198808
main41204-35050i198308-198408
*AXC=F382 OR F302
main41204-60030i198508-198808
sub41204-60050
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
main90201-18485i198408-198808
main90201-18485i198308-198408
*AXC=F382 OR F302
main90201-20005i198308-198903
main90201-20005i198308-198808
*AXC=G392 OR G662
41204BNUT (FOR REAR DRIVE PINION)
main90179-18001i198308-198408
*AXC=F382 OR F302
main90179-18001i198408-198808
main90179-20001i198308-198808
*AXC=G392 OR G662
main90179-20001i198308-198903
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
main41214-26010i198308-198903
main41214-26010i198308-198808
*AXC=G392 OR G662
main41214-30021i198408-198808
main41214-30021i198308-198408
*AXC=F382 OR F302
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
main41222-30040i198308-198408
*AXC=F382 OR F302
sub41222-35030
main41222-30040i198408-198608
sub41222-35030
main41222-35020i198308-198903
main41222-35020i198308-198808
*AXC=G392 OR G662
main41222-35030i198608-198808
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
main90101-11353i198308-198903
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
main41231-22010i198308-198408
*AXC=F382 OR F302
main41231-22010i198408-198808
main41231-24010i198508-198903
main41231-40010i198308-198508
main41231-40010i198308-198508
*AXC=G392 OR G662
main41231-40011i198508-198808
*AXC=G392 OR G662
main41231-40011i198508-198903
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
main37341-30010i198308-198408
*AXC=G392
main41252-30010i198408-198808
main41252-30010i198308-198408
*AXC=F382 OR F302
main41252-35010i198408-198808
*AXC=G662
sub41252-35020
main41252-35010i198408-198903
sub41252-35020
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
main90366-50007i198508-198903
main90368-45066i198308-198903
41302CASE SUB-ASSY, REAR DIFFERENTIAL
main41302-35020i198508-198903
sub41302-26010
main41311-30050i198408-198808
sub41311-28010
main41311-30050i198308-198408
*AXC=F382 OR F302
sub41311-28010
main41311-40020i198308-198903
sub41311-40021
sub90105-11063
main41311-40020i198308-198808
*AXC=G392 OR G662
sub41311-40021
sub90105-11063
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
main41315-35010i198308-198903
main41315-35020i198508-198903
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
main41316-30010i198308-198903
main41316-30010i198308-198808
SINGLE
main41316-35010i198508-198903
main41317-30010i198308-198808
DOUBLE
41331GEAR, REAR DIFFERENTIAL SIDE
main41331-30030i198308-198408
*AXC=F382 OR F302
main41331-30030i198408-198808
main41331-35010i198308-198408
*AXC=G392
sub41331-35011
main41331-35011i198408-198903
main41331-35011i198408-198808
*AXC=G662
main41331-35040i198508-198903
sub41039-34060
sub41039-34080
41341PINION, REAR DIFFERENTIAL
main41341-30020i198408-198808
sub41341-30050
main41341-30020i198308-198408
*AXC=F382 OR F302
sub41341-30050
main41341-35010i198508-198903
sub41341-14041
main41341-35020i198408-198903
main41341-39020i198308-198408
*AXC=F392
sub41341-35020
sub41351-30052
41342SHAFT, REAR DIFFERENTIAL PINION
main41342-22020i198308-198408
*AXC=F382 OR F302
sub41342-22021
main41342-22020i198408-198808
sub41342-22021
main41342-39610i198308-198808
*AXC=G392 OR G662
main41342-39610i198308-198903
41343PIN, REAR DIFFERENTIAL PINION SHAFT
main90250-06058i198308-198408
*AXC=F382 OR F302
main90250-06058i198408-198808
main90250-06085i198308-198808
*AXC=G392 OR G662
main90250-06085i198308-198903
41351WASHER, REAR DIFFERENTIAL PINION THRUST
main41351-30051i198308-198408
*AXC=G392
main41351-30052i198408-198903
main41351-30060i198308-198408
*AXC=F382 OR F302
main41351-30060i198408-198903
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-24010i198508-198903
T=0.90,T=0.9
sub41361-60E10
main41361-24020i198508-198903
T=1.00,T=1.0
sub41361-60E50
main41361-24030i198508-198903
T=1.10,T=1.1
sub41361-60E90
main41361-24040i198508-198903
T=1.20,T=1.2
sub41361-60F30
main41361-24050i198508-198903
T=1.30,T=1.3
sub41361-60F70
main41361-30040i198308-198408
T=1.0,T=1.0,*AXC=F382 OR F302
main41361-30040i198308-198903
T=1.0,T=1.0
main41361-30040i198708-198903
T=1.0,T=1.6
main41361-30050i198308-198808
T=1.1,T=1.1
main41361-30050i198308-198408
T=1.1,T=1.1,*AXC=F382 OR F302
main41361-30050i198708-198903
T=1.1,T=1.7
main41361-30060i198308-198808
T=1.2,T=1.2
main41361-30060i198708-198903
T=1.2,T=1.8
main41361-30060i198308-198408
T=1.2,T=1.2,*AXC=F382 OR F302
main41361-30070i198308-198808
T=1.3,T=1.3
main41361-30070i198308-198408
T=1.3,T=1.3,*AXC=F382 OR F302
main41361-30070i198408-198903
T=1.3
main41361-40021i198308-198903
T=1.6,T=1.6
main41361-40021i198308-198808
T=1.6,T=1.6,*AXC=G392 OR G662
main41362-40021i198308-198903
T=1.7,T=1.7
main41362-40021i198308-198808
T=1.7,T=1.7,*AXC=G392 OR G662
main41363-40021i198308-198903
T=1.8,T=1.8
main41363-40021i198308-198808
T=1.8,T=1.8,*AXC=G392 OR G662
42110HOUSING ASSY, REAR AXLE
main42110-35200i198308-198508
main42110-35220i198308-198508
main42110-35240i198408-198508
main42110-35240i198308-198408
*AXC=F382
main42110-35260i198508-198608
sub42110-35261
main42110-35261i198608-198808
main42110-35270i198508-198608
sub42110-35271
main42110-35271i198608-198808
main42110-35290i198508-198808
main42110-35300i198508-198808
main42110-35310i198508-198808
main42110-35311i198808-198903
42110APLUG (FOR REAR AXLE HOUSING FILLER)
main90341-18006i198508-198808
main90341-18049i198308-198903
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
main12157-10010i198308-198903
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
main90930-03031i198308-198903
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
main12157-10010i198308-198903
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
main90341-18057i198308-198903
42139DEFLECTOR, REAR AXLE HOUSING OIL
main42108-30010i198508-198808
main42139-26010i198308-198508
main42139-35010i198308-198508
main42139-40010i198508-198903
42181GASKET, REAR DIFFERENTIAL CARRIER
main42181-30020i198308-198408
*AXC=F382
main42181-30020i198408-198808
main42181-35010i198308-198508
main42181-60010i198508-198608
main42181-60020i198508-198903
9017008194
main90170-08194
9017008204
main90170-08204
9111150814
main91111-50814
9161160814
main91611-60814
9451200800
main94512-00800
9453101200
main94531-01200

42 parts on this diagram · 2 diagrams in section

REAR AXLE HOUSING & DIFFERENTIAL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
