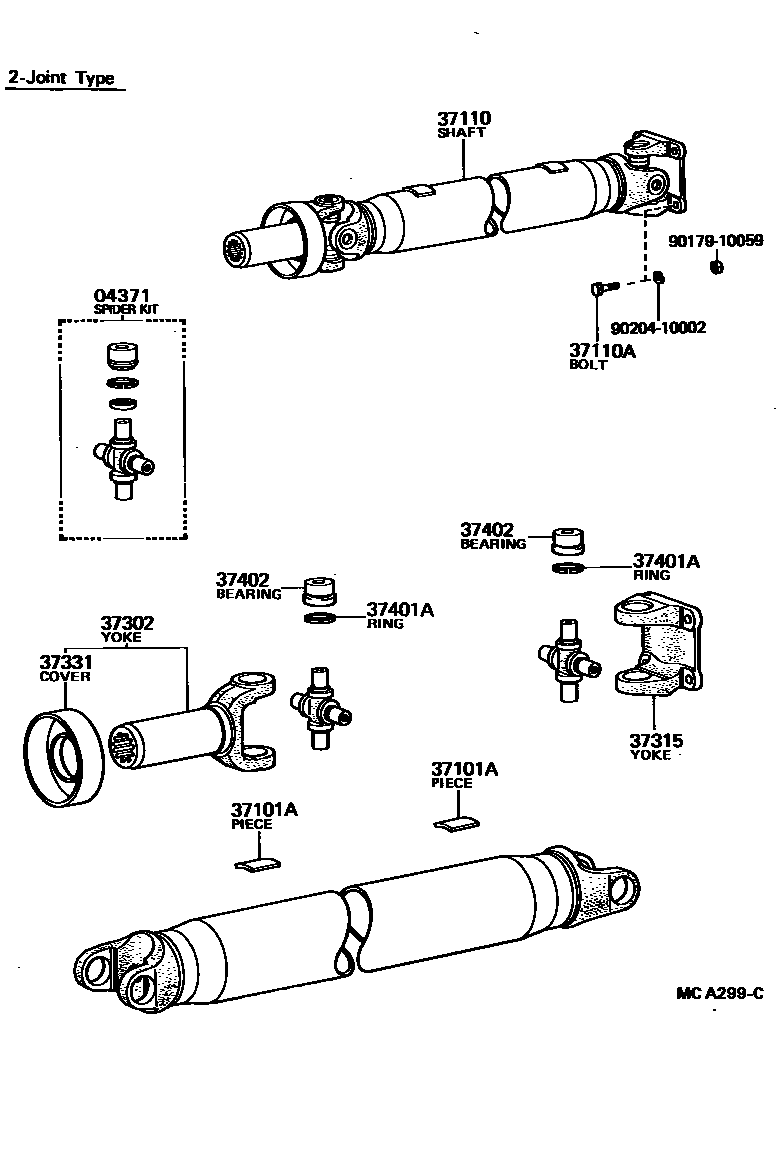

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1 0005 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-25010iRN5#..4F198308-198408

*AXC=G392 OR G282

main04371-25010iRN50..4F198408-198808

main04371-30020iRN50..4FC,5F;LN5#,RN55..3QT,HLF198308-198408

*AXC=F382

sub04371-30021

main04371-30020iLN5#,RN55,7#;RN50..4FC,4HC,5F198408-198712

sub04371-30021

main04371-30021iRN55,75;RN50,70..4HC,5F198712-198808

sub04371-30040

main04371-35030iLN6#,RN6#,VZN6#198308-198712

sub04371-35031

main04371-35031iRN6#,VZN6#198712-198903

sub04371-35050

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01003iLN5#,RN5#198308-198508

8G,T=1.2,10G,SPOT

sub90937-01132

main90937-01004iLN5#,RN5#198308-198508

20G,T=1.2,20G,SPOT

main90937-01005iLN5#,RN5#198308-198508

30G,T=1.2,30G,SPOT

main90937-01029iLN5#,RN5#198308-198508

5G,SPOT

main90937-01030iLN5#,RN5#198308-198508

15G,SPOT

main90937-01031iLN5#,RN5#198308-198508

25G,SPOT

main90937-01132iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

10G,L=20.7,10G,PROJECTION

main90937-01136iLN5#,6#,RN5#,6#,7#198308-198608

20G,L=41.4,20G,PROJECTION

main90937-01140iLN5#,RN5#198308-198508

30G,L=62.2,30G,PROJECTION

main90937-01147iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

2G,T=2.0,2G,PROJECTION

main90937-01148iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

4G,T=2.0,4G,PROJECTION

main90937-01149iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

6G,L=12.4,6G,PROJECTION

main90937-01150iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

8G,L=16.6,8G,PROJECTION

main90937-01151iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

12G,L=24.9,12G,PROJECTION

main90937-01152iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

14G,L=29.0,14G,PROJECTION

main90937-01153iLN5#,6#,RN5#,6#,7#198308-198608

16G,L=33.2,16G,PROJECTION

main90937-01154iLN5#,6#,RN5#,6#,7#198308-198608

18G,L=37.3,18G,PROJECTION

main90937-01155iLN5#,6#,RN5#,6#,7#198308-198608

22G,L=45.6,22G,PROJECTION

main90937-01156iLN5#,6#,RN5#,6#,7#198308-198608

24G,L=49.7,24G,PROJECTION

main90937-01157iLN5#,6#,RN5#,6#,7#198308-198608

26G,L=53.9,26G,PROJECTION

main90937-01158iLN5#,6#,RN5#,6#,7#198308-198608

28G,L=58.1,28G,PROJECTION

main90937-01184iLN6#,RN6#,VZN6#198308-198903

4G,T=1.6,4G

main90937-01191iLN6#,RN6#,VZN6#198308-198903

8G,T=1.6,8G

main90937-01192iLN6#,RN6#,VZN6#198308-198903

12G,T=4.5,12G

main90937-01193iLN6#,RN6#,VZN6#198308-198903

16G,T=4.5,16G

main90937-01194iLN6#,RN6#,VZN6#198308-198903

20G,T=4.5,20G

main90937-01198iLN6#,RN6#198308-198608

24G,T=4.5,L=25.1,24G

main90937-01199iLN6#,RN6#198308-198608

28G,T=6,L=22.7,28G

main90937-01200iLN6#,RN6#198308-198608

32G,T=6,L=24.3,32G

main90937-01201iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

30G,T=4.5,L=27.4,30G

main90937-01202iLN6#,RN6#,VZN6#198308-198903

32G,T=4.5,L=29.2,32G,FR

main90937-01203iLN6#,RN6#,VZN6#198308-198903

34G,T=4.5,L=31.0,34G,FR

main90937-01204iLN6#,RN6#,VZN6#198308-198903

36G,T=4.5,L=32.9,36G,FR

main90937-01205iLN6#,RN6#,VZN6#198308-198903

38G,T=4.5,L=34.7,38G,FR

main90937-01206iLN6#,RN6#,VZN6#198308-198903

40G,T=4.5,L=36.5,40G,FR

main90937-01207iLN6#,RN6#,VZN6#198308-198903

42G,T=4.5,L=38.4,42G,FR

main90937-01208iLN6#,RN6#,VZN6#198308-198903

44G,T=4.5,L=40.2,44G,FR

main90937-01209iLN6#,RN6#,VZN6#198308-198903

46G,T=4.5,L=42.0,46G,FR

main90937-01210iLN6#,RN6#,VZN6#198308-198903

48G,T=4.5,L=43.8,48G,FR

main90937-01211iLN6#,RN6#,VZN6#198308-198903

50G,T=4.5,L=45.7,50G,FR

main90937-01268iRN6#..SRT;LN66,RN6#..5F198310-198608

36G,L=23.1,T=8.0,36G,RR

main90937-01268iLN66,RN6#,VZN6#198608-198903

36G,L=23.1,T=8.0,36G

main90937-01269iLN65,RN65..5F198310-198608

40G,L=25.6,40G,RR

main90937-01269iLN66,RN6#,VZN6#198608-198903

40G,L=25.6,40G

main90937-01270iLN66,RN6#,VZN6#198608-198903

44G,L=22.6,44G

main90937-01270iRN6#..SRT;LN66,RN6#..5F198310-198608

44G,L=22.6,44G,RR

main90937-01271iRN6#..SRT;LN66,RN6#..5F198310-198608

48G,L=24.6,48G,RR

main90937-01271iLN66,RN6#,VZN6#198608-198903

48G,L=24.6,48G

main90937-01272iLN65,RN65..5F198310-198608

52G,L=26.7,52G,RR

main90937-01272iLN66,RN6#,VZN6#198608-198903

52G,L=26.7,52G

main90937-01273iLN66,RN6#,VZN6#198608-198903

56G,L=28.7,56G

main90937-01273iLN65,RN65..5F198310-198608

56G,L=28.7,56G,RR

main90937-01274iRN6#..SRT;LN66,RN6#..5F198310-198608

60G,L=28.7,60G,RR

main90937-01274iLN66,RN6#,VZN6#198608-198903

60G,L=28.7,60G

37110SHAFT ASSY, PROPELLER

main37110-25360iRN61..4FC..EFI198508-198608

main37110-26350iRN50..4HC198608-198808

main37110-35200iRN50..W..USA..CBR198308-198408

*AXC=F382

main37110-35200iLN51;RN50..5F198308-198808

main37110-35210iRN50..4F198308-198808

*AXC=G392 OR G662

main37110-35220iLN56,RN55..3QT,HLF198308-198408

sub37110-35221

main37110-35221iLN56,RN55,70..(DLX,SR5,STD)..HLF198408-198808

main37110-35230iRN55..HVY198308-198408

main37110-35240iRN60..5F198308-198508

sub37110-35241

main37110-35241iRN61..5F..(CBR,EFI)198508-198903

sub37110-35242

main37110-35250iLN65,RN65..5F198308-198508

main37110-35290iRN50..ATM198401-198608

sub37110-26350

main37110-35300iRN55..4FC..HVY198408-198508

main37110-35330iRN55..TBO;RN55,75..10T,HVY198408-198808

main37110-35340iLN66,RN66..G,W198508-198708

main37110-35350iRN60..4FC198501-198508

main37110-35360iRN66..4FC198501-198708

main37110-35380iRN61..HLF..TBO198508-198708

main37110-35390iRN61..4FC198508-198903

sub37110-35391

main37110-35410iRN66..TBO198608-198708

main37110-35440iVZN61..R198711-198808

main37110-35441iVZN61..R198808-198903

sub37110-35442

main37110-35450iVZN61..4FC198711-198903

sub37110-35451

main37110-35460iVZN66..R198711-198808

main37110-35470iVZN66..4FC198711-198808

sub37110-35471

main37110-35480iRN66..W198708-198808

sub37110-35481

main37110-35490iRN66..4FC198708-198903

37110ABOLT (FOR PROPELLER SHAFT)

main90105-10085iRN6#..R198508-198903

*10-1.00PX27-13,FR

main90105-10085iRN5#,70..STD..CND198308-198903

*10-1.00PX27-13

main90105-11013iRN6#..R198508-198903

*11-1.00PX28-16,RR

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-24010iRN55..TBO198801-198808

main37302-30030iRN55..TBO198501-198801

sub37302-24010

main37302-35010iRN5#..4F198308-198408

*AXC=G392 OR G282

main37302-35010iRN50..4F198408-198808

main37302-35030iRN50..W..USA..CBR198308-198408

*AXC=F382

main37302-35030iRN50..4FC,4HC,5F;LN5#,RN55,7#..DLX,SR5,STD198408-198808

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35040iRN50..W..USA..CBR198308-198408

*AXC=F382

main37315-35040iLN56,6#,RN55,7#..4FC,4HC,5F198408-198903

main37315-35050iRN5#..4F198308-198408

*AXC=G392 OR G282

main37315-35050iRN50..4F198408-198808

main37315-35060iVZN6#..R198608-198903

37331COVER, SLIDING SHAFT DUST

main37305-35020iLN6#,RN6#,VZN6#198308-198903

main37331-24010iRN55..TBO198710-198808

main37331-30010iLN5#,RN5#,7#..DLX,SR5,STD198308-198808

main37331-40010iRN55..TBO198501-198710

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-26038iRN55,75;RN50,6#,70..4FC,4HC,5F198712-198903

T=2.125,MARK 1,T=2.125

main90520-26040iRN55,75;RN50,6#,70..4FC,4HC,5F198712-198903

T=2.175,MARK 2,T=2.175

main90520-26041iRN55,75;RN50,6#,70..4FC,4HC,5F198712-198903

T=2.225,MARK 3,T=2.225

main90520-26042iRN55,75;RN50,6#,70..4FC,4HC,5F198712-198903

T=2.275,MARK 4,T=2.275

main90520-26043iRN55,75;RN50,6#,70..4FC,4HC,5F198712-198903

T=2.325,MARK 5,T=2.325

main90520-26044iRN55,75;RN50,6#,70..4FC,4HC,5F198712-198903

T=2.375,MARK 6,T=2.375

main90520-26045iRN55,75;RN50,6#,70..4FC,4HC,5F198712-198903

T=2.425,MARK 7,T=2.425

main90520-26046iRN55,75;RN50,6#,70..4FC,4HC,5F198712-198903

T=2.475,MARK 8,T=2.475

main90520-26233iRN50..W..USA..CBR198308-198903

T=1.50,OD=32.4,T=1.50

main90520-26233iRN50,60..4FC,5F;LN5#,65,RN55,65..3QT,HLF198308-198408

T=1.50,OD=32.4,T=1.50,*AXC=F382

main90520-26234iRN50..4FC,4HC,5F;LN5#,6#,RN55,6#,7#198308-198903

T=1.55,T=1.55

main90520-26234iRN50,60..4FC,5F;LN5#,65,RN55,65..3QT,HLF198308-198408

T=1.55,T=1.55,*AXC=F382

main90520-26235iRN50,60..4FC,5F;LN5#,65,RN55,65..3QT,HLF198308-198903

T=1.60,T=1.60

main90520-26235iRN50,60..4FC,5F;LN5#,65,RN55,65..3QT,HLF198308-198408

T=1.60,T=1.60,*AXC=F382

main90521-29070iRN50..4F198408-198808

T=2.375-2.425,T=2.4,*AXC=G392,F282 OR G662

main90521-29070iRN5#..4F198308-198408

T=2.375-2.425,T=2.4,*AXC=G392 OR F282

main90521-29071iRN5#..4F198308-198408

T=2.425-2.475,T=2.45,*AXC=G392 OR F282

main90521-29071iRN50..4F198408-198808

T=2.425-2.475,T=2.45,*AXC=G392,F282 OR G662

main90521-29072iRN50..4F198408-198808

T=2.475-2.525,T=2.5,*AXC=G392,F282 OR G662

main90521-29072iRN5#..4F198308-198408

T=2.475-2.525,T=2.5,*AXC=G392 OR F282

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-25020iRN50..4F198408-198903

main37402-25020iRN5#..4F198308-198408

*AXC=G392 OR G282

main37402-30010iRN50..W..USA..CBR198308-198408

*AXC=F382

sub37402-30011

sub90520-26044

main37402-30010iRN50..4FC,4HC,5F;LN5#,6#,RN55,6#,7#,VZN6#198408-198712

sub37402-30011

sub90520-26044

main37402-30011iRN55,75;RN50,6#,70,VZN6#..4FC,4HC,5F198712-198903

sub04371-60070

sub04371-60100

main37402-30020iRN50..W..USA..CBR198308-198408

RED PAINTED,*AXC=F382

sub37402-30021

sub90520-26044

main37402-30020iRN50,60..4FC,5F;LN5#,65,RN55,65..3QT,HLF198308-198903

RED PAINTED

sub37402-30021

sub90520-26044

9017910059

main90179-10059

9020410002

main90204-10002

11 parts on this diagram · 4 diagrams in section
