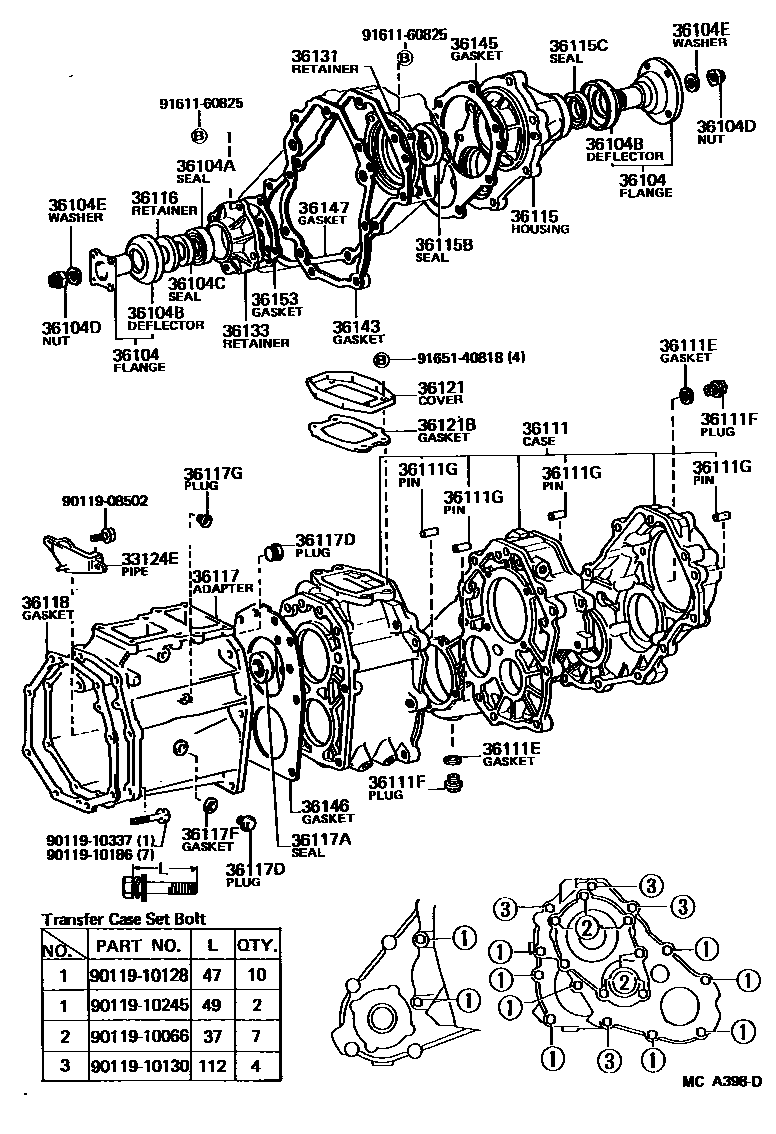

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33106-35010iLN6#,RN6#..5F..(EFI,TD)198408-198903

sub33106-35040

main33124-35020iLN65,RN6#..G198308-198808

main33124-36010iRN6#..R198508-198903

36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)

main33309-35030iLN6#,RN6#..5F198308-198903

FR DRIVE

main33309-35040iLN6#,RN6#..5F..(DLX,SR5,STD)198308-198903

RR DRIVE

main33309-35050iRN6#..R198508-198708

RR DRIVE

main33309-35061iVZN6#..R198711-198903

FR DRIVE

sub33309-35063

sub90311-41017

main33309-35070iVZN6#..R198711-198808

RR DRIVE

main33309-35080iVZN61..R198808-198903

RR DRIVE

sub33309-35100

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90311-38016iLN6#,RN6#..5F198308-198903

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-35020iLN6#,RN6#..5F198308-198903

36104CSEAL, DUST (FOR TRANSFER OUTPUT SHAFT)

main90303-38010iLN6#,RN6#..5F198308-198903

main90312-23001iVZN6#..R198711-198903

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20001iLN6#,RN6#..5F198308-198903

main90179-22016iVZN6#..R198711-198903

36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

main90201-20005iLN6#,RN6#..5F198308-198903

36111CASE, TRANSFER

main36101-35010iVZN6#..R198711-198808

sub36111-35030

main36101-35020iVZN61..R198808-198903

sub36101-35021

sub90341-18006

sub90430-18008

main36103-35012iRN60..IV;LN65,RN65;RN60..(DLX,STD)..CBU198308-198403

sub36103-35013

main36103-35013iLN6#,RN6#..5F198403-198703

sub36103-35014

main36103-35014iLN66,RN6#..5F198703-198903

36111EGASKET (FOR TRANSFER CASE)

main90430-18007iLN65,RN6#198308-198408

sub90430-18008

main90430-18008iLN6#,RN6#,VZN6#..5F198408-198903

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iLN6#,RN6#,VZN6#..5F198308-198903

FILLER

main90341-18057iLN66,RN6#,VZN6#..5F198703-198903

DRAIN

main90341-18081iLN6#,RN6#..5F198308-198703

DRAIN

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iVZN6#..R198711-198903

L=14,OD=10

main90250-10232iLN6#,RN6#..5F198308-198903

L=15,OD=8

36115HOUSING, TRANSFER EXTENSION

main36105-35020iVZN6#..R198711-198903

sub36105-35040

main36115-35010iLN6#,RN6#..5F198308-198903

36115BSEAL, TYPE V OIL (FOR TRANSFER EXTENSION HOUSING)

main90312-48001iLN6#,RN6#..5F198308-198903

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38140iLN6#,RN6#..5F198308-198903

main90311-41005iVZN6#..R198711-198903

sub90311-41007

36116RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL

main33145-30010iLN6#,RN6#..5F198308-198903

36117ADAPTER, TRANSFER

main36107-35050iLN6#,RN6#..5F..(EFI,TD)198408-198903

sub36107-35051

main36117-35040iLN65,RN6#..G198308-198808

sub36107-35090

main36117-35060iRN6#..R198508-198708

main36117-35071iVZN6#..R198711-198903

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-32009iLN6#,RN6#..5F..(CBR,EFI,TD)198308-198903

main90311-34011iRN6#..R198508-198708

main90311-40007iVZN6#..R198711-198903

36117DPLUG(FOR TRANSFER ADAPTER)

main90311-18010iVZN6#..R198711-198903

main90341-18006iLN65,RN6#..G198308-198808

FILLER PLUG

main90341-22004iRN6#..R198508-198708

main90341-30003iLN65,RN6#..G198308-198808

36117FGASKET(FOR TRANSFER ADAPTER PLUG)

main90430-18007iLN65,RN6#198308-198408

sub90430-18008

main90430-18008iRN6#..CBR198408-198808

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-10065iLN6#,RN6#..5F..(EFI,TD)198408-198903

main90341-12008iLN65,RN6#198308-198708

36118GASKET, TRANSFER ADAPTER

main33138-28020iLN65,RN6#198308-198708

main33142-22010iLN6#,RN6#..5F..(EFI,TD)198408-198808

36121COVER, TRANSFER CASE, NO.1

main36121-35010iLN65,RN6#..CBR,DSL,TBO198308-198808

36121BGASKET, TRANSFER CASE COVER

main36147-35010iLN65,RN6#..CBR,DSL,TBO198308-198808

36131RETAINER, TRANSFER OUTPUT SHAFT FRONT BEARING

main36131-35010iLN6#,RN6#..5F198308-198903

36133RETAINER, TRANSFER FRONT DRIVE GEAR BEARING

main36133-35010iLN6#,RN6#..5F198308-198903

36143GASKET, TRANSFER CASE, FRONT

main36143-35010iLN6#,RN6#..5F198308-198903

main36143-35020iVZN6#..R198711-198808

T=0.3

sub36143-35030

main36143-35030iVZN61..R198808-198903

T=0.3

36145GASKET, TRANSFER EXTENSION HOUSING

main36145-35010iLN6#,RN6#..5F198308-198903

36146GASKET, TRANSFER REDUCTION CASE

main36146-35020iRN60..IV;LN65,RN65;RN60..V,WG;RN60..(DLX,STD)..HLF..CBU198308-198405

sub36146-35021

main36146-35021iLN6#,RN6#..5F198405-198903

36147GASKET, TRANSFER CASE

main36141-35010iLN6#,RN6#..5F198308-198903

36153GASKET, FRONT DRIVE GEAR BEARING RETAINER

main36153-35010iLN6#,RN6#..5F198308-198903

9011908502

main90119-08502

9011910066

main90119-10066

9011910128

main90119-10128

9011910130

main90119-10130

9011910186

main90119-10186

9011910245

main90119-10245

9011910337

main90119-10337

9161160825

main91611-60825

9165140818

main91651-40818

39 parts on this diagram · 5 diagrams in section
