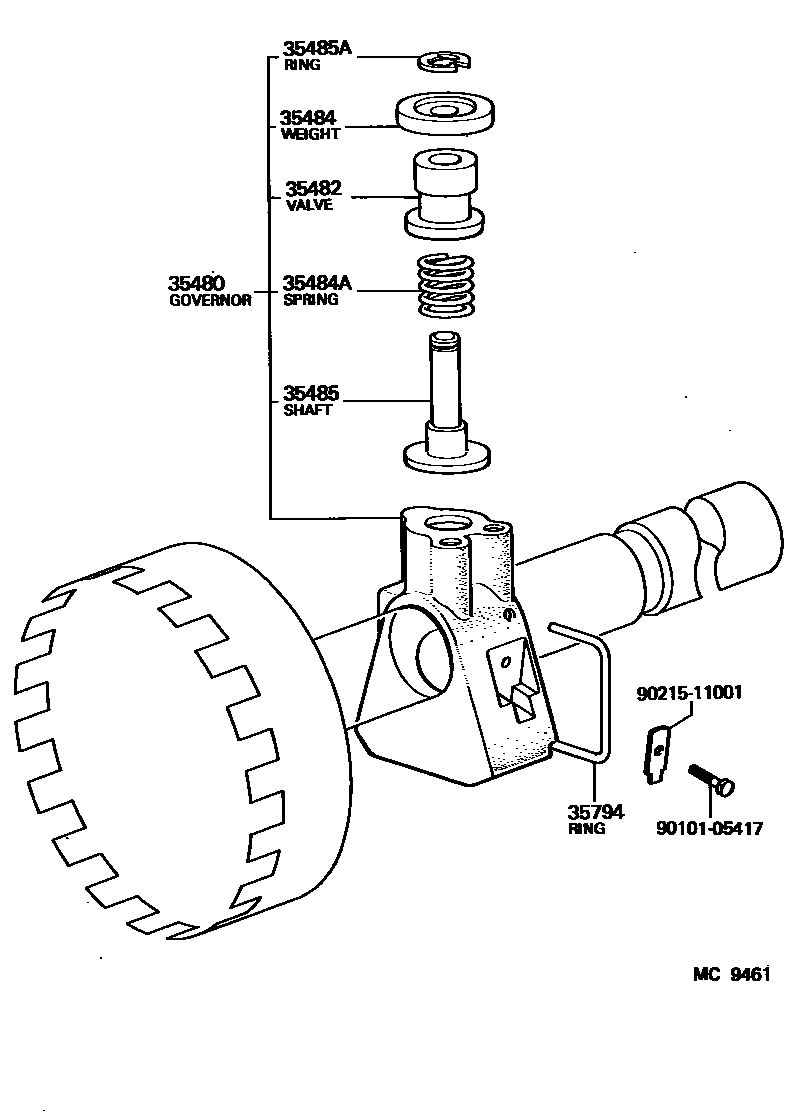

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-30060iRN5#,7#..ATM..(CBR,EFI)¥11,500198308-198808

35482VALVE, GOVERNOR

main35482-22010iRN5#,7#..ATM..(CBR,EFI)¥1,950198308-198808

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iRN5#,7#..ATM..(CBR,EFI)¥750198308-198808

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iRN5#,7#..ATM..(CBR,EFI)¥200198308-198808

35485SHAFT, GOVERNOR VALVE

main35485-22010iRN5#,7#..ATM..(CBR,EFI)¥1,220198308-198808

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iRN5#,7#..ATM..(CBR,EFI)¥190198308-198808

35794RING, GOVERNOR RETAINING

main35794-22010iRN5#,7#..ATM..(CBR,EFI)¥550198308-198808

9010105417

main90101-05417¥130

9021511001

main90215-11001¥120

9 parts on this diagram · 1 diagram in section
