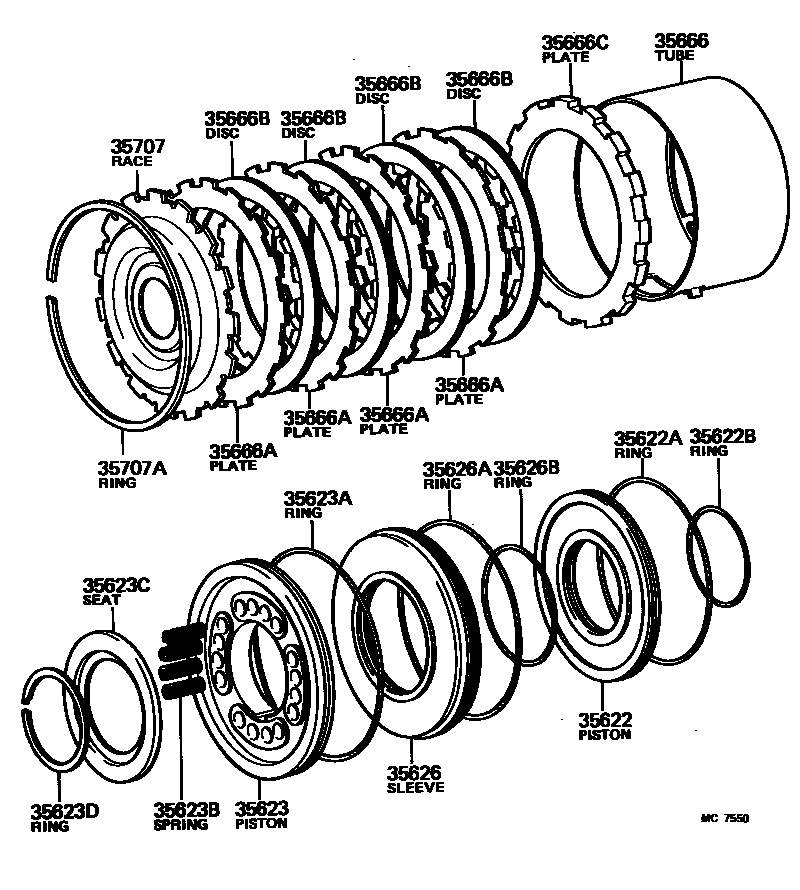

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1 0002 1

35622PISTON, BRAKE, NO.2

main35622-22010iRN5#,7#..ATM..(CBR,EFI)¥1,850198308-198808

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iRN5#,7#..ATM..(CBR,EFI)¥800198308-198808

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iRN5#,7#..ATM..(CBR,EFI)¥630198308-198808

35623PISTON, BRAKE, NO.3

main35623-22010iRN5#,7#..ATM..(CBR,EFI)¥2,330198308-198808

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192iRN5#,7#..ATM..(CBR,EFI)¥800198308-198808

35623BSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iRN5#,7#..ATM..(CBR,EFI)¥190198308-198808

35623CSEAT, BRAKE RETURN SPRING

main35627-22010iRN5#,7#..ATM..(CBR,EFI)¥530198308-198808

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iRN5#,7#..ATM..(CBR,EFI)¥240198308-198808

35626SLEEVE, BRAKE REACTION

main35626-22010iRN5#,7#..ATM..(CBR,EFI)¥2,100198308-198808

main35626-30020iRN55..4FC..TBO¥3,150198501-198903

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iRN5#,7#..ATM..(CBR,EFI)¥800198308-198808

sub90301-99109¥190

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iRN55..4FC..TBO¥630198308-198903

sub90301-67005¥190

35666TUBE, BRAKE APPLY

main35666-30010iRN5#,7#..ATM..(CBR,EFI)¥2,460198308-198808

35666APLATE, CLUTCH (FOR BRAKE)

main35634-22080iRN5#,7#..ATM..(CBR,EFI)¥2,640198308-198703

main35647-22010iRN5#,7#..ATM¥1,670198703-198808

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30030iRN5#,7#..ATM..(CBR,EFI)¥2,780198308-198709

sub35633-30050¥2,640

main35633-30050iRN5#,7#..ATM¥2,640198709-198808

sub35633-30060¥2,630

35666CPLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iRN5#,7#..ATM..(CBR,EFI)¥3,250198308-198808

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30030iRN5#,7#..ATM..(CBR,EFI)¥13,600198308-198808

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iRN5#,7#..ATM..(CBR,EFI)¥520198308-198808

17 parts on this diagram · 2 diagrams in section
