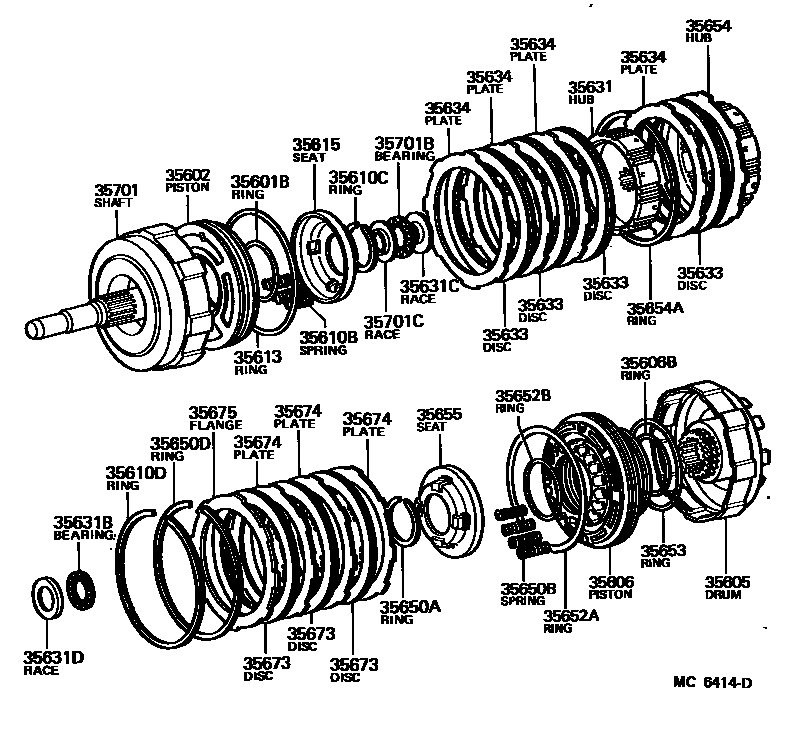

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1 0002 1

35601BRING, O (FOR FRONT CLUTCH DRUM)

main90301-57188iRN5#,7#..ATM..(CBR,EFI)¥630198308-198808

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-30042iRN5#,7#..ATM..(CBR,EFI)¥5,200198308-198808

main35602-30060iRN55..4FC..TBO¥5,200198501-198608

main35602-30061iRN6#,VZN6#..4FC¥4,650198608-198903

35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR

main35605-30021iRN5#,7#..ATM..(CBR,EFI)¥9,300198308-198903

35606PISTON SUB-ASSY, REAR CLUTCH

main35606-30021iRN5#,7#..ATM..(CBR,EFI)¥5,500198308-198808

35606BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iRN5#,7#..ATM..(CBR,EFI)¥630198308-198808

35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)

main90501-11023iRN5#,7#..ATM..(CBR,EFI)¥170198308-198808

35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

main90520-39261iRN5#,7#..ATM..(CBR,EFI)¥170198308-198808

35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)

main90521-99139iRN5#,7#..ATM..(CBR,EFI)¥470198308-198808

35613RING, CLUTCH PISTON OIL SEAL, OUTER

main90301-99016iRN5#,7#..ATM..(CBR,EFI)¥800198308-198808

35615SEAT, CLUTCH PISTON RETURN SPRING

main35615-30020iRN5#,7#..ATM..(CBR,EFI)¥450198308-198808

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-30050iRN5#,7#..ATM..(CBR,EFI)¥6,500198308-198808

35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)

main90374-28014iRN5#,7#..ATM..(CBR,EFI)¥520198308-198808

35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)

main35789-22050iRN5#,7#..ATM..(CBR,EFI)¥680198308-198808

35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)

main35789-22020iRN5#,7#..ATM..(CBR,EFI)¥680198308-198808

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35677-30030iRN5#,7#..ATM..(CBR,EFI)¥3,010198308-198808

sub35677-30160¥2,980

35634PLATE, FRONT CLUTCH

main35634-22040iRN5#,7#..ATM..(CBR,EFI)¥1,900198308-198808

T=1.8,T=1.8

main35634-30070iRN5#,7#..ATM..(CBR,EFI)¥1,720198308-198808

T=2.0,T=2.0

35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)

main90520-39261iRN5#,7#..ATM..(CBR,EFI)¥170198308-198808

35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)

main90501-11023iRN5#,7#..ATM..(CBR,EFI)¥170198308-198808

35650DRING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH)

main90521-99139iRN5#,7#..ATM..(CBR,EFI)¥470198308-198808

35652ARING (FOR REAR CLUTCH OUTER)

main90301-99016iRN5#,7#..ATM..(CBR,EFI)¥800198308-198808

35652BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iRN5#,7#..ATM..(CBR,EFI)¥630198308-198808

35653RING, REAR CLUTCH OIL SEAL, OUTER

main90301-84184iRN5#,7#..ATM..(CBR,EFI)¥700198308-198808

sub90301-83001¥470

35654HUB, REAR CLUTCH

main35654-30010iRN5#,7#..ATM..(CBR,EFI)¥5,700198308-198808

35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)

main90521-99146iRN5#,7#..ATM..(CBR,EFI)¥470198308-198808

35655SEAT, REAR CLUTCH PISTON RETURN SPRING

main35615-30020iRN5#,7#..ATM..(CBR,EFI)¥450198308-198808

35673DISC, REAR CLUTCH

main35677-30030iRN5#,7#..ATM..(CBR,EFI)¥3,010198308-198808

sub35677-30160¥2,980

35674PLATE, REAR CLUTCH

main35634-30070iRN5#,7#..ATM..(CBR,EFI)¥1,720198308-198808

35675FLANGE, REAR CLUTCH

main35675-30030iRN5#,7#..ATM..(CBR,EFI)¥5,100198308-198808

T=3.6

sub35675-22120¥3,560

35701SHAFT SUB-ASSY, INPUT

main35701-22050iVZN61..4FC¥20,900198810-198903

main35701-22060iRN61..4FC198810-198903

main35701-30042iRN5#,7#..ATM..(CBR,EFI)¥30,500198308-198808

sub35701-30043¥21,000

sub90520-99012¥210

main35701-30061iRN55..4FC..TBO¥33,300198501-198608

main35701-30062iRN61..SRT¥30,400198608-198810

sub35701-22050¥20,900

main35701-35011iRN6#..4FC¥30,100198501-198608

main35701-35012iRN6#..4FC..EFI198608-198810

sub35701-22060

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-23012iRN5#,7#..ATM..(CBR,EFI)¥570198308-198808

main90374-25005iRN55..4FC..TBO¥910198501-198903

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-22010iRN5#,7#..ATM..(CBR,EFI)¥530198308-198808

main35789-30110iRN55..4FC..TBO¥640198501-198903

31 parts on this diagram · 2 diagrams in section
