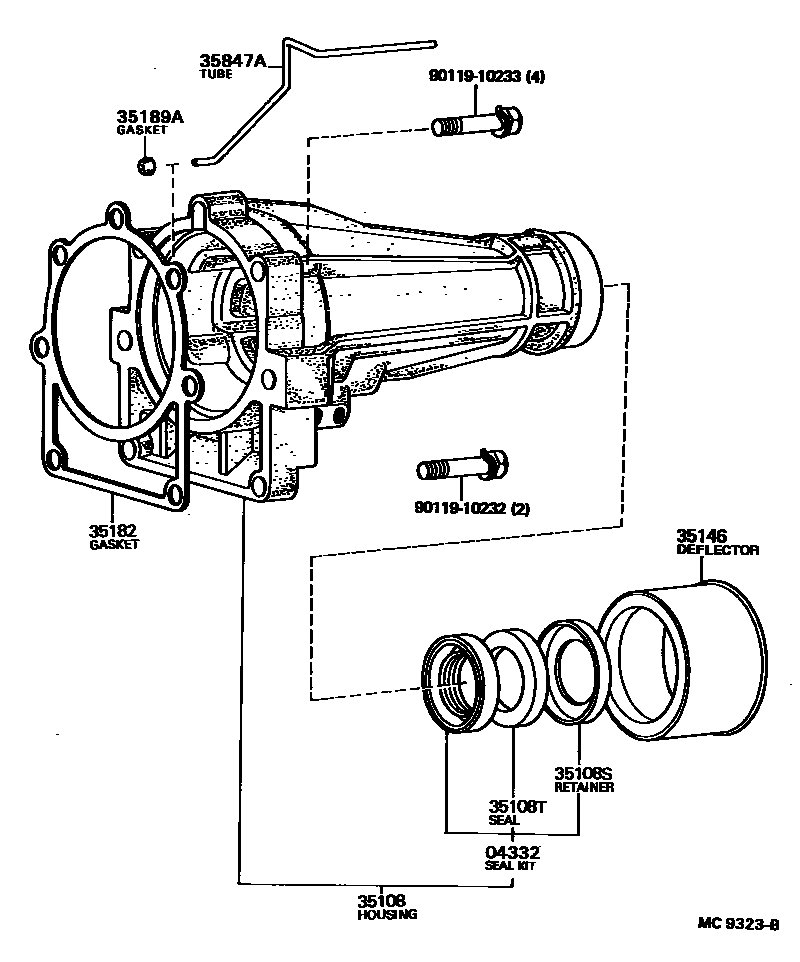

EXTENSION HOUSING (ATM)

0001 1 0002 1

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iRN5#,7#..ATM..(CBR,EFI)198308-198808

sub04332-30030

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-22033iRN5#..4FC198308-198410

sub35108-22034

main35108-22034iRN5#,7#..ATM..(CBR,EFI)198410-198808

sub35108-20060

main35108-24020iRN55..4FC..TBO198501-198808

sub35108-24021

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iRN5#,7#..ATM198308-198808

sub33146-30020

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iRN5#,7#..ATM198308-198808

sub35182-28010

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iRN5#,7#..ATM198410-198808

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iRN5#,7#..ATM198410-198808

9011910232

main90119-10232

9011910233

main90119-10233

10 parts on this diagram · 2 diagrams in section
