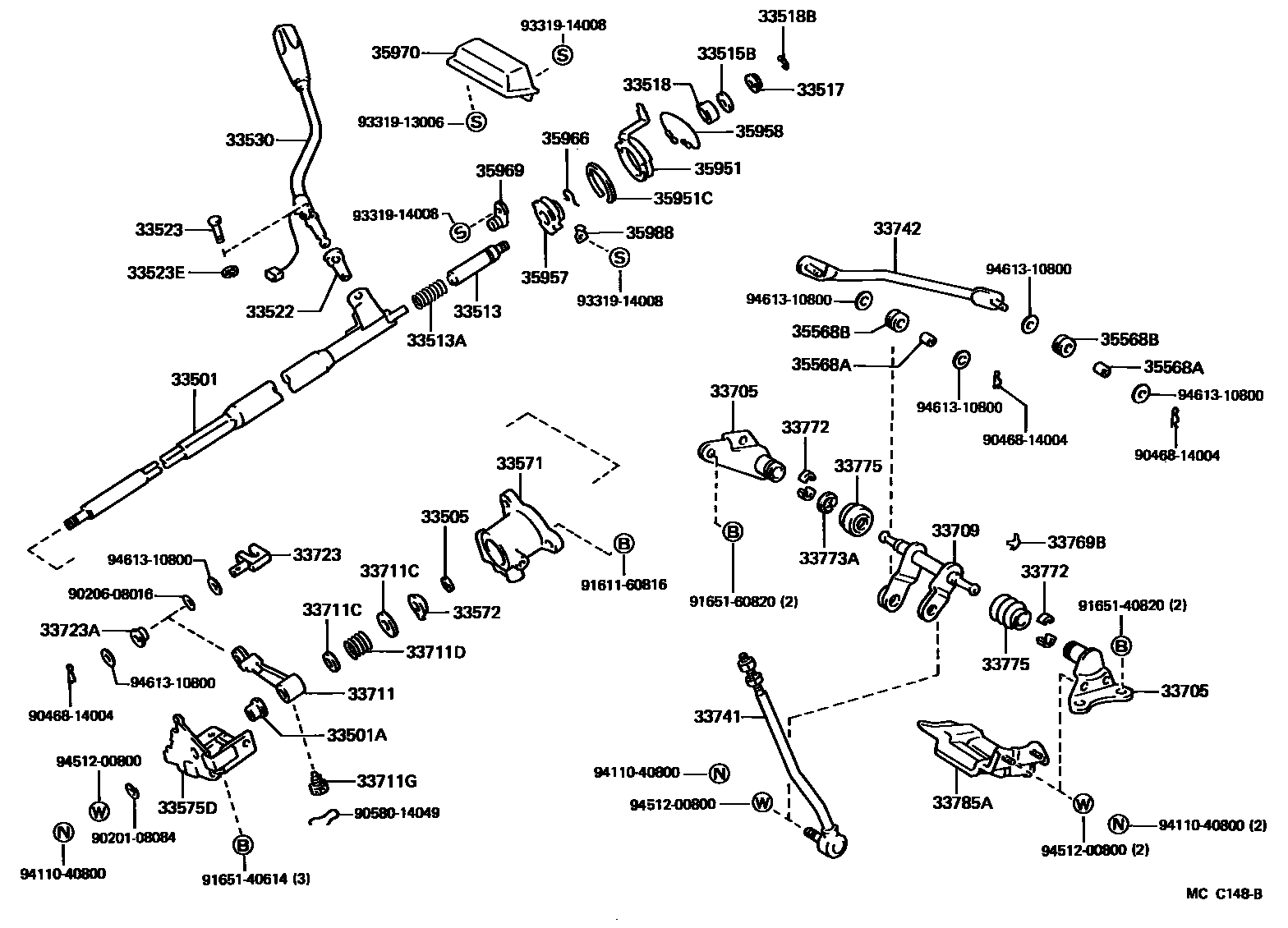

CONTROL SHAFT & CROSSSHAFT

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-35190iRN5#,7#..4HC198508-198512

main33501-35191iRN5#,7#..4HC198512-198808

33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90386-10022iRN5#,7#..4HC¥210198508-198808

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main33505-30010iRN5#,7#..4HC¥190198508-198808

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-35080iRN5#,7#..4HC198508-198512

main33513-35081iRN5#,7#..4HC¥1,360198512-198808

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14083iRN5#,7#..4HC¥200198512-198808

main90501-14784iRN5#,7#..4HC¥190198508-198512

33515BSEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)

main33515-30010iRN5#,7#..4HC¥320198508-198808

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iRN5#,7#..4HC¥260198508-198808

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-30030iRN5#,7#..4HC¥740198508-198808

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iRN5#,7#..4HC¥220198508-198808

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iRN5#,7#..4HC¥390198508-198808

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iRN5#,7#..4HC¥240198508-198808

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iRN5#,7#..4HC¥100198508-198808

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33503-35070iRN5#,7#..4HC¥12,600198508-198808

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-35090iRN5#,7#..4HC¥2,760198508-198808

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-30020iRN5#,7#..4HC¥320198508-198808

33575DRETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33575-35110iRN5#,7#..4HC¥5,000198508-198808

33705SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE)

main33705-35030iRN5#,7#..4HC¥2,320198508-198808

LH

main33705-35040iRN5#,7#..4HC¥1,620198508-198808

RH

33709SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)

main33709-35120iRN5#,7#..4HC198508-198808

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33711-35050iRN5#,7#..4HC¥2,320198508-198808

33711CWASHER, PLATE (FOR CONTROL SHAFT LEVER)

main90201-17044iRN5#,7#..4HC¥110198508-198808

T=1.2,LWR

main90201-17048iRN5#,7#..4HC¥190198508-198808

T=1.0,UPR

33711DSPRING, COMPRESSION (FOR CONTROL SHAFT LEVER)

main90501-10311iRN5#,7#..4HC¥130198508-198808

33711GBOLT, CONTROL SHAFT LEVER LOCK

main33218-35010iRN5#,7#..4HC¥360198508-198808

33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

main33723-35010iRN5#,7#..4HC¥680198508-198808

33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90389-08008iRN5#,7#..4HC¥240198508-198808

33741ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-35120iRN5#,7#..4HC¥2,210198508-198808

33742ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)

main33742-35100iRN5#,7#..4HC¥990198508-198808

33769BSPRING, CROSS SHAFT END

main33769-35010iRN5#,7#..4HC¥260198508-198808

33772BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

main33772-20010iRN5#,7#..4HC¥370198508-198808

33773ARING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)

main96151-01600iRN5#,7#..4HC198508-198808

33775COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)

main33775-20050iRN5#,7#..4HC¥660198508-198808

LH

main33775-30020iRN5#,7#..4HC¥310198508-198808

RH

33785AINSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIFT)

main33785-35010iRN5#,7#..4HC¥1,430198508-198808

35568ABUSH (FOR SHIFTING ROD, 2ND)

main90389-08005iRN5#,7#..4HC¥140198508-198808

CROSS SHAFT SIDE

main90480-17177iRN5#,7#..4HC¥190198608-198808

TRANSMISSION SIDE

35568BGROMMET (FOR SHIFTING ROD, 2ND)

main90480-17001iRN5#,7#..4HC¥240198508-198808

35951INDICATOR, CONTROL POSITION

main35951-35010iRN5#,7#..4HC¥1,180198508-198808

35951CRING, SHAFT SNAP (FOR CONTROL POSITION INDICATOR)

main90520-41097iRN5#,7#..4HC¥370198508-198808

35957PULLEY, POSITION INDICATOR DRIVE

main35957-35010iRN5#,7#..4HC198508-198512

main35957-35011iRN5#,7#..4HC¥710198512-198808

35958CORD, POSITION INDICATOR DRIVE

main35958-35010iRN5#,7#..4HC¥990198508-198808

35966RETAINER, CONTROL POSITION INDICATOR

main35966-30020iRN5#,7#..4HC¥250198508-198808

35969ADJUST, DRIVE CORD

main35969-20020iRN5#,7#..4HC¥1,000198508-198808

35970HOUSING ASSY, POSITION INDICATOR (FOR COLUMN SHIFT)

main35970-35010iRN5#,7#..4HC¥11,500198508-198808

35988RETAINER, DRIVE CORD

main35988-30012iRN5#,7#..4HC¥440198512-198808

main35988-35010iRN5#,7#..4HC198508-198512

9020108084

main90201-08084¥180

9020608016

main90206-08016¥190

9046814004

main90468-14004¥80

9058014049

main90580-14049¥200

9161160816

main91611-60816¥230

9165140614

main91651-40614¥160

9165140820

main91651-40820¥90

9165160820

main91651-60820¥130

9331913006

main93319-13006¥60

9331914008

main93319-14008¥80

9411040800

main94110-40800¥120

9451200800

main94512-00800¥80

9461310800

main94613-10800¥90

54 parts on this diagram · 1 diagram in section
