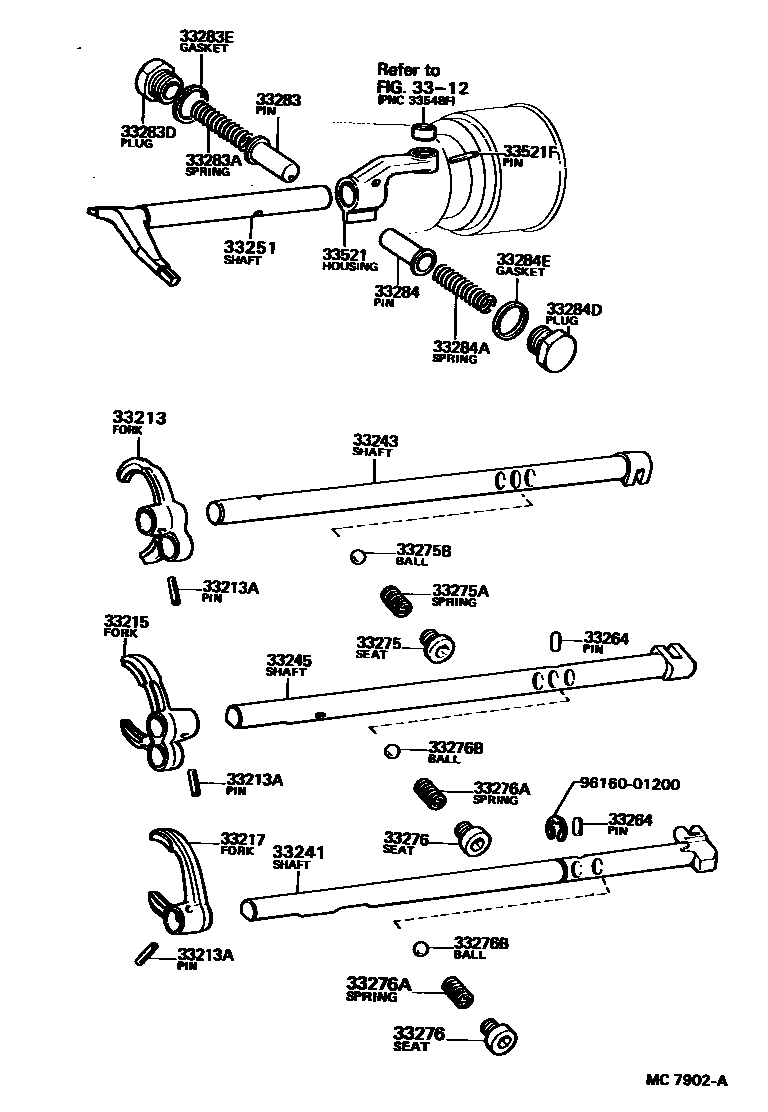

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1 0010 1

3312

33213FORK, 1ST & 2ND SHIFT

main33212-20050iRN5#..5F..CBR198308-198508

main33212-22020iLN66,RN55,6#,75..MTM..(EFI,TD)198408-198903

sub33212-30050

main33212-35022iLN5#,65,RN6#..G198308-198501

sub33212-35023

sub33242-35022

sub90105-06143

sub90520-12003

main33212-35023iLN5#,RN6#..G198501-198808

main33212-35030iRN55,6#..R198508-198610

sub33212-35031

main33212-35032iVZN6#..R198610-198903

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iVZN6#..R198308-198903

main90254-05016iRN5#..W..CBR;RN70..5F..W..USA;RN55,70..5F..CND..CBR198408-198903

33215FORK, 3RD & 4TH SHIFT

main33213-22030iLN66,RN55,6#,75..MTM..(EFI,TD)198408-198903

sub33213-22040

main33213-31010iRN5#..5F..CBR198308-198508

main33213-35031iLN5#,65,RN6#..G198308-198501

sub33213-35033

sub33243-35042

sub33364-26020

sub90105-06143

sub90520-12003

main33213-35032iRN50..CND;RN5#,70..G198501-198808

sub33213-35033

sub33364-26020

main33213-35040iRN55,6#..R198508-198903

33217FORK, 5TH & REVERSE SHIFT

main33214-20011iRN5#..MTM198308-198508

main33214-22030iRN55,70..5F..CND..CBR;RN5#,70..5F..W..USA..CBR198408-198903

33241SHAFT, REVERSE SHIFT FORK

main33241-22010iRN5#,75..4F..W198408-198808

main33244-20902iRN5#..5F198308-198508

main33244-22020iRN55,70..5F..CND..CBR;RN5#,70..5F..W..USA..CBR198408-198903

main33244-30030iRN5#..4F198308-198408

main33244-35020iRN5#,70..5F..G198308-198805

sub33244-35021

sub90520-12003

main33244-35021iRN5#,70..5F..G198805-198808

sub33244-35050

sub33214-35040

sub33231-35070

sub33245-35080

sub33395-26020

sub90105-06143

main33244-35030iLN51198308-198808

sub33244-35031

sub90520-12003

main33244-35040iVZN6#..R198508-198903

sub33244-60040

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-20060iRN5#..5F..CBR198308-198508

main33242-22020iLN66,RN55,6#,75..MTM..(EFI,TD)198408-198903

main33242-35020iLN5#,65,RN6#..G198308-198501

sub33242-35023

sub90520-12003

main33242-35021iRN5#,70..5F..G198501-198805

sub33242-35022

sub90520-12003

main33242-35022iRN5#,70..5F..G198805-198808

main33242-35030iRN55,6#..R198508-198903

33245SHAFT, 3RD & 4TH SHIFT FORK

main33240-22020iLN66,RN55,6#,75..MTM..(EFI,TD)198408-198903

sub33240-22021

main33243-20031iRN5#..5F..CBR198308-198508

main33243-35040iLN5#,65,RN6#..G198308-198501

sub33243-35043

sub90520-12003

main33243-35041iRN50..CND;RN5#,70..G198501-198805

sub33243-35042

sub90520-12003

main33243-35042iRN50..CND;RN5#,70..G198805-198808

main33243-35070iRN55,6#..R198508-198903

33251LEVER, SHIFT & SELECT

main33251-20040iRN5#..4F198308-198408

main33251-22050iRN5#,75..4F..W198408-198808

sub33251-22051

main33251-35060iRN50..CND;LN5#,RN5#,70..G198308-198808

sub33251-35061

sub90109-08305

main33251-35070iLN6#,RN6#..5F..(EFI,TD)198408-198903

sub33251-35071

sub90109-08305

main33251-35080iRN55..R198508-198808

main33251-35100iVZN6#..R198711-198903

main33261-35080iRN6#..CBR198308-198808

sub33261-35081

sub90109-08305

main33261-35100iRN6#..R198508-198808

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iRN5#..W..CBR;RN70..5F..W..USA;RN55,70..5F..CND..CBR198408-198903

main33264-31010iRN5#..5F..CBR198308-198508

main90360-10003iLN56,65,RN6#..G198308-198903

OD=9.52,STEEL,BALL

main90361-10002iLN5#,65,RN6#..G198308-198808

L=21.6,PIN,PIN,L=21.6

main90361-10003iRN50..CND;RN5#,70..G198308-198808

L=13.6,OD=9.5,PIN,L=13.6

main90361-10003iRN55,6#..R198508-198903

L=13.6,OD=9.5,PIN

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-10004iRN5#..5F..CBR198308-198508

main90341-12004iLN66,RN55,6#,75..MTM..(EFI,TD)198408-198710

OD=18

main90341-12008iRN55,6#..R198308-198903

OD=18

main90341-12014iRN5#,70..W..CBR;RN55,70..CND..CBR198710-198903

OD=17

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-10061iLN5#,65,RN6#..G198308-198808

L=22.1,L=22.1

main90501-13001iRN5#..5F..CBR198308-198508

L=16.5

main90501-13004iRN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD)198408-198903

L=20.65

sub90501-14123

main90501-14061iRN5#,70..5F..G198308-198808

L=18.3,L=18.3

sub90501-14123

main90501-14062iRN50..CND;RN5#,70..G198308-198808

L=30.6,L=30.6

sub90501-14132

main90501-14096iRN55,6#..R198508-198903

L=34.5

33275BBALL, SHAFT DETENT

main90360-08009iRN5#..5F..CBR198308-198508

main90360-10003iLN5#,65,RN6#..G198308-198903

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-10064iRN5#..5F..CBR198308-198508

main90341-12005iLN66,RN55,6#,75..MTM..(EFI,TD)198408-198903

sub90341-12018

main90341-12008iVZN6#..R198508-198903

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-10061iVZN6#..R198508-198903

main90501-13001iRN5#..MTM198308-198508

main90501-13004iRN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD)198408-198903

sub90501-14123

33276BBALL, SHIFT DETENT, NO.2

main90360-08009iRN5#..5F..CBR198308-198508

main90360-10003iRN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD)198408-198903

33283PIN, REVERSE RESTRICT, NO.1

main33283-22010iRN5#..MTM198308-198508

33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)

main90501-16002iRN5#..MTM198308-198508

33283DPLUG (FOR REVERSE RESTRICT PIN)

main90341-12008iRN55,6#..R198508-198903

main90341-20086iRN5#..MTM198308-198508

33283EGASKET (FOR REVERSE RESTRICT PIN)

main90430-21224iRN5#..MTM198308-198508

33284PIN, LOW RESTRICT

main33283-22010iRN5#..MTM198308-198508

33284ASPRING, COMPRESSION (FOR LOW RESTRICT PIN)

main90501-16001iRN5#..MTM198308-198508

33284DPLUG (FOR LOW RESTRICT PIN)

main90341-20086iRN5#..MTM198308-198508

33284EGASKET (FOR LOW RESTRICT PIN)

main90430-21224iRN5#..MTM198308-198508

33521HOUSING, SHIFT LEVER

main33502-14100iRN55,70..5F..CND..CBR;RN5#,70..5F..W..USA..CBR198408-198808

main33521-14040iRN5#..5F..CBR198308-198508

main33521-35070iRN50..CND;LN5#,RN5#,70..G198308-198808

sub33521-35071

main33521-35090iLN65,RN6#..G198308-198808

main33521-35100iRN5#,75..4F..W198408-198808

main33521-35110iLN6#,RN6#..5F..(EFI,TD)198408-198903

main33521-35120iRN55..R198508-198808

sub33521-35150

main33521-35130iRN6#..R198508-198903

main33521-35150iVZN6#..R198711-198903

sub33521-35240

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90105-08079iRN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD)198408-198903

main90113-08001iLN5#,65,RN6#..G198308-198808

main90254-05016iRN5#..MTM198308-198508

9616001200

main96160-01200
