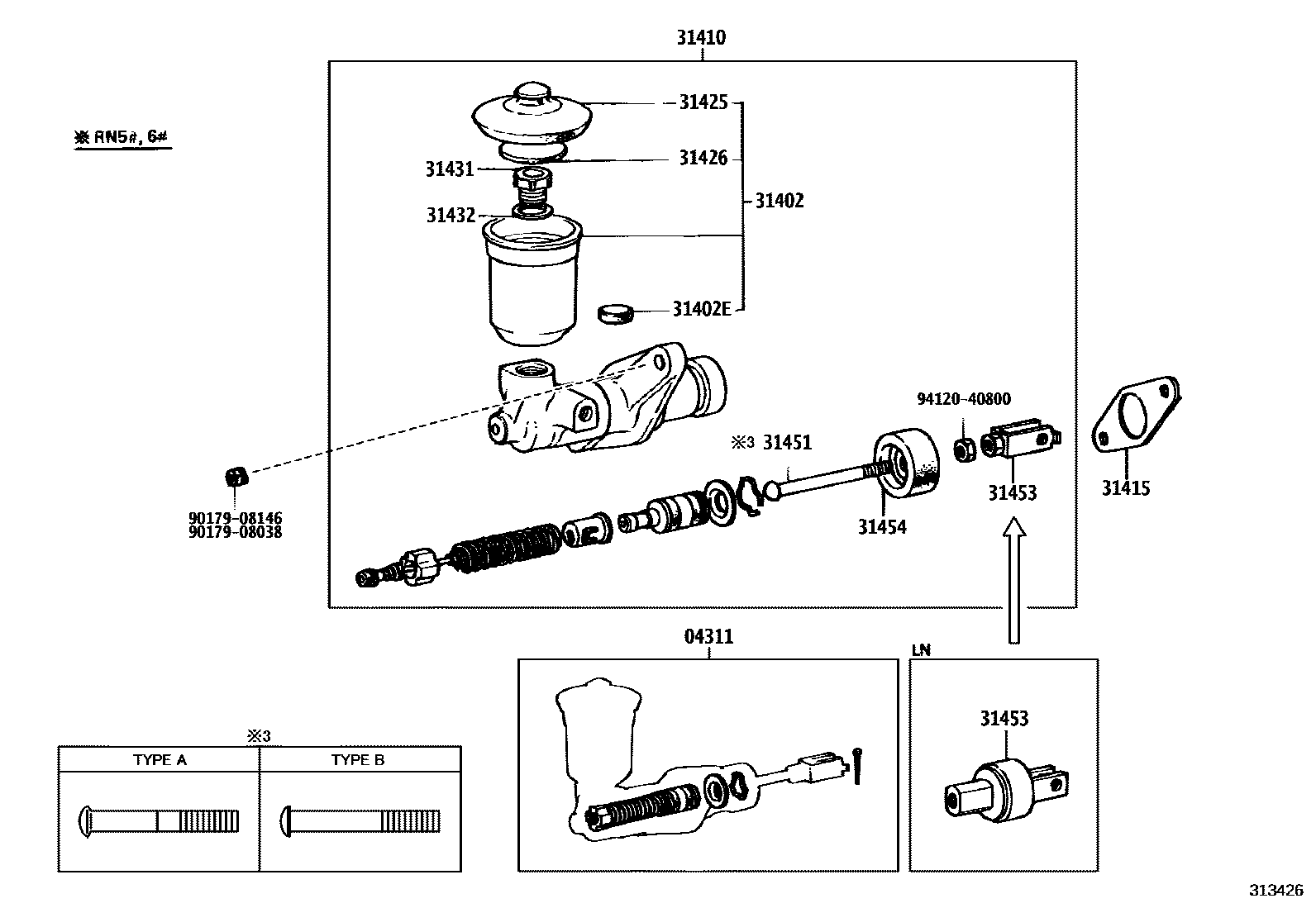

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14011iRN5#,6#,7#..MTM198308-198611

PNC 31451=TYPE A

sub04311-14012

main04311-14030iLN56,66,RN5#,6#,7#198611-198704

PNC 31451=TYPE B

sub04311-14031

main04311-14031iLN56,66,RN5#,6#,7#198704-198710

PNC 31451=TYPE B

sub04311-14032

main04311-14032iRN5#,6#,7#198710-198903

PNC 31451=TYPE B

sub04311-28010

main04311-30080iLN56,66198508-198611

PNC 31451=TYPE A

sub04311-14020

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20010iRN5#,6#,7#..MTM198704-198903

main31402-30030iLN5#,6#198308-198903

main31402-35010iRN5#,6#,7#..MTM198308-198704

sub31402-20010

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iRN5#,6#,7#..MTM198308-198903

31410CYLINDER ASSY, CLUTCH MASTER

main31410-22140iLN56,66198508-198704

sub31410-35180

main31410-24012iLN5#,65198308-198508

sub31410-22140

main31410-35140iRN5#,6#,7#..MTM198308-198704

sub31410-35141

main31410-35141iRN5#,6#,7#..MTM198704-198710

sub31410-35142

main31410-35142iRN5#,6#,7#..MTM198710-198903

main31410-35180iLN66198704-198903

sub31410-35181

main31410-35240iLN66198706-198708

sub31410-35241

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iRN61,VZN61..5F198808-198903

main31415-30030iLN5#,6#,RN5#,6#,7#,VZN6#..MTM198308-198808

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iRN5#,6#,7#..MTM198308-198704

sub47230-20040

main47230-20040iRN5#,6#,7#,VZN6#..MTM198308-198903

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLN5#,6#,RN5#,6#,7#,VZN6#..MTM198308-198903

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main31427-35010iRN5#,6#,7#..MTM198308-198903

main47231-30010iVZN6#..R198308-198903

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iLN5#,6#198308-198903

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iRN5#,6#,7#..MTM198308-198611

TYPE A:REFER ILLUST.

main31451-22060iRN5#,6#,7#..MTM198611-198903

TYPE B:REFER ILLUST.

main31451-22070iLN56,66198611-198903

TYPE B:REFER ILLUST.

main31451-30060iLN5#,6#198308-198611

TYPE A:REFER ILLUST.

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iLN56,66198508-198903

sub31404-28012

main31404-30041iLN5#,65198308-198608

main31404-30050iLN56,66198706-198708

sub31404-30051

main31453-22010iRN5#,6#,7#..MTM198308-198509

sub31453-35010

main31453-35010iRN5#,6#,7#..MTM198509-198903

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iRN5#,6#,7#..MTM198308-198903

main31454-24010iLN5#,65198308-198903

9017908038

main90179-08038

9017908146

main90179-08146

9412040800

main94120-40800

15 parts on this diagram · 1 diagram in section
