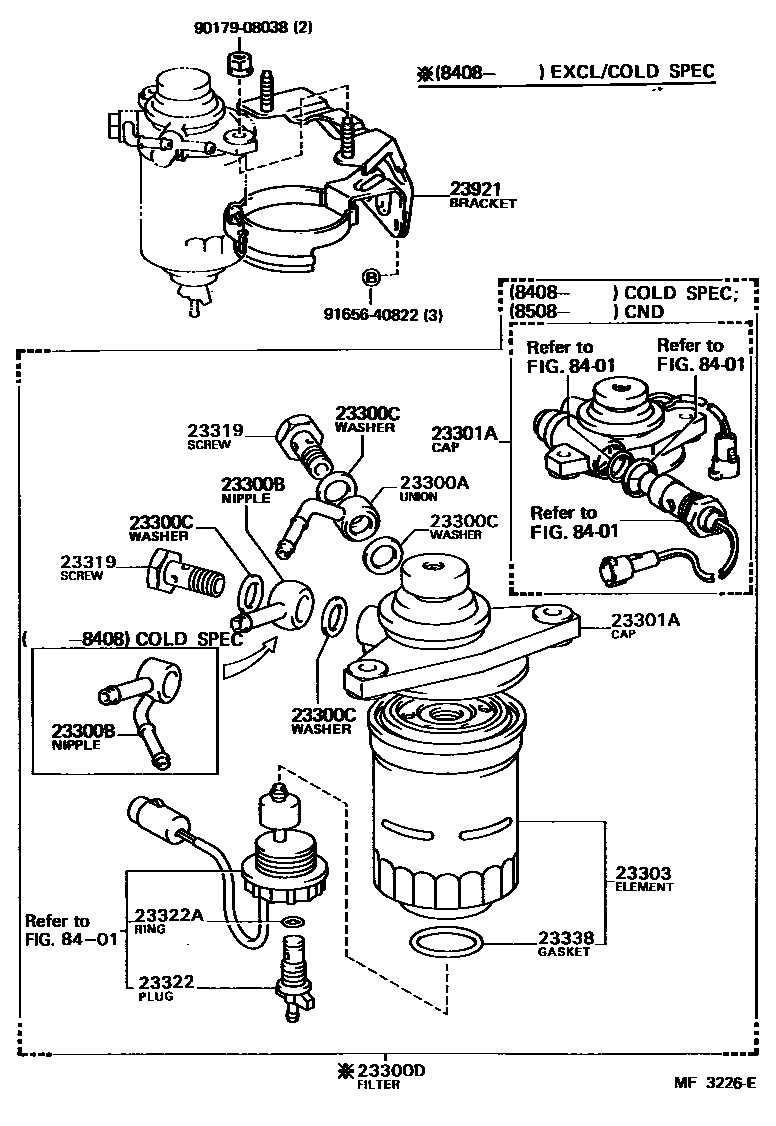

FUEL FILTER

0001 1 0002 1 0003 1

23300FILTER ASSY, FUEL

main23300-25020i22R..RN60..V,WG198403-198408

main23300-34100i22R..RN5#,6#,70..T1198308-198808

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main23323-54030i2L#..LN5#,6#198308-198607

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main23323-54060i2L..LN5#,65198308-198408

COLD SPEC

main90405-08016i2L#..LN5#,6#198308-198607

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030i2L#..LN5#,6#198308-198607

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-54140i2L#..LN5#,65198308-198508

main23300-54180i2L..LN5#,65198308-198408

COLD SPEC

23301ACAP ASSY, FUEL FILTER

main23301-54040i2L#..LN56,66198508-198607

main23301-54040i2L#..LN5#,65198408-198508

COLD SPEC

main23301-54240i2L#..LN56,66198607-198708

main23301-64020i2L#..LN5#,65198308-198508

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L#..LN5#,6#198308-198708

23319SCREW, FUEL PIPE FOLLOW

main90099-18011i2L#..LN5#,6#198308-198607

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L#..LN5#,6#198308-198708

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L#..LN5#,6#198308-198708

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L#..LN5#,6#198308-198708

23921SUPPORT, FUEL FILTER

main23921-35050i22R..RN60..V,WG198403-198408

main23921-35060i22R..RN5#,6#,70..T1198308-198808

main23921-54110i2L#..LN5#,6#198308-198708

sub23921-54290

8401

9017908038

main90179-08038

9165640822

main91656-40822

15 parts on this diagram · 3 diagrams in section
