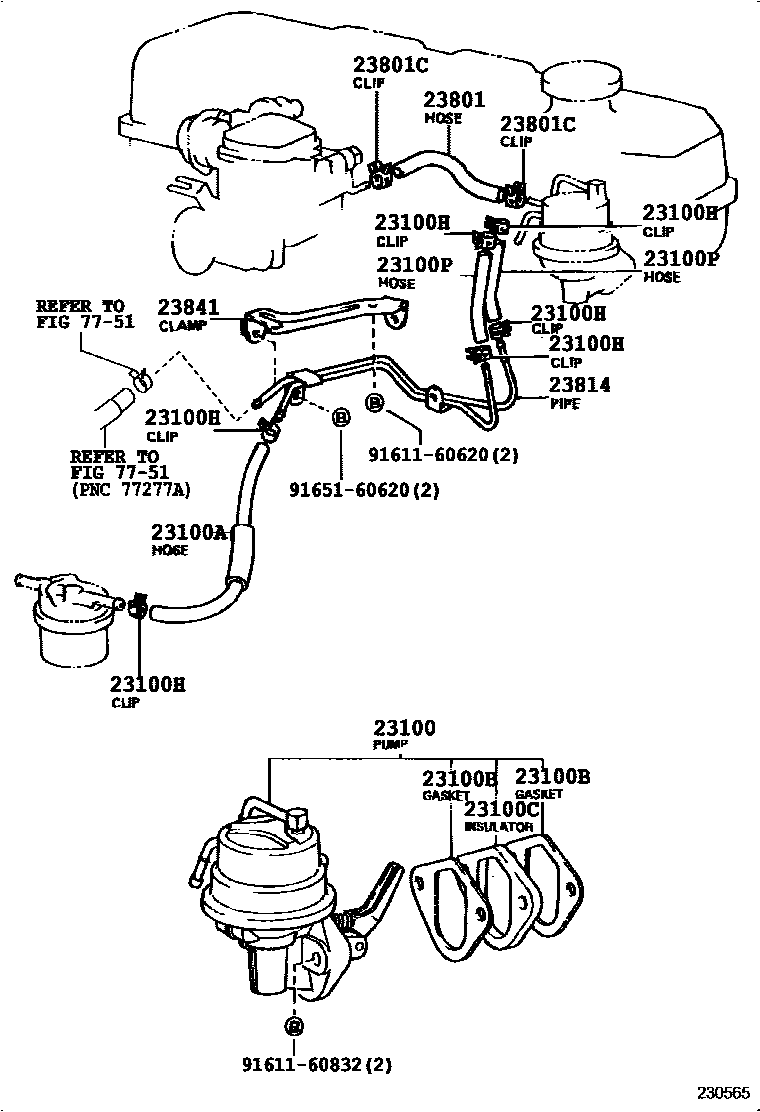

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-35031i22R..RN5#,70¥10,000198708-198808

sub23100-39336¥11,300

main23100-39336i22R..RN5#,6#,70¥11,300198308-198708

23100AHOSE, FUEL

main23271-35070i22R..RN6#¥910198508-198708

main95332-06030i22R..RN5#,6#¥590198308-198611

*H,L=260

sub95333-06030¥580

main95333-06026i22R..RN5#,70¥590198611-198702

sub95333-06030¥580

main95333-06030i22R..RN5#,70¥580198702-198808

*H,L=260

sub95338-06030¥580

23100BGASKET, FUEL PUMP

main90923-05005i22R..RN5#,6#,70¥250198308-198808

sub90923-05019¥250

23100CINSULATOR, FUEL PUMP

main90923-06001i22R..RN5#,6#,70¥380198308-198808

sub90923-06009¥350

23100HCLIP(FOR FUEL HOSE)

main96132-30600i22R..RN5#,6#,70¥200198308-198808

sub96132-51100¥120

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95332-06020i22R..RN5#,6#,70¥350198308-198606

*H,L=120

sub95333-06020¥480

main95333-06012i22R..RN5#,6#,70¥500198606-198702

sub95333-06020¥480

main95333-06020i22R..RN5#,6#,70¥480198702-198808

*H,L=120

sub95337-06020¥570

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95332-06020i22R..RN5#,6#,70¥350198308-198606

L=200(*H,L=190)

sub95333-06020¥480

main95333-06019i22R..RN5#,6#,70¥500198606-198702

L=200(*H,L=190)

sub95333-06020¥480

main95333-06020i22R..RN5#,6#,70¥480198702-198808

L=200(*H,L=190)

sub95337-06020¥570

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i22R..RN5#,6#,70¥200198308-198808

sub96132-51100¥120

23814PIPE, FUEL DELIVERY

main23814-35080i22R..RN5#,6#¥3,810198308-198408

main23814-35110i22R..RN5#,6#,70¥4,050198408-198808

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-35030i22R..RN5#,6#198308-198408

main23841-35060i22R..RN5#,6#,70¥740198408-198808

7751

9161160620

main91611-60620¥90

9161160832

main91611-60832¥190

9165160620

main91651-60620¥80

14 parts on this diagram · 1 diagram in section
