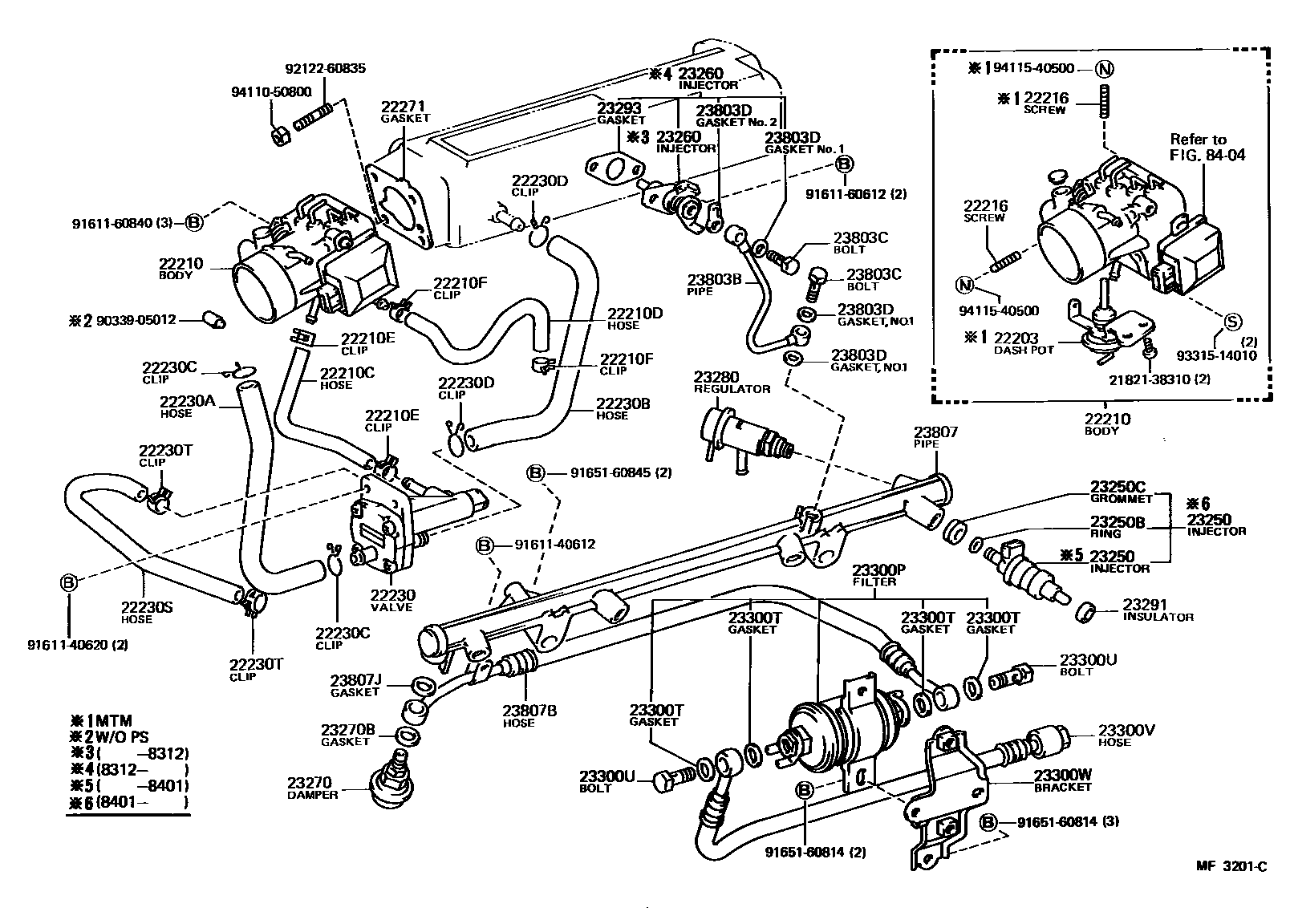

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-35012i22REC..RN5#..5F¥8,000198308-198408

sub22202-35050¥7,400

main22202-35050i22REC..RN5#,6#..MTM¥7,400198408-198808

main22202-35271i22REC..RN61..W¥5,700198808-198903

main22202-65011i3VZE..VZN6#..R¥5,700198711-198808

main22202-65020i3VZE..VZN6#..4FC¥5,700198711-198808

main22202-65030i3VZE..VZN61..R¥5,700198808-198903

main22202-65040i3VZE..VZN61..4FC¥5,700198808-198903

22210BODY ASSY, THROTTLE

main22210-35030i22REC..RN5#..5F¥50,300198308-198408

main22210-35040i22REC..RN55..4FC¥50,300198308-198408

main22210-35070i22REC..RN60..V,WG¥50,200198408-198508

main22210-35080i22REC..RN55..4FC..HVY¥50,200198408-198508

main22210-35090i22REC..RN5#,6#..T1..5F¥50,200198408-198508

main22210-35100i22REC..RN55..4FC..HLF¥50,200198408-198508

main22210-35110i22RTEC..RN55¥50,000198501-198508

main22210-35120i22RTEC..RN55,61..R¥50,600198508-198608

main22210-35150i22REC..RN61..HLF¥50,600198508-198608

main22210-35160i22REC..RN55..ATM..(10T,HLF)¥50,600198508-198608

main22210-35170i22REC..RN55,75..W..HVY;22REC..RN61..(V,WG)..W¥50,600198508-198608

main22210-35180i22REC..RN66..DLX¥50,600198508-198608

main22210-35190i22RTEC..RN55,6#..4FC¥50,600198508-198608

main22210-35200i22REC..RN55,6#..5F¥50,800198608-198808

main22210-35210i22REC..RN5#,70..ATM..(10T,HLF)¥50,800198608-198808

main22210-35230i22REC..RN55,75..ATM..HVY¥50,800198608-198808

main22210-35240i22RTEC..RN55¥50,800198608-198808

main22210-35250i22RTEC..RN61..SRT¥50,800198608-198708

main22210-35260i22REC..RN55,75..W..HVY¥50,800198608-198808

main22210-35270i22REC..RN61..W¥71,200198808-198903

main22210-35290i22REC..RN61..4FC¥71,200198808-198903

main22210-65010i3VZE..VZN6#..R¥50,800198711-198802

sub22210-65H00

main22210-65011i3VZE..VZN6#..R¥50,800198802-198808

main22210-65020i3VZE..VZN6#..4FC¥50,800198711-198802

sub22210-65H01

main22210-65021i3VZE..VZN6#..4FC¥50,800198802-198808

main22210-65030i3VZE..VZN61..R¥50,600198808-198903

main22210-65040i3VZE..VZN61..4FC¥50,600198808-198903

22210CHOSE, WATER BY-PASS, NO.1

main16267-35010i22REC,22RTEC..RN5#,6#,7#¥640198308-198808

main16267-35030i22REC..RN61¥850198808-198903

22210DHOSE, WATER BY-PASS, NO.2

main16264-35010i22REC..RN5#¥1,160198308-198408

main16264-35011i22REC,22RTEC..RN5#,6#¥1,400198408-198502

main16264-35012i22REC,22RTEC..RN5#,6#,7#¥810198502-198808

main16264-35030i22REC..RN61¥850198808-198903

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13001i22REC,22RTEC..RN5#,6#,7#¥230198308-198903

sub96135-51300¥120

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main90467-13001i22REC,22RTEC..RN5#,6#,7#¥230198308-198903

sub96135-51300¥120

22216SCREW, DASH POT ADJUSTING

main22216-74010i22REC,22RTEC..RN5#,6#,7#¥270198308-198903

22230VALVE ASSY, AUXILIARY AIR

main22230-35010i22REC,22RTEC..RN5#,6#,7#¥21,000198308-198808

main22230-35030i22REC..RN61..W¥21,000198808-198903

main22230-35040i22REC..RN61..4FC¥21,000198808-198903

22230AHOSE, AUXILIARY AIR VALVE, NO.1

main22233-35010i22REC,22RTEC..RN5#,6#,7#¥1,530198308-198808

22230BHOSE, AUXILIARY AIR VALVE, NO.2

main22234-35010i22REC,22RTEC..RN5#,6#,7#¥1,840198308-198808

22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1

main90467-19003i22REC,22RTEC..RN5#,6#,7#¥110198308-198808

22230DCLIP, AUXILIARY AIR VALVE HOSE, NO.2

main90467-19003i22REC,22RTEC..RN5#,6#,7#¥110198308-198808

22230SHOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE)

main16281-35010i22REC,22RTEC..RN5#,6#,7#¥1,190198308-198808

22230TCLAMP OR CLIP, HOSE(FOR WATER BY-PASS)

main90467-13001i22REC,22RTEC..RN5#,6#,7#¥230198308-198808

sub96135-51300¥120

22271GASKET, THROTTLE BODY

main22271-35010i22REC,22RTEC..RN5#,6#,7#¥350198308-198808

sub22271-35011¥350

main22271-35020i22REC..RN61¥350198808-198903

main22271-65010i3VZE..VZN6#¥370198711-198802

sub22271-65011¥370

main22271-65011i3VZE..VZN6#¥370198802-198903

sub22271-65020¥330

23250INJECTOR ASSY, FUEL

main23209-35010i22RTEC..RN55¥20,500198501-198508

main23209-35020i22RTEC..RN55,6#¥20,600198508-198808

main23209-35030i22REC..RN5#,6#,7#¥20,600198708-198808

main23209-35040i22REC..RN61¥20,600198808-198903

main23209-45011i22REC..RN5#,6#,75¥20,600198401-198708

sub23209-43010¥20,600

main23209-65010i3VZE..VZN6#¥20,600198711-198808

main23209-65020i3VZE..VZN61¥20,500198808-198903

main23250-45011i22REC..RN5#198308-198401

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i3VZE..VZN6#¥350198308-198903

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i3VZE..VZN6#¥230198308-198903

23260INJECTOR ASSY, COLD START FUEL

main23260-35010i22REC..RN5#¥10,500198308-198312

sub23260-39055¥11,400

main23260-39055i22REC,22RTEC..RN5#,6#,7#¥11,400198312-198903

sub23260-39056¥10,200

main23260-69045i3VZE..VZN6#¥10,500198711-198903

sub23260-69055¥10,200

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-65010i3VZE..VZN6#¥7,900198711-198903

main23270-35010i22REC,22RTEC..RN5#,6#,75¥6,700198412-198702

sub23270-42010¥6,400

main23270-42010i22REC,22RTEC..RN5#,6#,7#¥6,400198702-198808

main23270-70010i22REC..RN5#,6#¥6,400198308-198412

23270BGASKET(FOR PULSATION DAMPER HOSE)

main90430-17002i22REC,22RTEC..RN5#,6#,7#¥210198308-198808

main90430-18016i3VZE..VZN6#¥180198711-198903

23280REGULATOR ASSY, FUEL PRESSURE

main23280-35010i22REC..RN5#,6#¥9,800198308-198410

main23280-35011i22REC,22RTEC..RN5#,6#¥9,800198410-198508

sub23280-35020¥9,900

main23280-35020i22REC,22RTEC..RN55,6#,75¥9,900198508-198708

main23280-35030i22REC,22RTEC..RN5#,6#,7#¥9,900198708-198903

main23280-65010i3VZE..VZN6#¥9,900198711-198903

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i22REC,22RTEC..RN5#,6#,7#¥340198308-198903

23293GASKET, COLD START INJECTOR

main23293-35010i3VZE..VZN61¥400198308-198903

sub23293-35020¥350

main23293-35020i22REC..RN61¥350198808-198903

23300PFILTER, FUEL(FOR EFI)

main23300-39025i22REC..RN5#¥7,100198308-198408

main23300-39035i22REC,22RTEC..RN5#,6#,7#¥7,200198408-198903

main23300-65010i3VZE..VZN6#¥7,100198711-198903

sub23300-65020¥7,100

23300TGASKET(FOR FUEL FILTER)

main90430-12005i22REC,22RTEC..RN5#,6#,7#¥110198308-198903

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i22REC,22RTEC..RN5#,6#,7#¥310198308-198903

23300VHOSE, FUEL(FOR FUEL INLET)

main23906-35010i22REC..RN61¥8,600198808-198903

main90923-01293i22REC,22RTEC..RN5#,6#,7#¥14,200198308-198808

23300WBRACKET, FUEL FILTER

main23264-35010i22REC..RN5#¥920198308-198408

main23264-35020i22REC,22RTEC..RN5#,6#,7#¥1,410198408-198903

23803BPIPE SUB-ASSY, FUEL, NO.3

main23801-35010i22REC,22RTEC..RN5#,6#,7#¥2,630198308-198903

main23803-65020i3VZE..VZN6#¥3,970198711-198903

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-08003i22REC,22RTEC..RN5#,6#,7#¥140198308-198903

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-08005i22REC,22RTEC..RN5#,6#,75¥140198308-198703

NO.1

main90430-08007i22REC,22RTEC..RN5#,6#,75¥190198308-198703

NO.2

main90430-08009i22REC,22RTEC..RN5#,6#,7#¥110198703-198903

NO.1

sub90430-08014¥110

main90430-08011i22REC,22RTEC..RN5#,6#,7#¥120198703-198903

NO.2

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-35010i22REC,22RTEC..RN5#,6#,75¥13,600198308-198703

sub23807-35011¥13,500

main23807-35011i22REC,22RTEC..RN55,6#,75¥13,500198703-198708

sub23807-35020¥13,500

main23807-35020i22REC,22RTEC..RN5#,6#,7#¥13,500198708-198903

main23807-65010i3VZE..VZN6#¥13,300198711-198903

sub23814-65030¥13,300

23807BHOSE, FUEL DELIVERY PIPE

main90923-01263i22REC..RN5#¥16,100198308-198408

sub90923-01326¥16,300

main90923-01326i22REC,22RTEC..RN5#,6#,7#¥16,300198408-198808

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-14002i22REC,22RTEC..RN5#,6#,7#¥180198308-198808

main90430-18016i3VZE..VZN6#¥180198711-198903

8404

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310¥210

9033905012

main90339-05012¥380

9161140612

main91611-40612¥130

9161140620

main91611-40620¥160

9161160612

main91611-60612¥130

9161160840

main91611-60840¥130

9165160814

main91651-60814¥130

9165160845

main91651-60845¥200

9212260835

main92122-60835¥160

9331514010

main93315-14010¥160

9411050800

main94110-50800¥80

9411540500

main94115-40500¥110

48 parts on this diagram · 6 diagrams in section
