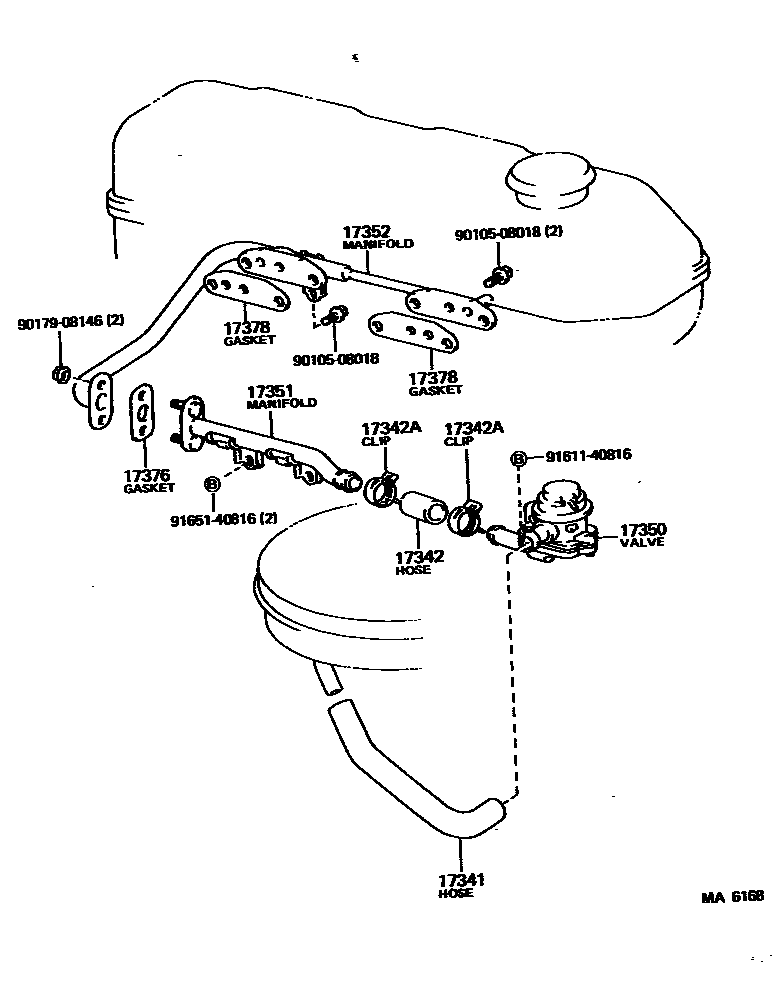

MANIFOLD AIR INJECTION SYSTEM

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-35011i22R..RN55..HVY198308-198408

CALIFORNIA SPEC

main17341-35011i22R..RN60..(V,WG)..USA198403-198408

main17341-35021i22R..RN60..SR5..CND198308-198408

main17341-35070i22R..RN5#,6#,70198408-198808

main17341-35140i22R..RN50..CND;22R..RN5#,70..G198708-198808

sub17341-35160

main17341-35150i22REC..RN5#,6#,7#198708-198903

main17341-65010i3VZE..VZN6#198711-198903

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-35030i22R..RN5#,6#..3QT,HLF198308-198408

main17342-35040i22R..RN55,6#..(3QT,HLF)..IV198308-198408

CALIFORNIA SPEC

main17342-35040i22R..RN60..(V,WG)..USA198403-198408

main17342-35080i22R..RN5#,6#,70198408-198708

main17342-35090i22R..RN5#..USA198408-198708

CALIFORNIA SPEC

main17342-35090i22R..RN5#,70..W;22R..RN55,70..CND198708-198808

main17342-35110i22R..RN50..CND;22R..RN5#,70..G198708-198808

main17342-35120i22REC..RN5#,6#,7#198708-198808

main17342-35130i22REC..RN61198808-198903

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90467-26001i22R..RN60..SR5..CND198308-198408

sub96134-52600

main90467-26002i22R..RN50..CND;22R..RN5#,70..G198708-198808

sub96134-52600

main90467-26005i22R..RN50..CND;22R..RN5#,70..G198709-198903

sub96134-52600

main90467-28003i22R..RN5#..STD..HLF..USA198308-198408

CALIFORNIA SPEC

sub90467-28007

main90467-28003i22R..RN60..(V,WG)..USA198403-198808

sub90467-28007

17350VALVE ASSY, REED

main17350-35030i22R..RN5#,6#..3QT,HLF198308-198408

main17350-35040i22R..RN5#,70..W;22R..RN55,70..CND198408-198808

main17350-35050i22REC..RN5#,6#,7#198708-198903

main17350-65010i3VZE..VZN6#198711-198903

17351MANIFOLD, AIR INJECTION

main17306-65010i3VZE..VZN6#198711-198903

main17351-35020i22R..RN5#,6#..3QT,HLF198308-198408

main17351-35040i22R..RN5#,6#,70198408-198808

main17351-35050i22REC..RN5#,6#,7#198708-198903

17352MANIFOLD, AIR INJECTION, NO.2

main17352-35040i22R..RN5#,6#..3QT,HLF198308-198408

main17352-35050i22R..RN5#,6#,70198408-198808

main17352-35080i22REC..RN5#,6#,7#198708-198903

MARUYASU

main17352-35090i22REC..RN5#,6#,7#198708-198903

SANOU

sub17352-35080

17376GASKET, AIR TUBE, NO.1

main17376-35010i22R..RN5#,6#..3QT,HLF198308-198408

sub17376-35011

main17376-35030i22REC..RN5#,6#,7#198708-198903

main17376-37010i22R..RN5#,70..W;22R..RN55,70..CND198408-198808

sub17376-37011

main25628-65010i3VZE..VZN6#198711-198903

17378GASKET AIR TUBE, NO.3

main17378-35010i22R..RN5#,70..W;22R..RN55,70..CND198408-198808

sub17378-35020

main17378-35020i22REC..RN61198808-198903

main17378-37010i22R..RN60..SR5..CND198308-198408

9010508018

main90105-08018

9017908146

main90179-08146

9161140816

main91611-40816

9165140816

main91651-40816

12 parts on this diagram · 7 diagrams in section
