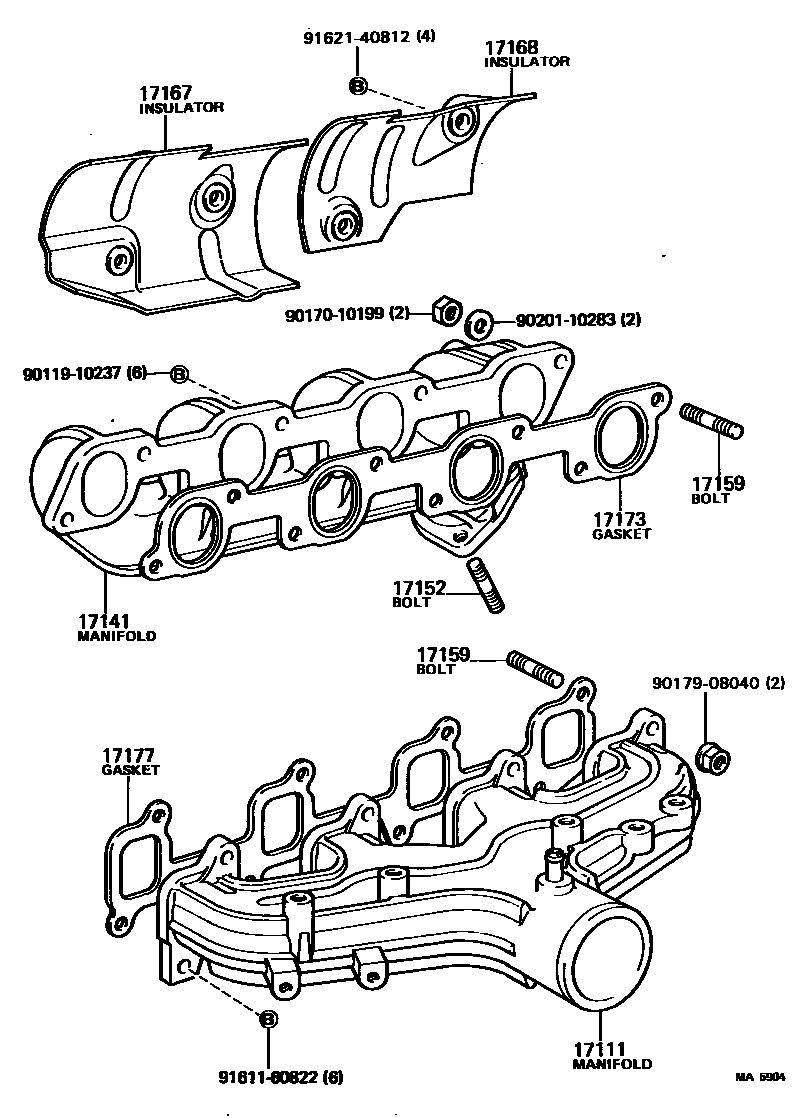

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0008 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

17111MANIFOLD, INTAKE

main17101-35010i22REC..RN5#198308-198311

sub17101-35014

sub16264-35012

main17101-35011i22REC..RN5#198311-198408

sub17101-35012

sub16264-35011

main17101-35012i22REC,22RTEC..RN5#,6#198408-198504

sub17101-35013

sub16264-35012

main17101-35013i22REC,22RTEC..RN5#,6#198504-198508

main17101-35020i22RTEC..RN55,6#198508-198808

main17101-35030i22REC..RN55,6#,75198508-198708

main17101-35040i22REC..RN5#,6#,7#198708-198808

main17101-35050i22REC..RN61198808-198903

main17101-54030i2L..LN5#,65198308-198708

main17101-54050i2LT..LN6#198408-198708

sub17101-54051

sub90445-11080

sub90445-11101

sub90464-00576

sub90917-11033

sub96132-30600

main17101-54060i2LT..LN56198408-198508

sub17101-54080

main17111-35030i22R..RN5#,6#,70198308-198705

main17111-35080i22R..RN5#,6#,70198705-198808

main17111-54060i2L..LN56..IV198308-198408

CALIFORNIA SPEC

main17111-65900i3VZE..VZN6#198711-198903

17141MANIFOLD, EXHAUST

main17141-35040i22R..RN60..(V,WG)..USA198403-198408

main17141-35040i22R..RN55..HVY198308-198408

CALIFORNIA SPEC

main17141-35050i22R..RN60..SR5..CND198308-198408

main17141-35070i22REC..RN5#198308-198408

main17141-35080i22R..RN5#..USA198408-198708

CALIFORNIA SPEC

main17141-35080i22REC..RN5#,6#,75198408-198808

main17141-35100i22R..RN5#,6#,70198408-198903

main17141-35120i22RTEC..RN55,61,66198501-198808

main17141-54022i2LT..LN6#198408-198708

main17141-54030i2L..LN56..IV198308-198408

CALIFORNIA SPEC

main17141-54040i2L..LN5#,65198308-198708

main17141-54050i2LT..LN56198408-198508

main17141-65010i3VZE..VZN6#198711-198903

sub17141-65011

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10087i22R#..RN5#,6#,7#198308-198903

main90116-10088i2L#..LN5#,6#198308-198708

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08053i2L#..LN5#,65198308-198504

INTAKE MANIFOLD SIDE

main90116-08172i22R#..RN5#,6#,7#198308-198903

INTAKE MANIFOLD SIDE

main90116-08220i2L#..LN5#,6#198504-198708

INTAKE MANIFOLD SIDE

main90116-08262i3VZE..VZN6#198711-198903

INTAKE MANIFOLD SIDE

main90116-10061i2LT..LN56,6#198408-198706

EXHAUST MANIFOLD SIDE

sub90116-10140

main90116-10064i22R,22REC..RN5#,6#,7#198308-198903

EXHAUST MANIFOLD SIDE LWR

main90116-10067i22R,22REC..RN5#,6#,7#198308-198903

EXHAUST MANIFOLD SIDE UPR

main90116-10091i2L..LN5#,65198308-198706

EXHAUST MANIFOLD SIDE

sub90116-10141

main90116-10115i22RTEC..RN55,61,66198501-198808

EXHAUST MANIFOLD

main90116-10133i3VZE..VZN6#198711-198807

EXHAUST MANIFOLD

main90116-10140i2LT..LN66198706-198708

EXHAUST MANIFOLD SIDE

main90116-10141i2L..LN56198706-198708

EXHAUST MANIFOLD SIDE

main90116-10150i3VZE..VZN6#198807-198903

EXHAUST MANIFOLD

main92122-60825i22REC,22RTEC..RN5#,6#,7#198308-198903

L=37,S=12&12

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17107-54011i2LT..LN56,6#198408-198708

sub17107-54012

main17167-54011i2L..LN5#,65198308-198401

sub17167-54040

main17167-54040i2L..LN5#,65198401-198411

sub17167-54041

main17167-54041i2L..LN5#198411-198708

sub17167-54042

main17167-65010i3VZE..VZN6#198711-198903

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17166-54010i2LT..LN56,6#198408-198708

main17167-35030i22REC..RN5#198308-198408

sub17167-35090

main17167-35040i22R..RN55..HVY198308-198408

CALIFORNIA SPEC

sub17167-35041

main17167-35040i22R..RN60..(V,WG)..USA198403-198408

sub17167-35041

main17167-35050i22R..RN5#,6#..3QT,HLF198308-198408

sub17167-35070

main17167-35070i22R..RN5#,70..W;22R..RN55,70..CND198408-198808

sub17167-35160

main17167-35090i22REC..RN5#,6#,7#198408-198808

sub17167-35180

main17167-35100i22R..RN50..CND;22R..RN5#,70..G198708-198808

sub17167-35160

main17167-35120i22RTEC..RN55,61,66198501-198808

main17167-35180i22REC..RN61198808-198903

main17168-54011i2L..LN5#,65198308-198708

sub17168-54012

main17168-65010i3VZE..VZN6#198711-198903

sub17168-65020

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-35020i22R#..RN5#,6#198308-198408

sub17173-35021

main17173-35060i22R,22REC..RN5#,6#,7#198408-198808

sub17173-35120

main17173-35070i22RTEC..RN55,61,66198501-198808

sub17173-35071

main17173-35120i22REC..RN61198808-198903

main17173-54011i2L..LN5#,65198308-198708

sub17173-54012

main17173-54020i2LT..LN56,6#198408-198708

main17173-65020i3VZE..VZN6#198711-198903

sub17173-65031

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-35021i22R#..RN5#,6#198308-198408

sub17177-35022

main17177-35030i22R#..RN5#,6#,7#198408-198903

sub17177-35050

main17177-54011i2L#..LN5#,65198308-198411

sub17177-54012

main17177-54012i2L#..LN5#,6#198411-198708

main17177-65010i3VZE..VZN6#198711-198903

9011910237

main90119-10237

9017010199

main90170-10199

9017908040

main90179-08040

9020110283

main90201-10283

9161160822

main91611-60822

9162140812

main91621-40812

14 parts on this diagram · 12 diagrams in section
