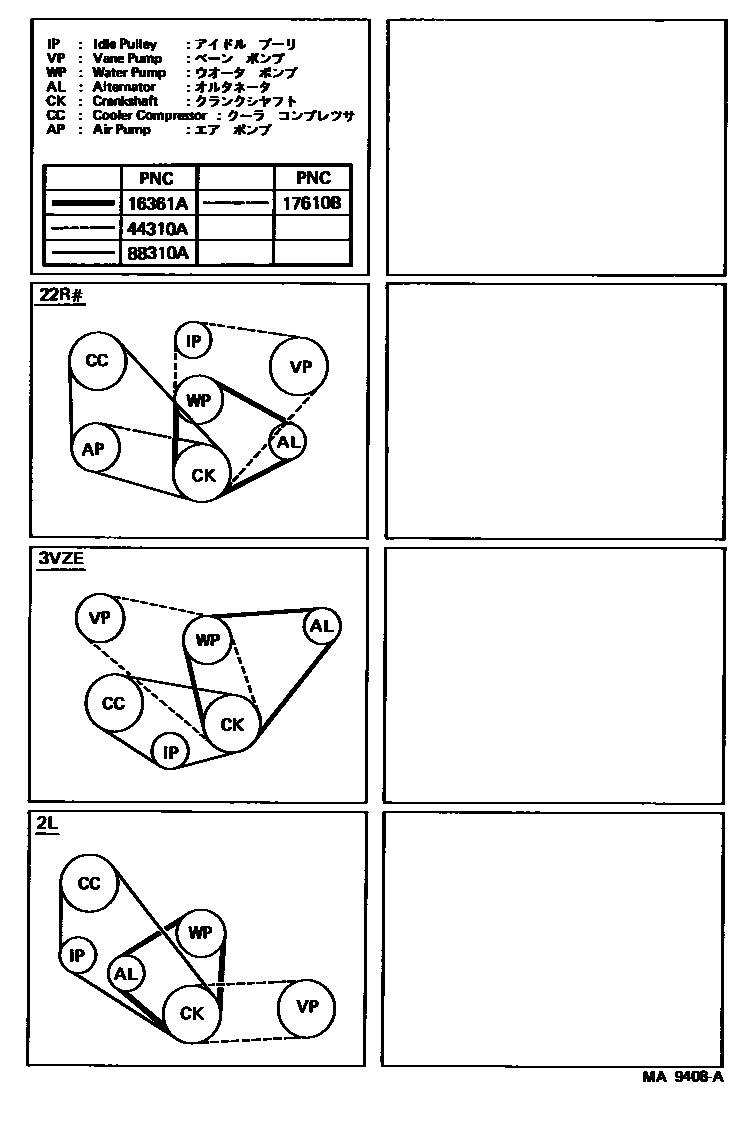

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132i2L#..LN5#,6#198308-198708

DOUBLE V BELTS

sub90916-02281

main90916-02194i3VZE..VZN6#198711-198903

sub90916-02384

main99331-10870i22R#..RN5#,6#,7#198408-198903

L=870

main99331-10880i22R#..RN5#,6#198308-198408

L=880

17610BBELT, V(FOR AIR PUMP)

main99332-10820i22R..RN55..HVY198308-198408

CALIFORNIA SPEC

main99332-10820i22R..RN60..(V,WG)..USA198403-198408

main99364-00860i22R..RN50..CND;22R..RN5#,70..G198708-198808

sub90916-02354

44310ABELT, V(FOR VANE PUMP)

main90916-02196iVZN6#198711-198903

L=1205

main99332-10865iLN56,6#198308-198708

L=865

main99332-11120iRN55..HLF;RN50,6#,70198408-198903

main99332-11135iRN5#,6#..(DLX,SR5)..HLF198308-198408

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-10880iRN5#,6#,7#198408-198903

L=880

main99332-10890iRN5#,6#..T1198308-198408

L=890,49 STATES

main99332-10890iRN60..SR5..CND198403-198903

L=890

main99332-11110iRN55,6#..(3QT,HLF)..CBR..IV198308-198408

*CAL

main99332-11110iRN60..(V,WG)..USA198403-198408

main99332-11190iLN56,6#198308-198708

W/POWER STEERING

main99332-11250iLN56,6#198308-198708

L=1250,W/O POWER STEERING

4 parts on this diagram · 1 diagram in section
