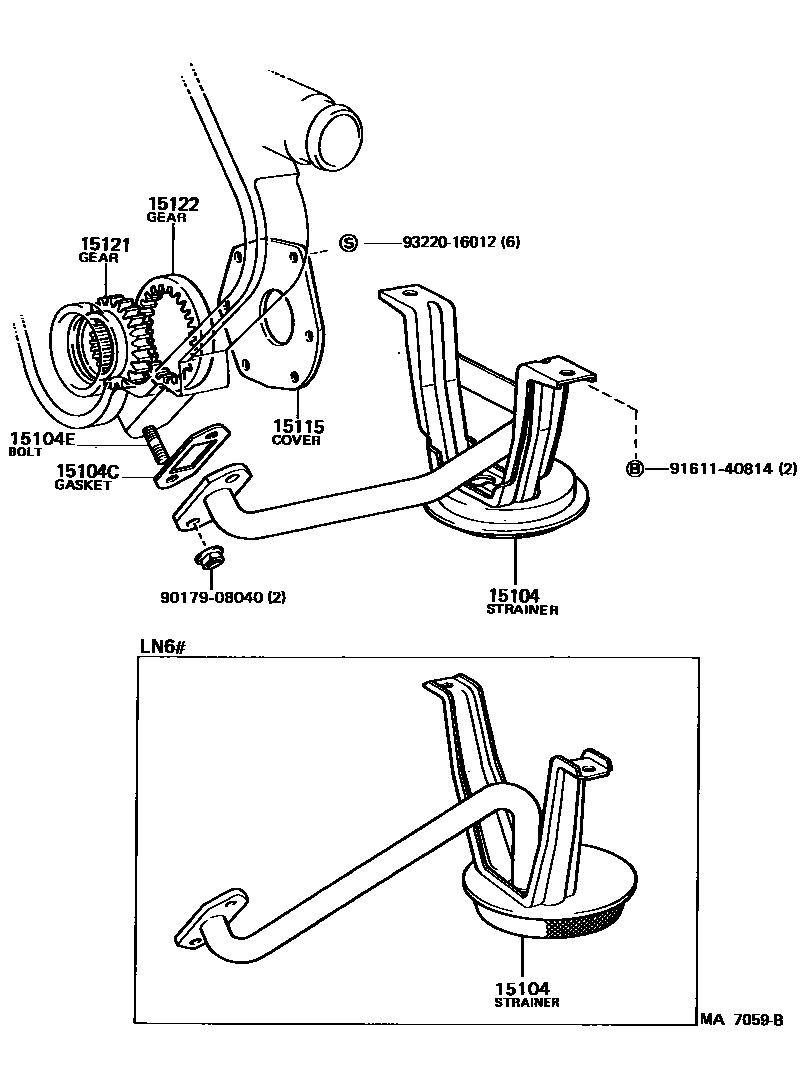

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15104STRAINER SUB-ASSY, OIL

main15104-35010i22R#..RN6#198612-198903

main15104-38040i22R#..RN5#,7#198308-198903

main15104-38050i22R#..RN6#198308-198612

sub15104-35010

main15104-54043i2L#..LN5#198308-198602

sub15104-54044

main15104-54044i2L..LN56198602-198708

main15104-54051i2L..LN65198308-198407

sub15104-54052

main15104-54052i2L#..LN6#198407-198510

main15104-54053i2LT..LN66198510-198708

main15104-65010i3VZE..VZN6#198711-198903

15104CGASKET(FOR OIL STRAINER)

main15147-38020i22R#..RN5#,6#,7#198308-198903

main15147-62010i3VZE..VZN6#198711-198803

sub15147-62020

main15147-62020i3VZE..VZN6#198803-198903

main15149-54011i2L#..LN5#,6#198308-198708

sub15149-54012

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816i2L#..LN5#,6#198308-198708

15115COVER, OIL PUMP

main15115-35020i22R,22REC..RN5#,6#,7#198408-198903

main15115-35030i22RTEC..RN55,61,66198501-198808

main15115-38022i22R#..RN5#,6#198308-198408

sub15115-35010

main15115-54011i2L#..LN5#,65198308-198504

sub15115-54012

main15115-54012i2L#..LN5#,6#198504-198708

main15115-65010i3VZE..VZN6#198711-198808

main15115-65020i3VZE..VZN61198808-198903

15121GEAR, OIL PUMP DRIVE

main15121-35030i22RTEC..RN55,61,66198501-198808

main15121-38020i22R,22REC..RN5#,6#,7#198308-198903

main15121-54010i2L#..LN5#,6#198308-198708

15122GEAR, OIL PUMP DRIVEN

main15122-35030i22RTEC..RN55,61,66198501-198808

main15122-38020i22R,22REC..RN5#,6#,7#198308-198903

main15122-54010i2L#..LN5#,6#198308-198708

9017908040

main90179-08040

9161140814

main91611-40814

9322016012

main93220-16012

9 parts on this diagram · 3 diagrams in section
