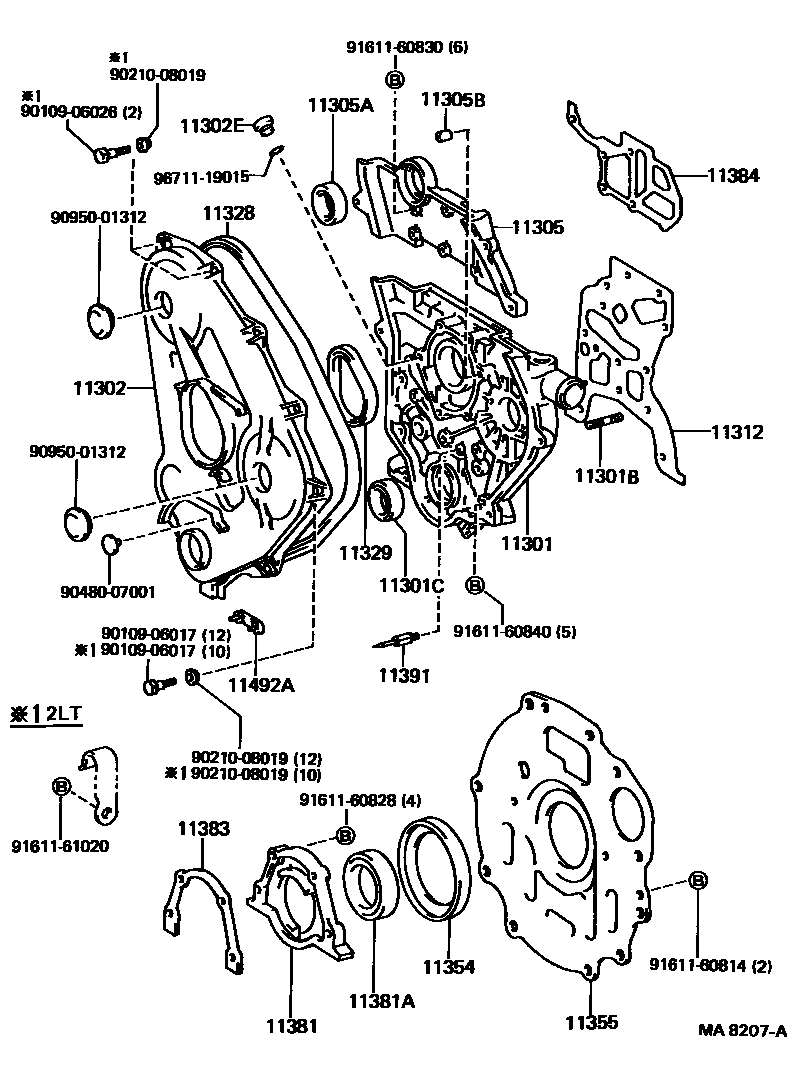

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11301CASE SUB-ASSY, TIMING GEAR

main11311-54022i2L#..LN5#,6#198308-198708

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828×2i2L#..LN5#,6#198308-198708

L=28,S=16&16

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42003i2L..LN5#,65198308-198406

sub90311-42026

main90311-42012i2L#..LN5#,6#198406-198708

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-35010i22R,22REC..RN5#,6#,7#198408-198903

main11302-35020i22RTEC..RN55,61,66198501-198808

main11302-38010i22R#..RN5#,6#198308-198408

main11302-65010i3VZE..VZN6#198711-198903

main11321-54014i2L#..LN5#,6#198308-198708

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i2L#..LN5#,6#198308-198708

11305RETAINER, OIL SEAL, NO.2

main11382-54010i2L#..LN5#,6#198308-198708

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-42003i2L#..LN5#,6#198308-198708

sub90311-42026

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main90253-11001×2i2L#..LN5#,6#198308-198708

11312GASKET, FRONT END PLATE

main11312-54013i2L#..LN5#,6#198308-198708

sub11312-54030

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-35010i22R#..RN5#,6#198308-198408

sub11328-35011

main11328-35020i22R#..RN5#,6#,7#198408-198903

sub11328-35030

main11328-54010i2L#..LN5#,6#198308-198708

11329GASKET, TIMING GEAR REAR COVER

main11329-54011i2L#..LN5#,6#198308-198708

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L#..LN5#,6#198308-198708

11355PLATE, REAR END

main11355-35010i22R#..RN5#,6#,7#..MTM198308-198903

main11355-35020i22R#..RN5#..4FC198308-198412

main11355-35030i22R#..RN5#,6#,7#..ATM198412-198903

main11355-54030i2L#..LN5#,65198308-198708

main11355-54070i2LT..LN66198508-198708

main11355-65010i3VZE..VZN6#198711-198903

sub11355-65011

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38010i22R#..RN5#,6#,7#198308-198903

main11381-54010i2L#..LN5#,6#198308-198708

main11381-62010i3VZE..VZN6#198711-198903

11381ASEAL, ENGINE REAR OIL

main90311-80004i22R#..RN5#,6#,7#198308-198903

sub90311-80010

main90311-85001i2L..LN5#,65198308-198402

HTC 85 105 13

sub90311-85006

main90311-85003i2L#..LN5#,6#198402-198608

HTC 85 105 10

sub90311-85006

main90311-85004i2L#..LN56,66198608-198708

sub90311-85006

main90311-92003i3VZE..VZN6#198711-198903

sub90311-92004

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-35010i22R#..RN5#,6#,7#198308-198808

main11383-35020i22REC..RN61198808-198903

main11383-54010i2L#..LN5#,6#198308-198708

sub11383-54020

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54010i2L#..LN5#,6#198308-198708

sub11384-54011

11391POINTER, TIMING

main11391-54010i2L#..LN5#,6#198308-198708

11492APLATE, WATER SEAL

main11492-54010i2L#..LN5#,6#198308-198708

9010906017

main90109-06017

9010906026

main90109-06026

9021008019

main90210-08019

9048007001

main90480-07001

9095001312

main90950-01312

9161160814

main91611-60814

9161160828

main91611-60828

9161160830

main91611-60830

9161160840

main91611-60840

9161161020

main91611-61020

9671119015

main96711-19015

30 parts on this diagram · 6 diagrams in section
