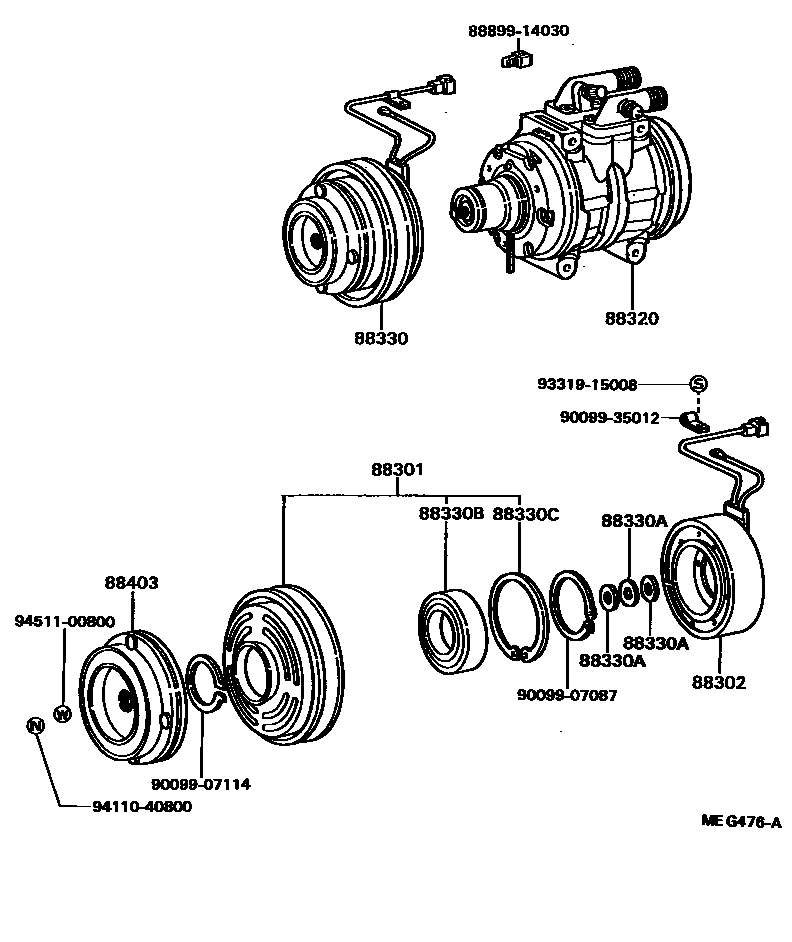

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0009 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iLN50,51,55,56,60,61,65,RN50,55,YN5#,6#..ARL,GEN,ME,SA198308-199807

main88412-35030iRN67;RN58..SR5199407-199807

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)198308-199807

main88411-14060iRN5#198601-198808

main88411-22310iRN67;RN58..SR5199407-199807

sub88411-2A030

88320COMPRESSOR ASSY, COOLER

main88320-35110iYN56,67..LHD..EUR198708-198808

10P 13C

sub88320-35111

main88320-35110iYN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,60,62,65,67..(T1,T3,TW)..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)198308-199807

10P13C

sub88320-35111

main88320-35120iRN5#198601-198808

10P13C

sub88320-35121

main88320-35130iLN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65..LHD..EUR198708-198808

10P 13C

main88320-35130iLN5#,65..LHD..GEN198308-199201

10P13C

main88320-35140iLN50,51,55,56,60,65..RHD..(T1,T3,TW)..(ARL,GEN,SA)198308-199807

10P13C

sub88320-35141

main88320-35180iYN60,63..WG198403-198903

10P15C

sub88320-35181

main88320-35190iLN60,61..ARL198403-198903

10P15C

main88320-60620iRN67;RN58..SR5199407-199807

sub88320-35H92

88330CLUTCH ASSY, MAGNET

main88410-14150iRN5#198601-198808

main88410-22080iLN5#,6#,YN5#,6#..ARL,GEN,ME,SA198308-199407

sub88410-60140

main88410-60140iLN5#,65,YN5#199407-199807

sub88410-36390

main88410-60310iRN67;RN58..SR5199407-199807

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iRN67;RN58..SR5199407-199807

main90099-01108iLN50,51,55,56,60,61,65,RN50,55,YN5#,6#..ARL,GEN,ME,SA198308-199807

T=0.5

main90099-01350iLN50,51,55,56,60,61,65,RN50,55,YN5#,6#..ARL,GEN,ME,SA198308-199807

T=0.1

main90099-01351iLN50,51,55,56,60,61,65,RN50,55,YN5#,6#..ARL,GEN,ME,SA198308-199807

T=0.2

88330BBEARING, MAGNET CLUTCH

main90099-10133iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)198308-199807

main90099-10135iRN5#198601-198808

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iRN5#198601-198808

main90099-07114iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)198308-199807

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)198308-199807

sub88403-12030

main88403-14040iRN5#198601-198808

main88403-30290iRN67;RN58..SR5199407-199807

8889914030COVER, EVAPORATOR

main88899-14030

9009907087

main90099-07087

9009907114

main90099-07114

9009935012

main90099-35012

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

15 parts on this diagram · 7 diagrams in section
