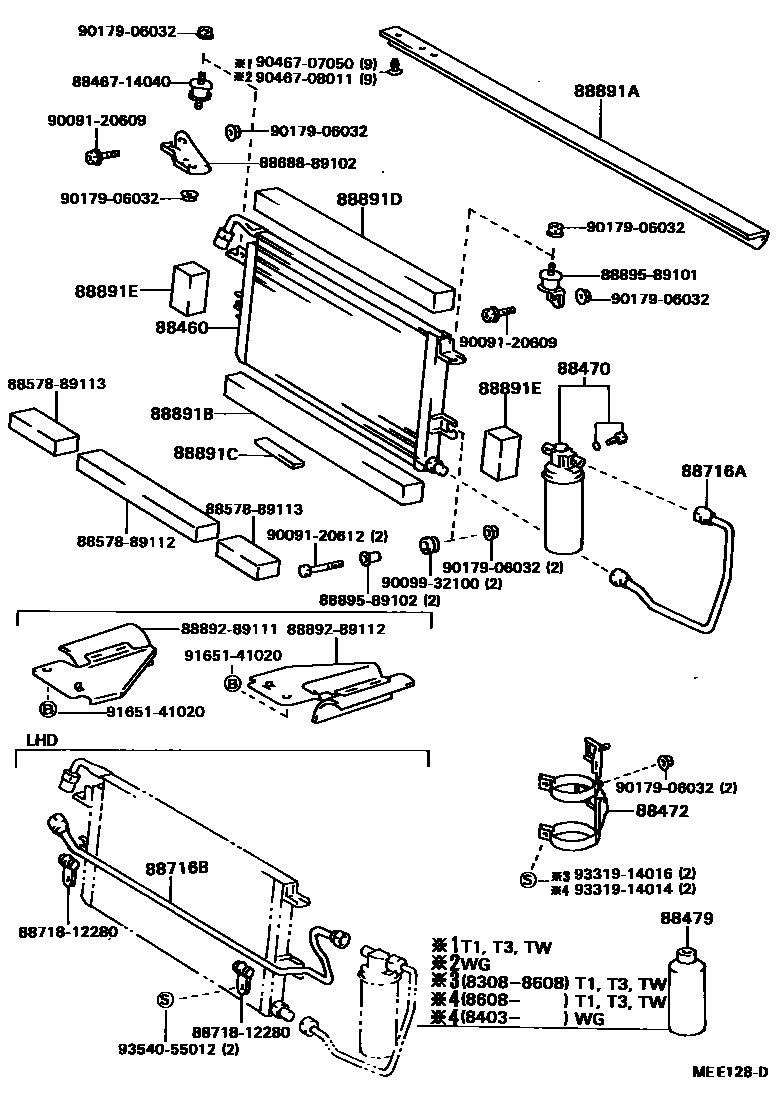

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0004 1 0007 1 0008 1 0010 1 0012 1 0015 1 0018 1 0019 1 0021 1

88460CONDENSER ASSY, COOLER

main88460-35130iRN67;RN58..SR5199407-199807

main88460-89109iLN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(ARL,GEN,ME,SA)198308-199807

main88460-89110iLN60,61,YN60,63..ARL198403-198903

sub88460-89111

main88460-89111iRN61,YN63..LHD198608-198903

W/HEATER

main88460-89111iYN60,63..SR5..ME198403-198608

main88460-89112iYN63..ME198608-198903

W/BOOST VENTILATOR

sub88460-89113

main88460-89112iLN51,56,60,65,RN50,55,YN50,52,55,57,60,62,65,67..(T1,T3,TW)..(GEN,ME)198408-199807

sub88460-89113

88470RECEIVER & DRYER ASSY, COOLER

main88470-12050iLN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(ARL,GEN,ME,SA)198308-199807

sub88470-14010

main88470-89101iLN5#,60,65,RN5#,YN50,52,55,57,6#..GEN,ME198403-199201

88472BRACKET, RECEIVER TANK, NO.1

main88472-89109iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,60,63,65,67..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)198308-199807

main88472-89110iRN67;RN58..SR5199407-199807

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,60,63,65,67..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)198308-199807

400G

sub90986-02004

sub90986-02005

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-35230iRN67;RN58..SR5199407-199807

main88716-89132iYN58..4F;YN58..SR5,STD;LN51,56,65,YN51,55,56,57,67..(4FC,4H,5F)..(ARL,SA)198308-199807

main88716-89132iYN63..ME198608-198903

W/BOOST VENTILATOR

main88716-89138iLN61,YN63198608-198903

W/HEATER

main88716-89138iLN60,61,YN60,63..WG198403-198903

main88716-89152iLN5#,65,RN5#,YN50,52,55,57,67..GEN,ME198608-199201

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-35300iRN67;RN58..SR5199407-199807

main88716-89133iLN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME)198308-198408

main88716-89139iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198403-198903

sub88710-89101

main88716-89139iYN63..ME198608-198903

W/HEATER

sub88710-89101

main88716-89147iLN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR198608-199201

main88716-89147iYN63..ME198608-198903

W/BOOST VENTILATOR

88891APACKING A (FOR COOLER)

main53381-89103iLN50,51,55,56,60,61,65,RN50,55,YN5#,6#..ARL,GEN,ME,SA198308-199807

main53381-89104iRN67;RN58..SR5199407-199807

88891BPACKING B (FOR COOLER)

main88578-89101iYN60..SR5..ME198308-198608

50X560

main88578-89108iLN60,61,YN60,63..ARL198403-199807

main88578-89109iRN61198708-198903

main88578-89109iLN5#,60,65,RN5#,YN50,52,55,57,6#..GEN,ME198411-199201

50X560

main88578-89110iLN5#,6#,YN50,52,55,57,6#..GEN,ME198408-198411

50X560

sub88578-89109

main88578-89127iRN67;RN58..SR5199407-199807

sub88578-89119

88891CPACKING C (FOR COOLER)

main88578-89103iRN67;RN58..SR5199407-199807

main88578-89107iLN5#,6#,YN50,52,55,57,6#..ARL,GEN,ME,SA198308-199807

10X120

88891DPACKING D (FOR COOLER)

main88578-89101iRN61,YN56,67..LHD..EUR198708-198903

main88578-89101iRN50,55,YN5#,6#..ARL,GEN,ME,SA198308-199807

50X560

main88578-89118iRN67;RN58..SR5199407-199807

main88893-89114iLN5#,6#..ARL,SA;LN56..LHD..RCB..EUR..CBU198308-198608

10X15X540

88891EPACKING E (FOR COOLER)

main88578-89103iYN63..ARL198308-199807

main88578-89111iRN61198408-199012

main88578-89112iRN67;RN58..SR5199407-199807

LH

main88578-89123iRN67;RN58..SR5199407-199807

RH

sub88578-89122

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8857889112PAKING, COOLER AIR DUCT

main88578-89112

8857889113PAKING, COOLER AIR DUCT

main88578-89113

8868889102BRACKET, COOLER DIAPHRAGM

main88688-89102

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

8889289111BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89111

8889289112BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89112

8889589101HOLDER, FUSE

main88895-89101

8889589102HOLDER, FUSE

main88895-89102

9009120609

main90091-20609

9009120612

main90091-20612

9009932100

main90099-32100

9017906032

main90179-06032

9046707050

main90467-07050

9046708011

main90467-08011

9165141020

main91651-41020

9331914014

main93319-14014

9331914016

main93319-14016

9354055012

main93540-55012

30 parts on this diagram · 10 diagrams in section
