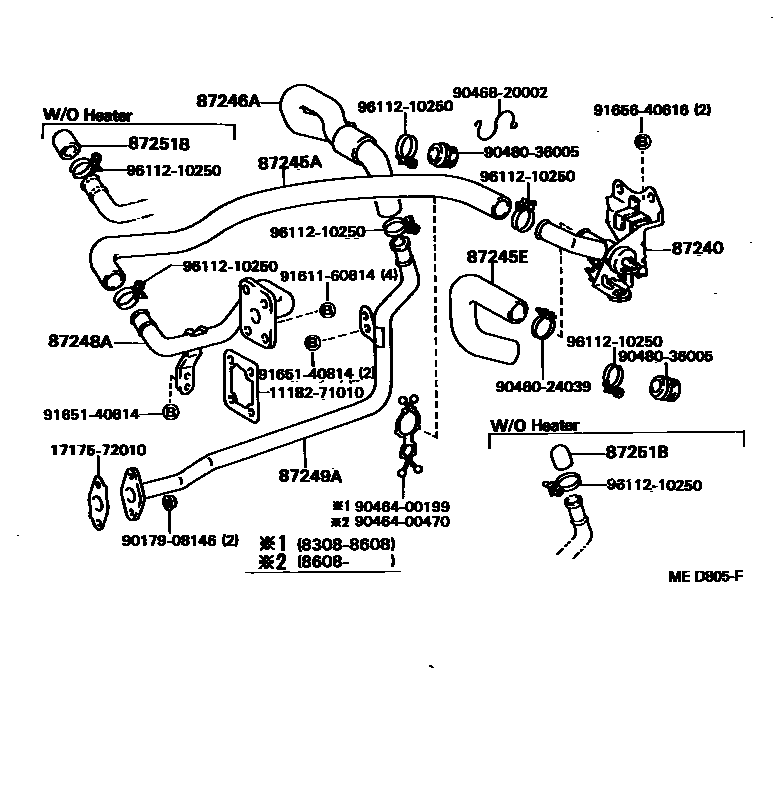

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

87240VALVE ASSY, HEATER WATER

main87240-35020iLN5#,6#,RN58,67199407-199807

main87240-89115iYN5#198308-199807

main87240-89116iLN5#,65,YN50,52,55,56,57,6#..LHD198308-199201

main87240-89117iRN5#198601-198808

main87240-89118iRN61198712-198903

87245AHOSE, HEATER WATER, INLET A

main87245-89149iLN5#,6#198308-199407

main87245-89181iRN5#,61198601-198903

main87245-89194iYN63..EFI198608-198903

main87245-89220iRN67;RN58..SR5199407-199807

main87245-89279iLN5#,6#199407-199807

main99552-31000iYN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..CBR198308-199807

*H,L=520

sub99556-31000

87245EHOSE, HEATER WATER, INLET E

main87245-89146iLN5#,6#,RN5#,61,YN5#,6#198308-199407

main87245-89233iLN5#,6#,RN58,67199407-199807

87246AHOSE, HEATER WATER, OUTLET A

main87245-89153iLN5#,6#198308-199407

main87245-89161iYN50,51,55,56,57,58,60,63,65,67..RHD..CBR198308-198702

sub87245-89210

main87245-89162iYN50,52,55,56,57,6#..LHD198308-198702

sub87245-89211

main87245-89163iRN5#198601-198808

main87245-89195iYN63..EFI198608-198903

main87245-89210iYN58..4F;YN58..SR5,STD;YN50,51,55,56,57,6#..RHD..(4F,4FC,4H,5F)..CBR198702-199807

main87245-89211iYN50,52,55,56,57,6#..LHD198702-199201

main87245-89215iRN61198712-198903

main87245-89221iRN67;RN58..SR5199407-199807

main87245-89241iLN5#,6#199407-199807

main99556-30500iRN5#198601-198808

*H,L=360,W/O HEATER

87248APIPE, HEATER WATER INLET, A

main87208-14280iRN61198712-198903

sub87208-35170

main87208-22130iRN5#198601-198808

sub87208-35160

main87208-35160iRN67;RN58..SR5199407-199807

main87208-89110iYN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..CBR198308-199807

main87208-89128iYN63..EFI198608-198903

87249APIPE, HEATER WATER OUTLET, A

main87208-35130iRN67;RN58..SR5199407-199807

main87208-89112iYN5#,6#198308-198503

main87208-89121iRN5#,61198601-198903

sub87208-35130

main87208-89126iYN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..CBR198503-199807

main87208-89129iYN63..EFI198608-198903

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-30200iLN5#,6#198308-199407

main87251-89113iLN5#,6#199407-199807

87251BPLUG, HEATER WATER

main90339-16007iLN5#,60,65,YN50,52,55,57,6#..GEN,ME198308-199807

W/O HEATER

sub90339-16001

1118271010GASKET, CYLINDER HEAD REAR PLATE

main11182-71010

1717572010GASKET, INTAKE MANIFOLD INLET

main17175-72010

9017908146

main90179-08146

9046024039

main90460-24039

9046400199

main90464-00199

9046400470

main90464-00470

9046820002

main90468-20002

9048036005

main90480-36005

9161160814

main91611-60814

9165140814

main91651-40814

9165640616

main91656-40616

9611210250

main96112-10250

20 parts on this diagram · 8 diagrams in section
