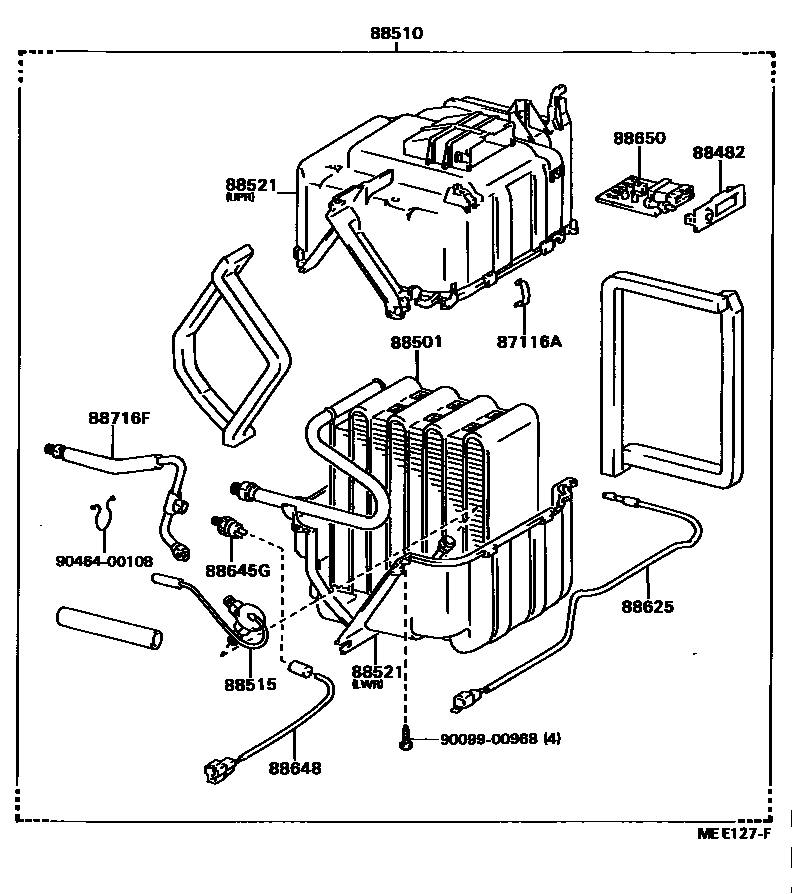

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#..ARL,GEN,ME,SA198308-199807

88482CAP, COOLER

main88482-60010iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#..ARL,GEN,ME,SA198308-199807

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-35030iRN67;RN58..SR5199407-199807

main88501-89106iLN5#,65,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198601

sub88501-89109

main88501-89107iLN5#,6#,YN50,55,57,60,63,65,67..RHD..(ARL,GEN,SA)198308-198601

sub88501-89110

main88501-89109iLN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,RN61,YN56,67..LHD..EUR198601-199201

main88501-89110iYN58..4F;YN58..SR5,STD;LN51,56,61,65,YN50,51,55,56,57,63,67..RHD..(4F,4FC,4H,5F)..(ARL,GEN,SA)198601-199807

88510UNIT ASSY, COOLER

main88510-35470iRN67;RN58..SR5199407-199807

main88510-89115iLN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN198308-199201

main88510-89116iYN50,55,57,60,63,65,67..RHD..(ARL,GEN,SA)198308-198912

sub88510-89121

main88510-89117iLN51,56,60,65..RHD..(T1,T3,TW)..(ARL,GEN,SA)198308-199807

main88510-89118iRN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-199201

sub88510-89123

main88510-89128iLN60,61..ARL198411-198903

main88510-89130iYN63..EFI198608-198903

main88510-89131iYN58..4F;YN58..SR5,STD;YN51,55,56,57,67..(4FC,4H,5F)..(ARL,SA)198608-199807

main88510-89133iRN61198712-198903

main88510-89138iYN56,67..LHD..EUR198708-198808

88515VALVE, COOLER EXPANSION

main88515-16030iRN5#,YN50,52,55,57,6#..GEN,ME198308-199807

sub88515-16031

main88515-16031iRN61198608-199807

main88515-34010iRN67;RN58..SR5199407-199807

88521CASE, COOLER UNIT

main88521-89102iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-199201

UPPER

main88521-89103iRN61198308-199201

LOWER

main88521-89104iLN5#,6#,YN50,55,57,60,63,65,67..RHD..(ARL,GEN,SA)198308-198608

UPPER

main88521-89105iLN5#,6#,YN50,55,57,60,63,65,67..RHD..(ARL,GEN,SA)198308-198608

LOWER

88625THERMISTOR, COOLER, NO.1

main88625-34010iRN67;RN58..SR5199407-199807

main88625-89101iLN51,56,65,YN5#198308-199807

88645GSWITCH, PRESSURE

main88645-10020iLN60,61..ARL198411-198903

main88645-12020iLN56..LHD..EUR..CBU;LN5#,6#,YN50,52,55,57,6#..ARL,GEN,ME,SA198308-199807

main88645-34010iRN67;RN58..SR5199407-199807

88648WIRING, COOLER, NO.1

main88648-89118iLN60,61..ARL198411-198903

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-16010iRN5#,YN50,52,55,57,6#..GEN,ME198308-199201

main88650-20100iLN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65..LHD..EUR198308-199807

sub88650-14051

main88650-89101iYN63..ARL..CBR198608-199807

main88650-89103iYN63..EFI198608-198903

main88650-89105iRN67;RN58..SR5199407-199807

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-35220iRN67;RN58..SR5199407-199807

main88716-89146iLN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,RN61,YN56,67..LHD..EUR198308-199201

main88716-89149iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,55,56,57,60,63,65,67..RHD..(4F,4FC,4H,5F)..(ARL,GEN,SA)198308-199807

9009900968

main90099-00968

9046400108

main90464-00108

13 parts on this diagram · 3 diagrams in section
