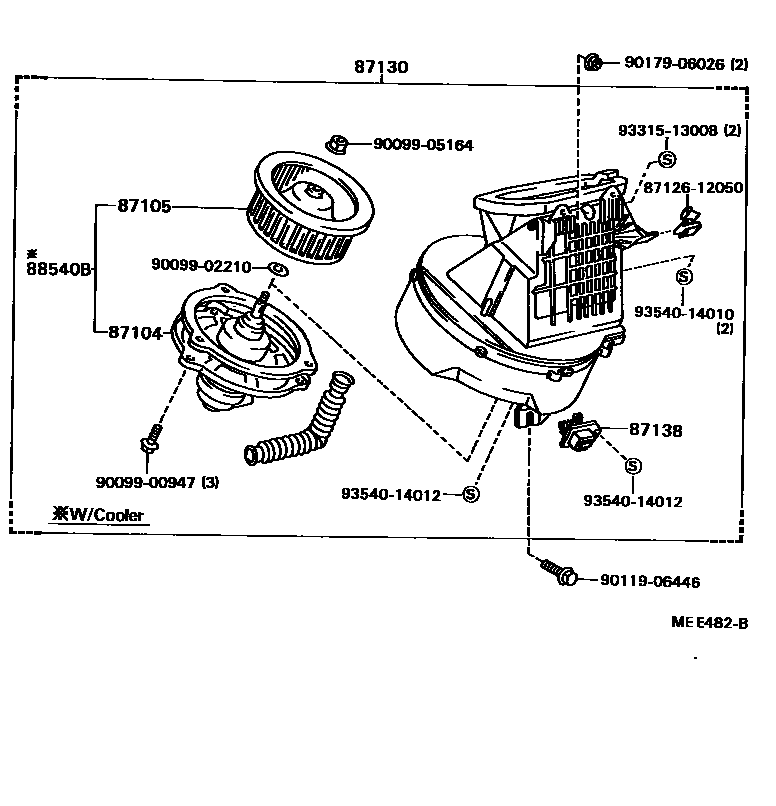

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1 0004 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-89110iLN5#,60,65,RN5#,YN50,52,55,57,60,65,67..(T1,T3,TW)..(GEN,ME)198408-199407

W/HEATER(OR *BV) & COOLER

main87104-89110iLN5#,6#,RN58,67,YN5#199407-199807

main87104-89110iLN55,56,65,RN61,YN56,65,67..EUR198308-198912

HEAVY HEATER

main87104-89110iLN60,61,YN60,63..WG198403-198903

W/HEATER,W/*BV & COOLER

main87104-89111iYN60,63..SR5..ME198403-198903

W/*BV ONLY

main87104-89111iLN5#,60,65,RN5#,YN5#,60,62,65,67..T1,T3,TW198308-199407

STD HEATER OR *BV ONLY

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iLN55,56,65,RN61,YN56,65,67..EUR198308-198912

HEAVY HEATER

main87105-14020iYN60,63..SR5..ME198403-198903

main87105-14030iLN55,56,65,YN56,65..RHD..EUR198308-198808

HEAVY HEATER

main87105-14030iLN60,61,YN60,63..ARL198403-198903

main87134-30010iLN5#,65,RN5#,YN50,52,55,56,57,60,62,65,67..LHD..(DLX,STD)198308-198912

STD HEATER OR *BV ONLY

main87134-30020iLN50,51,55,56,60,65,YN50,55,56,57,65,67..RHD..(T1,T3,TW)..(4F,4FC,4H,5F)198308-199807

STD HEATER OR *BV ONLY

87130BLOWER ASSY, HEATER, FRONT

main87130-89105iLN5#,60,65,YN50,55,56,57,65,67..RHD..(T1,T3,TW)198308-198608

STD HEATER OR *BV ONLY

main87130-89106iLN5#,65,RN5#,YN5#,60,62,65,67..LHD..(DLX,STD)198308-198608

STD HEATER OR *BV ONLY

main87130-89106iYN60,63..SR5..ME198403-198608

W/*BV ONLY

main87130-89107iLN60,61,YN60,63..ARL198403-198608

main87130-89107iLN55,56,65,YN56,65..RHD..EUR198308-198608

HEAVY HEATER

main87130-89108iLN56..EUR..IV;LN56..TW..EUR;LN55,65,YN56,65..LHD..EUR198308-198608

HEAVY HEATER

main87130-89108iYN60,63..SR5..ME198403-198608

W/HEATER,W/*BV & COOLER

main87130-89110iLN56,65,RN61,YN56,67..LHD..EUR198608-199201

W/COOLER

main87130-89110iYN63..ME198608-198903

W/HEATER,W/*BV & COOLER

main87130-89110iLN5#,65,RN5#,YN50,52,55,57,60,62,65,67..LHD..(DLX,STD)..(GEN,ME)198408-199201

W/HEATER (OR *BV) & COOLER

main87130-89111iLN65,YN56,67..RHD..EUR198608-198808

HEAVY HEATER

main87130-89111iLN61,YN63..ARL198608-199807

main87130-89111iLN5#,60,65,YN50,55,57,65,67..RHD..GEN198408-199012

W/HEATER,W/*BV & COOLER

main87130-89112iLN5#,65,YN50,51,55,56,57,58,67..RHD198608-199407

STD HEATER OR *BV ONLY

main87130-89113iLN5#,65,RN5#,YN50,52,55,56,57,67..LHD198608-199201

STD HEATER OR *BV ONLY

main87130-89113iYN63..ME198608-198903

W/*BV ONLY

87138RESISTOR, HEATER BLOWER

main87138-89103iLN55,56,65,YN56,65..EUR198308-198912

HEAVY HEATER

main87138-89103iLN60,61,YN60,63..WG198403-198903

main87138-89104iLN50,51,55,56,60,65,RN50,55,YN50,52,55,56,57,60,62,65,67..(T1,T3,TW)..(4F,4FC,4H,5F)198308-199807

STD HEATER OR *BV ONLY

main88635-89103iRN61198608-198903

main88635-89103iLN50,55,56,6#,YN50,52,55,57,6#..ARL,GEN,ME,SA198308-199807

W/COOLER

main88635-89103iLN56,65,YN56,67198608-199201

HEAVY HEATER OR W/COOLER

main88635-89105iYN58..4F;YN58..SR5,STD;LN51,56,65,RN50,55,YN50,51,52,55,56,57,67..4F,4FC,4H,5F198608-199807

STD HEATER OR *BV ONLY

88540BMOTOR ASSY, W/FAN

main88540-89101iLN50,55,65,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198408

W/COOLER

main88540-89102iLN50,55,56,6#,YN50,55,57,65..RHD..(ARL,GEN,SA)198308-199807

W/COOLER

8712612050CLAMP, HEATER CONTROL

main87126-12050

9009900947

main90099-00947

9009902210

main90099-02210

9009905164

main90099-05164

9011906446

main90119-06446

9017906026

main90179-06026

9331513008

main93315-13008

9354014010

main93540-14010

9354014012

main93540-14012

14 parts on this diagram · 4 diagrams in section
