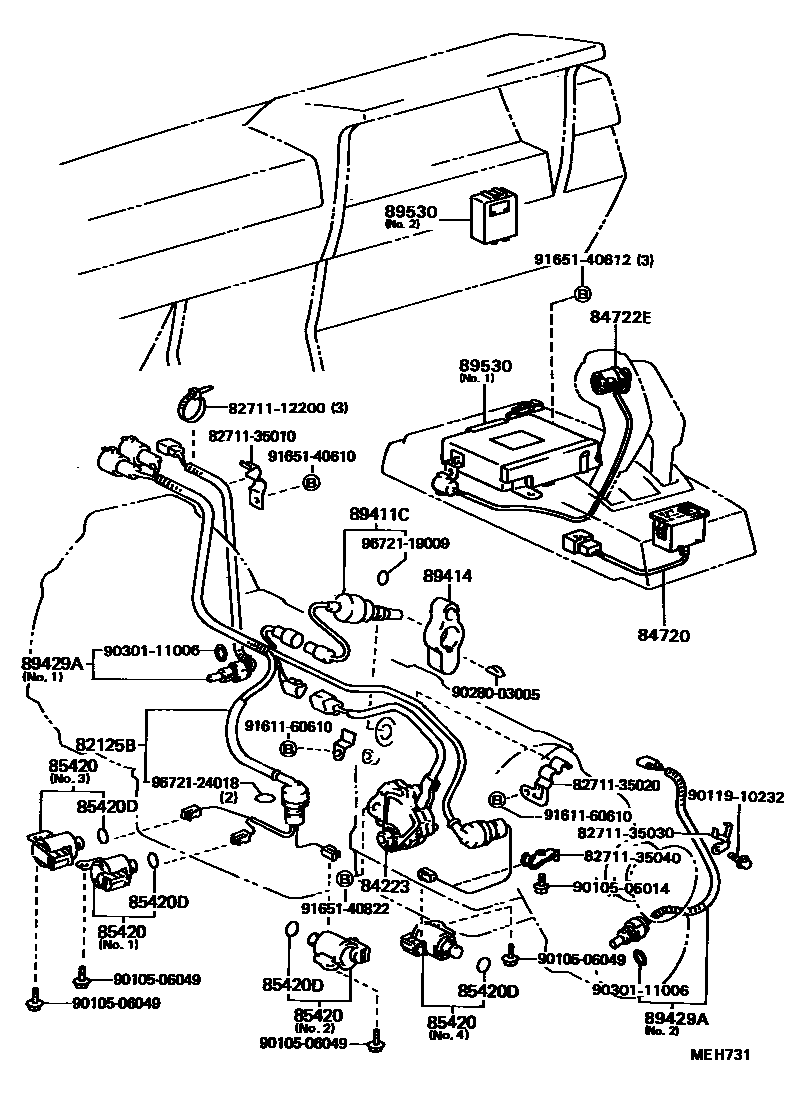

ELECTRONIC CONTROLLED TRANSMISSION
82125BWIRE, TRANSMISSION
84223SWITCH, TRANSFER POSITION
84720SWITCH ASSY, PATTERN SELECT
84722ESWITCH, TRANSMISSION CONTROL
85420SOLENOID ASSY, TRANSMISSION
NO.1,NO.2,NO.4(SHIFT),AISIN
NO.1,NO.2,NO.4(SHIFT)
NO.3(LOCK UP),AISIN
NO.3(LOCK UP),DENSO
85420DRING, O (FOR TRANSMISSION SOLENOID)
89411CSENSOR, SPEED
89414ROTOR, SENSOR
89429ASENSOR, TEMPERATURE
NO.2
NO.1
89530COMPUTER ASSY, TRANSMISSION CONTROL
NO.1
NO.2
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8271135010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35010
8271135020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35020
8271135030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35030
8271135040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35040
9010505014
main90105-05014
9010506049
main90105-06049
9011910232
main90119-10232
9028003005
main90280-03005
9030111006
main90301-11006
9161160610
main91611-60610
9165140610
main91651-40610
9165140612
main91651-40612
9165140822
main91651-40822
9672119009
main96721-19009
9672124018
main96721-24018
26 parts on this diagram · 1 diagram in section
