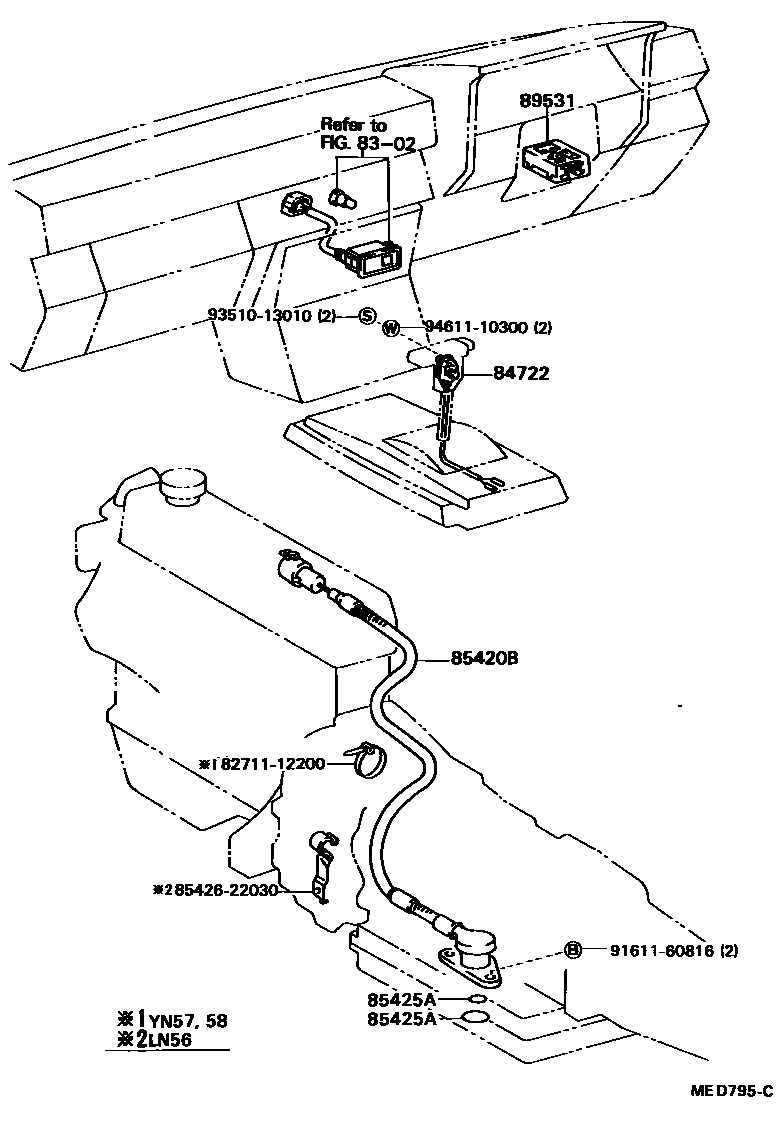

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8302

84722SWITCH, TRANSMISSION CONTROL

main84722-35010iLN56,YN57..4FC198308-198608

main84722-35030iLN56,YN57..4FC;YN58..4FC..CBU198608-198808

85420BSOLENOID ASSY, TRANSMISSION

main85420-20050iLN56,YN57..4FC;YN58..4FC..CBU198308-198808

sub85420-28020

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iLN56,YN57..4FC;YN58..4FC..CBU198308-198808

ID=11

main90301-23001iLN56,YN57..4FC;YN58..4FC..CBU198308-198808

ID=23

89531RELAY, TRANSMISSION CONTROL

main89531-28010iLN56,YN57..4FC;YN58..4FC..CBU198308-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8542622030CLAMP, OVER DRIVE SOLENOID

main85426-22030

9161160816

main91611-60816

9351013010

main93510-13010

9461110300

main94611-10300

10 parts on this diagram · 1 diagram in section
