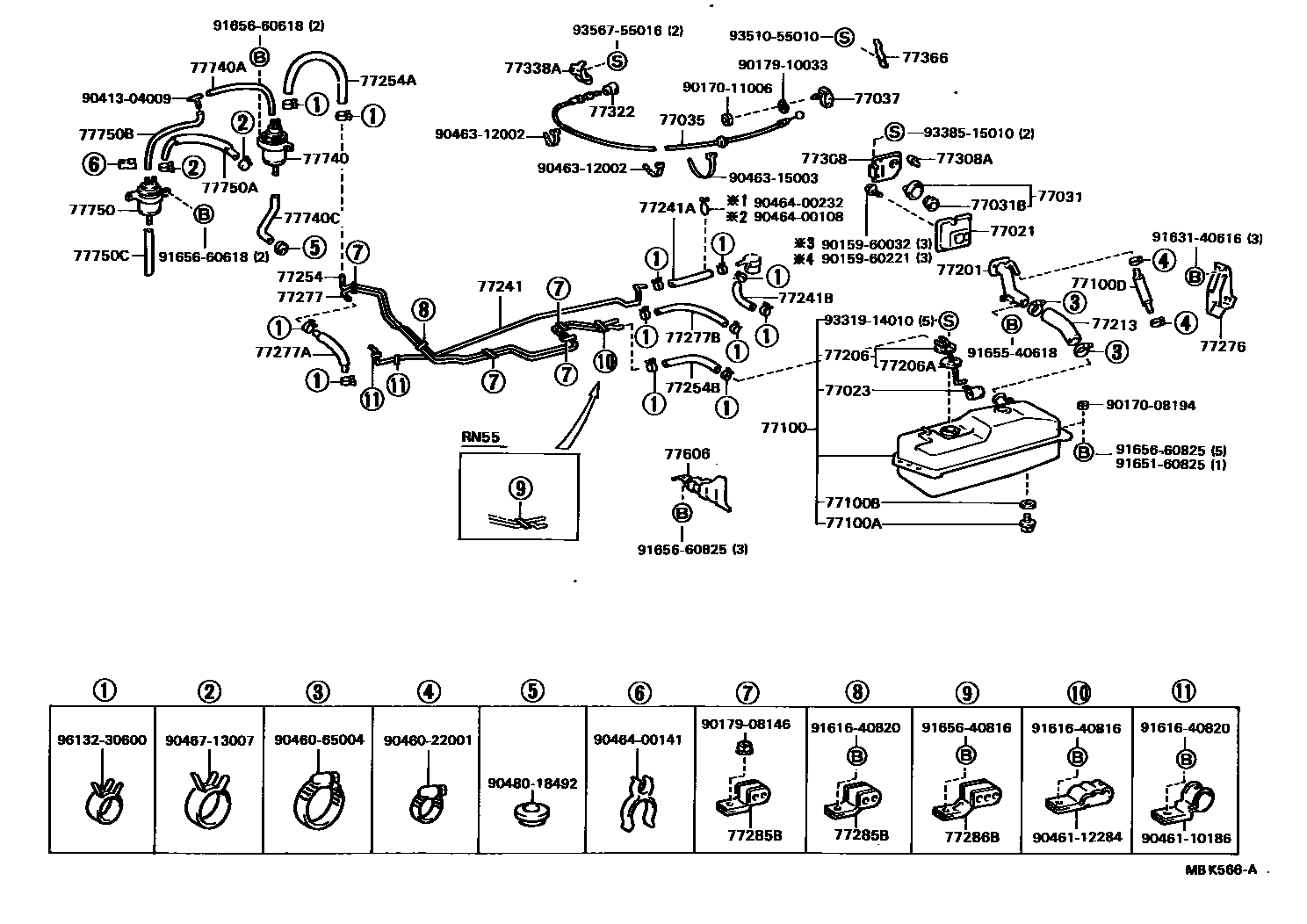

FUEL TANK & TUBE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

77021BOX ASSY, FUEL TANK INLET

main61709-89101iLN50,51,55,56,RN5#,67,YN50,52,55,56,57..T1..CBU¥3,540198308-199807

main61709-89102iLN60,65,67,YN60,62,65,67..T1..CBU¥3,980198308-199807

main61709-89104iLN50,51,55,56,RN50,55,YN50,52,55,57..LHD..T1..(GEN,ME)..CBU¥3,510198308-199807

W/FUEL LID OPENER

main61709-89105iLN65,YN60,62,65,67..LHD..T1..(GEN,ME)..CBU¥3,930198308-199807

W/FUEL LID OPENER

main61709-89106iLN60,61,YN60,63..WG¥3,600198403-198903

main61725-89107iLN60,61,RN61,YN60,63..WG¥3,580198403-198903

W/FUEL LID OPENER

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRN58..SR5;LN50,51,55,56,RN50,55,67,YN5#¥920198308-199807

main77023-22040iLN50,51,55,56,60,61,65¥1,050198308-199807

77031CAP ASSY, FUEL TANK

main77310-12100iYN56..EUR¥2,320198308-199807

main77310-16010iYN63..ARL¥2,820198508-198706

SCREW TYPE

sub77310-16011¥2,790

main77310-16010iYN57..LHD..RCB..GEN¥2,820198703-198903

PERU SPEC

sub77310-16011¥2,790

main77310-16011iYN63..ARL¥2,790198706-198707

SCREW TYPE

sub77310-12140¥2,790

main77310-35061iLN50,51,55,56,67..T1..(ARL,GEN,SA)..CBU¥2,320198308-199807

main77310-35070iYN57,67..LHD..RCB..GEN¥2,790198708-199807

PERU SPEC

sub77310-48010¥2,800

main77310-35070iYN63..ARL¥2,790198707-198903

SCREW TYPE

sub77310-48010¥2,800

main77310-35070iRN61¥2,790198712-198903

sub77310-48010¥2,800

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iLN61,65,YN60,62,65,67..(T1,WG)..(ARL,EUR,GEN,ME)..CBU¥310198308-199807

main77316-16010iYN57,67..LHD..RCB..GEN¥660198703-199807

PERU SPEC

main77316-16010iYN63..ARL¥660198510-198903

SCREW TYPE

main77316-16010iRN61¥660198712-198903

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-89101iLN55,56,65,RN55,YN55,57,65,67..LHD..RCB..(GEN,ME)..CBU¥2,700198308-199201

main77035-89102iLN50,51,RN50,YN50,52,60..LHD..RCB..CBU¥2,620198308-199807

main77035-89103iLN55,56,YN57..XTR..DLX198309-199807

main77035-89104iLN65,YN57,58,65,67..SR5..ARL198309-198808

main77035-89105iLN61,YN63..ARL¥2,100198403-198903

main77035-89106iYN60,63..SR5..ME¥2,600198403-198608

main77035-89107iYN63..ME¥3,000198608-199807

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-89101iLN61,YN63..ARL¥2,840198308-199201

77100TANK ASSY, FUEL

main77001-35925iLN51,RN50,YN50,52¥37,500198604-198608

52LITER

sub77001-35950¥37,600

main77001-35927iLN56,RN55,YN55,56,57..(RCB,XTR)..(ARL,EUR,GEN,ME)¥40,200198604-198608

56LITER

sub77001-35951¥40,300

main77001-35928iLN56,YN55,57..SA¥44,300198604-198608

65LITER

sub77001-35952¥44,200

main77001-35930iLN56,RN55,YN55,57..TW¥40,200198604-198608

56LITER

sub77001-35954¥40,300

main77001-35933iLN65,YN62,65,67..T1¥46,900198604-198608

65LITER

sub77001-35955¥47,100

main77001-35934iLN65,YN67..T1..(ARL,SA)¥49,700198604-198608

73LITER

sub77001-35956¥60,300

main77001-35935iLN65,YN67..TW..(ARL,GEN,ME,SA)¥46,900198604-198608

65LITER

sub77001-35957¥47,100

main77001-35936iLN65,YN65..TW..EUR¥46,900198604-198608

65LITER

sub77001-35957¥47,100

main77001-35937iLN61,YN63198604-198608

56LITER

main77001-35938iLN61,YN63¥46,800198604-198608

65LITER

sub77001-35958¥46,800

main77001-35950iLN51,RN50,YN50,51,52..4F,4H,5F¥37,600198608-199807

52LITER

main77001-35951iLN56,RN55,YN55,56,57,58..(RCB,XTR)..(ARL,EUR,GEN,ME)¥40,300198608-199807

56LITER

main77001-35952iLN56,RN58,YN56,58..RCB..SA¥44,200198608-199807

65LITER

main77001-35954iLN56,57,RN55,58,YN55,57,58..TW¥40,300198608-199807

56LITER

main77001-35955iLN65,YN67..T1¥47,100198608-198808

65LITER

sub77001-35969¥50,800

main77001-35956iLN65,RN67,YN67..T1..(ARL,SA)¥60,300198608-199807

73LITER

main77001-35957iLN65,RN67,YN67..TW¥47,100198608-199807

65LITER

main77001-35958iLN61,YN63..5F¥46,800198608-199807

65LITER

main77001-35961iRN61,YN63..EFI¥46,800198608-199807

65LITER

main77001-35969iLN65,YN67..RCB¥50,800198808-199807

65LITER

sub77001-35997¥50,400

main77100-35210iYN55,57..SA¥44,100198401-198508

65LITER

sub77100-35211

main77100-35211iYN55,57..SA198508-198604

65LITER

sub77001-35928¥44,300

sub77023-12050¥920

sub77203-35350¥2,600

sub93319-14010¥70

main77100-35230iLN55,56..SA¥41,000198401-198508

65LITER

sub77100-35231

main77100-35231iLN56..SA198508-198604

65LITER

sub77001-35928¥44,300

sub77023-22040¥1,050

sub77203-35240¥2,620

sub93319-14010¥70

main77100-35240iYN50,52¥34,500198308-198508

52LITER

sub77100-35241¥37,500

main77100-35241iRN50,YN50,52¥37,500198508-198604

52LITER

sub77001-35925¥37,500

sub77023-12050¥920

sub77203-35330¥2,700

sub93319-14010¥70

main77100-35250iLN50,51¥37,400198308-198508

52LITER

sub77100-35251¥37,500

main77100-35251iLN51¥37,500198508-198604

52LITER

sub77001-35925¥37,500

sub77023-22040¥1,050

sub77203-35220¥2,690

sub93319-14010¥70

main77100-35270iYN56¥38,300198308-198508

COLD SPEC,56LITER

sub77100-35271

main77100-35271iYN56198508-198604

56LITER

sub77001-35927¥40,200

sub77023-12050¥920

sub77203-35191¥2,210

sub93319-14010¥70

main77100-35280iLN55..EUR;LN56..EUR..IV;LN56..RHD..EUR¥40,100198308-198508

COLD SPEC,56LITER

sub77100-35281

main77100-35281iLN56..EUR..IV;LN56..RHD..EUR198508-198604

56LITER

sub77001-35927¥40,200

sub77023-22040¥1,050

sub77203-35230¥2,590

sub93319-14010¥70

main77100-35290iYN55,56,57..(RCB,XTR)..(ARL,EUR,GEN,ME)¥40,100198308-198508

56LITER

sub77100-35291¥40,200

main77100-35291iRN55,YN55,57..(RCB,XTR)..(ARL,GEN,ME)¥40,200198508-198604

56LITER

sub77001-35927¥40,200

sub77023-12050¥920

sub77203-35191¥2,210

sub93319-14010¥70

main77100-35300iLN55,56..(RCB,XTR)..(ARL,EUR,GEN)¥37,500198308-198508

56LITER

sub77100-35301¥37,600

main77100-35301iLN56..LHD..RCB..EUR..CBU;LN56..(RCB,XTR)..(ARL,GEN)¥37,600198508-198604

56LITER

sub77001-35927¥40,200

sub77023-22040¥1,050

sub77203-35230¥2,590

sub93319-14010¥70

main77100-35310iYN6#..T1198308-198508

65LITER

sub77100-35311

main77100-35311iYN60,62,67..T1198508-198604

65LITER

sub77001-35933¥46,900

sub77023-12050¥920

sub77203-35361¥5,500

sub90461-08323¥240

sub90480-01137¥310

sub91651-60816¥100

sub93319-14010¥70

main77100-35320iLN6#..RCB198308-198508

65LITER

sub77100-35321

main77100-35321iLN65..RCB..(ARL,GEN)198508-198604

65LITER

sub77001-35933¥46,900

sub77023-22040¥1,050

sub77203-35261¥5,500

sub90461-08323¥240

sub90480-01226¥200

sub91651-60816¥100

sub93319-14010¥70

main77100-35330iYN65..T1..(ARL,SA)¥43,800198308-198508

73LITER

sub77100-35331¥46,200

main77100-35331iYN67..T1..(ARL,SA)¥46,200198508-198604

73LITER

main77100-35340iLN65..RCB..ARL¥49,500198308-198508

73LITER

sub77100-35341¥49,700

main77100-35341iLN65..RCB..ARL¥49,700198508-198604

73LITER

sub77001-35934¥49,700

sub77023-22040¥1,050

sub77203-35251¥3,140

sub93319-14010¥70

main77100-35350iYN65..EUR198308-198508

COLD SPEC,65LITER

sub77100-35351

main77100-35351iYN65..RCB198508-198604

65LITER

sub77001-35933¥46,900

sub77023-12050¥920

sub77203-35361¥5,500

sub90461-08323¥240

sub90480-01137¥310

sub91651-60816¥100

sub93319-14010¥70

main77100-35360iLN65..EUR198308-198508

COLD SPEC,65LITER

sub77100-35361

main77100-35361iLN65..RCB..EUR198508-198604

65LITER

sub77001-35933¥46,900

sub77023-22040¥1,050

sub77203-35261¥5,500

sub90461-08323¥240

sub90480-01226¥200

sub91651-60816¥100

sub93319-14010¥70

main77100-35450iLN65..TW¥43,800198312-198508

65LITER

sub77100-35451¥43,800

main77100-35451iLN65..TW..(ARL,GEN)¥43,800198508-198604

65LITER

sub77001-35936¥46,900

sub77023-22040¥1,050

sub77203-35240¥2,620

sub93319-14010¥70

main77100-35460iYN65..TW¥46,900198312-198508

65LITER

sub77100-35461

main77100-35461iYN67..TW198508-198604

65LITER

sub77001-35936¥46,900

sub77023-12050¥920

sub77203-35350¥2,600

sub93319-14010¥70

main77100-35470iYN55,57..TW¥37,500198312-198508

56LITER

sub77100-35471

main77100-35471iRN55,YN55,57..TW198508-198604

56LITER

sub77001-35930¥40,200

sub77023-12050¥920

sub77203-35191¥2,210

sub93319-14010¥70

main77100-35480iLN55,56..TW¥40,100198312-198508

56LITER

sub77100-35481¥40,200

main77100-35481iLN56..TW..(ARL,GEN)¥40,200198508-198604

56LITER

sub77001-35930¥40,200

sub77023-22040¥1,050

sub77203-35230¥2,590

sub93319-14010¥70

main77100-35490iYN60,63..WG198502-198604

56LITER

sub77001-35947¥46,900

sub77023-12050¥920

sub77203-35291¥2,370

sub93319-14010¥70

main77100-35500iLN60,61..ARL¥46,900198502-198604

56LITER

sub77001-35947¥46,900

sub77023-22040¥1,050

sub77203-35300

sub93319-14010¥70

main77100-35510iYN60..SR5¥33,700198403-198502

56LITER

sub77100-35490

main77100-35520iLN60..ARL¥46,900198403-198502

56LITER

sub77100-35500¥46,900

main77100-35530iYN60..SR5198502-198507

65LITER

sub77001-35948

sub77023-12050¥920

sub77203-35311¥2,500

sub93319-14010¥70

main77100-35540iLN60..ARL¥40,100198502-198506

65LITER

sub77100-35560¥40,200

main77100-35550iYN60,63..WG¥46,800198403-198604

65LITER

sub77001-35938¥46,800

sub77023-12050¥920

sub77203-35311¥2,500

sub93319-14010¥70

main77100-35560iLN60..ARL¥40,200198403-198604

65LITER

sub77001-35938¥46,800

sub77023-22040¥1,050

sub77203-35320¥2,940

sub93319-14010¥70

main77100-35671iLN56..TW..EUR¥40,200198508-198604

56LITER

sub77001-35930¥40,200

sub77023-22040¥1,050

sub77203-35230¥2,590

sub93319-14010¥70

main77100-35681iYN65..TW198508-198604

65LITER

sub77001-35936¥46,900

sub77023-12050¥920

sub77203-35350¥2,600

sub93319-14010¥70

main77100-35691iLN65..TW..EUR¥46,900198508-198604

65LITER

sub77001-35936¥46,900

sub77023-22040¥1,050

sub77203-35240¥2,620

sub93319-14010¥70

77100APLUG(FOR FUEL TANK)

main90105-12018iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#¥380198308-199807

77100BGASKET(FOR FUEL TANK)

main90430-12245iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#¥160198308-199807

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77408-35020iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..T1¥2,390198308-199807

L=340

main77408-35030iLN60,61,RN61,YN60,63..WG¥2,260198403-198903

main90445-21883iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW¥1,420198312-199807

L=320

main90445-22013iLN55,56,YN55..T3¥1,000198308-199807

L=270

sub90445-22024¥1,220

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35160iYN57,67..LHD..RCB..GEN..CBU¥7,400198708-199807

PERU SPEC

main77201-35200iLN5#,YN5#..T1..(ARL,EUR,GEN,ME)¥5,200198308-198508

sub77201-35310¥5,200

main77201-35210iLN55,56,YN55..T3¥5,200198308-199807

main77201-35220iLN55,56,65,YN55,57,65..TW¥2,700198312-198508

main77201-35230iLN5#,67,RN58,YN50,51,55,56,57,58..SA¥7,100198308-199807

main77201-35260iLN61¥8,600198403-199807

main77201-35270iRN61¥9,300198508-198903

main77201-35280iYN55,56,57,58..T1..ARL¥6,400198508-198808

main77201-35290iYN57,58,67..TW..ARL198508-198808

main77201-35300iYN67..T1..ARL¥6,600198508-198808

main77201-35310iLN51,56,RN50,55,YN50,52,55,56,57..T1..(EUR,GEN,ME)¥5,200198508-199807

main77201-35320iLN56,65..TW..ARL¥4,030198508-199807

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-35190iYN55,56,57..ARL,EUR,GEN,ME¥2,210198308-198403

sub77203-35191¥2,210

main77203-35191iRN55,58,YN55,56,57,58¥2,210198403-199807

main77203-35200iYN50,52¥2,700198308-198403

sub77203-35330¥2,700

main77203-35210iYN65..TW¥2,610198312-198403

sub77203-35350¥2,600

main77203-35220iLN50,51¥2,690198308-199807

main77203-35230iLN55,56,57¥2,590198308-199807

main77203-35240iLN55,56..SA¥2,620198312-199807

main77203-35250iLN65..RCB..ARL¥2,700198308-198508

TANK CAPACITY=73LITER

main77203-35251iLN65..T1..ARL¥3,140198508-198808

TANK CAPACITY=73LITER

main77203-35260iLN6#..RCB¥4,890198308-198508

TANK CAPACITY=65LITER

main77203-35261iLN65..T1¥5,500198508-199807

TANK CAPACITY=65LITER

main77203-35270iYN6#..T1¥4,400198308-198403

TANK CAPACITY=65LITER

sub77203-35360¥4,400

main77203-35291iYN60,63..WG¥2,370198403-198903

TANK CAPACITY=56LITER

main77203-35300iLN60,61..ARL198403-198903

TANK CAPACITY=56LITER

main77203-35311iYN60,63..WG¥2,500198403-198903

TANK CAPACITY=65LITER

main77203-35320iLN60,61..ARL¥2,940198403-198903

TANK CAPACITY=65LITER

main77203-35330iRN50,YN50,52¥2,700198403-199807

main77203-35350iRN67,YN65,67..TW¥2,600198403-199807

main77203-35360iYN6#..T1¥4,400198403-198508

TANK CAPACITY=65LITER

main77203-35361iYN60,62,65,67..T1¥5,500198508-199807

TANK CAPACITY=65LITER

main77203-35370iYN65..T1..(ARL,SA)¥2,350198308-198508

TANK CAPACITY=73LITER

main77203-35371iRN67,YN67..T1..(ARL,SA)¥3,140198508-199807

TANK CAPACITY=73LITER

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#¥330198308-199807

77213HOSE, FUEL TANK SUB INLET

main77213-35080iYN57..LHD..RCB..GEN¥7,500198708-199807

PERU SPEC

main77213-35090iYN58..4F;YN58..T1..(SR5,STD);LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..T1..(4F,4FC,4H,5F)¥4,020198308-199807

main77213-35100iLN55,56,65,YN55,57,65..TW¥3,850198312-198508

main77213-35120iLN55,56,YN55..T3¥3,450198308-199807

main77213-35140iYN67..LHD..RCB..GEN..CBU¥7,500198708-199807

PERU SPEC

main77213-35150iLN60,65,67,RN67,YN60,62,65,67..T1¥2,330198308-199807

main77213-35160iLN61,YN63¥6,400198403-198903

main77213-35170iRN61¥7,100198712-198903

main77213-35180iLN56,57,65,RN55,58,67,YN55,57,58,65,67..TW¥4,810198508-199807

sub77213-35100¥3,850

77241TUBE, FUEL MAIN, NO.1

main77205-35200iRN61198808-198903

main77251-35230iRN50,YN50,51,52..4F,4H,5F¥3,870198308-199807

main77251-35240iRN55,58,YN55,56,57,58..RCB,XTR¥2,210198308-199807

main77251-35280iYN60,62..RCB¥2,160198308-198605

main77251-35290iRN67,YN65,67..T1¥1,980198308-199807

main77251-35300iLN50,51,60..STD198308-198506

main77251-35301iLN51,60..STD198506-198508

main77251-35302iLN51¥2,840198508-199807

main77251-35330iLN55,56,65¥3,050198308-198506

main77251-35331iLN56,65198506-198508

main77251-35332iLN56,57,65,67¥3,040198508-199807

main77251-35340iRN55,58,YN55,57,58..TW¥2,060198312-199807

main77251-35350iLN61198508-198608

main77251-35351iLN61¥5,800198608-199807

main77251-35370iLN60..ARL198403-198508

main77251-35390iYN60..SR5198403-198508

main77251-35400iRN67,YN65,67..TW¥1,980198312-199807

main77251-35490iYN63..EFI¥3,830198608-198903

main77251-35500iYN63..CBR198508-198903

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main77259-35100iRN55..TW¥3,040198601-199807

L=500

main95332-06030iRN55..RCB¥590198601-198611

L=300(*H,L=260)

sub95333-06030¥580

main95332-06030iRN50¥590198601-198702

L=300(*H,L=240)

sub95333-06030¥580

main95332-06040iYN5#,6#¥760198308-198702

L=400(*H,L=340)

sub95333-06040¥730

main95332-08030iLN5#,6#..RHD¥480198308-198702

L=300(*H,L=260)

sub95333-08030¥660

main95332-08030iLN5#,65..LHD¥480198508-198702

L=300

sub95333-08030¥660

main95332-08040iLN55,56,65..RHD..EUR¥860198308-198702

L=400(*H,L=320),W/FUEL HEATER

sub95333-08040¥840

main95332-08040iLN5#,65..LHD¥860198308-198508

L=400(*H,L=320)

sub95333-08040¥840

main95333-06030iRN50¥580198702-199807

L=300(*H,L=240)

sub95338-06030¥580

main95333-06030iRN55..RCB¥580198611-199807

L=300(*H,L=260)

sub95338-06030¥580

main95333-06040iYN55,57,58,67;RN58,YN50,51,52,56,63..T1,WG¥730198611-199807

L=400(*H,L=340)

main95333-08030iLN51,56,61,65..RHD¥660198702-199807

L=300

main95333-08030iLN51,56,61,65..RHD¥660198702-199807

L=300(*H,L=260)

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main77019-35170iLN57..TW¥6,000199508-199807

sub77019-35100¥6,700

main77259-35040iLN65..TW198308-198506

main77259-35070iLN65..TW198506-198508

main77259-35090iLN56..RCB,XTR¥4,030198508-199807

L=625

sub77259-35150¥2,370

main90445-14120iLN50,51¥2,230198308-198506

main90445-14123iLN65..T1..ARL¥1,290198312-198808

L=690,TANK CAPACITY=73LITER

main90445-14145iLN6#..RCB¥1,660198506-198508

main90445-14146iLN65..RCB..ARL¥1,800198506-198508

L=680,TANK CAPACITY=73LITER

main90445-14149iLN56,65..TW¥1,630198508-199807

L=625

main90445-14153iLN51¥1,830198508-199807

main95332-06020iRN55..RCB¥350198601-198702

L=200(*H,L=180)

sub95333-06020¥480

main95332-06030iRN55,YN55,57..TW¥590198312-198702

L=300(*H,L=240)

sub95333-06030¥580

main95332-06030iRN50,YN50,52,55,56,57..RCB,XTR¥590198308-198702

L=300

sub95333-06030¥580

main95332-06040iYN60,62,65,67..T1¥760198308-198702

L=400(*H,L=380)

sub95333-06040¥730

main95332-06040iYN65,67..RCB..SA¥760198312-198702

L=400,TANK CAPACITY=73LITER

sub95333-06040¥730

main95332-08040iLN60,61..ARL¥860198403-198702

L=400

sub95333-08040¥840

main95332-08080iLN65..T1¥1,360198308-198702

L=1000(*H,L=650)

sub95333-08080¥1,390

main95332-08080iLN51¥1,360198506-198508

L=1000(*H,L=700)

sub95333-08080¥1,390

main95333-06020iRN55..RCB¥480198702-199807

L=200(*H,L=180)

sub95337-06020¥570

main95333-06030iYN63¥580198702-199807

L=300(*H,L=240)

sub95338-06030¥580

main95333-06030iYN67..TW¥580198702-199807

L=300

sub95338-06030¥580

main95333-06040iYN67¥730198702-199807

L=400,*H,L=380

main95333-06040iYN67¥730198702-199807

L=400,TANK CAPACITY,73LITER,L=400

main95333-08040iLN61¥840198702-199807

L=400

sub95337-08040¥520

main95333-08080iLN65..T1¥1,390198702-199807

*H,L=650

sub95333-08100¥2,020

77254TUBE, FUEL EMISSION, NO.1

main77261-35110iYN50,52,60..DLX198401-198408

*SAA

main77261-35120iYN55,57,65..ME198401-198408

*SAA

main77261-35130iYN65..ARL198308-198506

*NSW

main77261-35140iYN55..ARL198308-198506

*NSW

main77261-35141iYN55..ARL198506-198508

*NSW

main77261-35150iYN60..ARL198403-198508

*NSW

main77261-35160iYN60..SR5..ME198403-198408

*SAA

main77261-35170iYN52,60..DLX198408-198506

*SAA

main77261-35180iYN57..ME¥2,540198408-198506

*SAA

main77261-35190iYN52,60..DLX198506-198508

*SAA

main77261-35191iRN50¥2,710198601-199807

main77261-35191iYN52,60¥2,710198508-199807

*SAA

main77261-35200iYN57..ME198506-198508

*SAA

main77261-35201iYN57,67..ME¥2,940198508-199807

*SAA

main77261-35201iRN55¥2,940198601-199807

main77261-35211iYN55,57..ARL198508-198608

main77261-35240iYN65..ARL198506-198508

*NSW

main77261-35261iYN67..ARL198508-198608

*NSW

main77261-35270iYN63..ARL198508-198608

*NSW

main77261-35290iYN67..ARL198608-198808

*NSW

main77261-35300iYN63..ARL198608-198903

*NSW

main77261-35320iYN55,56,57,58..ARL198608-199807

main77261-35340iRN61¥2,520198712-198903

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main77259-35050iRN50,55¥1,010198601-199807

L=380

main90447-12033iYN55..ARL¥1,920198308-198508

L=350,*NSW

main90447-12033iYN55..ARL¥1,920198308-198508

L=350,W/CYCLONE AIR CLEANER

main95332-06030iYN52,57,60..DLX..ME¥590198401-198702

L=300(*H,L=240),*SAA

sub95333-06030¥580

main95332-06030iYN63..ARL..CBR¥590198508-198702

L=300

sub95333-06030¥580

main95332-06040iYN55..ARL¥760198308-198508

L=400(*H,L=340),*NSW,W/CYCLONE AIR CLEANER;*NSW

sub95333-06040¥730

main95332-06040iYN55..ARL¥760198308-198508

L=400(*H,L=340)

sub95333-06040¥730

main95333-06030iYN55,56,57,58,63..ARL¥580198611-198903

L=300

sub95338-06030¥580

main95333-06030iYN57,67..5F..ARL¥580198605-198708

L=300,*NSW

sub95338-06030¥580

main95333-06030iYN52,57,63..ME¥580198611-199807

L=300(*H,L=240),*SAA

sub95338-06030¥580

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main77209-35150iYN60..SR5..ME¥1,830198403-198408

*SAA

main77209-35150iRN61¥1,830198712-198903

main90445-12042iYN57..ME¥990198308-198506

*NSW

sub90445-12170¥930

main90445-12042iYN65..TW..ARL¥990198401-198506

*SAA

sub90445-12170¥930

main90445-12042iYN55..ARL¥990198308-198408

sub90445-12170¥930

main90445-12135iYN50,52..ME198401-198508

*SAA

main90445-12139iYN57..ME¥910198506-198508

*SAA

main90445-12139iYN57..ME¥910198506-198508

*NSW

main90445-12169iYN65..T1..ARL¥1,070198506-198508

L=640,*SAA

main90445-12169iYN60..DLX¥1,070198506-198508

L=640,*NSW

main90445-12170iRN55..RCB¥930198508-199807

main90445-12170iYN57..ME¥930198508-199807

*SAA

main90445-12177iRN55..TW¥890198508-199807

main90445-12179iYN60¥1,080198508-199807

L=645,*SAA

main90445-12179iYN67..T1..ARL¥1,080198508-198808

L=645,*NSW

main90445-12183iRN50¥1,280198601-199807

main90445-12183iYN52¥1,280198508-199807

*SAA

main95332-06030iYN60,63..ARL¥590198403-198702

L=300,*NSW

sub95333-06030¥580

main95332-06080iYN60..DLX¥1,340198408-198506

L=1000(*H,L=800),*SAA

sub95333-06080¥1,330

main95332-06080iYN6#..DLX¥1,340198401-198408

L=1000(*H,L=650),*SAA

sub95333-06080¥1,330

main95332-06080iYN65..T1..ARL¥1,340198308-198506

L=1000(*H,L=650),*NSW

sub95333-06080¥1,330

main95333-06030iYN63..ARL¥580198702-198903

L=300,*NSW

sub95338-06030¥580

77276PROTECTOR, FUEL HOSE

main77276-89101iRN50,55,YN50,52,55,57..RCB..ME198308-199807

main77276-89102iYN60,65,67..RCB..ME198308-199807

main77276-89106iLN55,56,YN55..T3198308-199807

77277TUBE, FUEL RETURN, NO.1

main77255-35160iLN50,51,60..STD198308-198506

main77255-35161iLN51,60..STD198506-198508

main77255-35162iLN51¥2,230198508-199807

main77255-35180iYN50,52,60..RCB198308-198506

main77255-35190iYN55,56,57,65¥2,480198308-198506

main77255-35210iLN55,56,65¥2,560198308-198506

main77255-35211iLN56,65198506-198508

main77255-35212iLN56,57,65,67¥2,500198508-199807

main77255-35230iYN56,65..LHD..EUR..CBU198308-198506

W/HEAD LAMP CLEANER

main77255-35231iYN56,65..LHD..EUR198506-198508

W/HEAD LAMP CLEANER

main77255-35232iYN56,65,67..LHD..EUR198508-199807

W/HEAD LAMP CLEANER

main77255-35260iYN60..SR5198403-198506

main77255-35270iLN60..ARL198403-198508

main77255-35290iYN50,52,60..RCB198506-198508

main77255-35291iRN50,YN50,51,52,60,62..4F,4H,5F¥2,940198508-199807

main77255-35300iYN55,56,57,65198506-198508

main77255-35301iRN58..SR5;RN55,67,YN55,56,57,58,65,67¥3,280198508-199807

main77255-35340iLN61198508-198608

main77255-35341iLN61¥4,510198608-199807

main77255-35360iYN60,63..WG198506-198608

main77255-35361iYN63198608-198903

main77255-35420iRN61¥3,270198712-198903

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main23271-35040iRN61¥1,950198712-198903

*H,L=600

sub23271-35100¥2,120

main90447-12022iRN50,55¥1,610198601-199807

L=300

main90447-12034iLN5#,6#¥1,350198308-198511

sub90447-12069¥1,340

main90447-12069iLN51,56,61,65¥1,340198511-199807

L=340

main95332-06030iYN56,65..LHD..EUR¥590198308-198702

L=300(*H,L=240),W/HEAD LAMP CLEANER

sub95333-06030¥580

main95332-06040iYN50,52,55,56,57,6#¥760198308-198702

L=400

sub95333-06040¥730

main95333-06030iYN56,67..LHD..EUR¥580198702-199807

L=300(*H,L=240),W/HEAD LAMP CLEANER

sub95338-06030¥580

main95333-06040iYN50,52,55,56,57,6#..4F,4FC,4H,5F¥730198702-199807

L=400,L=400

main95333-06040iRN58..SR5¥730199407-199807

L=400

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main90445-12108iLN55,56,YN55,56,57¥1,090198308-198503

L=600(*H,L=590)

sub95332-06060¥1,020

main90445-12134iLN50,51,YN50,52¥1,980198308-198506

sub95332-06080¥1,340

main90445-12140iLN65,YN60,62,65,67..T1¥1,440198308-198808

sub95332-06080¥1,340

main90445-12145iLN60,61,YN60,63..WG¥680198403-199807

sub95333-06040¥730

main90445-12159iLN56,YN55,56,57¥1,540198503-199807

main90445-12165iLN6#,YN6#..T1¥1,070198506-198508

L=480

main90445-12167iLN56,YN55,56,57¥1,000198506-198508

main90445-12168iLN51,YN50,52¥1,160198506-198508

L=710

main90445-12184iLN56,57,65..TW¥1,030198508-199807

sub90445-12185¥1,020

main90445-12185iLN56..RCB,XTR¥1,020198508-199807

L=615

sub95334-06065¥1,020

main90445-12187iRN55..RCB¥1,020198508-199807

sub95333-06060¥1,020

main90445-12188iLN51,RN50,YN50,52¥1,240198508-199807

main95332-06080iLN65,YN67..RCB¥1,340198808-199807

L=1000(*H,L=800)

sub95333-06080¥1,330

77285BCLAMP, FUEL TUBE W/GROMMET, NO.1

main77285-35030iYN52,57,60..(DLX,STD)..ME¥460198401-199807

*SAA

main77285-35030iYN56..LHD¥460198308-198405

W/HEAD LAMP CLEANER

main77285-35030iYN60..SR5¥460198403-199807

main77285-35030iYN55,56..ARL¥460198308-198903

*NSW

main77285-35040iLN60,61..ARL¥510198308-199807

main77285-35050iYN60..ARL¥510198408-198508

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77285-35050iRN55,58,67,YN55,56,57,58,65..RCB,XTR¥510198308-199807

main77285-35060iLN55,56,65..RCB,XTR¥510198308-199807

main77285-35070iRN55,58,67,YN55,57,58,65,67..TW¥450198312-199807

main77285-35080iLN55,56,57,65..TW¥450198312-199807

main77285-35100iYN60..SR5198403-198408

main77285-35101iRN61,YN60,63..WG198408-198903

main77285-35110iLN60..ARL198403-198408

main77285-35111iLN60,61..ARL¥510198408-198903

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-89103iYN58..4F;YN58..T1..(SR5,STD)..CBU;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..T1..(4F,4FC,4H,5F)..CBU¥1,200198308-199807

main77305-89104iLN60,65,67,YN60,62,65,67..T1..CBU¥1,200198308-199807

main77305-89106iLN60,61,RN61,YN60,63..WG¥1,740198403-198903

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003iLN50,51,55,56,60,65,RN5#,67,YN5#,60,62,65,67..T1..CBU¥90198308-199807

77322KNOB, FUEL TANK CAP

main77319-89101iLN60,61,YN57,60,63,65,67..SR5..ARL¥440198308-198903

77338ABRACKET, FUEL TANK CAP LOCK CONTROL ROD

main77338-89101iYN50,52,55,57,60,63,65..LHD..(T1,WG)..(GEN,ME)..CBU¥740198308-199807

main77338-89102iLN5#,65,RN5#,YN62,67..LHD..T1..(GEN,ME)..CBU¥620198308-199201

main77338-89103iLN6#,YN57,58,6#..(DLX,SR5)..ARL¥640198309-198903

main77338-89103iLN56..SR5¥640198708-199807

THAILAND SPEC

main77338-89104iRN61¥790198712-198903

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iLN60,61,RN61,YN60,63..WG¥260198403-198903

main77366-89103iLN65,YN57,58,65,67..SR5..ARL¥350198308-199201

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77108-35020iLN61,YN63198508-198608

TANK CAPACITY=56LITER

main77108-35030iLN61,RN61,YN63¥12,900198508-198903

TANK CAPACITY=65LITER

main77161-35050iYN58..4F;YN58..T1..(SR5,STD);LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..(RCB,XTR)..(4F,4FC,4H,5F)¥1,960198308-199807

sub77161-35051¥2,970

main77161-35060iLN60,YN60..SR5¥12,900198403-198508

TANK CAPACITY=56LITER

sub77108-35020

main77161-35070iLN60,65,YN60,62,65,67..(DLX,STD)..(EUR,GEN,ME)¥2,390198308-199807

L=318

main77161-35080iLN65,RN67,YN65,67..ARL,SA¥9,800198308-199807

LARGE TYPE,L=952

main77161-35080iLN65,RN67,YN65,67..ARL,SA¥9,800198308-199807

L=952

main77161-35090iLN55,56,57,RN55,58,YN55,57,58..TW¥1,960198312-199807

main77161-35100iLN60,YN60..SR5¥12,700198403-198508

TANK CAPACITY=65LITER

sub77108-35030¥12,900

77740CANISTER ASSY, CHARCOAL

main77704-35100iYN52,57,60..(DLX,STD)..ME¥8,500198401-199807

*SAA

main77704-35100iYN55..ARL¥8,500198308-198508

*NSW

main77704-35160iYN57,63,67..5F..ARL198508-198903

main77740-35160iRN50,55¥10,100198601-199807

main77740-35210iYN57,63,67..5F..ARL198508-198903

*NSW

main77740-35210iYN55,57..(4FC,4H)..ARL198508-198808

main77740-35240iRN61¥12,800198712-198903

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main90447-08026iRN61¥1,760198808-198903

L=950

main90999-92003iRN50,55¥520198803-199807

L=600

main90999-92003iYN6#..ARL..CBR¥520198803-198903

L=600,*NSW

main90999-92004iYN52,57..ME¥890198803-199807

L=950,*SAA

main90999-92004iYN6#..ARL..CBR¥890198803-198903

L=950

main95411-10660iYN55..ARL¥910198308-198404

*H,L=570

sub90999-92003¥520

main95411-10660iYN55..ARL¥910198308-198404

*NSW,*H,L=570

sub90999-92003¥520

main95411-10660iYN55..ARL¥910198404-198508

*H,L=510

sub90999-92003¥520

main95411-10660iYN55..ARL¥910198404-198508

*NSW,*H,L=510

sub90999-92003¥520

main95411-10695iYN52,57,60..(DLX,STD)..ME¥610198401-198803

*H,L=750,MARK=#6,*SAA

sub90999-92004¥890

main95411-10695iYN57,63,67..5F..ARL¥610198508-198803

*H,L=750,MARK=#6

sub90999-92004¥890

main95411-19960iRN5#¥910198601-198803

*H,L=390,MARK=#*

sub90999-92003¥520

main95411-19960iYN55,57..(4FC,4H)..ARL¥910198508-198708

*H,L=360,MARK=#*

sub90999-92003¥520

main95411-19960iYN57,63,67..5F..ARL¥910198508-198803

*H,L=360,MARK=#*,*NSW

sub90999-92003¥520

main95411-19995iRN61¥1,540198712-198808

*H,L=950,MARK=#*

sub90999-92004¥890

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main77754-35130iRN5#198601-198712

main77754-35131iRN50,55¥410198712-199807

L=320

main77754-35150iYN52,57,60..(DLX,STD)..ME198401-198712

L=500,*SAA

main77754-35151iYN52,57..ME¥550198712-199807

L=530,*SAA

main77754-35160iYN57,6#..ARL198308-198508

*NSW

main77754-35160iYN57,63,67..5F..ARL198508-198903

main77754-35180iRN61¥750198712-198903

77750CANISTER ASSY, CHARCOAL

main77740-35170iYN52,57,60..ME¥10,000198508-199807

*SAA

main77740-35170iRN50,55¥10,000198601-199807

main77740-35220iYN55,57..(4FC,4H)..ARL¥16,200198508-198808

main77740-35220iYN57,63,67..5F..ARL¥16,200198508-198903

*NSW

77750AHOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)

main23829-35021iRN50,55¥2,260198601-199807

main90999-92003iYN6#..ARL..CBR¥520198803-198903

L=600,*NSW

main90999-92004iYN52,57..ME¥890198803-199807

L=950

main95411-10395iYN52,57,60..ME¥1,530198508-198803

*SAA,*H,L=850

sub90999-92004¥890

main95411-19960iYN57,63,67..5F..ARL¥910198508-198803

*H,L=540,MARK=#*,*NSW

sub90999-92003¥520

main95411-19960iYN55,57..(4FC,4H)..ARL¥910198508-198708

*H,L=540,MARK=#*

sub90999-92003¥520

77750BHOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)

main90445-14090iYN52,57,60..ME¥920198508-199807

L=320,*SAA

main90447-14039iYN55,57..(4FC,4H)..ARL¥1,650198508-199807

L=420

main90447-14039iYN57,63,67..5F..ARL¥1,650198508-198903

L=420,*NSW

main90999-92003iRN50,55¥520198803-199807

L=600

main95411-19960iRN5#¥910198601-198803

*H,L=420,MARK=#*

sub90999-92003¥520

77750CHOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER)

main77754-35140iRN50,55¥330198601-199807

L=160

main77754-35140iYN52,57,60..ME¥330198508-199807

L=160,*SAA

9015960032

main90159-60032¥120

9015960221

main90159-60221¥120

9017008194

main90170-08194¥130

9017011006

main90170-11006¥80

9017908146

main90179-08146¥180

9017910033

main90179-10033¥130

9041304009

main90413-04009¥640

9046022001

main90460-22001¥240

9046065004

main90460-65004¥400

9046110186

main90461-10186¥670

9046112284

main90461-12284¥470

9046312002

main90463-12002¥140

9046315003

main90463-15003¥160

9046400108

main90464-00108¥190

9046400141

main90464-00141¥200

9046400232

main90464-00232¥70

9046713007

main90467-13007¥180

9048018492

main90480-18492¥320

9161640816

main91616-40816¥140

9161640820

main91616-40820¥160

9163140616

main91631-40616¥170

9165160825

main91651-60825¥140

9165540618

main91655-40618¥120

9165640816

main91656-40816¥140

9165660618

main91656-60618¥140

9165660825

main91656-60825¥220

9331914010

main93319-14010¥70

9338515010

main93385-15010¥70

9351055010

main93510-55010¥120

9356755016

main93567-55016¥110

9613230600

main96132-30600¥200

70 parts on this diagram · 14 diagrams in section
