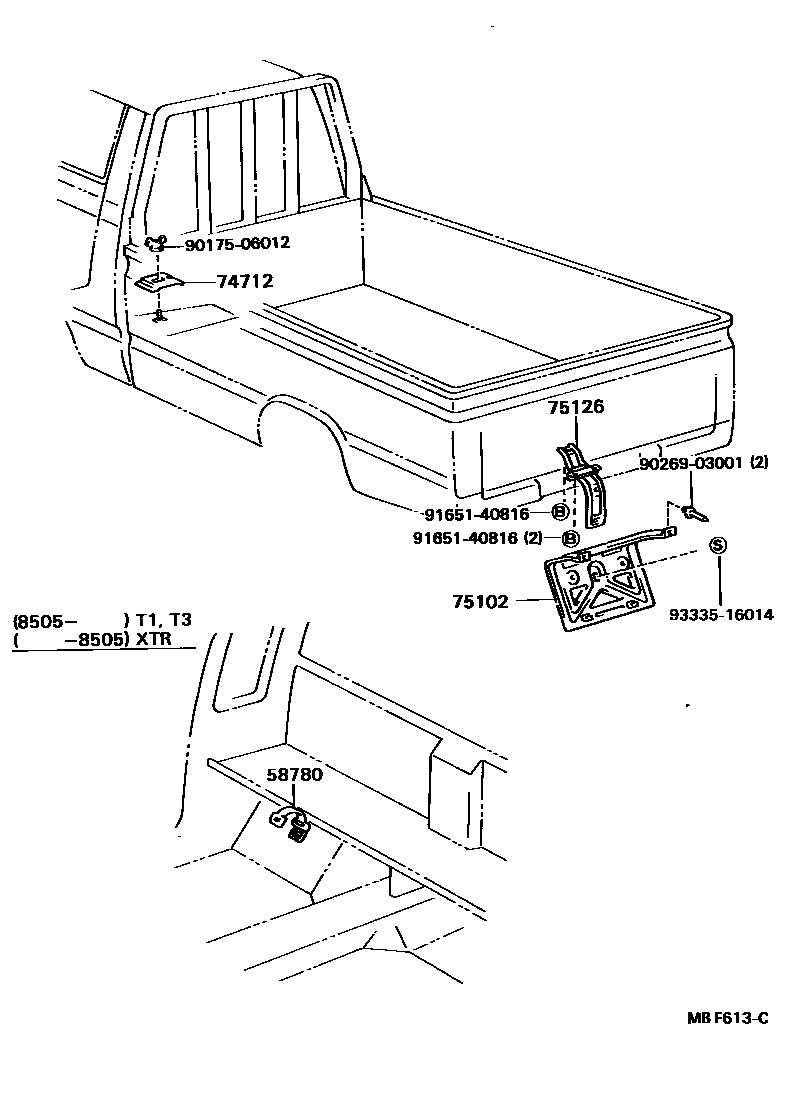

TOOL BOX & LICENSE PLATE BRACKET

58780BAND ASSY, TOOL BOX

main58780-89101iLN56,YN57,65..XTR198408-199807

74712HANGER, JACK HOLDER

main74714-89102iLN5#,6#,YN5#,6#..T1,T3,TW198308-199807

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-89116iLN55,56,YN55..T3198308-199807

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-89101iLN55,56,YN55..T3198308-199807

9017506012

main90175-06012

9026903001

main90269-03001

9165140816

main91651-40816

9333516014

main93335-16014

8 parts on this diagram · 1 diagram in section
