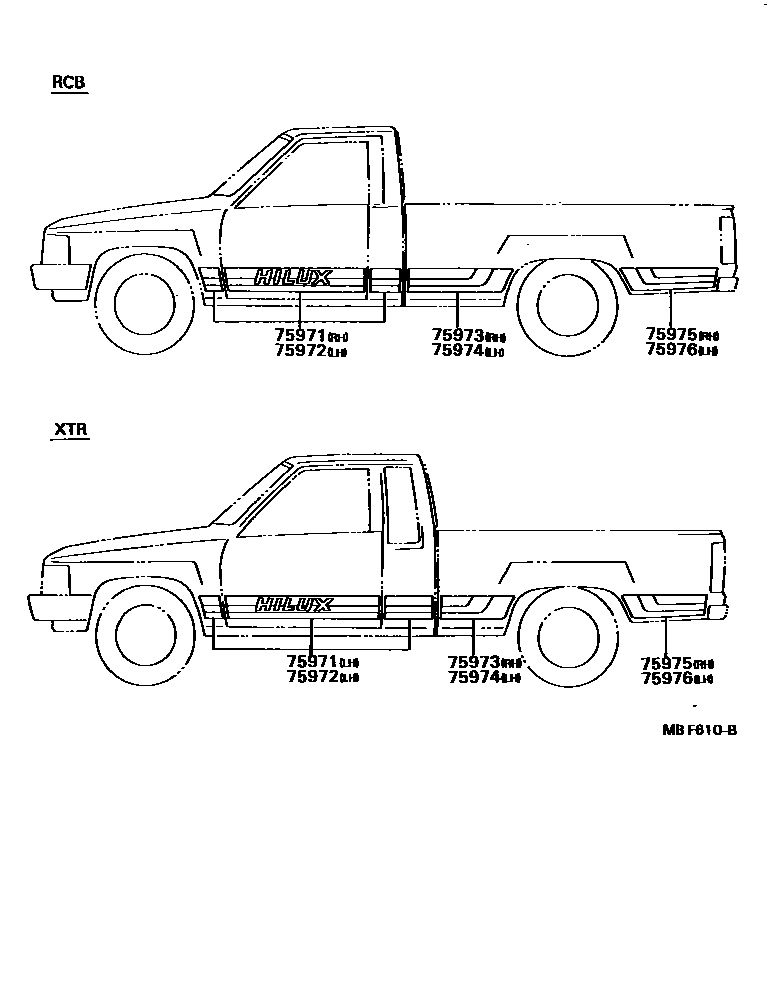

BODY STRIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0013 1 0014 1

75971STRIPE, SIDE, RH NO.1

main75981-89113iRN5#,YN50,52,55,57..ME198508-198608

main75981-89114iRN5#,YN52,57..RCB..ME198608-198708

main75981-89115iRN50,55,YN52,57..ME198708-199807

main75985-89119iYN50,52,55,57..RCB..ME198308-198408

main75985-89120iLN5#,YN50,55,56,57..T1..RCB..(ARL,EUR,GEN,SA)..CBU198308-198608

main75985-89121iLN55,56,YN57..XTR198309-198608

main75985-89122iLN60,65,YN60,62,65,67..RCB..CBU198308-198608

main75985-89123iYN65,67..SR5198309-198608

main75985-89124iYN55..TW..ME198312-198408

main75985-89125iLN55,56,YN55,57..TW..STD198312-198608

main75985-89126iLN65,YN65,67..TW198312-198608

main75985-89127-02iLN60,61,YN60,63..WG198403-198608

RED & ORANGE,RED/ORANGE

main75985-89127-04iLN60,61,YN60,63..WG198403-198608

BLUE & LIGHT BLUE,BLUE

main75985-89133iLN65,YN67..XTR198608-199807

main75985-89135iLN65,67,YN67..RCB..CBU198608-199807

main75985-89136iLN65,RN67,YN67..TW..CBU198608-199807

main75985-89138iLN56,YN56,57,58..XTR..CBU198608-199807

main75985-89140iYN55..T1..GEN..CBU198608-199807

main75985-89142iLN56,YN55,57,58..TW..(ARL,EUR,GEN)..CBU198608-199807

main75985-89191-02iLN61,RN61,YN63198608-198903

RED & ORANGE,RED/GOLD

main75985-89191-04iLN61,RN61,YN63198608-198903

BLUE & LIGHT BLUE,BLUE/GOLD

75972STRIPE, SIDE, LH NO.1

main75982-89112iRN5#,YN50,52,55,57..ME198508-198608

main75982-89113iRN55,YN57..TW..ME198608-198708

main75982-89114iRN50,55,YN52,57..ME198708-199807

main75986-89119iYN50,52,55,57..RCB..ME198308-198408

main75986-89120iLN50,55,56,YN50,55,56,57..T1..RCB..(ARL,EUR,GEN,SA)..CBU198308-198608

main75986-89121iLN55,56,YN57..XTR198309-198608

main75986-89122iLN60,65,YN60,62,65,67..RCB..CBU198308-198608

main75986-89123iYN65,67..SR5198309-198608

main75986-89124iYN55..TW..ME198312-198408

main75986-89125iLN55,56,YN55,57..TW..STD198312-198608

main75986-89126iLN65,YN65,67..TW198312-198608

main75986-89127-02iLN60,61,YN60,63..WG198403-198608

RED & ORANGE,RED/ORANGE

main75986-89127-04iLN60,61,YN60,63..WG198403-198608

BLUE & LIGHT BLUE,BLUE

main75986-89132iLN65,YN67..XTR198608-199807

main75986-89134iLN65,67,YN67..RCB..CBU198608-199807

main75986-89135iLN65,RN67,YN67..TW..CBU198608-199807

main75986-89137iLN56,YN56,57,58..XTR..CBU198608-199807

main75986-89139iYN55..T1..GEN..CBU198608-199807

main75986-89141iLN56,YN55,57,58..TW..(ARL,EUR,GEN)..CBU198608-199807

main75986-89189-02iLN61,RN61,YN63198608-198903

RED & ORANGE,RED/GOLD

main75986-89189-04iLN61,RN61,YN63198608-198903

BLUE & LIGHT BLUE,BLUE/GOLD

75973STRIPE, SIDE, RH NO.2

main75985-89132iRN5#,YN50,52,55,57..ME198508-198608

main75985-89141iRN55,YN57..TW..ME198608-198708

main75985-89149iRN50,55,YN52,57..T1198708-199807

W/SIDE MOULDING

main75985-89150iRN55,YN57..TW..ME198708-199807

W/SIDE MOULDING

main75985-89151iRN55,YN57..TW..STD..ME198708-199807

main75985-89159iRN50..STD198708-199807

main75987-89102iLN65,RN67,YN67..TW..CBU198608-199807

main75988-89110iYN55,57..RCB..ME198308-198408

main75988-89111iYN50,52..ME198308-198408

main75988-89112iLN55,56,YN55,56,57..T1..RCB..(ARL,EUR,GEN,SA)..CBU198308-198608

main75988-89113iLN51,YN50..STD..CBU198308-198608

main75988-89114iLN65,YN65,67..RCB..CBU198308-198608

main75988-89115iYN65,67..SR5198308-198608

main75988-89116-02iLN60,61,YN60,63..WG198403-198608

RED & ORANGE,RED/ORANGE

main75988-89116-04iLN60,61,YN60,63..WG198403-198608

BLUE & LIGHT BLUE,BLUE

main75988-89117iLN65,YN67..XTR198608-199807

main75988-89119iLN65,67,YN67..RCB..CBU198608-199807

main75991-89102iYN55..TW..ME198312-198408

main75991-89103iLN65,YN65,67..TW198312-198608

main75996-89142iYN55,57..RCB..ME198408-198508

main75996-89143iYN50,52..ME198408-198508

main75996-89144iYN55,57..TW..ME198408-198508

main75996-89150iLN51,YN50,51..4F,4H,5F198608-199807

main75996-89151iYN55..T1..GEN..CBU198608-199807

main75996-89154iLN56,YN55,57,58..TW..(ARL,EUR,GEN)..CBU198608-199807

main75996-89161-02iLN61,RN61,YN63198608-198903

RED & ORANGE,RED/GOLD

main75996-89161-04iLN61,RN61,YN63198608-198903

BLUE & LIGHT BLUE,BLUE/GOLD

main75998-89115iLN55,56,YN55,57..TW..STD198312-198608

75974STRIPE, CENTER PILLAR, LH NO.2

main75986-89131iRN5#,YN50,52,55,57..ME198508-198608

main75986-89140iRN55,YN57..TW..ME198608-198708

main75986-89147iRN50,55,YN52,57..T1198708-199807

W/SIDE MOULDING

main75986-89148iRN55,YN57..TW..ME198708-199807

W/SIDE MOULDING

main75986-89149iRN55,YN57..TW..STD..ME198708-199807

main75986-89157iRN55..STD198708-199807

main75988-89120iLN65,RN67,YN67..TW..CBU198608-199807

main75989-89110iYN55,57..RCB..ME198308-198408

main75989-89111iYN50,52..ME198308-198408

main75989-89112iLN55,56,YN55,56,57..T1..RCB..(ARL,EUR,GEN,SA)..CBU198308-198608

main75989-89113iLN50,YN50..STD..CBU198308-198608

main75989-89114iLN65,YN65,67..RCB..CBU198308-198608

main75989-89115iLN60,YN60,62..RCB198308-198608

main75989-89116-02iLN60,61,YN60,63..WG198403-198608

RED & ORANGE,RED/ORANGE

main75989-89116-04iLN60,61,YN60,63..WG198403-198608

BLUE & LIGHT BLUE,BLUE

main75989-89117iLN65,YN67..XTR198608-199807

main75989-89119iLN65,67,YN67..RCB..CBU198608-199807

main75992-89102iYN55..TW..ME198312-198408

main75992-89103iLN65,YN65,67..TW198312-198608

main75997-89135iYN55,57..RCB..ME198408-198508

main75997-89136iYN50,52..ME198408-198508

main75997-89137iYN55,57..TW..ME198408-198508

main75997-89142iLN51,YN50,51..4F,4H,5F198608-199807

main75997-89143iLN56,YN55,56,57,58..T1..RCB..(ARL,EUR,GEN,SA)..CBU198608-199807

main75997-89146iLN56,YN55,57,58..TW..(ARL,EUR,GEN)..CBU198608-199807

main75997-89151-02iLN61,RN61,YN63198608-198903

RED & ORANGE,RED/GOLD

main75997-89151-04iLN61,RN61,YN63198608-198903

BLUE & LIGHT BLUE,BLUE/GOLD

main75999-89115iLN55,56,YN55,57..TW..STD198312-198608

75975STRIPE, SIDE, RH UPR NO.3

main75995-89116iYN50,52,55,57..RCB..ME198308-198408

main75995-89117iLN60,65,YN60,62,65,67..T1..CBU198308-198608

main75996-89139iYN55..TW..ME198312-198408

main75996-89140iLN65,YN65,67..TW198312-198608

main75996-89141-02iLN60,61,YN60,63..WG198403-198608

RED & ORANGE,RED/ORANGE

main75996-89141-04iLN60,61,YN60,63..WG198403-198608

BLUE & LIGHT BLUE,BLUE

main75996-89145iYN52,57..ME198408-198508

main75996-89146iRN55,YN55,57..RCB..ME198508-198608

main75996-89147iRN50,YN50,52..ME198508-198608

main75996-89148iRN55,YN55,57..TW..ME198508-198608

main75996-89152iRN50,YN52198608-198708

main75996-89153iRN55,YN57..RCB..ME198608-198708

main75996-89155iRN55,YN57..TW..ME198608-198708

main75996-89164iRN55,YN57..TW..ME198708-199807

main75998-89115iLN55,56,YN55,56,57..T1..RCB..(ARL,EUR,GEN,SA)..CBU198308-198608

main75998-89116iLN51,YN50..STD..CBU198308-198608

main75998-89121iLN65,YN67..XTR198608-199807

main75998-89122iLN65,YN67..RCB..CBU198608-199807

main75998-89123iRN50,YN52198708-199807

main75998-89124iRN55,YN57..RCB..ME198708-199807

75976STRIPE, SIDE, LH UPR

main75995-89116iYN50,52,55,57..RCB..ME198308-198408

main75995-89117iLN60,65,YN60,62,65,67..T1..CBU198308-198608

main75997-89132iYN55..TW..ME198312-198408

main75997-89133iLN65,YN65,67..TW198312-198608

main75997-89134-02iLN60,61,YN60,63..WG198403-198608

RED & ORANGE,RED/ORANGE

main75997-89134-04iLN60,61,YN60,63..WG198403-198608

BLUE & LIGHT BLUE,BLUE

main75997-89138iYN52,57..ME198408-198508

main75997-89139iRN55,YN55,57..RCB..ME198508-198608

main75997-89140iRN50,YN50,52..ME198508-198608

main75997-89141iRN55,YN55,57..TW..ME198508-198608

main75997-89144iRN50,YN52198608-198708

main75997-89145iRN55,YN57..RCB..ME198608-198708

main75997-89147iRN55,YN57..TW..ME198608-198708

main75997-89153iRN55,YN57..TW..ME198708-199807

main75999-89115iLN55,56,YN55,56,57..T1..RCB..(ARL,EUR,GEN,SA)..CBU198308-198608

main75999-89116iLN51,YN50..STD..CBU198308-198608

main75999-89121iLN65,YN67..XTR198608-199807

main75999-89122iLN65,RN67,YN67..TW..CBU198608-199807

main75999-89123iRN50,YN52198708-199807

main75999-89124iRN55,YN57..RCB..ME198708-199807

6 parts on this diagram · 12 diagrams in section
